2025 McHale 691 Round Bale Handler

Videos
Call for Price
Overview

691 Round Bale Handler

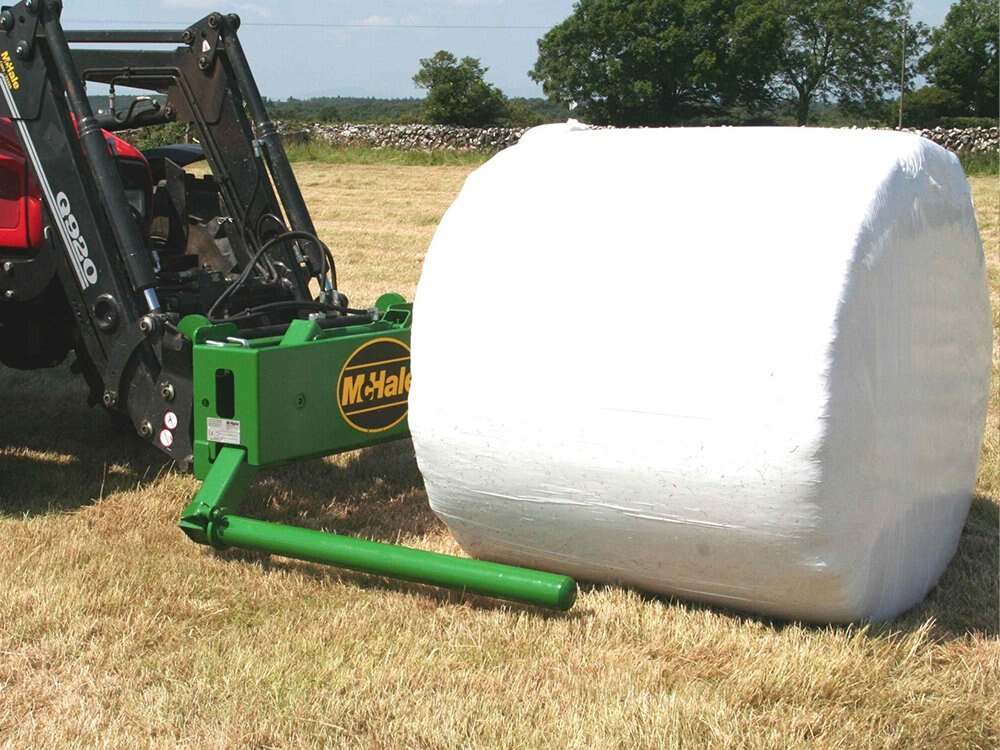

Simplicity, versatility and strength are the main features of the McHale 691 round bale handler. When the 691 round bale handler is transporting wrapped bales, two adjustable rollers powered by a double-acting hydraulic ram, close to cradle and carry the wrapped or unwrapped round bale securely and safely.

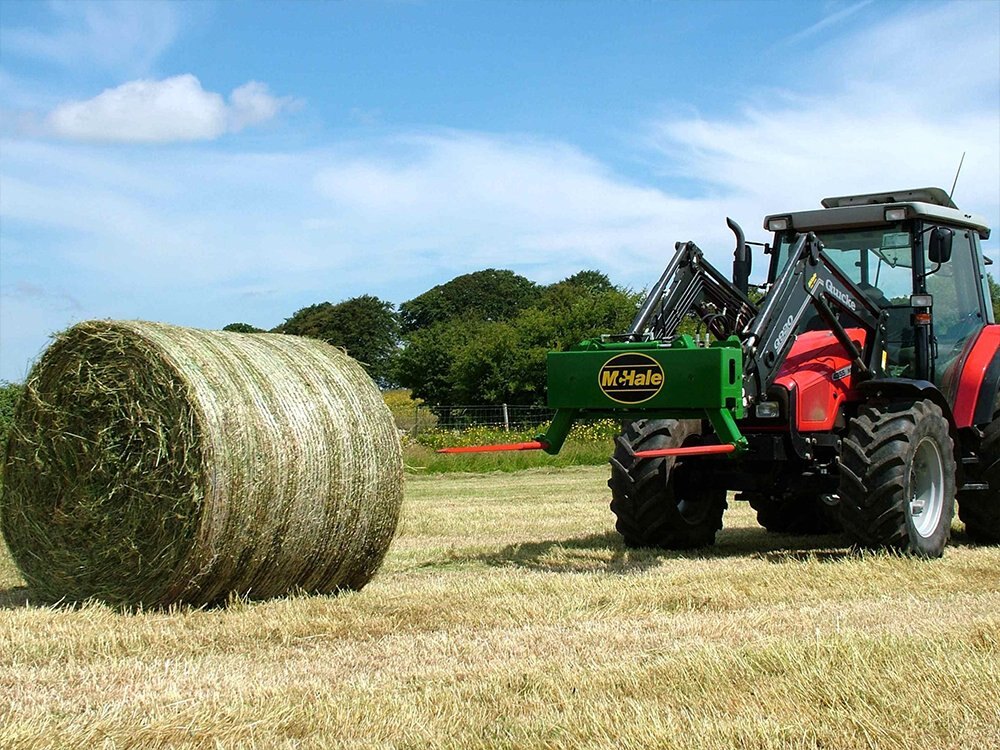

The McHale 691 round bale handler is a heavy duty handler with rotating rollers that have tine reinforcement. It can be used to carry one bale of silage or spike two bales of hay or straw.

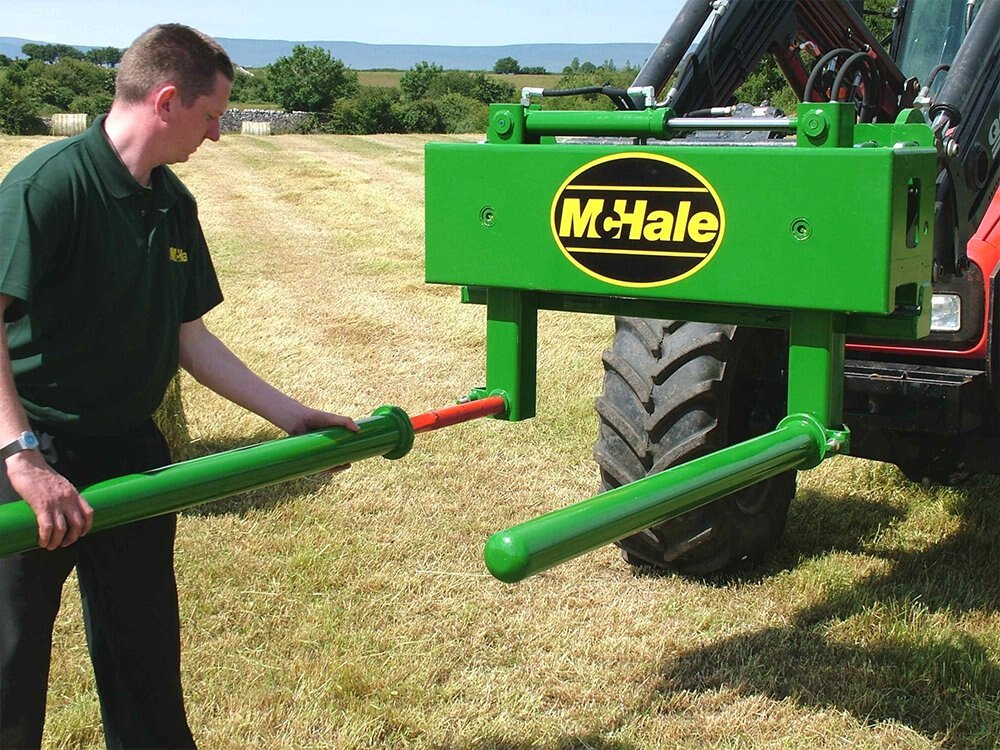

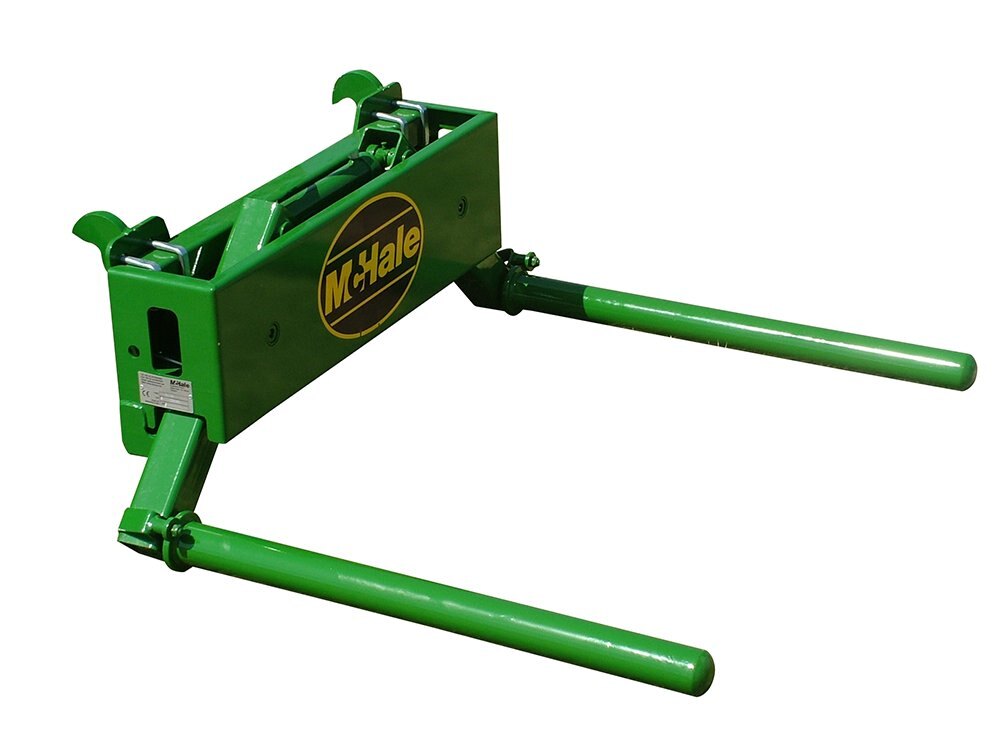

On the 691 , the rotating rollers can be removed, transforming it into a spike type round bale handler capable of transporting two unwrapped bales of silage, hay, straw or lucerne at the one time. With its rugged, high-quality construction and large lifting capacity the McHale 691 round bale handler is the logical choice for you.

691 – Round Bale Handler

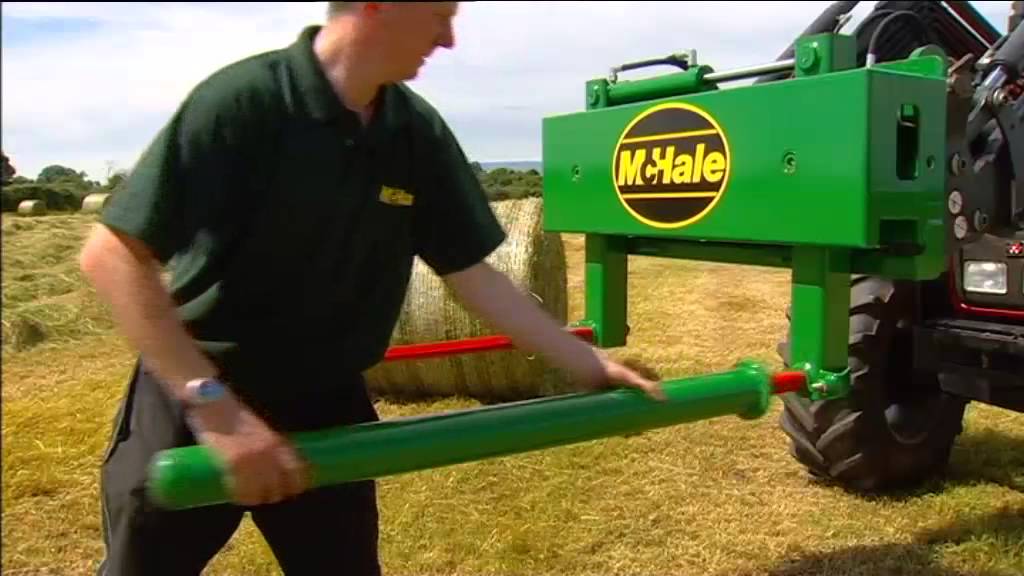

Watch the video for the McHale 691 round bale handler, a heavy duty handler with high-quality construction, large lifting capacity and rotating rollers that have tine reinforcement. It can be used to carry one bale of silage or spike two bales of hay or straw.

Specifications
Model
Round Bale Handler
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
McHale
technical specification
Weight 160 kg / 352 lbs
Height 0.65 m / 2’0”
Length  (overall) 1.42 m / 4’7”
Length of Arms 1.19 m / 4’0”
Max width  (fully open) 1.63 m / 5’4”
Open Distance between the Arms 1.37 m / 4’5” (Open)
Closed Distance between the Arms 0.73 m / 2’4  (Closed)
Lifting Capacity 1100 kg / 2425 lbs
Hydraulic Requirements One Double Acting Service
Check Valve & Pipes Standard
Minimum Hydraulic Pressure 150 bar/ 2250 Ibs/sq.in
