2025 McHale C490 Trailed Silage Feeder and Straw Blower
Call for Price
Overview
Specifications
standard features
dimensions & weight
bale chamber
conveyor
rotor / chopping unit
tractor
control
literature
Videos
Documents

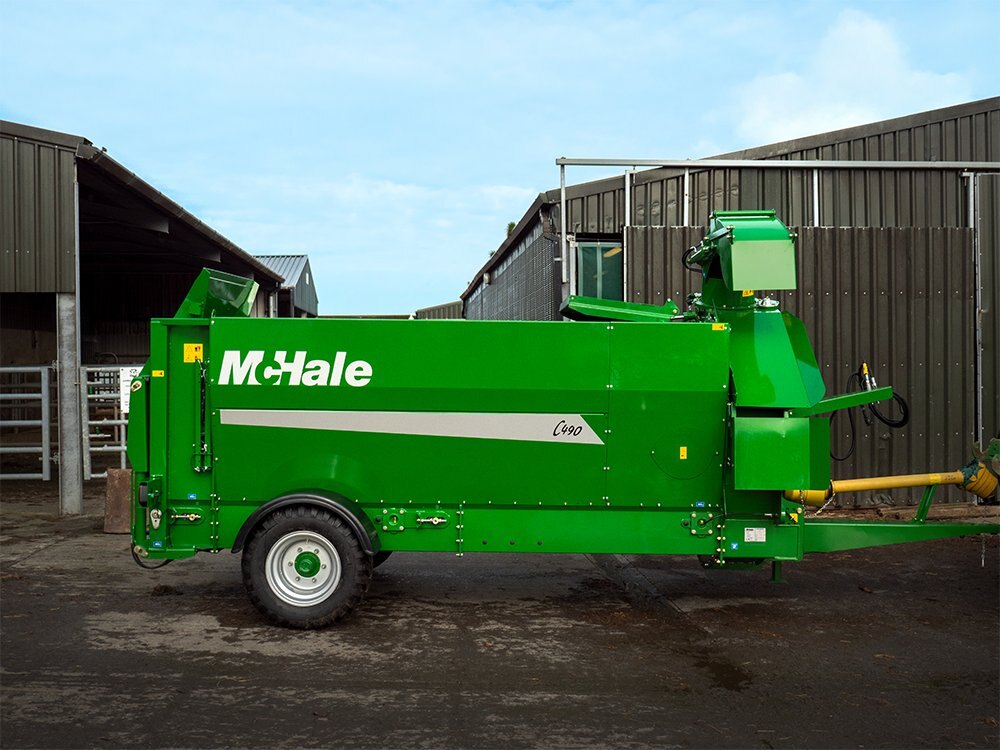

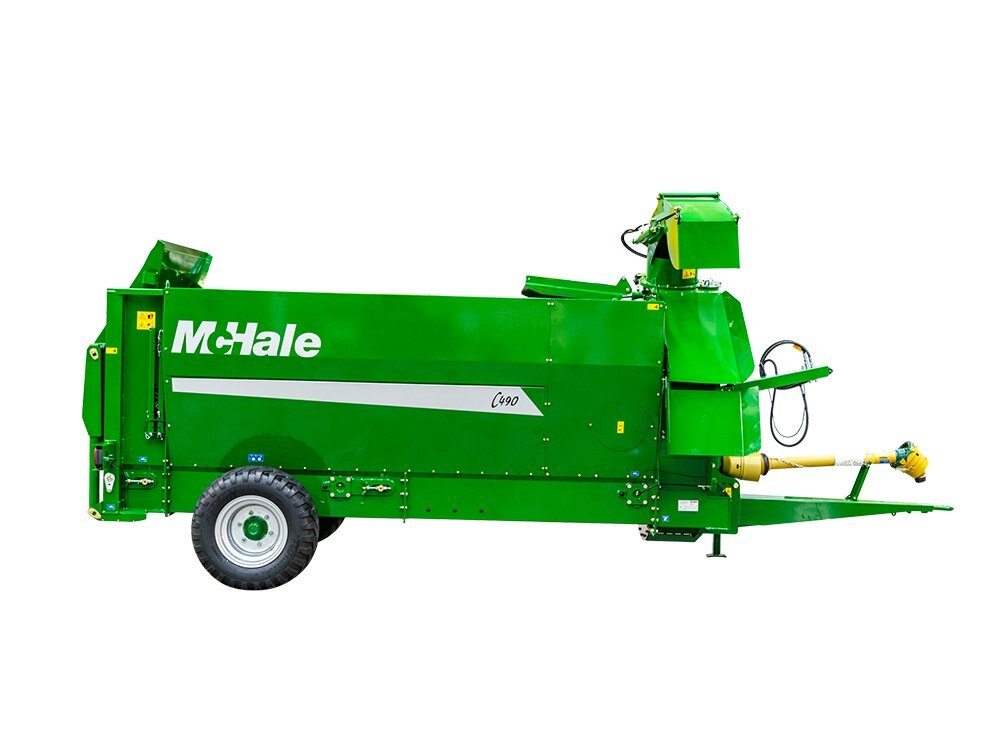

C490 Trailed Silage Feeder and Straw BlowerThe McHale C490 Trailed Silage Feeder and Straw Blower has a higher capacity to carry and blow or feed out three 5ft round bales of hay, straw, silage or haylage |
| The extra capacity of the McHale C490 allows farmers to increase their output when bedding or feeding, especially if they may be using the machine on another farm which is some distance away from the main farm. The McHale C490 is available with an optional linkage drawbar which allows the machine greater access to tight sheds with narrow entrances. |
Twin Speed GearboxA key feature on the C4 range is its twin speed independent gearbox, which allows the operator to easily adjust from 280 rpm for feeding silage or hay up to 540 rpm for using the machine to distribute straw for bedding. |
FeedingThe McHale C4 range of machines are ideal machines for feeding silage and hay, the twin speed gearbox allows silage and hay to be distributed exactly where it is desired. The speed of the conveyor is proportionally controlled allowing the operator to adjust feeding speed depending on the material density and composition. |

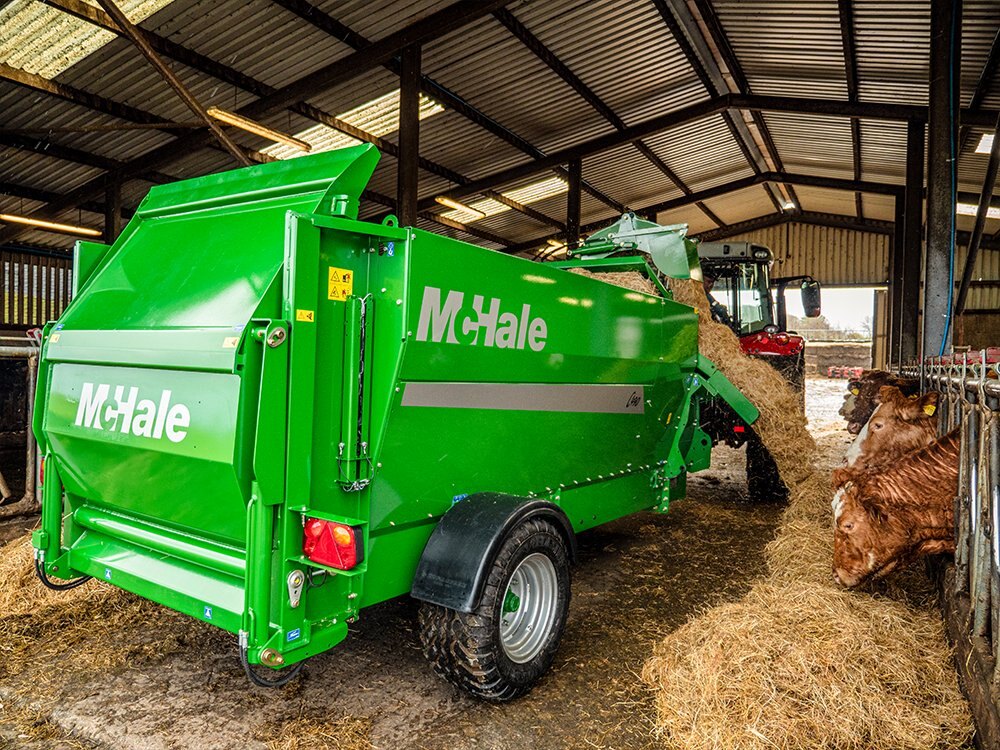

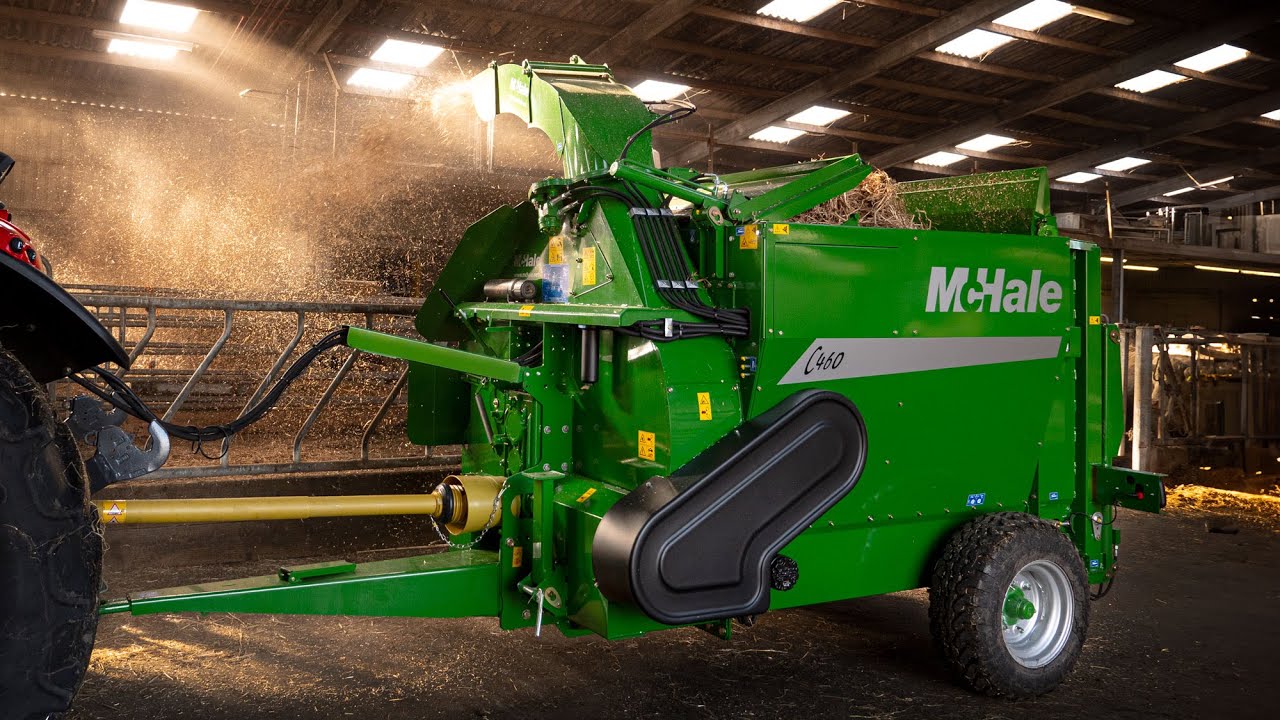

BeddingThe McHale C4 range of machines can be used to distribute bedding material quickly and efficiently leaving a thick aerated bed of straw. In difficult to access bedding areas, the chute on the McHale C4 range can pass through 300 degrees for ease of bedding. Straw can be blown up to 18m. |
McHale C490Watch the video for the McHale C490; a trailed machine with a higher capacity to carry and blow or feed out three 5ft round bales of hay, straw, silage or haylage. |
Model
Silage Feeder and Straw Blower
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
McHale
Standard Features
| Twin Speed Gearbox for Different Crops | 300° 3 Stage Feed Chute | Joystick Chute Control |

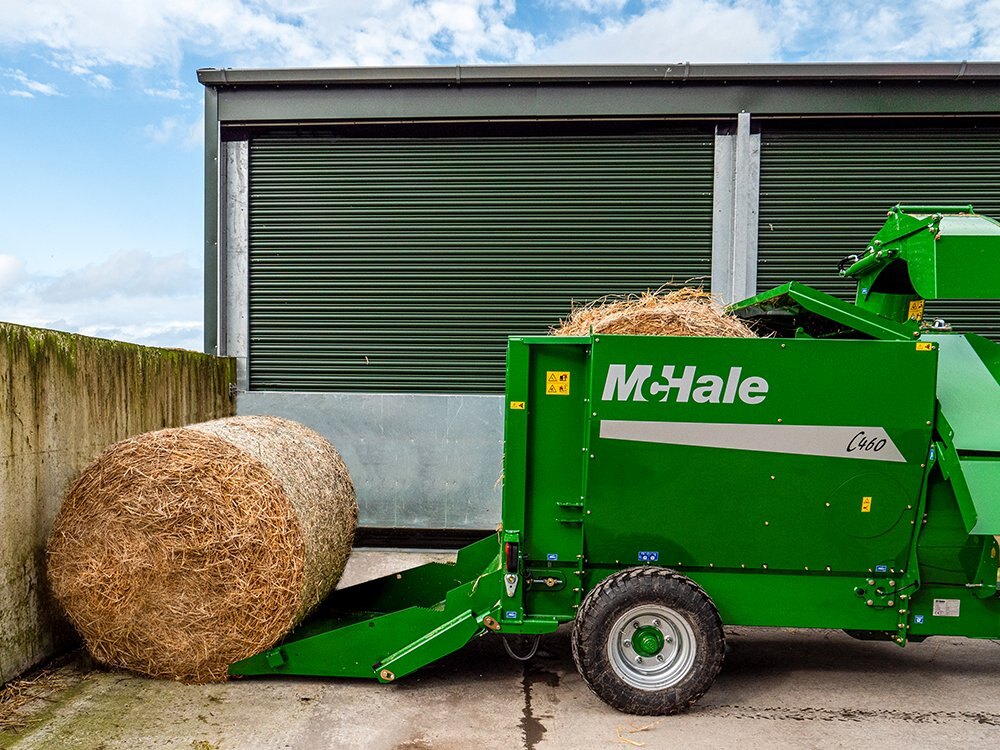

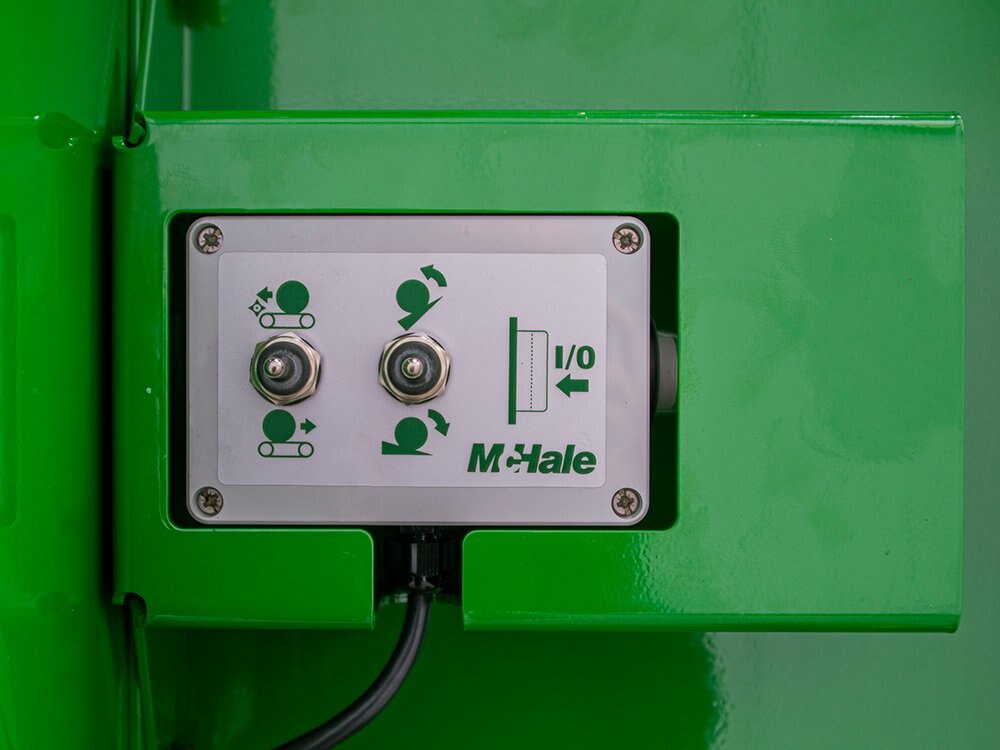

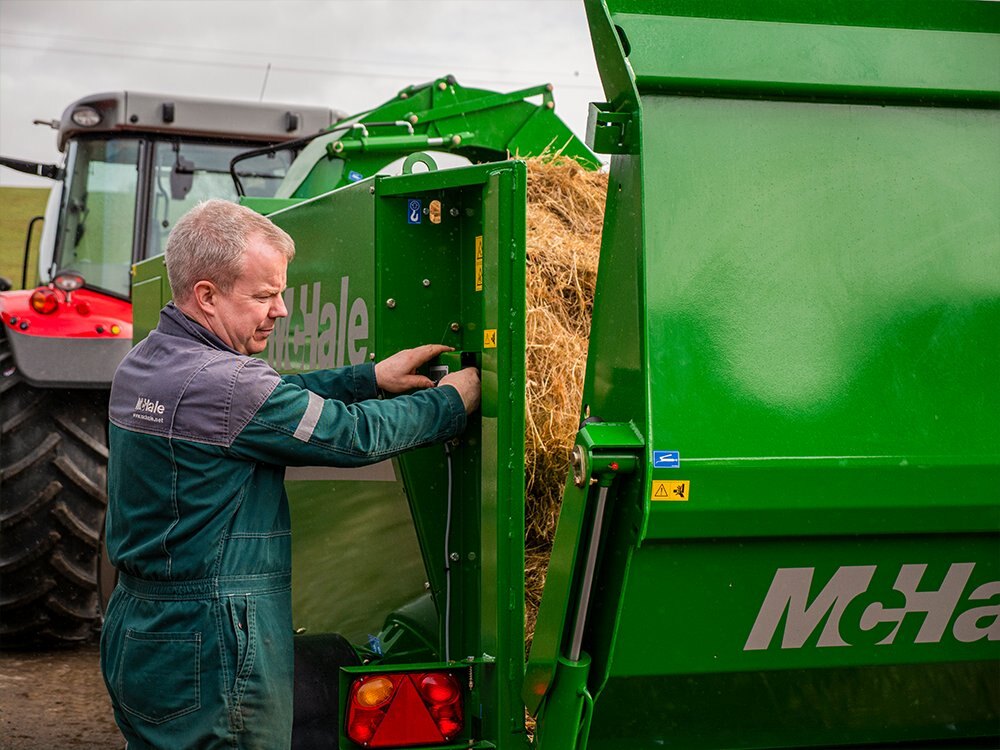

| External Loading Controls | Independent Rotor Drive with Hydraulic Activation | Clever Machine Body Design |
Dimensions & Weight
| Unladen Weight | 2,899 Kg (6391 lbs) |
|
Length
(Door Open) |
7.29m (287″) |
|
Length
(Door Closed) |
5.96m (235″) |
| Width | 2.24m (88″) |
| Body Height | 2.6m (102″) |

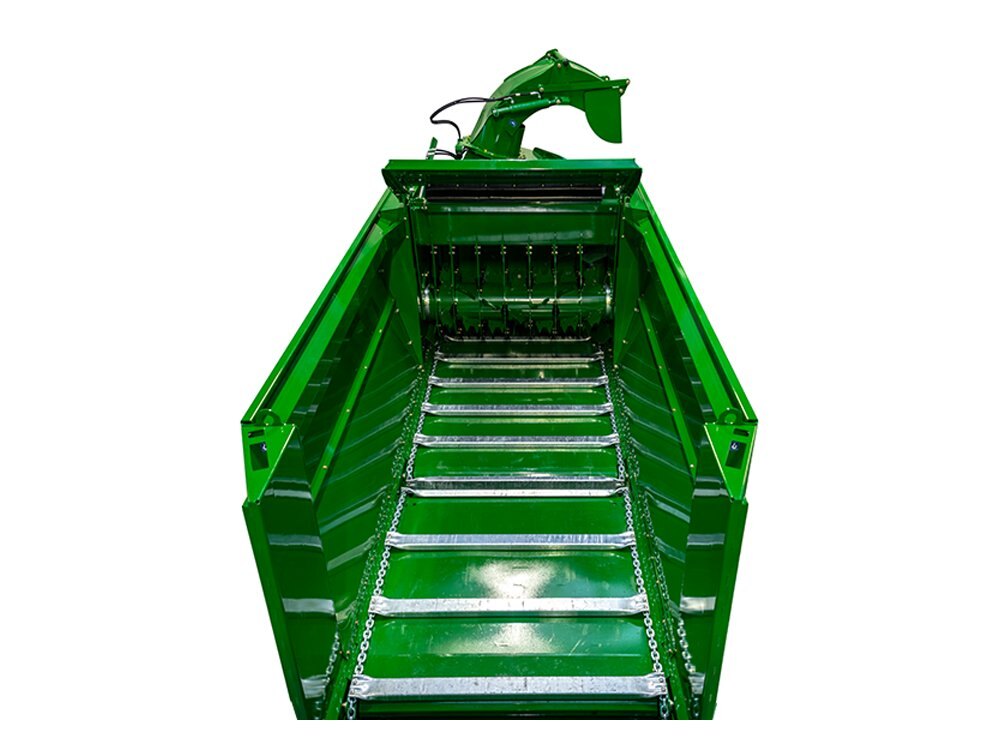

Bale Chamber
| Bale Chamber (W x H x L) | 1.8m x 1.22m x 3.226m 71” x 48” x 127” |
| Bale Capacity | 3 x 1.5m (59”) diameter bales |
Conveyor

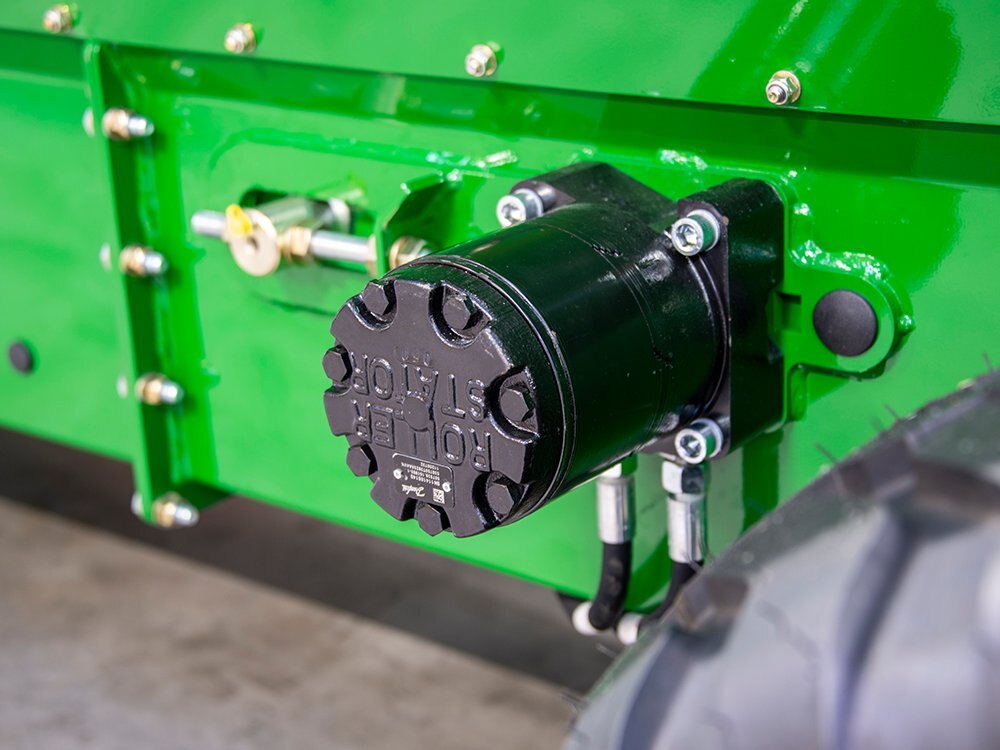

| Conveyor Drive | Hydraulic |
| No. of Conveyor Slats | 17 |

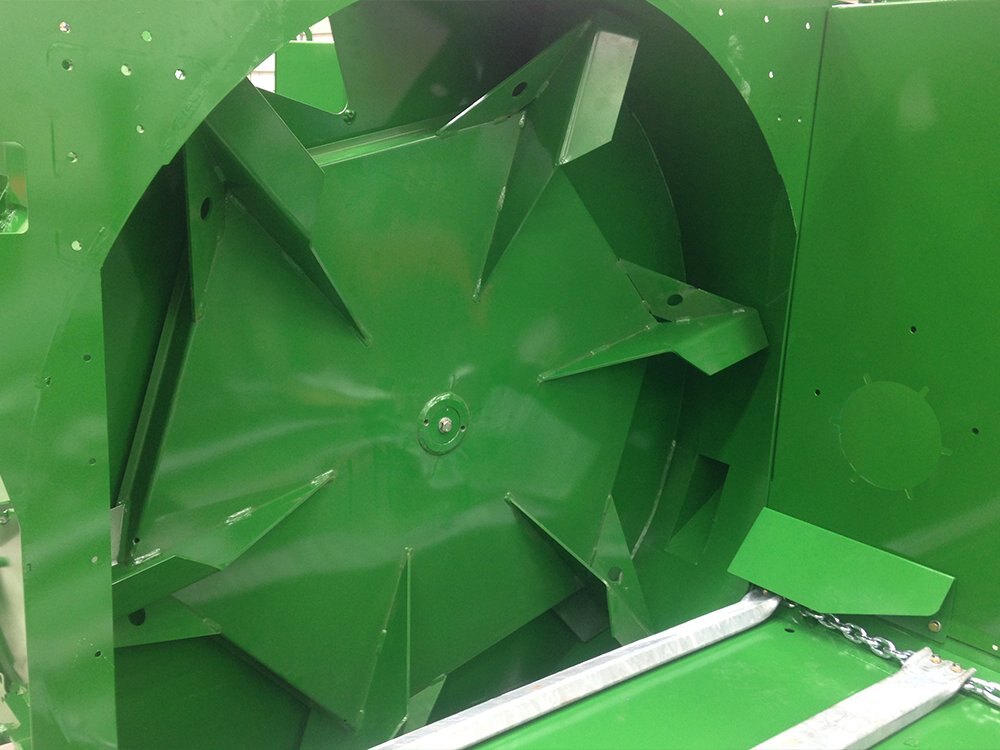

Rotor / Chopping Unit
| No. of Disks on Rotor | 7 |
| No. of Knifes | 56 |

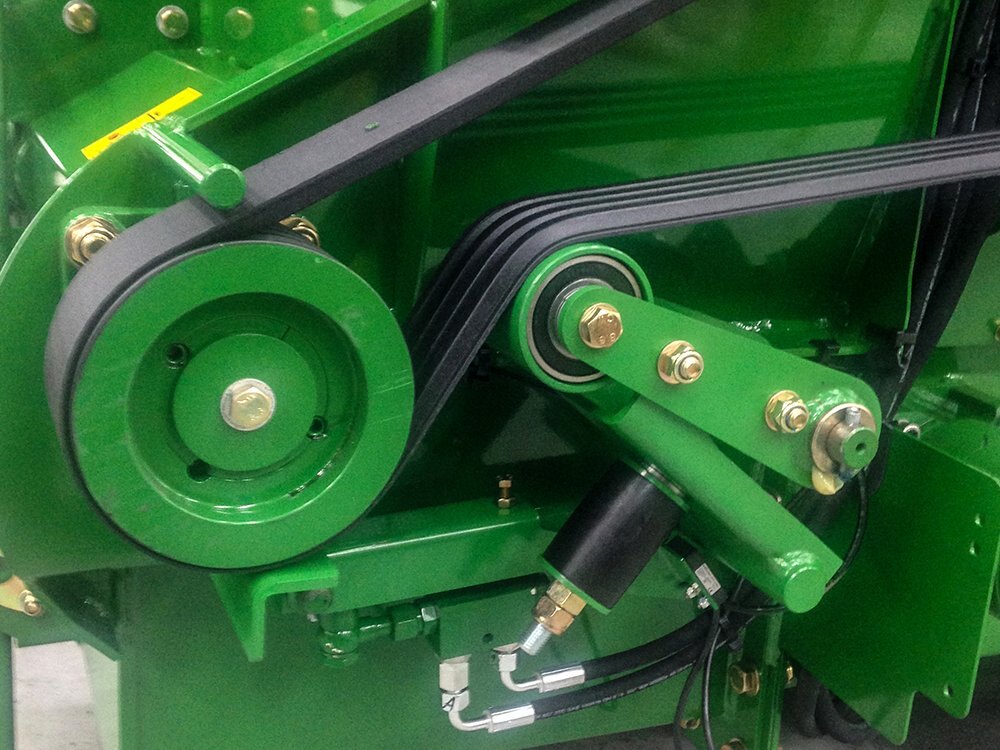

| Rotor Drive Type | High Torque Belt Drive |
| Gearbox | Twin Speed |
| PTO | 540 with slip & overrun protection |
Tractor
| Minimum Horsepower | 51 kW (68 hp) |
| Tractor Hydraulics | 1 x feed 1 x return |
| Minimum Oil Flow Requirement | 35 l/min @ 160 bar (2,320 psi) |
| Tractor Mounting | Drawbar or 2 Point Linkage |
| Tyres | 340/55-16 |
| Tyres Optional | N/A |
Control

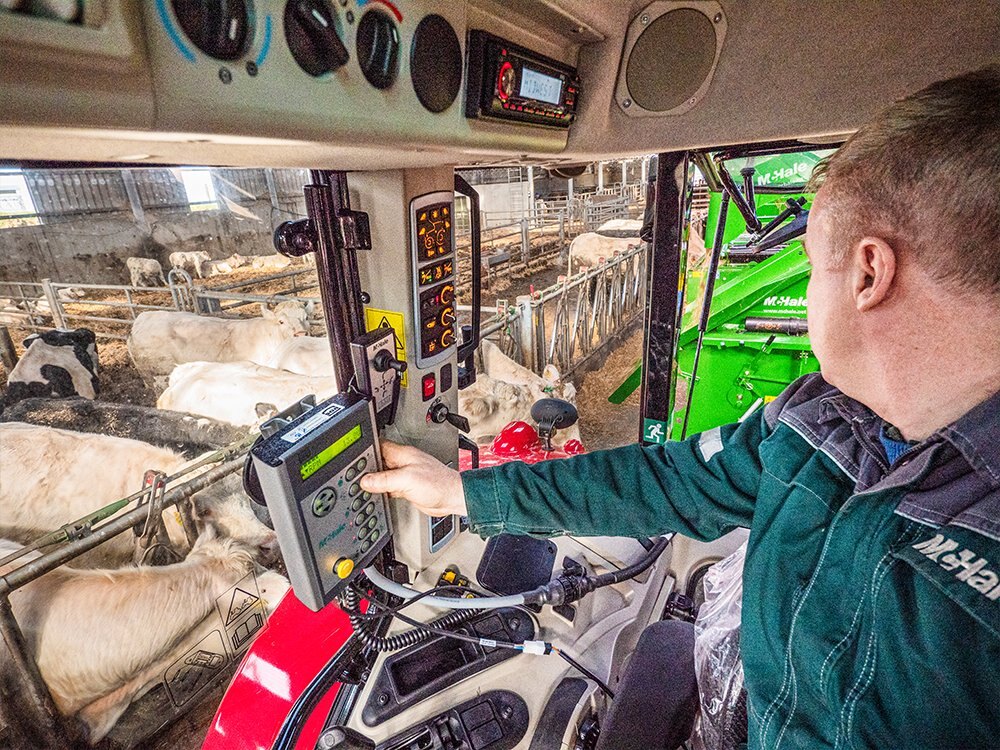

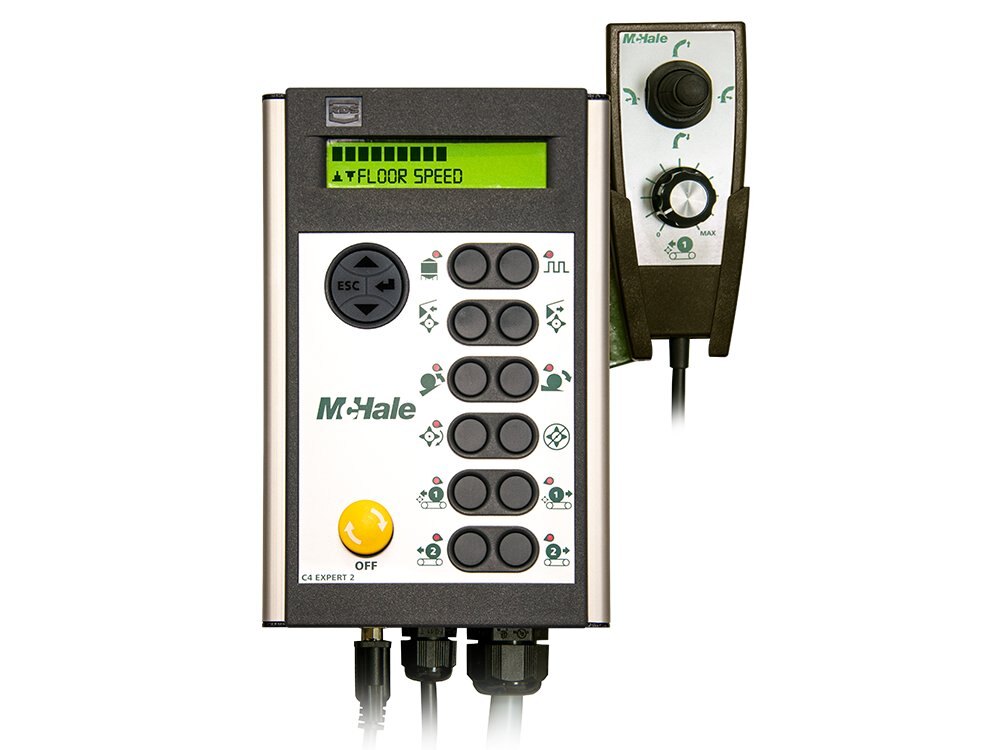

| Control | Expert control console with joystick chute control |

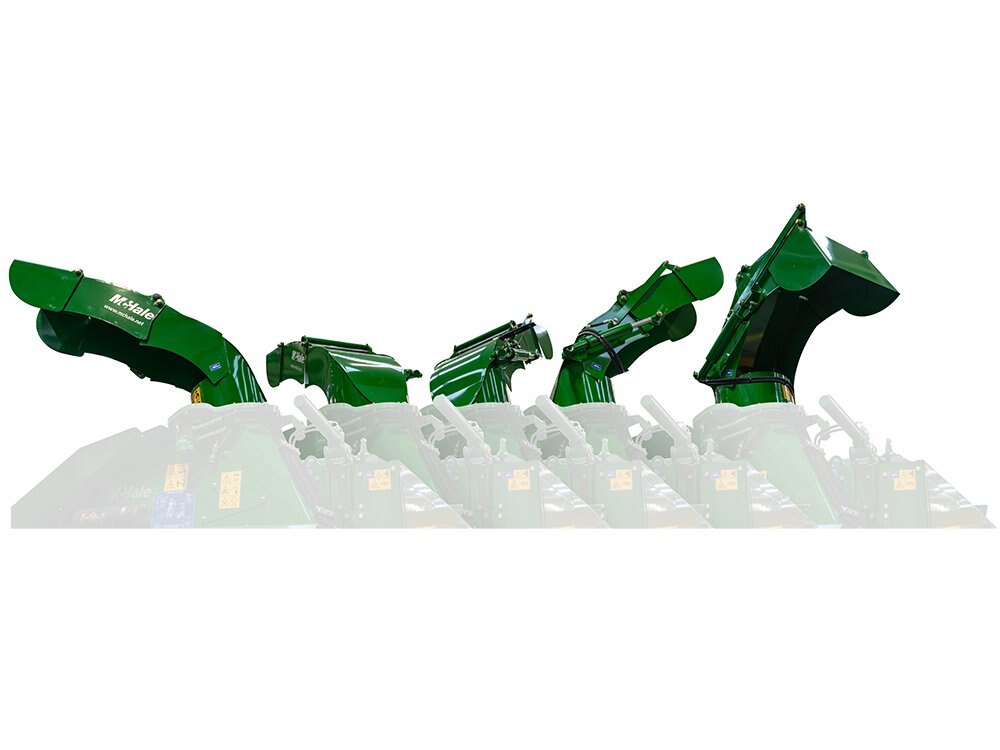

| Chute Rotation | 300 degrees |
| Chute Composition | 3 stage |
| Max. Discharge Distance | 18 meters |
