ID # 35857443

2025 McHale V8940 – High Capacity Non-Chopper Baler

Videos
Call for Price
Overview

V8940 – High Capacity Non-Chopper Baler

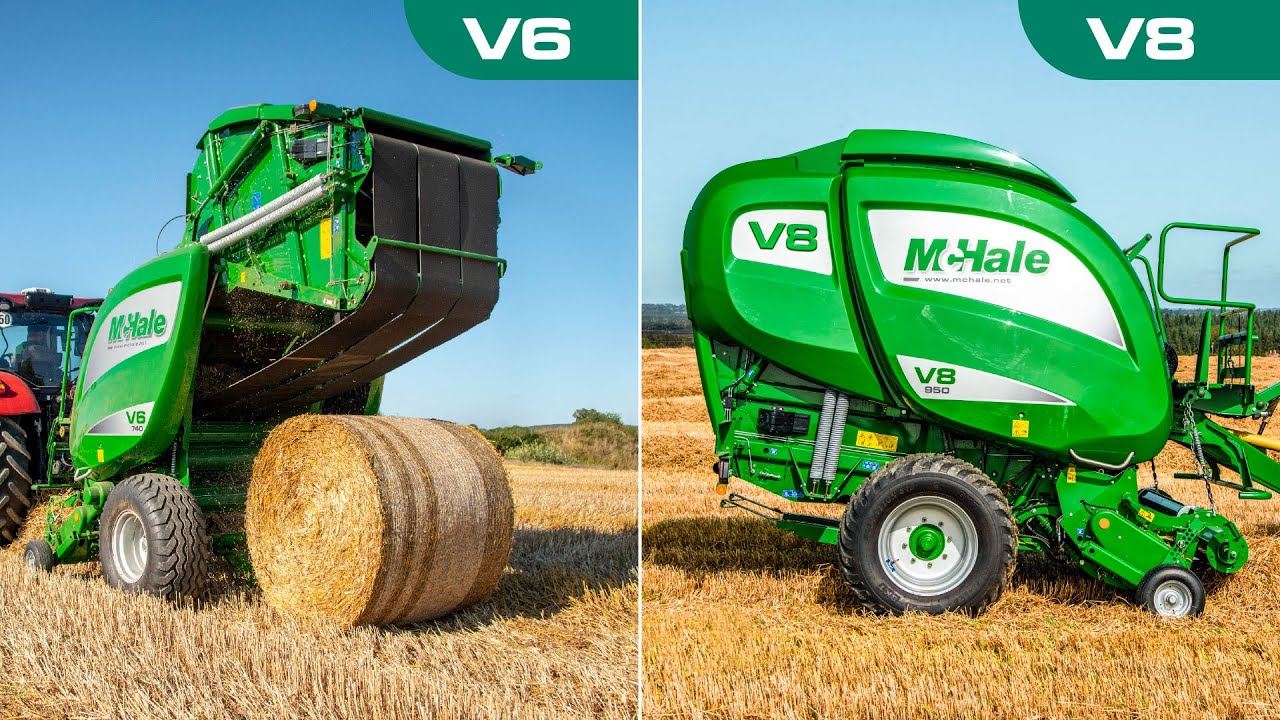

The McHale Variable Chamber Baler Range is made up of V6, V8 and Fusion Vario machines. The range consists of 7 models;

• V6740 – Non-Chopper Baler
• V6750 – 15 knife Chopper Baler
• V6760 – Fully Automatic Chopper Baler
• V8940 – High-Capacity Non-Chopper Baler
• V8950 – High-Capacity Chopper Baler
• V8960 – Fully Automatic High-Capacity Chopper Baler
• Fusion Vario Plus– Integrated Baler Wrapper with Film on Film Technology

Offering innovative ideas to allow you to work smarter, whilst achieving more output, the McHale name has become synonymous with the production of robust and reliable machines, making McHale the number one choice for professional users.

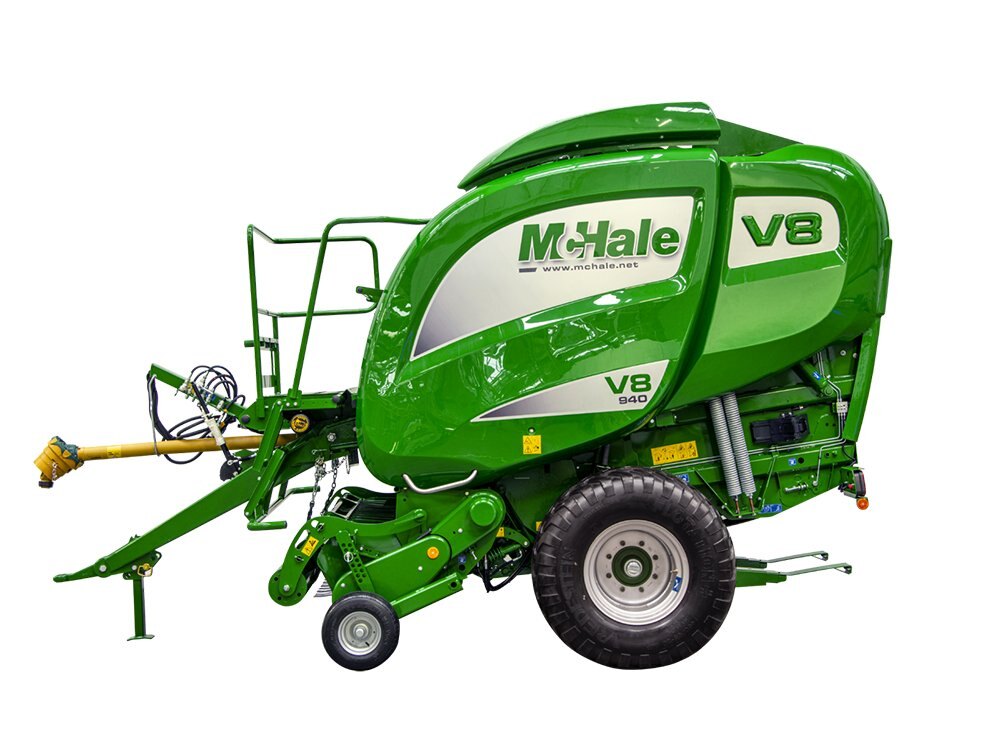

The McHale V8940 is a high-capacity, non-chopper variable chamber baler capable of producing bales from 0.6–1.9m (2’–6’3″). It is equipped with a high intake feed rotor to ensure even and efficient crop flow to the bale chamber.

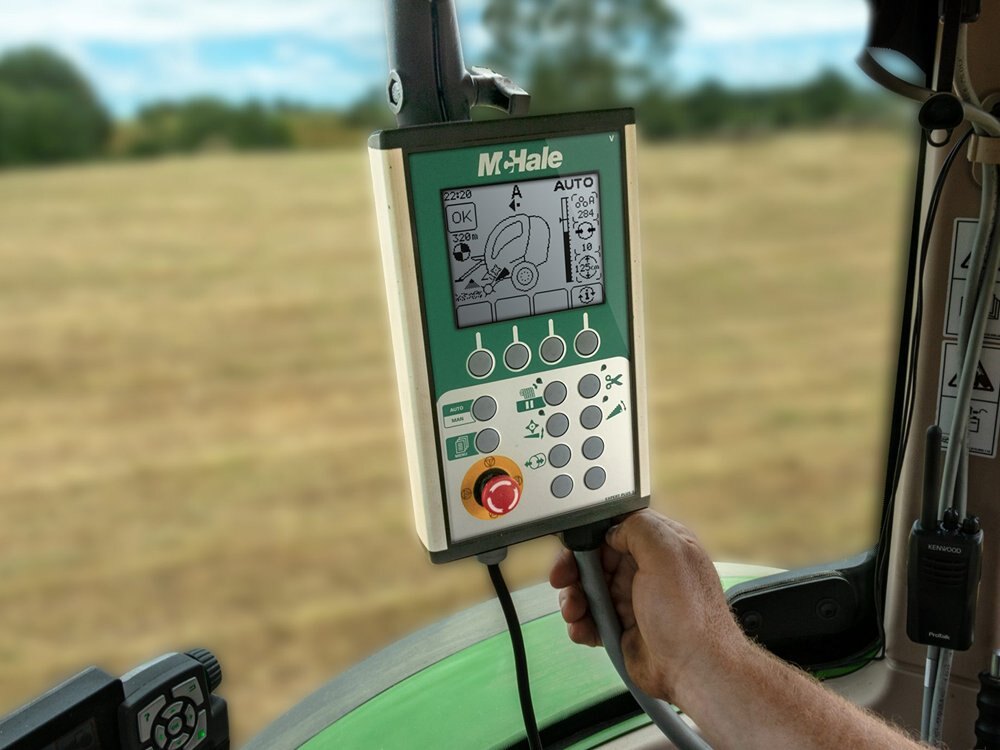

The V8940 is driven by a primary drive system for optimum bale formation using 3-endless belts. Central grease blocks are fitted on the machine for greasing whilst oiling is controlled through the continuous oiling system which is driven from the gearbox. Net and bale density can be adjusted through the Expert Plus Control Console.

The machine is fitted with 460/65-20 tyres as standard.

V8940 – High Capacity Non-Chopper Baler

Watch the video for the McHale V8940 high-capacity, non-chopper variable chamber baler capable of producing bales from 0.6–1.9m (2’–6’3″).

Specifications
Model
Chamber Baler
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
McHale
standard features
2.1m Pick-Up High Intake Feed Rotor Drop Floor Unblocking System
50 mm Bale Chamber Bearings* 1¼” Chain on the Bale Chamber Centralised Greasing Blocks (Manual Greasing)
Continuous Oiling System Expert Plus Control Console 460/65/20 Tyres
High Performance Netter Bale Kicker Mechanical Tailgate Locking
3-Endless Belts Drop Floor Sensor
dimensions & weight
Length  5.1m* (16’9″)
Width 2.54m / 2.58m*

(8’ 4” / 8’ 6”)*

Height  2.75m (9’)
Weight  4,580kg

(10,097 lbs)*

pick-up
Working Width  2100mm (6’11”)
Tine Bars 5 (6 on Camless Pick-up)
Tine spacing  67 mm (2⅝”)

55 mm camless (2⅛”)

Crop Roller Standard
Pick Up Guide Wheels

(pneumatic)

Standard
chopper unit
Number of Knives  15
Theoretical Chop Length  65mm
Knife Protection  Hydraulic
Knife Deactivation  Hydraulic from Cab
Unblocking System  Drop Floor
bale chamber
Width 1.23 m
Diameter 0.6 m (2’) to 1.9 m
Number of Belts 3
Bale Chamber Feed  High Intake Feed Rotor
transmission
Gearbox  Split Drive
Main Drive Protection  Cam Clutch
Pick – Up Protection  Slip Clutch
Chain Lubrication  Continuous
Bale Chamber Primary Drive
control
Control System Expert Plus
Operation  Semi Automatic
Density Adjustment  In Cab
Bale Size Adjustment In Cab
other
Axle  8 Stud
Brakes Option: Air / Hydraulic
Tyres Standard  460/65/20
Tyres Optional  500/50/22.5 or 560/45/22.5
Bale Kicker  Adjustable
Road Lights  Standard

tractor
Minimum Hydraulic Flow 30 l/min @180 bar
Hydraulic System 2 double acting spools, 1 free flow return
Electronics 12 Volt DC, 20 amp
Minimum PTO Requirements 55 kW (73hp)
literature
Name Link
Download Product PDF Download
