F5-560 Plus- 25 Knife Chopper Baler with Film Binding TechnologyThe McHale F5-500 Fixed Chamber Baler Range consists of 4 models; • F5-540 – Non-Chopper Baler Offering innovative ideas to allow you to work smarter, whilst achieving more output, the McHale name has become synonymous with the production of robust and reliable machines, making McHale the number one choice for professional users. |

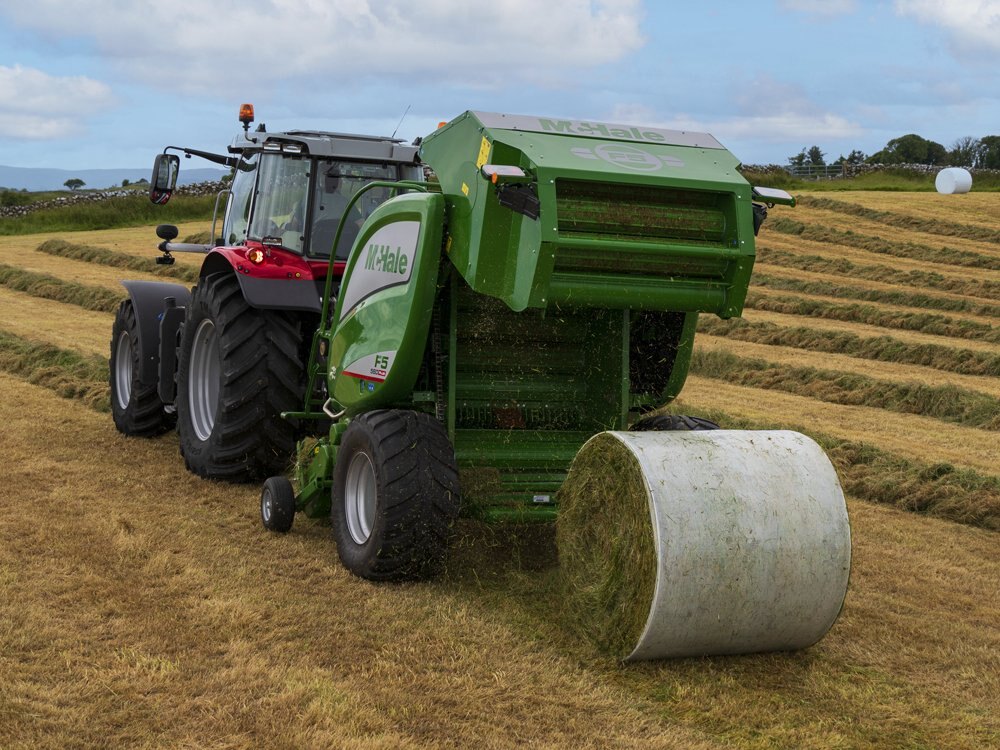

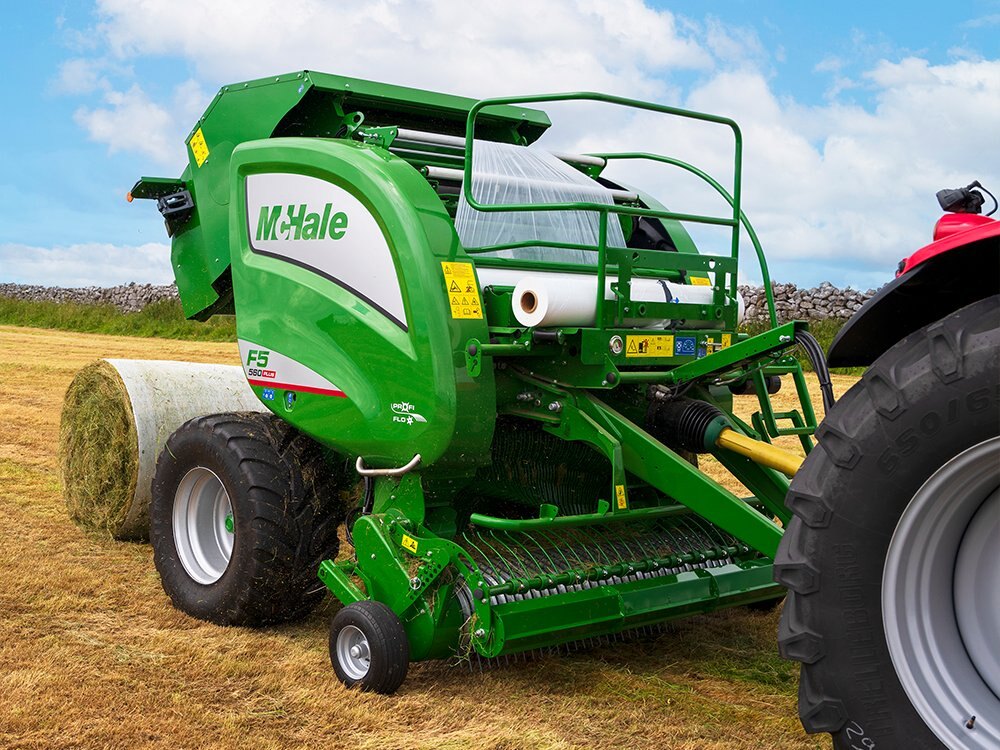

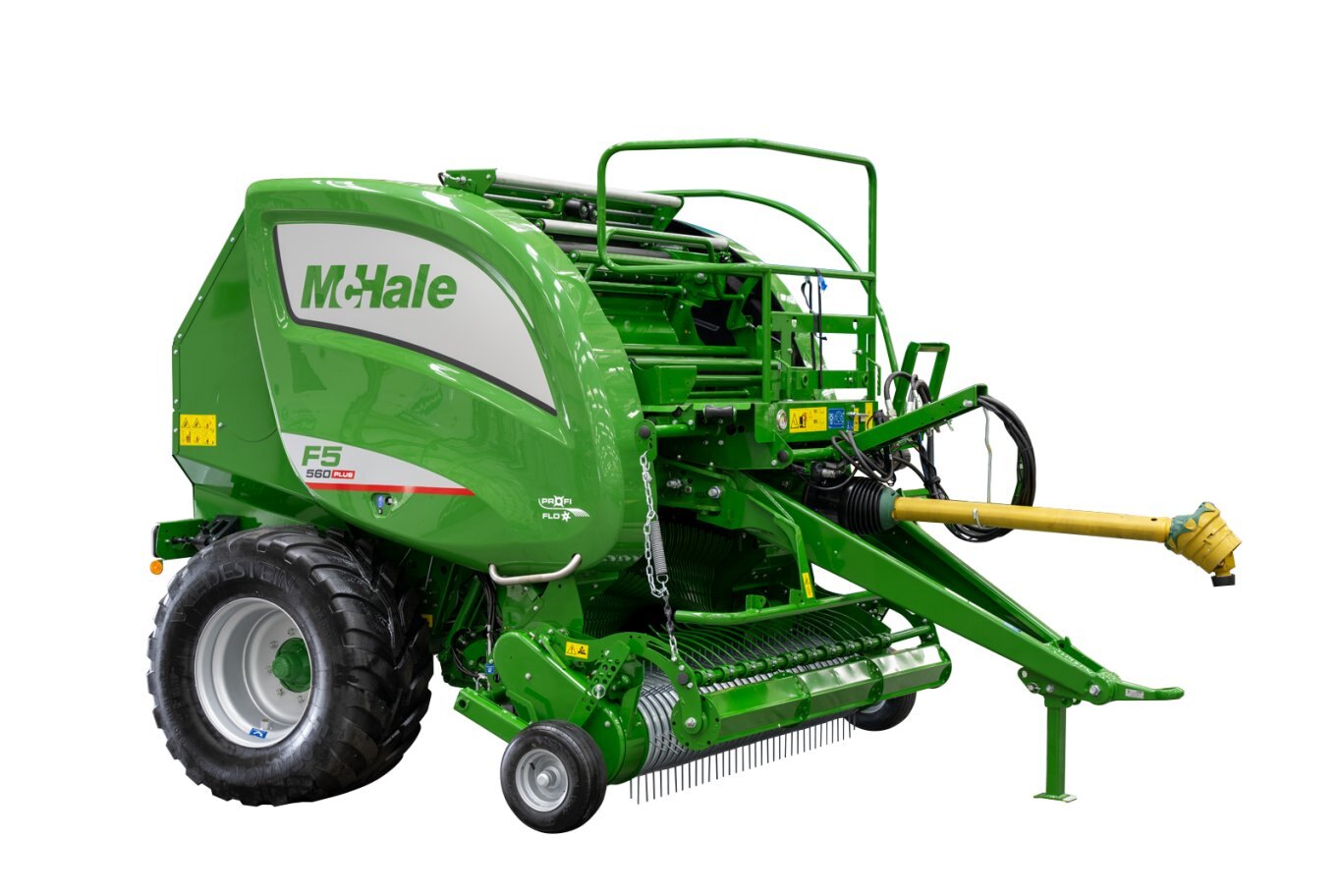

| The McHale F5-560 PLUS is a fully automatic Fixed Chamber Baler equipped with load sensing hydraulics and a 25 knife chopper unit. It is equipped with a film binding system that applies film to the barrel of the bale in the bale chamber. For hay or straw, net can be used. The McHale patented film application system ensures consistent film stretch, reliable film application and delivers optimum bale shape and bale density. The machine is fitted with 500/50-22.5 tyres as standard. |
McHale F5-560 Plus - 25 Knife Chopper Baler with Film Binding TechnologyWatch the video for the McHale F5-560 PLUS, a fully automatic Fixed Chamber Baler equipped with load sensing hydraulics and a 25 knife chopper unit. It is equipped with a film binding system that applies film to the barrel of the bale in the bale chamber. For hay or straw, net can be used. The McHale patented film application system ensures consistent film stretch, reliable film application and delivers optimum bale shape and bale density. The machine is fitted with 500/50-22.5 tyres as standard. |
F5 Range Spotlight SeriesIn this episode of our Spotlight Series, we take a look at the NEW McHale F5 Fixed Chamber Baler Range. |

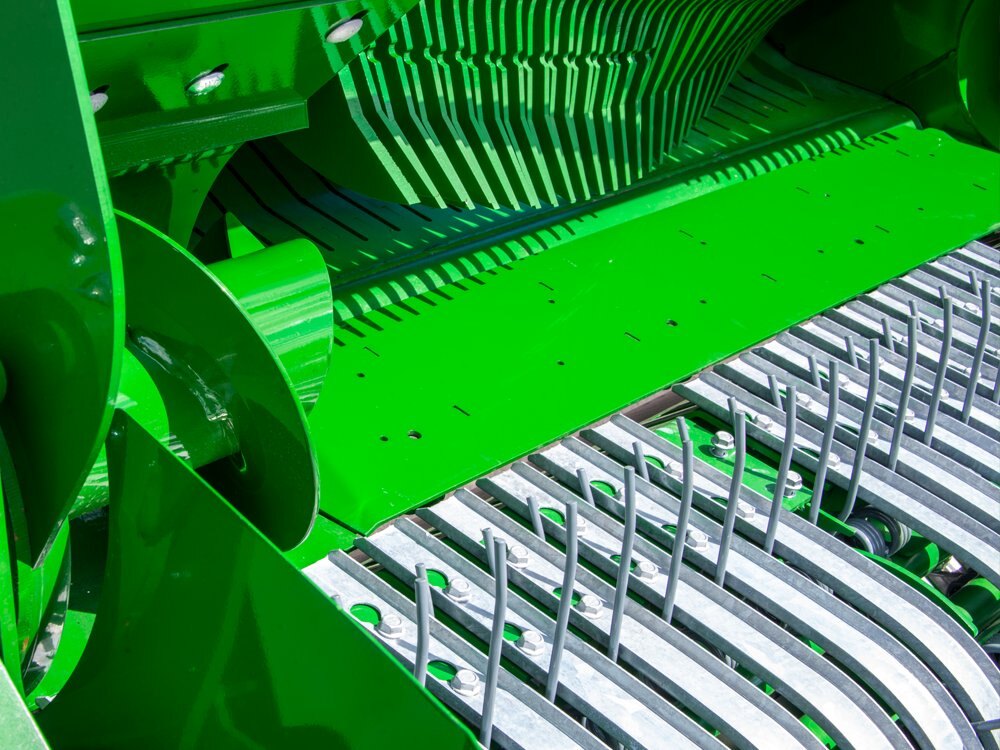

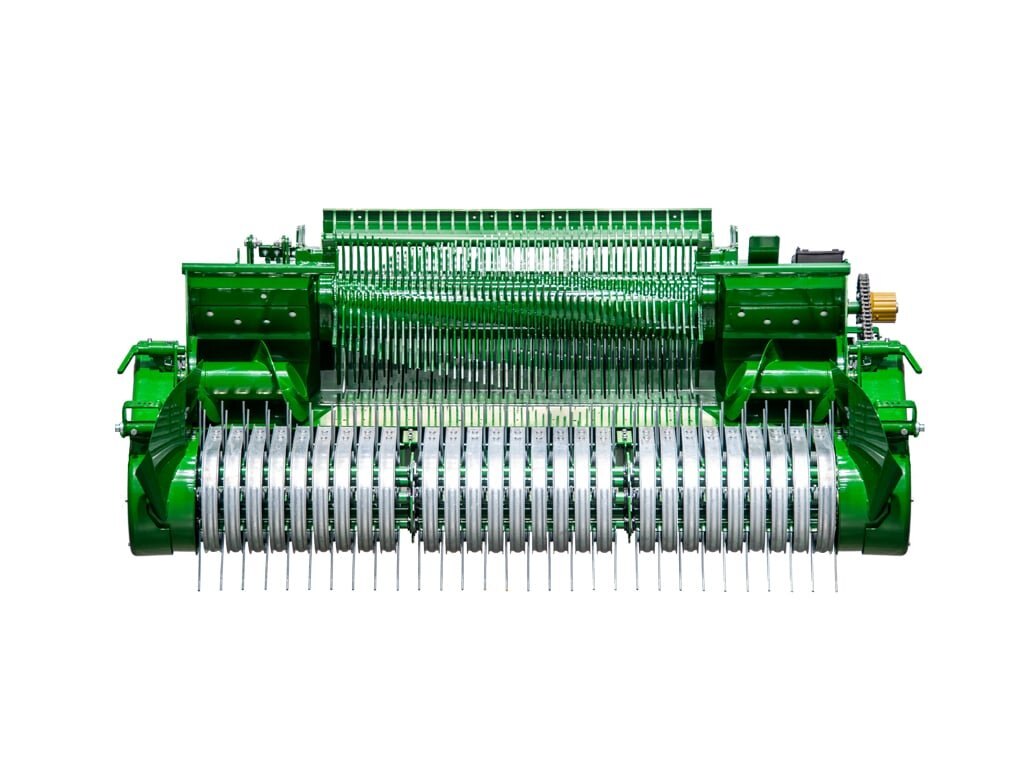

| 2.1m Profi-Flo Pick-Up | 25 Knife Chopper Rotor |
Drop Floor
Unblocking System |
|
18 Roller
Bale Chamber |
50mm & 55mm Bale
Chamber Bearings |
1′-1/4″ Chain
on the Bale Chamber |
|
Automatic Progressive
Greasing System |
High Performance
Net/Film Binding System |
Continuous Oiler
System |
|

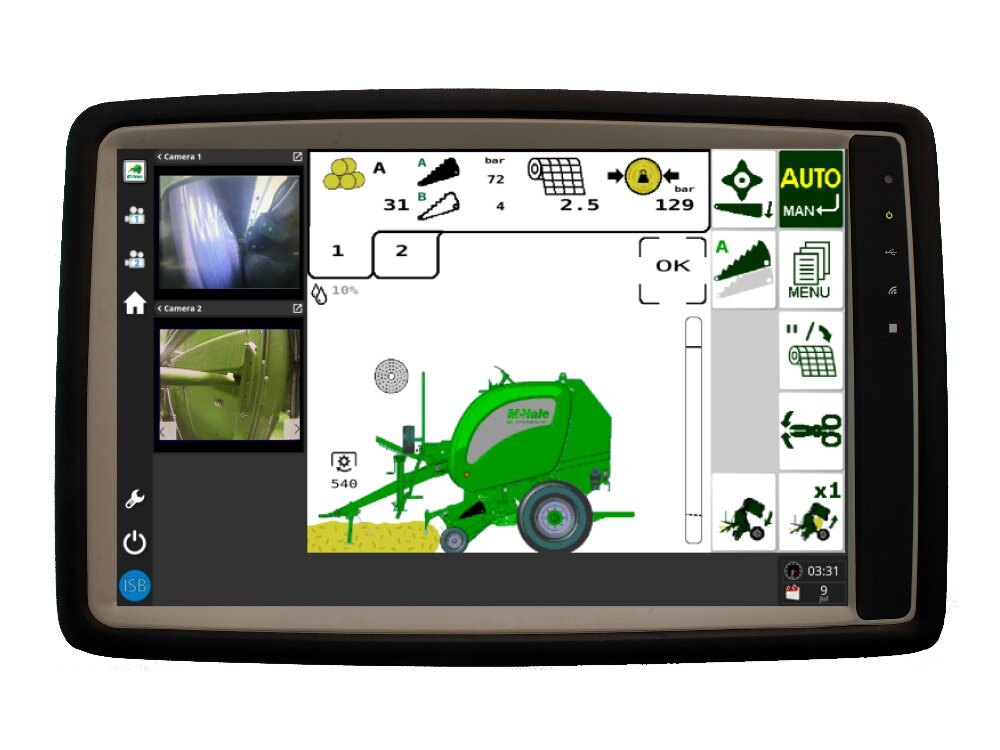

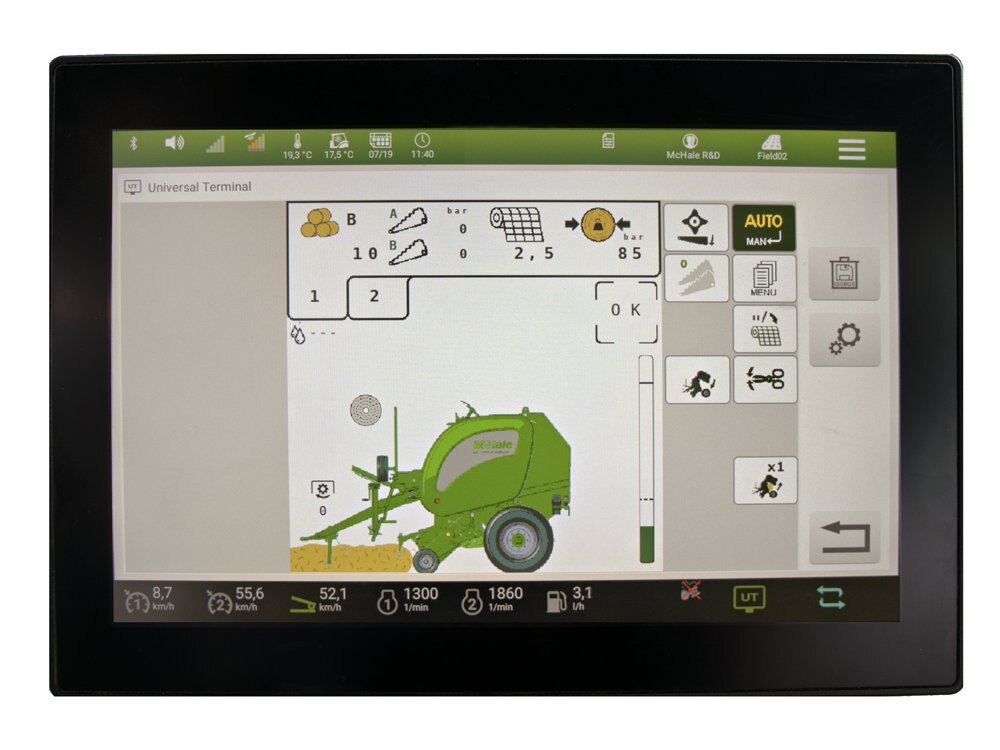

ISOBUS /
ISO-PLAY |

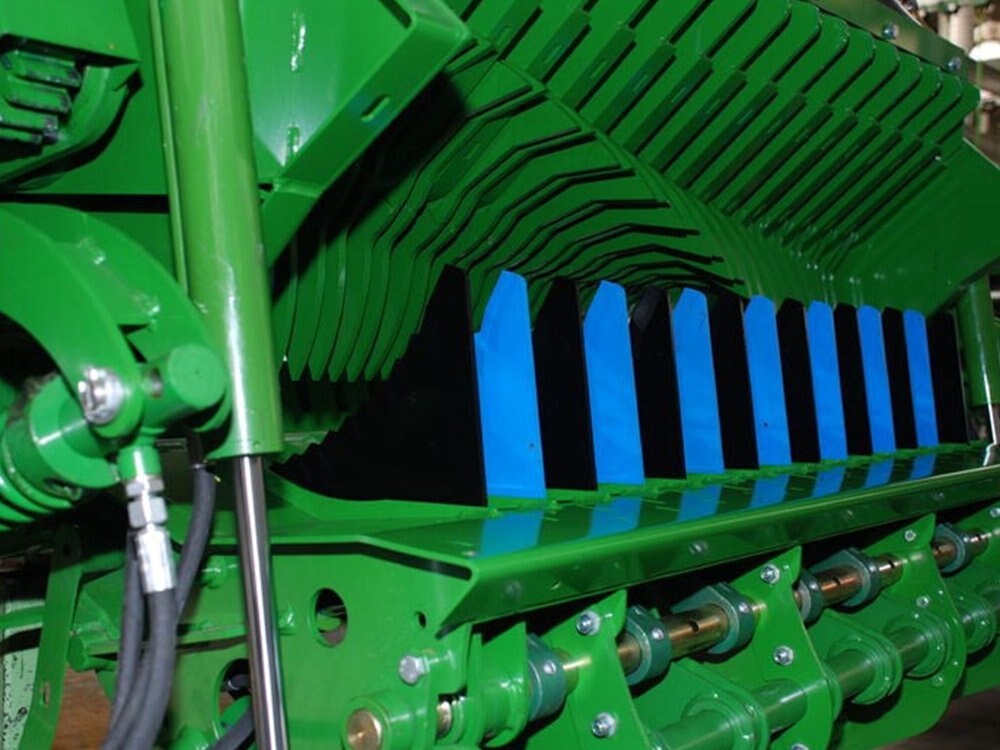

500/50-22.5 Tyres | 25 Knife Chopper Unit |
| Knife Pressure Display | Knife Position Sensor |
Automatic Tailgate
Opening & Closing |

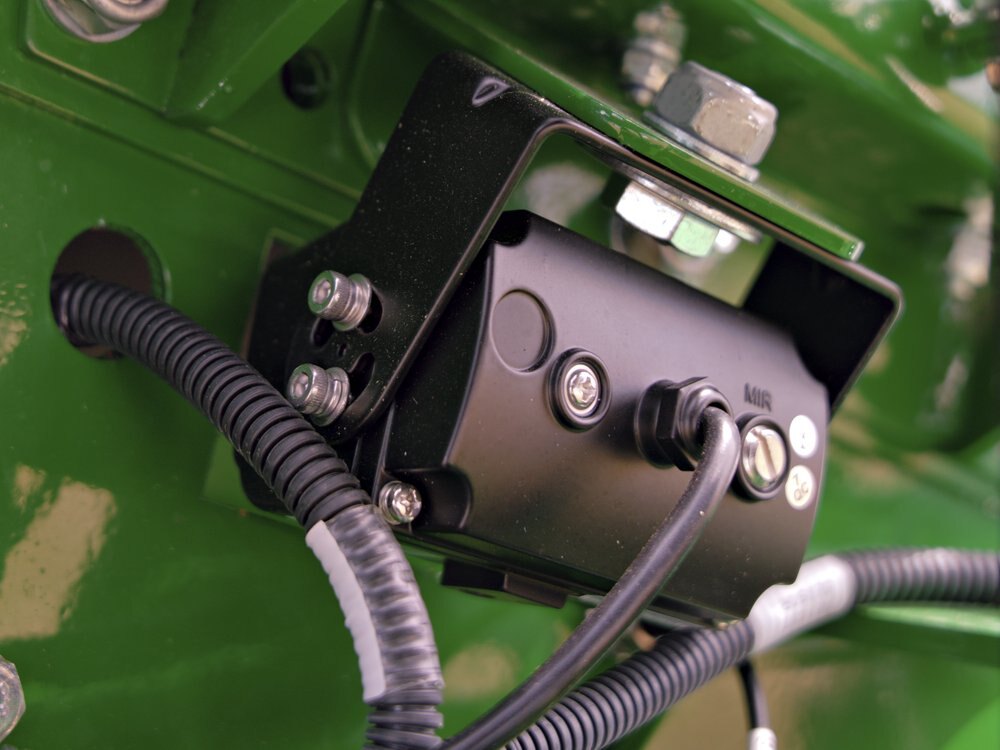

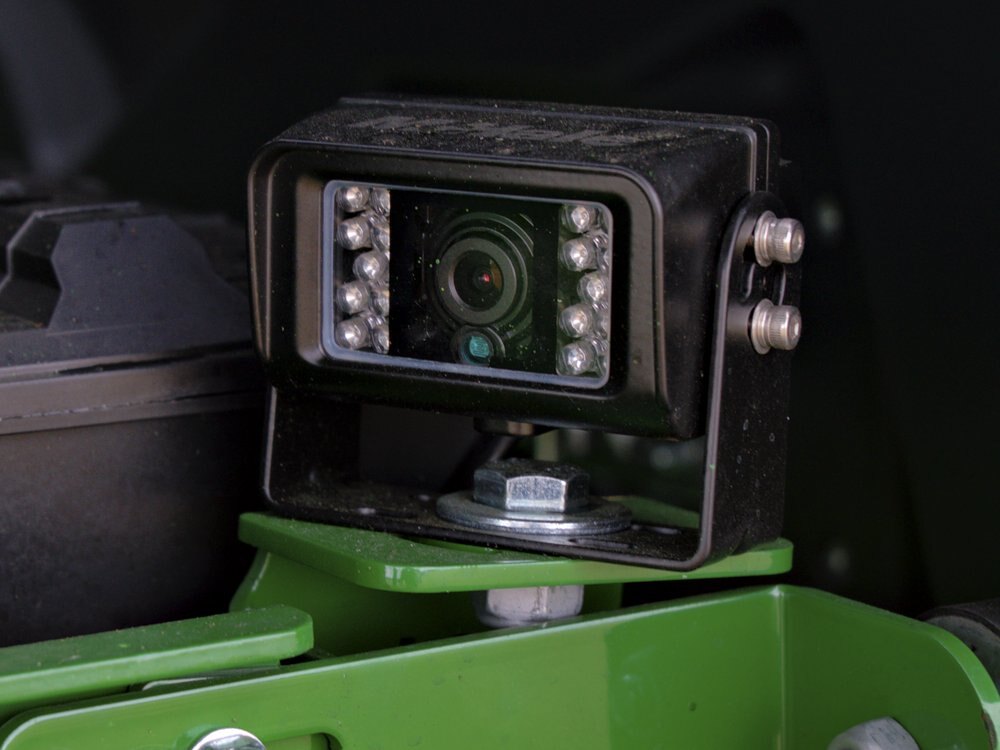

| 2 x Cameras for Film Monitoring & Bale Ejection | ||
| Length | 4.05 m (13’3″) |
| Width | 2.58 m (8’6″) |
| Height | 2.45 m (8′) |
| Weight | 3850 kg (8,488 lbs) |
| Working Width | 2100 mm (6’11”) |
| Tine Bars | 5 |
| Tine spacing | 65 mm |
| Short Crop Guard | Standard |
| Crop Roller | Optional |
| Pick Up Guide Wheels | Standard |
| Pick Up Lift | Hydraulic |
| Number of Knives | 25 |
| Theoretical Chop Length | 46 mm |
| Knife Protection | Hydraulic |
| Knife Deactivation | Hydraulic from Cab |
| Unblocking System | Drop Floor |
| Diameter | 1.25 m (4’1”) |
| Width | 1.23 m (4′) |

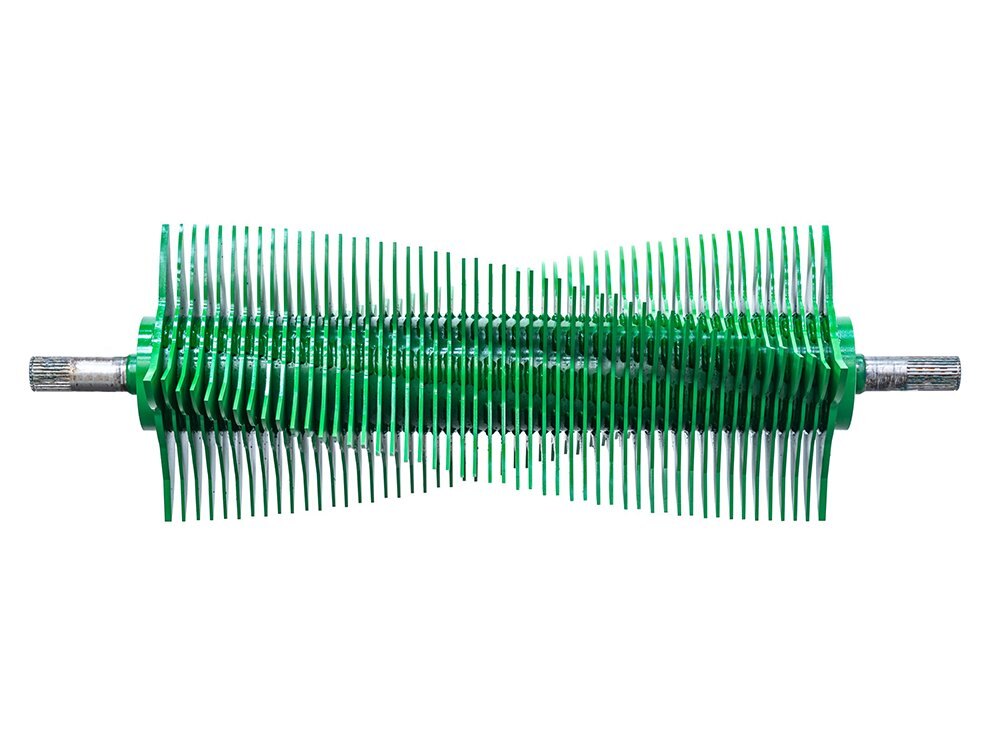

| Bale Chamber Feed | 25 Knife Chopper Feed Rotor |
| Number of Rollers | 18 |
| Greasing | Automatic Progressive |
| Bearings | 50mm & 55mm** |
| Type | Net or Film |
| Control | Manual, Semi-Auto or Automatic |
| Binding System | Infinite Stretch Binding |
| Binding Roll Capacity | 1 + 1 Storage |
| Net/ Film Adjustment | In Cab |
| Gearbox | Split Drive |
| Main Drive Protection | Cam Clutch |
| Pick Up Protection | Slip Clutch |
| Chain Lubrication | Continuous |
| Control System | ISOBUS/ ISO-Play |
| Operation | Fully Automatic |
| Density Adjustment | In-cab |
| Camera | 2x Camera |
| Axle | 8 Stud |
| Tyres Standard | 500/50-22.5 |
| Tyres Optional | 520/55-22.5 |
| Bale Discharge Sensor | Standard |
| Minimum Hydraulic Flow | 45 Litres / min at 180 bar |

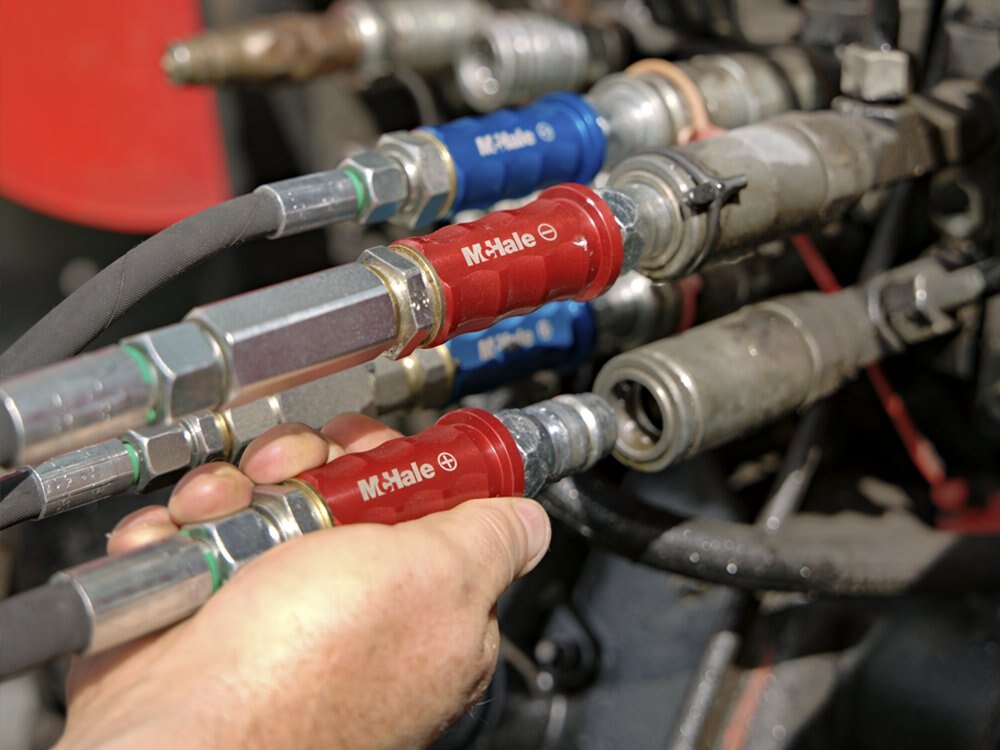

| Hydraulics | Open, Closed or Load Sensing |
| Min. Power Requirement | 75kW (100hp) |
