2025 McHale Fusion Vario Variable Chamber Integrated Baler Wrapper

Videos
Call for Price
Overview

Fusion Vario Variable Chamber Integrated Baler Wrapper

The McHale variable chamber baler range is made up of V6, V8 and Fusion Vario machines. The range consists of 5 models;

  • V6740 – Non-Chopper Baler
  • V6750 – Chopper Baler
  • V8940 – High-Capacity Non-Chopper Baler
  • V8950 – High-Capacity Chopper Baler
  • Fusion Vario – Integrated Baler Wrapper

Offering innovative ideas to allow you to work smarter, whilst achieving more output, the McHale name has become synonymous with the production of robust and reliable machines, making McHale the number one choice for professional users.

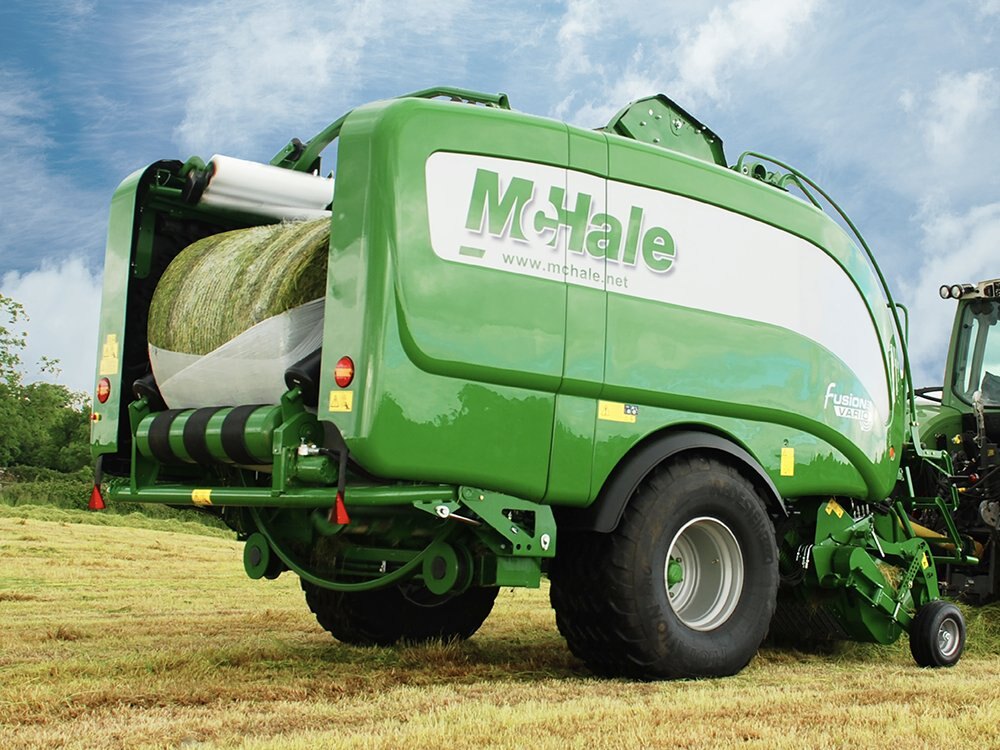

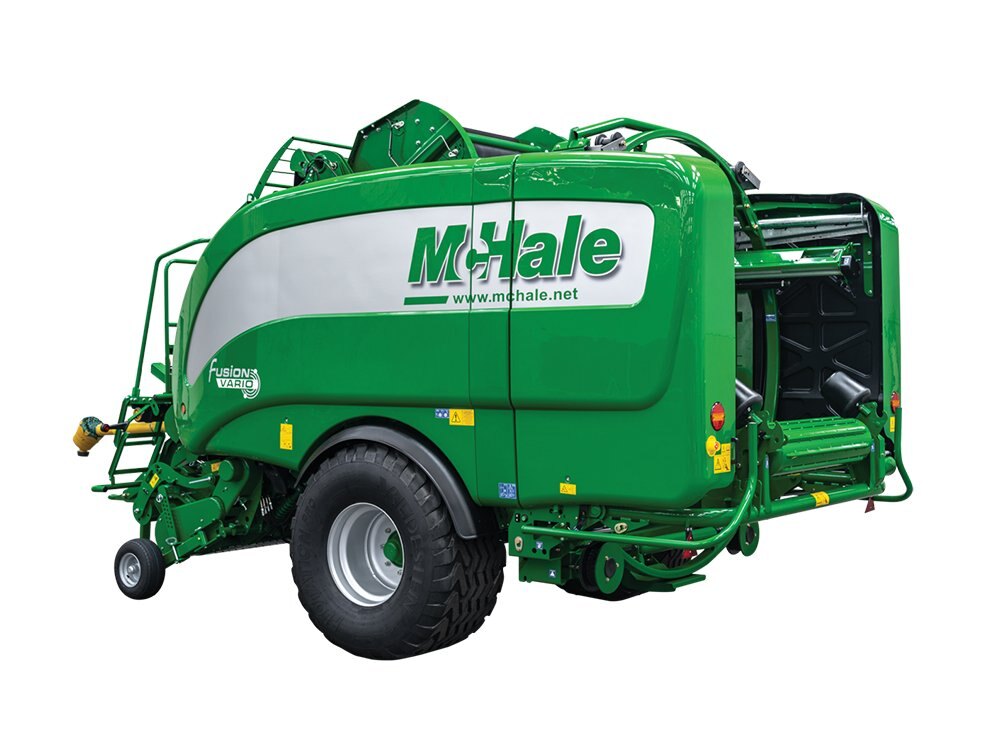

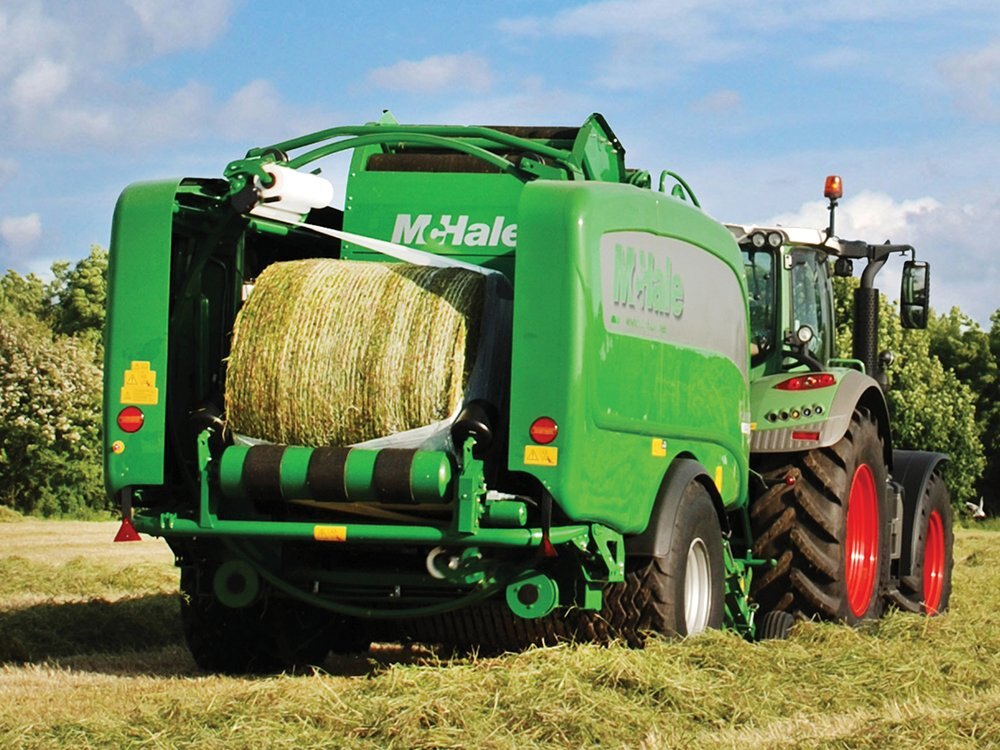

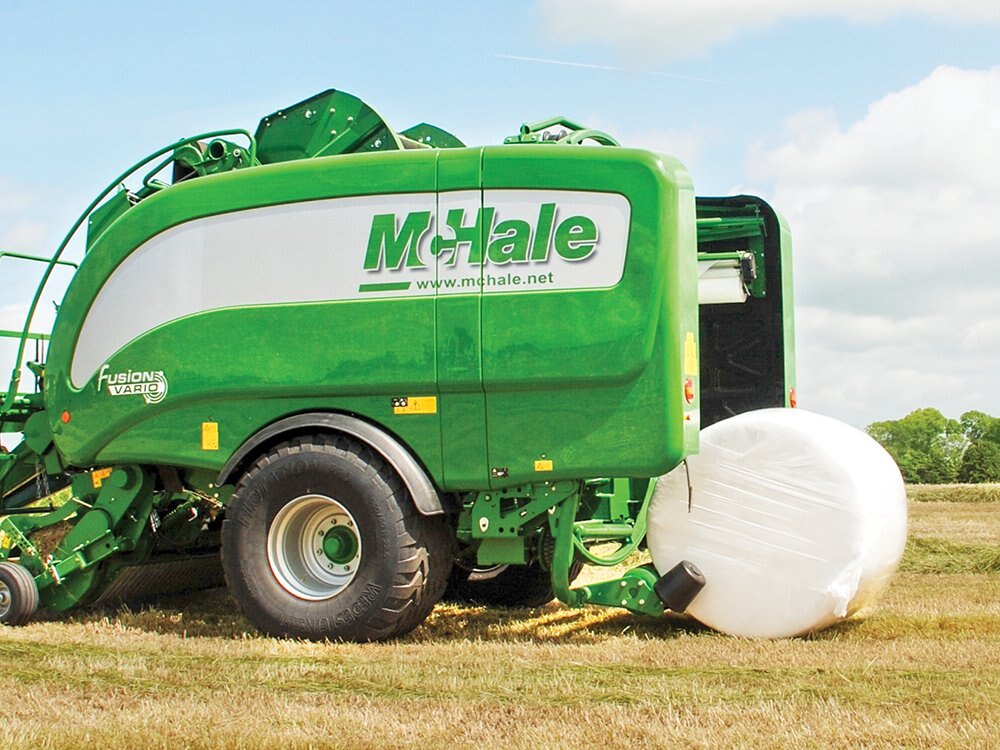

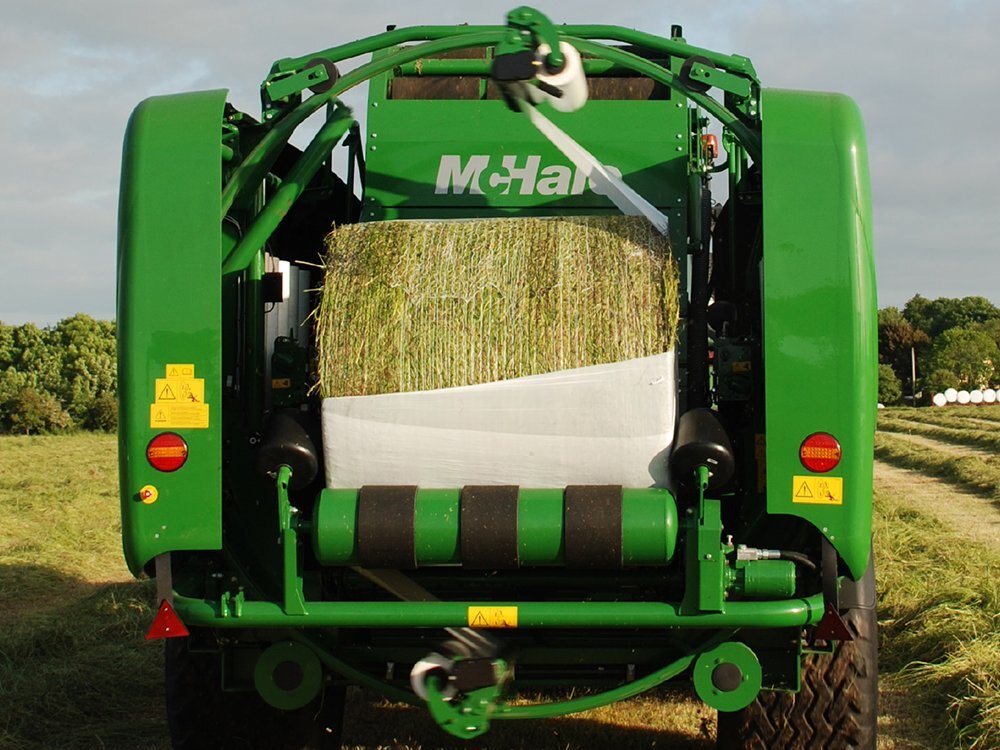

The McHale Fusion Vario is a fully automatic variable chamber integrated baler wrapper, which consists of a high output baler and a vertical wrapping ring. The machine benefits from two unique patents; a patented bale transfer system and a patented vertical wrapping ring.

The Fusion Vario also has the ability to make bales of hay and straw from 0.6m to 1.68m (2′ – 5′ 6 “) but in haylage or silage, it produces bales from 1m to 1.45m  (3′ 3 ” – 4′ 8 “) to allow for wrapping.

Advantages of the Fusion Vario

ONE MACHINE

The Fusion Vario provides the operator with the flexibility to produce various size bales without the need to return to the yard to change machines for baling different types of crop over the course of a day. As it is an integrated baler wrapper, only one operator and tractor is required to carry out the task of baling and wrapping which leads to reduced costs in labour.

REDUCED CROP LOSS

The single belt on the McHale Fusion Vario reduces crop loss compared to multiple belts which is particularly beneficial when baling short chopped crops such as alfalfa.

BALE ONLY PROGRAMME

When baling hay or straw, the operator has the ability to carry and place bales in pairs of two for easy collection.

Fusion Vario – Integrated Baler Wrapper

The McHale Fusion Vario is a fully automatic variable chamber integrated baler wrapper, which consists of a high output baler and a vertical wrapping ring. The Fusion Vario also has the ability to make bales of hay and straw from 0.6m to 1.68m (2′ – 5′ 6 “) but in haylage or silage, it produces bales from 1m to 1.45m  (3′ 3 ” – 4′ 8 “) to allow for wrapping.

Specifications
Model
Integrated Baler Wrapper
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
McHale
standard features
2.1m Pick-Up Crop Roller iTouch Control System
Inbuilt Camera System Drop Floor Unblocking System Double Drive Variable Bale Chamber
15 Knife Chopper Unit with Heavy Duty Rotor Single Belt Bale Chamber with Endless Belt Bale Shape Indicators
Patented Bale Transfer Delivering Higher Output High Speed Vertical Wrapping Ring Fully Automatic Operation
3-Endless Belts

Single Belt (Optional)

Mechanical Tailgate Locking Drop Floor Sensor
dimensions and weight
Length  6.3 m (20’ 8”)
Width 2.94 m

(9’ 8” )*

Height  3.3 m (10’9″)
Weight  6500 kg

(14,330 lbs)

pick up
Working Width  2100 mm (6’11”)
Tine Bars  5
Tine spacing  70 mm
Short Crop Guard  Optional
Crop Roller  Standard
Pick Up Guide Wheels Standard

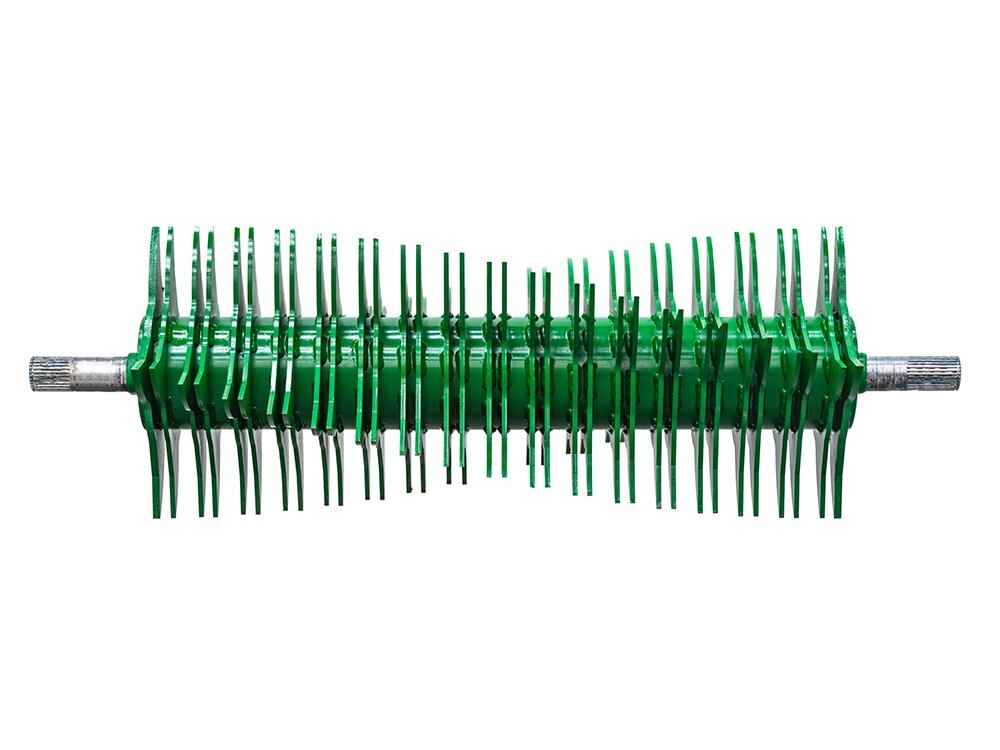

chopper unit
Number of Knives 15
Theoretical Chop Length 65mm
Knife Protection Hydraulic
Knife Deactivation Hydraulic from Cab
Unblocking System Drop Floor
bale chamber
Diameter 0.6 m (2’) to 1.68 m (5’ 6”)
Width 1.23 m (4’)
Bale Chamber Feed 15 Knife Chopper Feed Rotor
Number of Belts 1
net wrap
Type NRF or Net
Layer Adjustment In-Cab
Net or NRF Roll Capacity 4
Binding System Infinite Stretch
Control Manual or Automatic
transmission
System Vertical Wrapping Ring
Film Storage 10 Rolls & 2 on the Wrapper
Film Layers 2+2+2 System
Dispensers 2 x 750 mm
Film Stretch 70% standard (55% optional)
Pre & Post Roll Standard
Bale Tip Adjustment Electronic from Tractor Cab
control

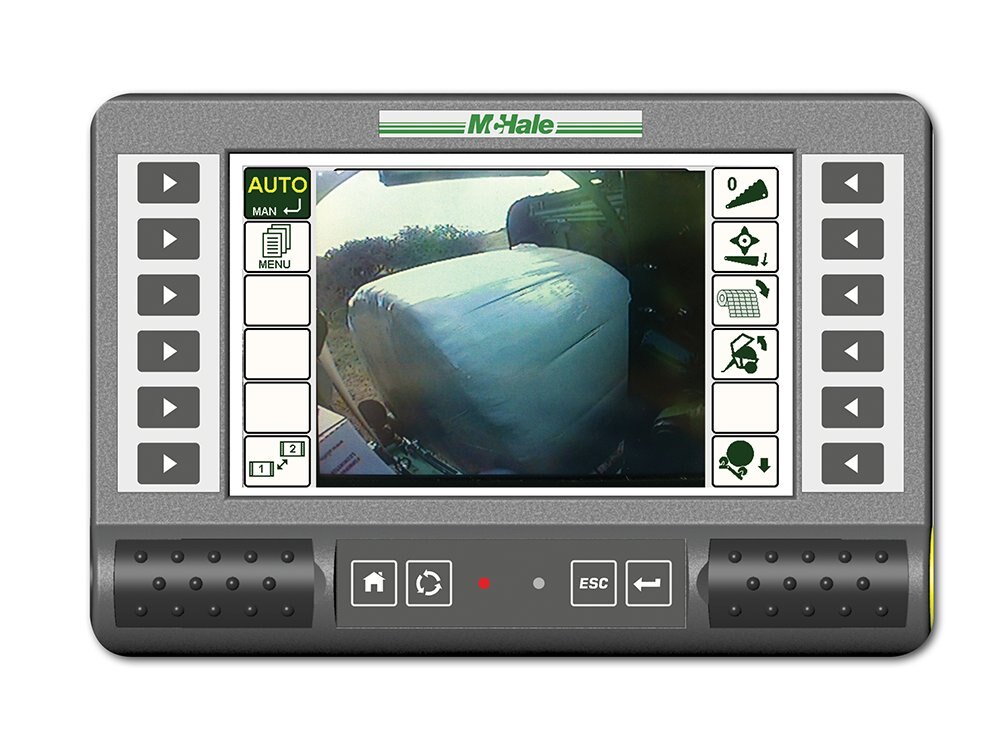

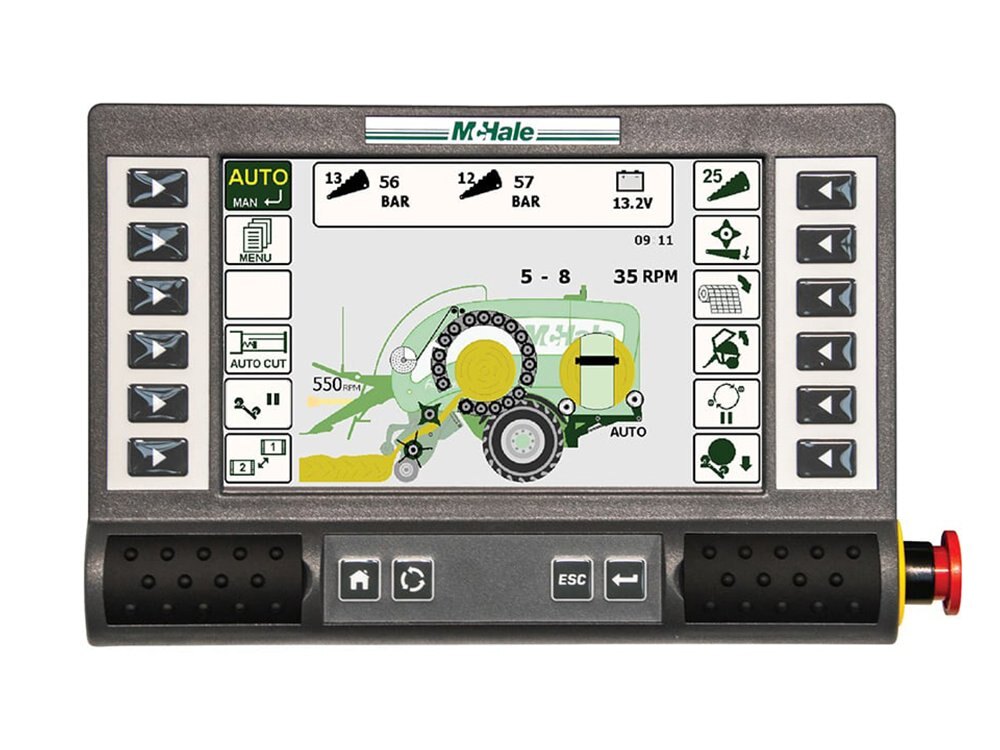

Control System iTouch
Operation Fully Automatic
Density Adjustment In Cab
Bale Size Adjustment In Cab
Inbuilt Camera Standard
other
Axle 8 Stud
Brakes Hydraulic/ Standard
Tyres Standard 650/50/22.5
Tyres Optional 650/50/22.5
Bale Kicker N/A
Electronics 12 Volt DC, 20 amp
Road Lights Standard
tractor
Minimum Hydraulic Flow 45 l/min @ 180 bar
Hydraulic System Open, Closed or Load Sensing
Minimum PTO Requirements 85 kW (114hp)
