2025 McHale ProPel T8-1020 Tedder

Videos
Call for Price
Overview

McHale ProPel M6-770 Tedder

McHale have developed a reputation for providing high-output machinery with excellent reliability, operator comfort and a top resale value. Building on their comprehensive range of grass machinery, McHale now introduce their new range of ProPel tedders.

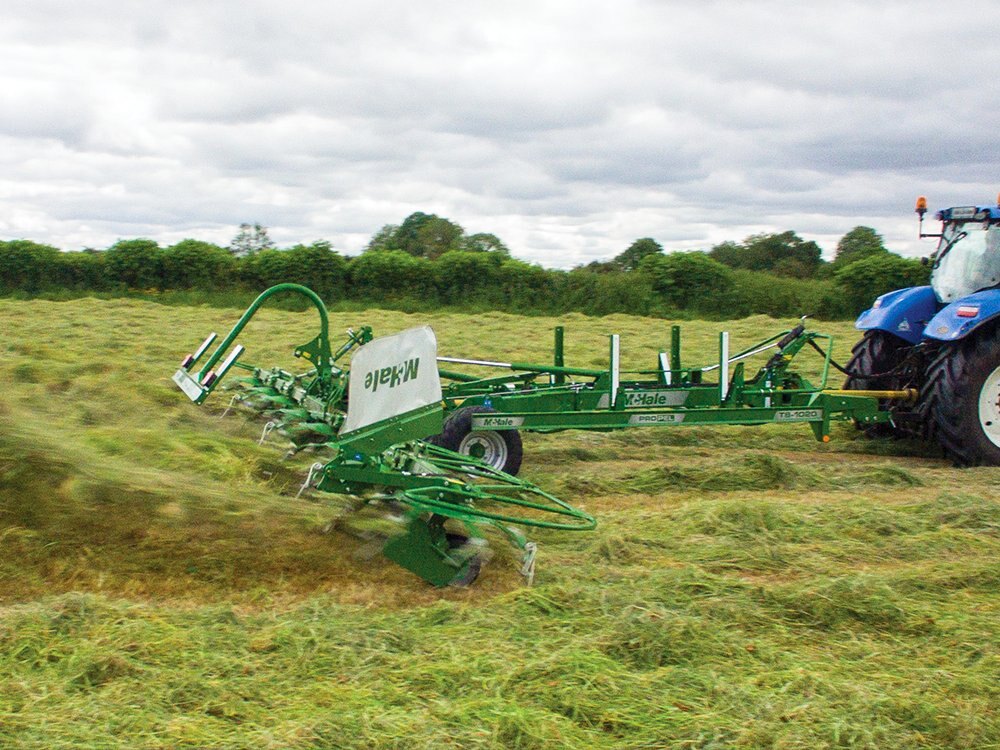

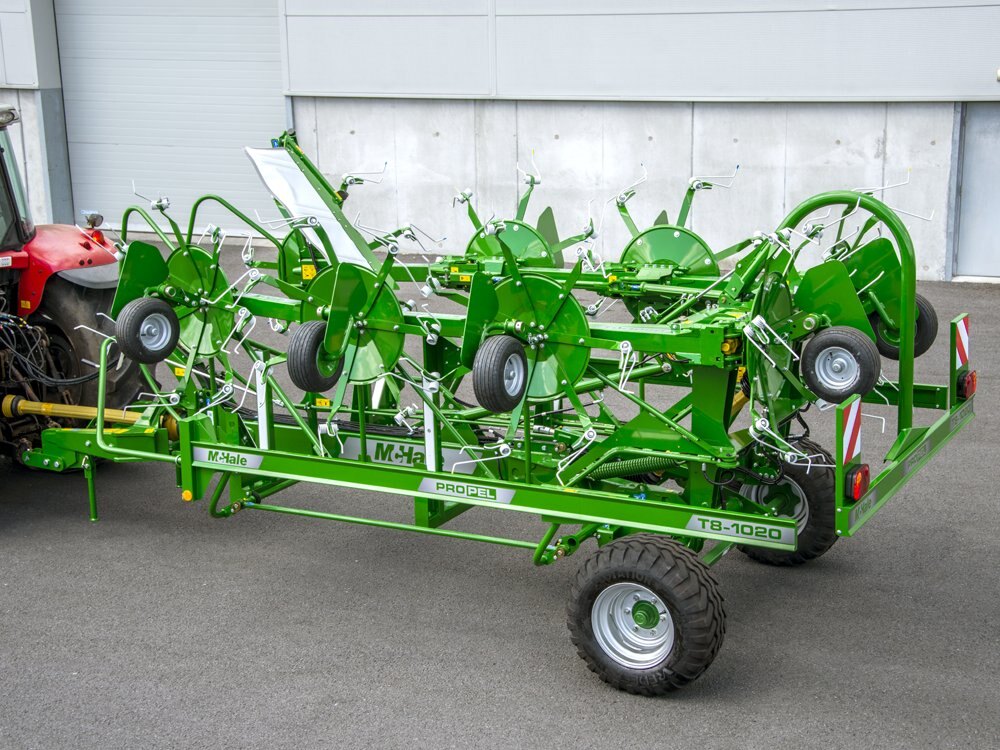

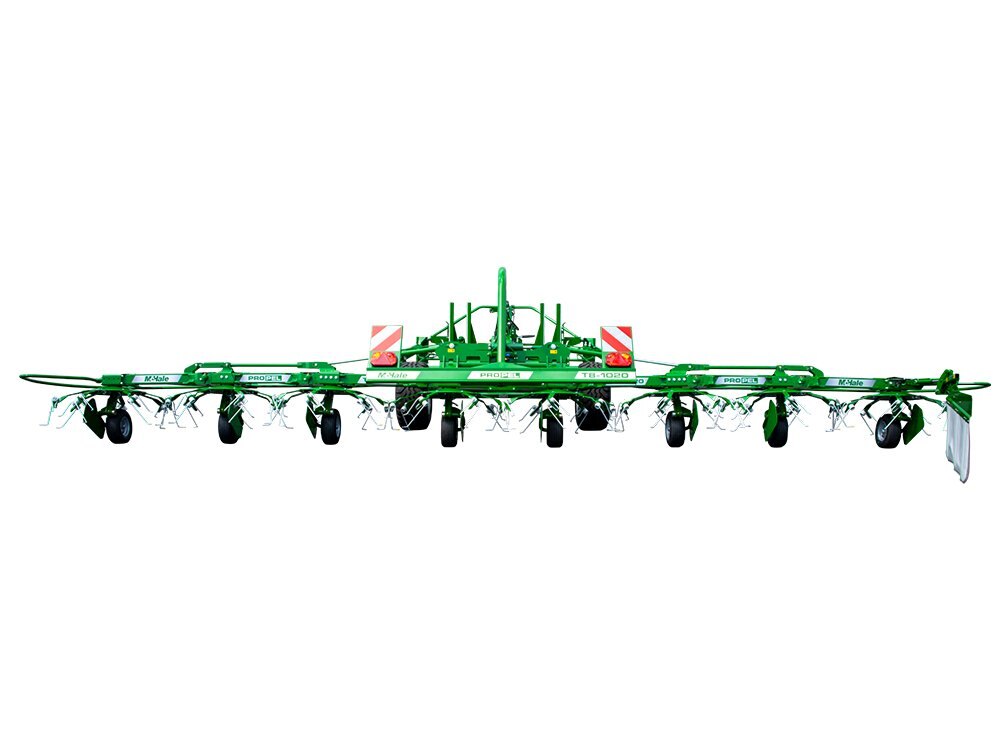

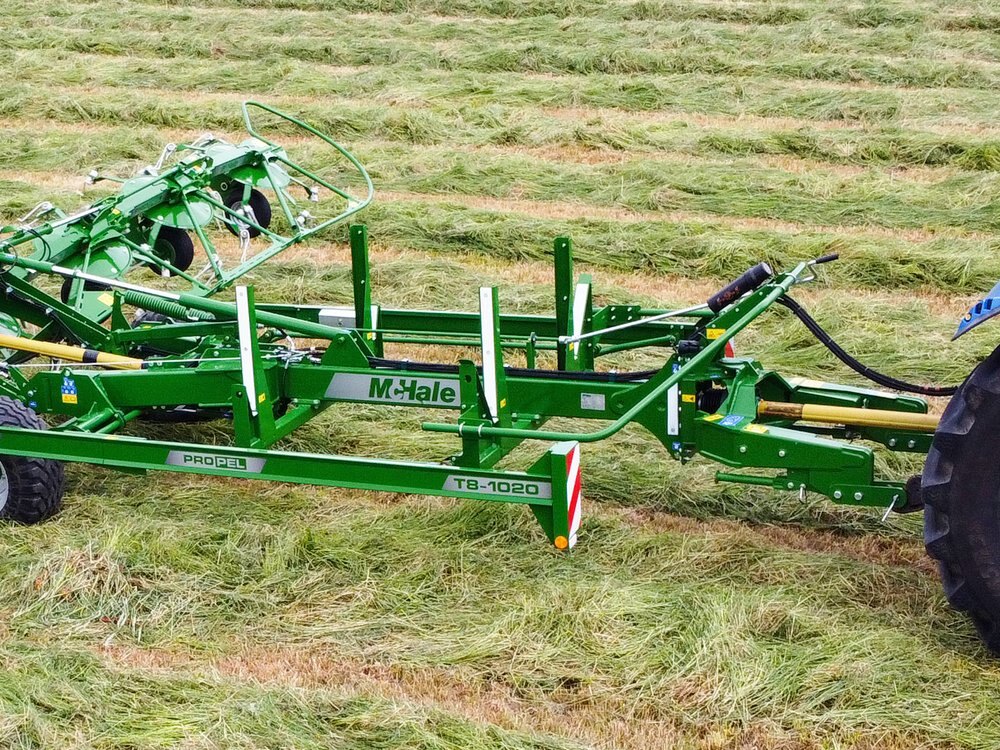

The McHale PROPEL T8-1020 is a high capacity trailed tedder fitted with 8-rotors to provide a working width of 10.2M. This straight-forward, highly efficient, machine is fitted with a long carriage frame that connects the tedder to the tractor when in operation and serves as a carrier when in transit.

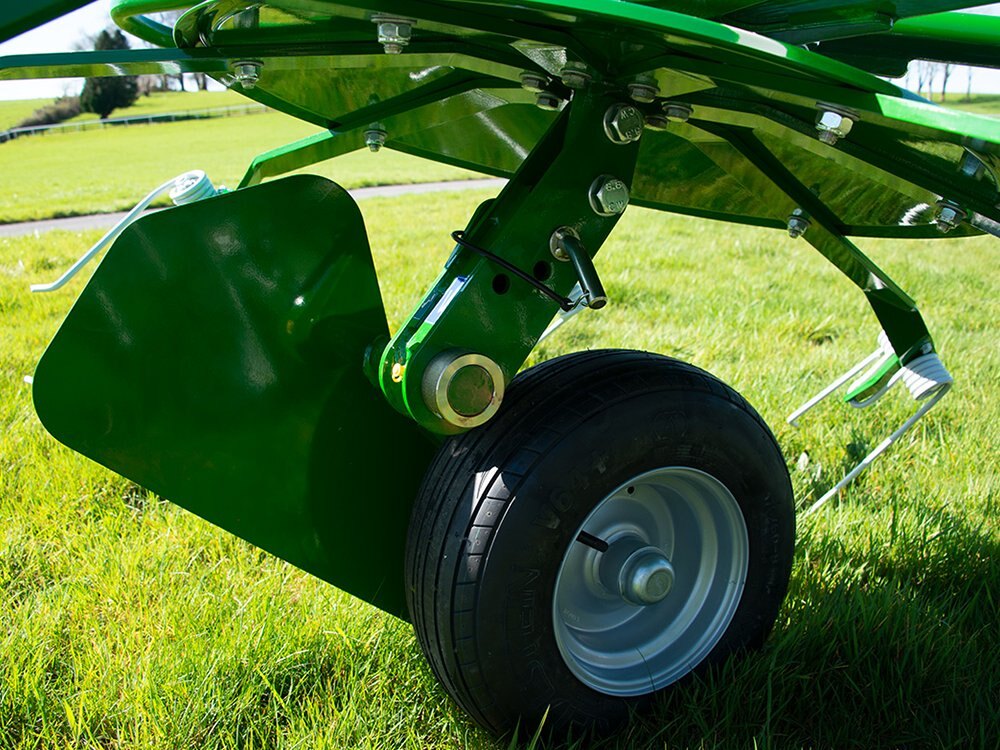

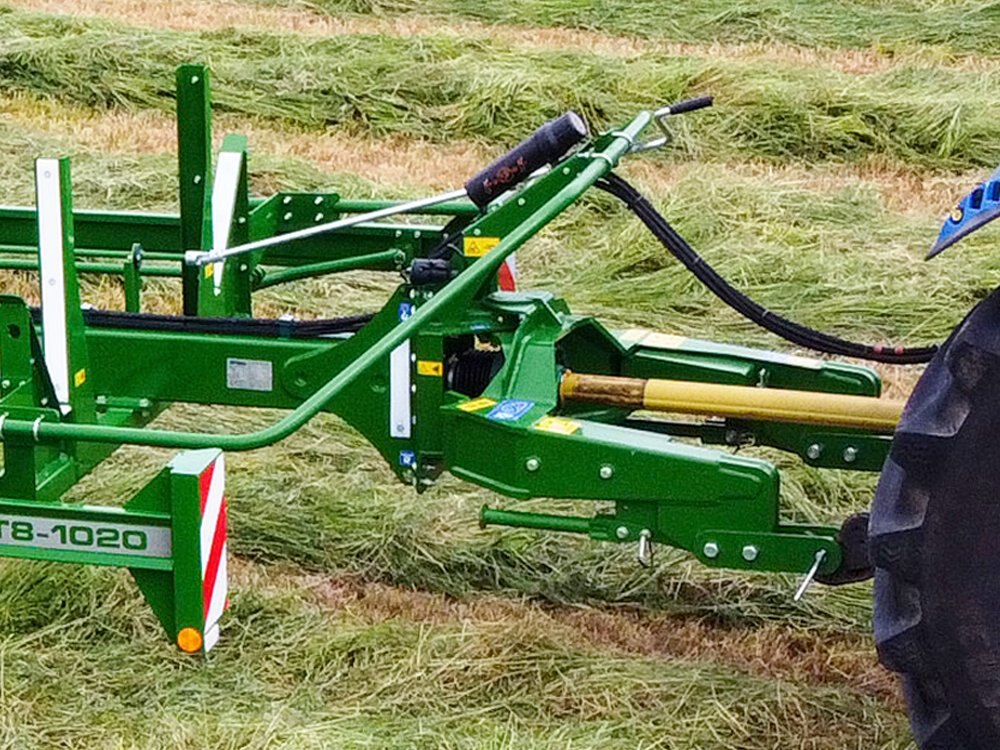

The machine is attached using a 2-point linkage and can be easily unfolded, lifted and lowered using only two double acting spools. Wide transport tires in front of the rotors allow the rotors to float freely, providing superior floation and help prevent soil contamination.

McHale PROPEL T8-1020 - Trailed Tedder

The McHale PROPEL T8-1020 is a high capacity trailed tedder fitted with 8-rotors to provide a working width of 10.2M. This straight-forward, highly efficient, machine is fitted with a long carriage frame that connects the tedder to the tractor when in operation and serves as a carrier when in transit. The machine is attached using a 2-point linkage and can be easily unfolded, lifted and lowered using only two double acting spools. Wide transport tires in front of the rotors allow the rotors to float freely, providing superior floation and help prevent soil contamination.

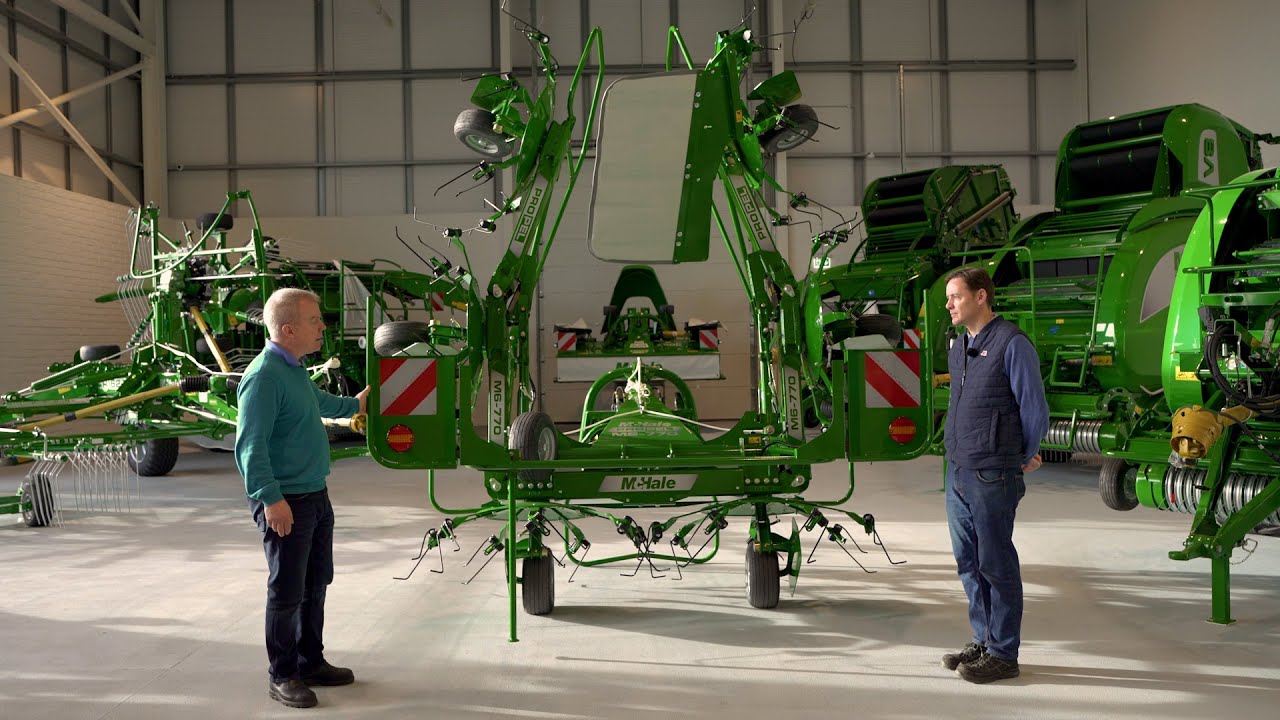

Spotlight Series | McHale ProPel Tedder Range

In this episode of our new Spotlight Series, we take a look at the new range of McHale ProPel Tedders with a particular focus on the M6-770 model.

Specifications
Model
Tedder
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
McHale
standard features
WORKING WIDTH
10.2m(33′ 6″)
NO. OF  ROTORS
8
ROTOR DIAMETER
1.58m (62″)

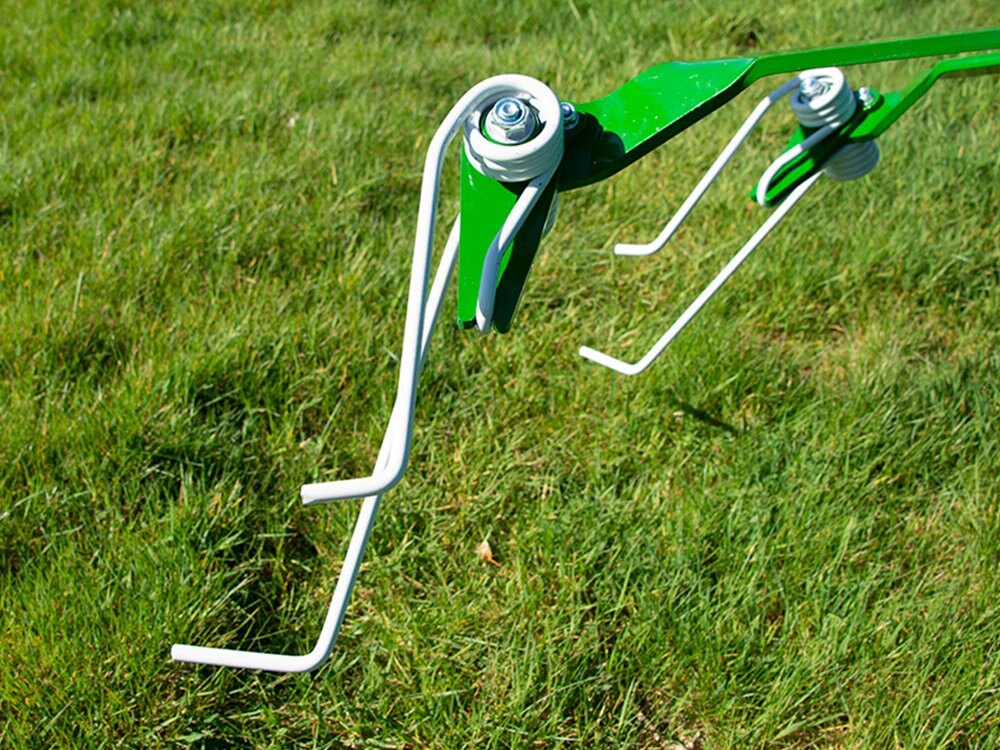

TINE ARMS PER ROTOR
7
POWER REQUIREMENT
45 kW(60 HP)
ATTACHMENT
Lower Linkage(CAT II)
dimensions and weight
Transport Length 5.8 m (19′)
Transport Width 2.99 m (9′ 10″)
Transport Height 2.6 m (8′ 6″)
Weight 2,605 kg (5,743 lbs)
tractor attachment
Minimum Power Requirement 45 kW (60 HP)
Attachment Trailed/ CAT II lower linkage
Recommended PTO Speed 480 rpm (SAE 6 spline PTO shaft)
Lighting 12 V / 7-pin socket
Hydraulic Systems 1x SA, 2x DA hydraulic
supply (1 with float)
Minimum Flow Rate 20 l/min (4.54 gal/min)
@ 180 bar (2,610 psi)
machine specifactions
Number of Rotors 8
Rotor Diameter (including tines) 1.58 m (5′ 2″)
Working Width 10.2 m (33’6″)
Number of Tine Arms 7 (per rotor)
Chassis Tyres (380/55-17)  2
Rotor Tyres (170/60-8) 8 (1 per rotor)
optional equipment
Spare Rotor Wheel Optional
Headland Management System Optional
