2025 McHale Pro Glide B910 Non Conditioner Butterfly Mower

Call for Price
Overview

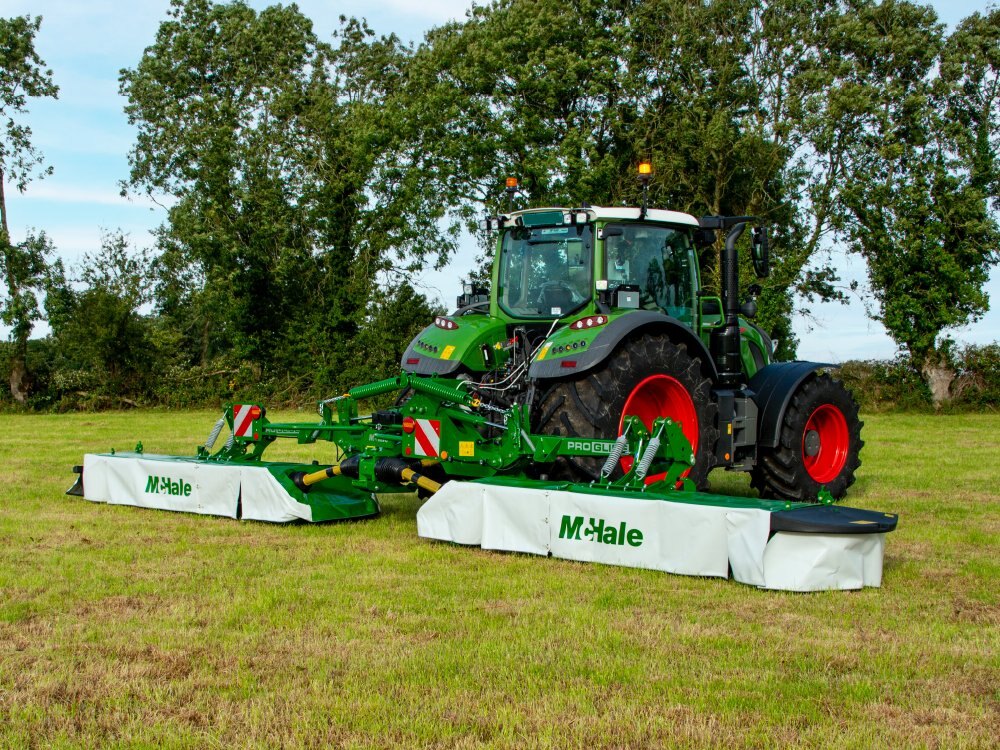

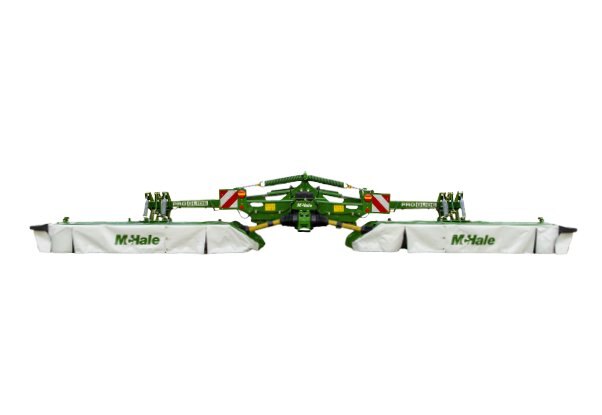

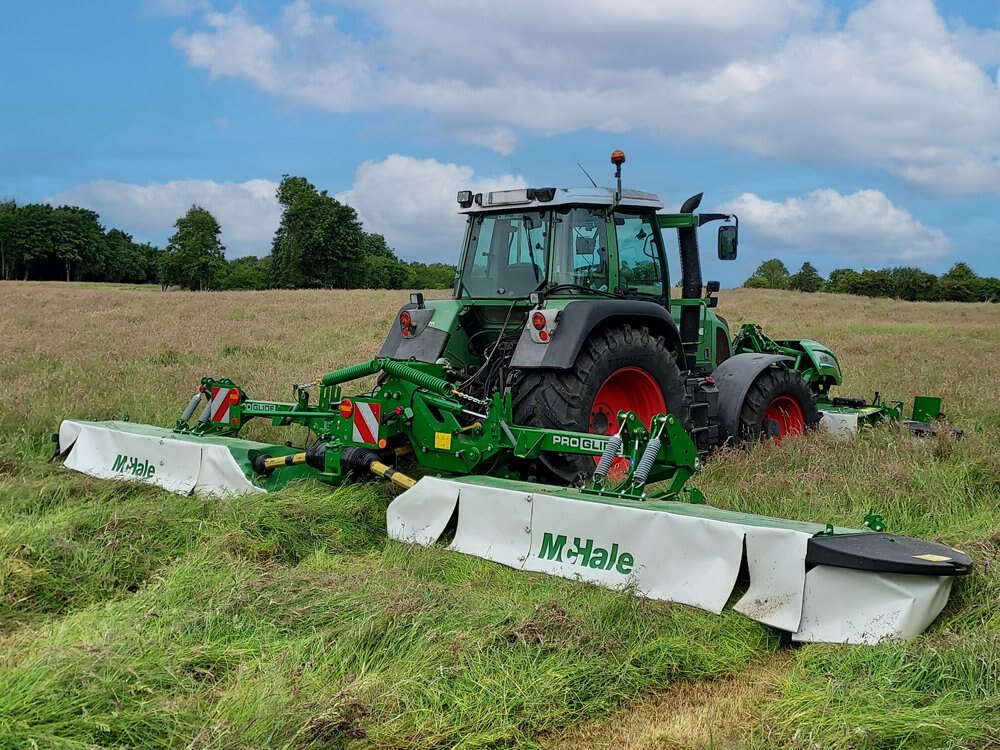

McHale Pro Glide B910 Non Conditioner Butterfly Mower

For over 30, years the McHale range of grassland equipment has been operating on 6 continents in some of the worlds most difficult conditions. Building on their comprehensive range of mowers, McHale now introduce the McHale Pro Glide B910 non-conditioner butterfly mower. Following direct requests from the market, McHale’s design team have combined their specialist knowledge of crop harvesting, energy and technical know-how to develop the McHale Pro Glide B910 non-conditioner butterfly mower.

The McHale Pro Glide B910 mower has excellent ground following capabilities delivering superior floatation. The mower is fitted with a patented ground adaptation technology which delivers 3-dimensional contour tracking of the ground. This allows the mower to easily mow on rough or undulating terrain and still deliver optimal results.

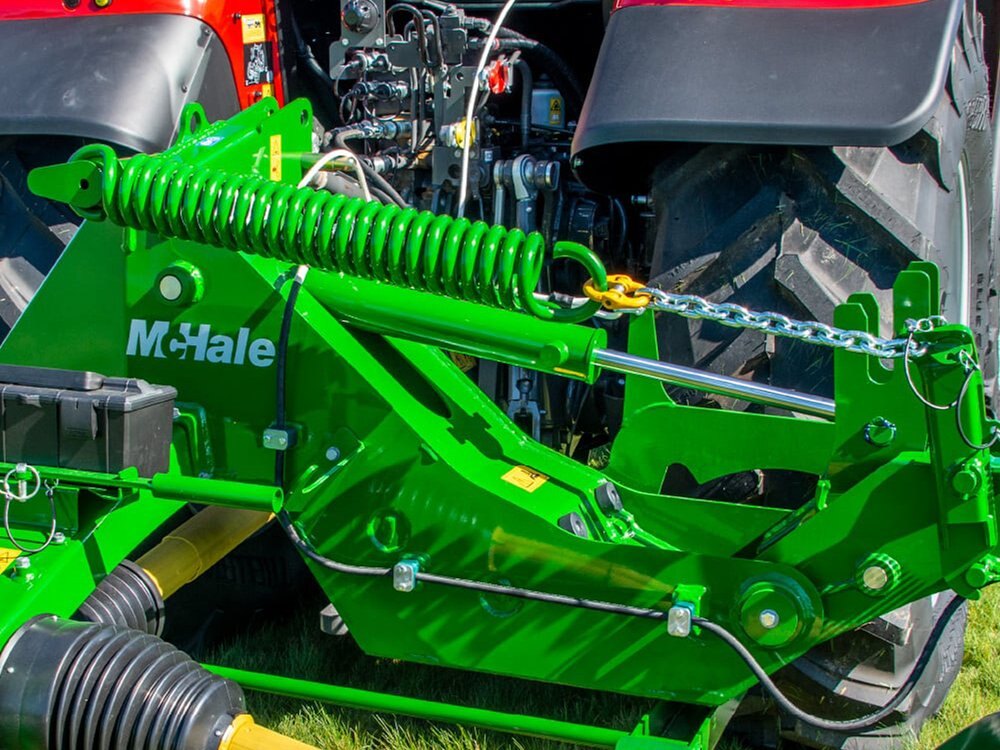

Most rear mowers have a central pin which allows the mower to move left and right to adjust to changes in ground condition. The McHale Pro Glide is different in that it is fitted with a patented 3D ground tracking suspension unit, which allows the mower to:

  • Move Left and Right
  • Move Forward and Back
  • Let the cutter bar move back and up if it collides with an obstacle.

This ensures that the Pro Glide cutter bar delivers better cutting performance.

Specifications
Model
Non Conditioner Butterfly Mower
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
McHale
standard features

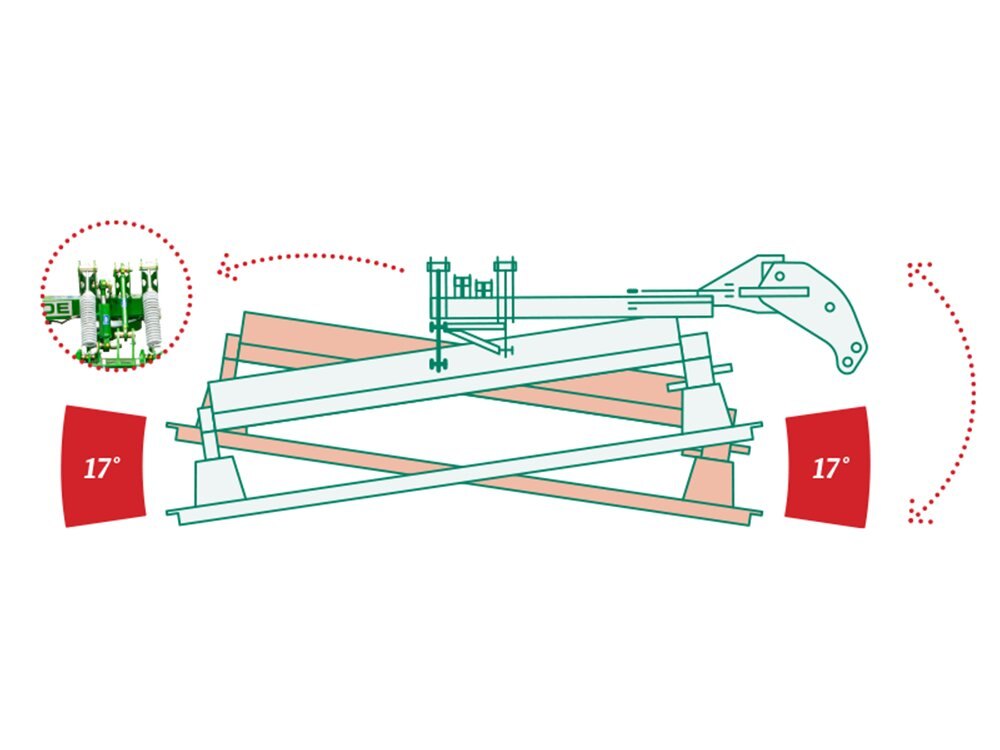

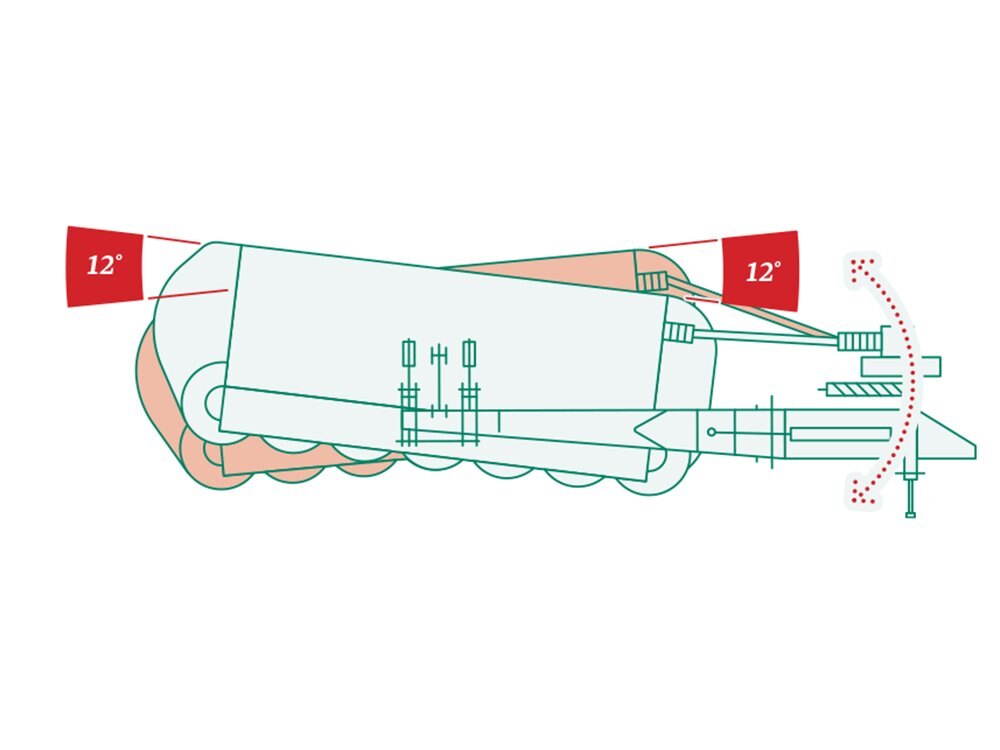

3D Ground Tracking Technology Unique Forward/Back Movement of 12° Transverse  Movement of 17°

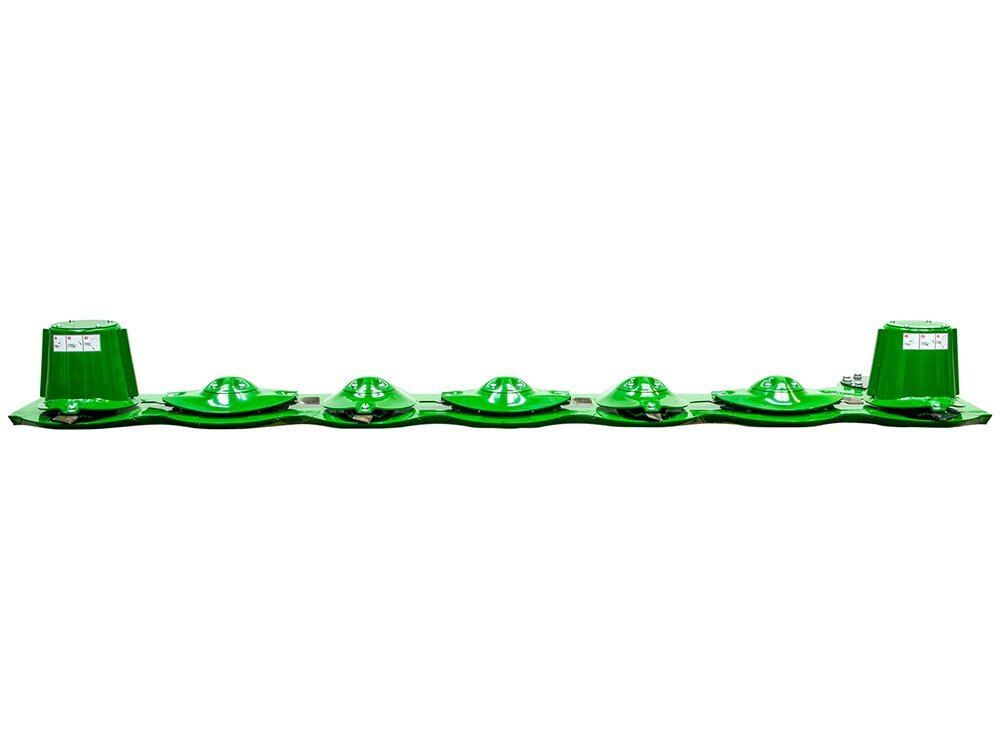

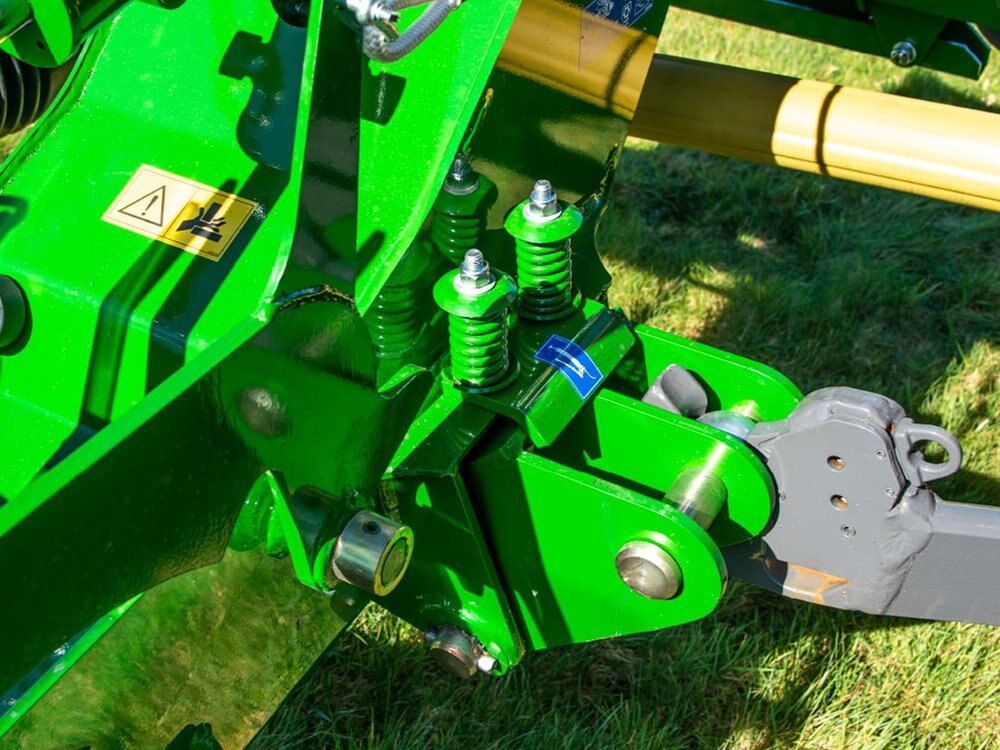

Unique Stone Protection Mechanical Break Back Protection Heavy-Duty, Fully Welded Cutter Bar
Heavy-Duty 1,000 RPM Driveline Low Profile Front Edge Quick Fit Blades
25mm (1″) Thick Gears Adjustable Swathing Discs (Optional)
dimensions & weight

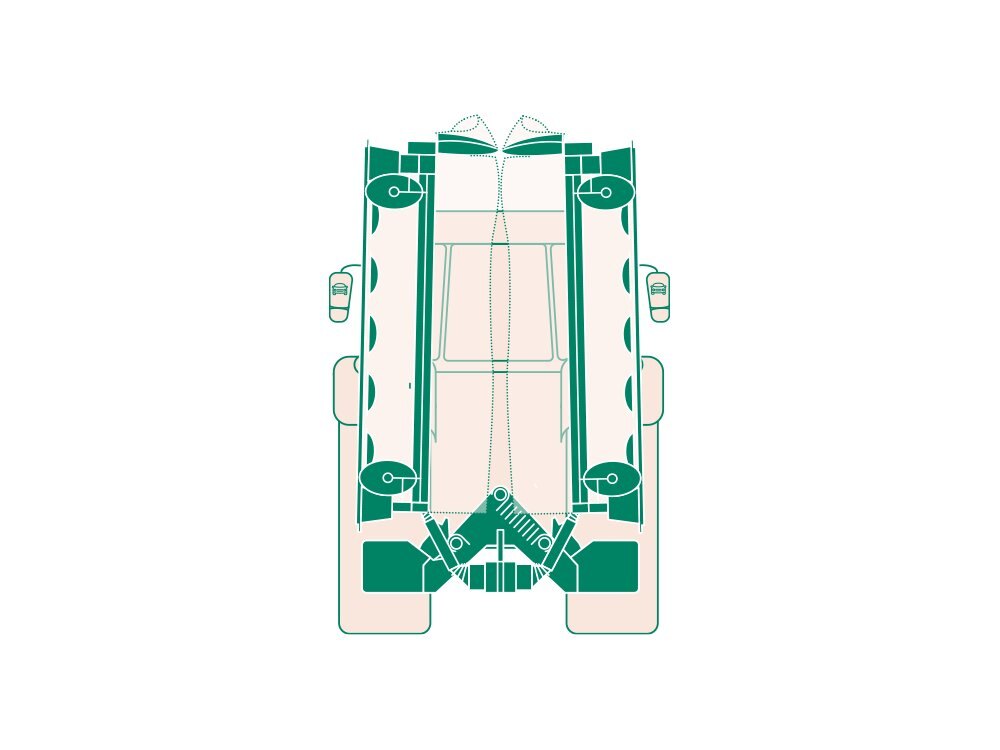

Transport Width 2.98m (117″)
Transport Length 1.58m (62″)
Transport Height 4m (158″)
Weight 2,100kg (4,630bs)
mower specifications
Cutting Width 9.1m (359″)
Swath Width 1.7 m – 2.7m (67”-107”)
Number of Cutting Discs 16
Total Number of Blades 32

(2 Blades per Disc)

Cutting Height 25 mm – 75 mm

(1” – 3”)

Cutting Disc Speed 3,200 rpm
Cutting Blade Quick Change

(Double Sided)

Adjustable Swathing Discs Optional

tractor attachment
Minimum Power Requirement 112 kW / 150 HP
Linkage Attachment CAT II or CAT III (Rear) 3-Point linkage
PTO Speed (Interchangable Gearbox) 1,000 RPM
Rear Lighting Kit (Optional) LED Lighting: 12 V / 7- pin socket
Hydraulic Systems 2X Double Acting Hydraulic Supply with Float (Minimum)
Minimum Pressure 180 bar (2,610psi)
Minimum Hydraulic Flow Rate 40 l/min (8.79 gal/min) @ 180 bar (2,610 psi)
Capacity 9.5 ha/h (23.5 acres/hour)
