Overview

The BATRAKE wheel rake is ideal for medium to small areas with an average amount of product to collect. Each arm has an independent movement so it is easier to adapt to the ground and have a great swath formation even on sloping terrain.

Specifications

Model

BATRAKE

Category Name

Agriculture

Year

2025

Sale Type

New

Manufacturer

Enorossi

general characteristics

Enorossi has a wide range of wheel rakes, ideal for any farmer’s need.
The rake wheels, with different systems, adapt individually and perfectly to the ground, guaranteeing excellent work especially in difficult field conditions.
The versatility of the wheel rakes make them suitable for harvesting grass, straw, corn stalks, sorghum and sugar cane.

Low energy consumption

The wheel rake is the most efficient machine in uneven ground conditions, ensuring the cleanest product possible.
It works by towing, therefore not using the PTO power take-off, it significantly reduces costs for the farmer and the environmental impact.
This feature, together with the low maintenance cost, makes this type of rake, with the same working width, the most convenient solution for the farmer.

The frame

Frame inline

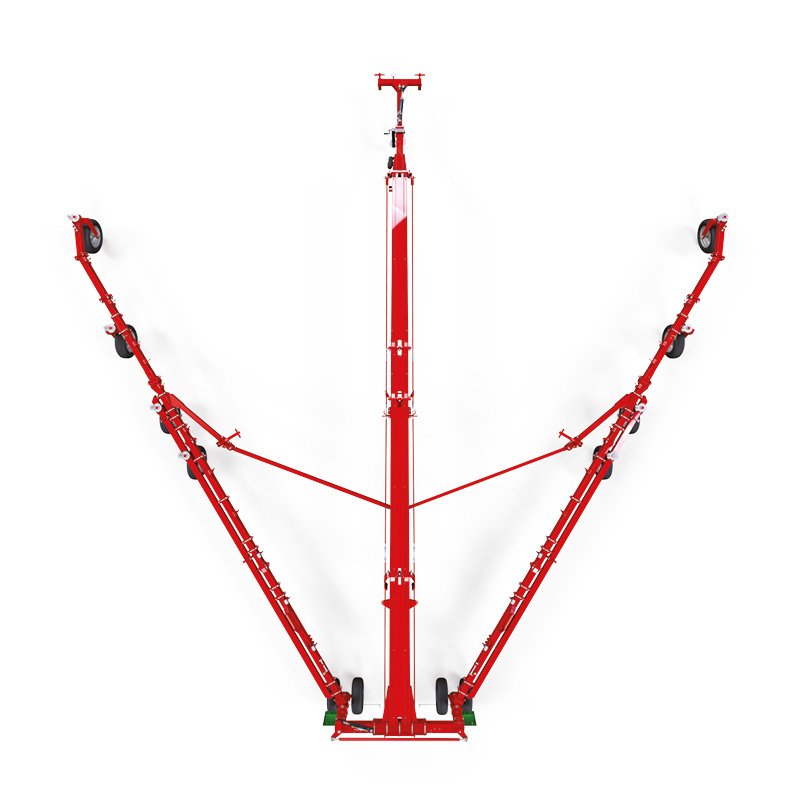

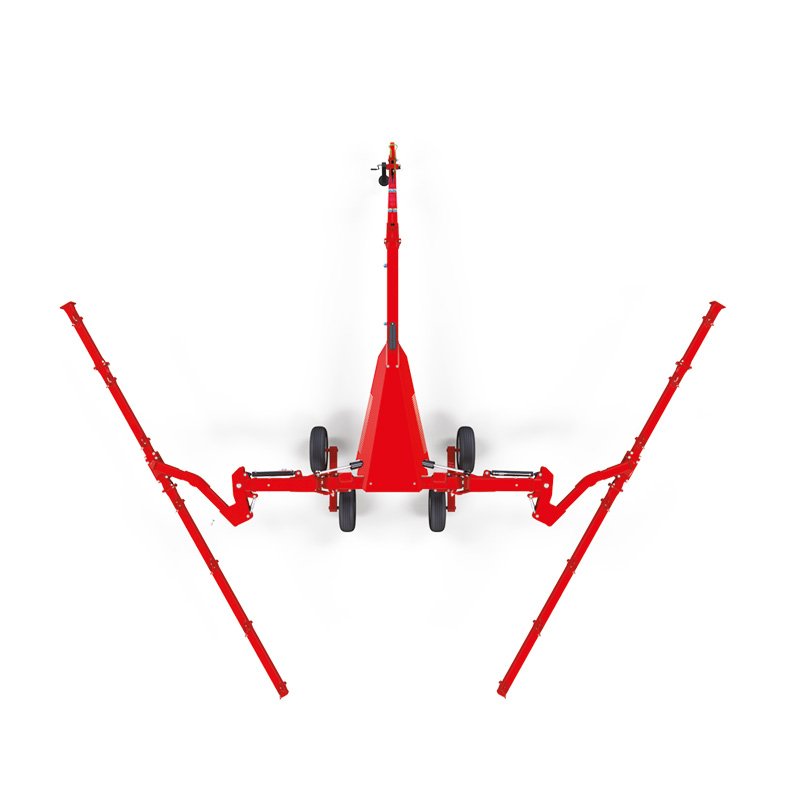

Enorossi BATRAKE V” frame with central joint

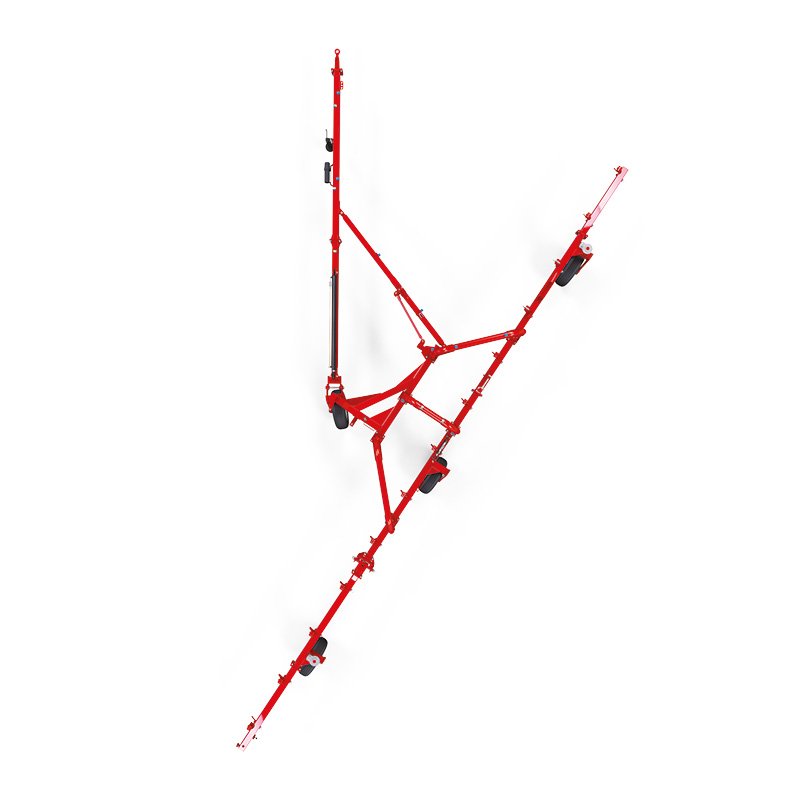

“V” frame with rear joint

Windrow width adjustment

Each model of wheel rake has the possibility to adjust the width of the windrow width: single system (formation of one windrow) or double passage in the field (formation of two windrows side by side) for models with in-line frame; hydraulic system in V-frame models with central joint; mechanical system in V-models with rear joint.

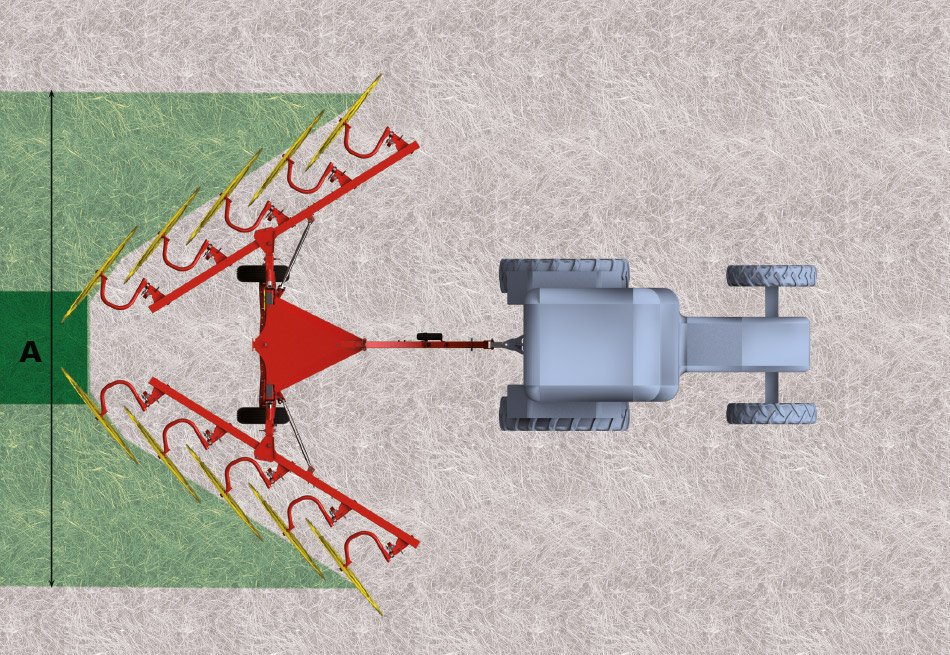

Maximum working width (A) till to 12,10 meters (models EASY RAKE SUPERSTAR 22 SN ST).

Rake wheels

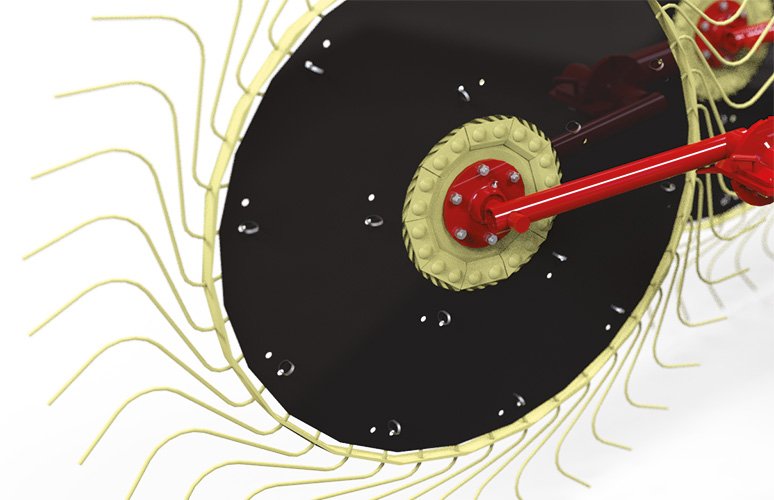

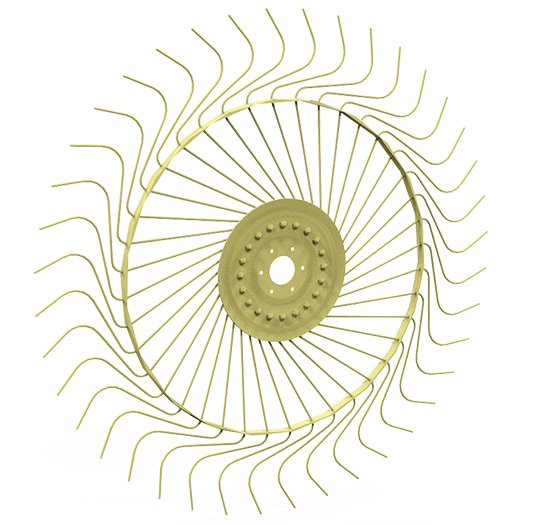

Standard rake wheel

Standard rake wheel with 145 cm diameter and 6.9 mm diameter teeth for the models RP, RT, CADDY.
Standard rake wheel with 150 cm diameter and 7.5 mm diameter teeth for the models BATRAKE, MAXIMUS, EASY RAKE, EASY RAKE SUPERSTAR.

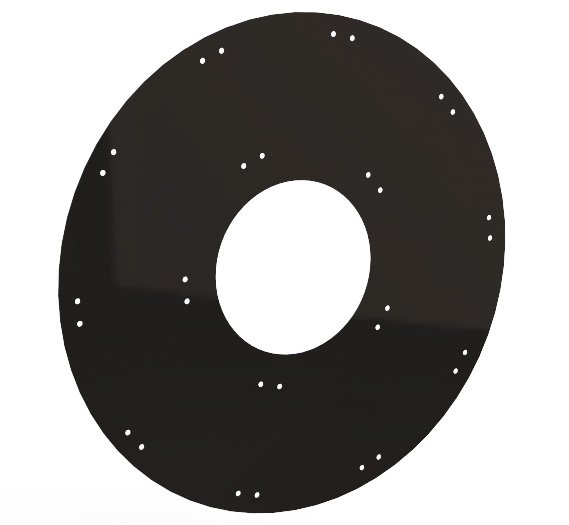

Wind guard

The Wind guards facilitate the process of unloading the forage from the rake wheels, avoiding it sticking to them and also helps not to disperse the product in windy conditions.

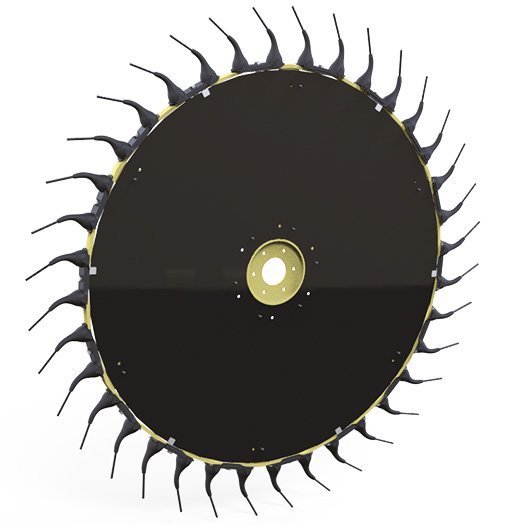

Rubberflex rake wheel

The Rubberflex wheel has been designed for heavy products and has the particularity of having short teeth and a very robust structure. With Rubberflex wheels it is also possible to increase the working speed.
Availabe from model MAXIMUS, EASY RAKE, EASY RAKE SUPERSTAR.

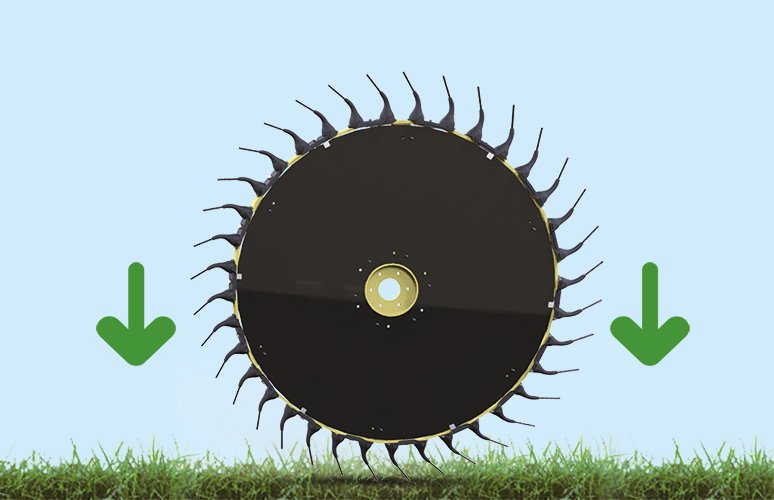

Pressure regulation of the rake wheels on the ground

It is possible to adjust the ground pressure of the rake wheels according to the quantity of the product and the quality of the ground.

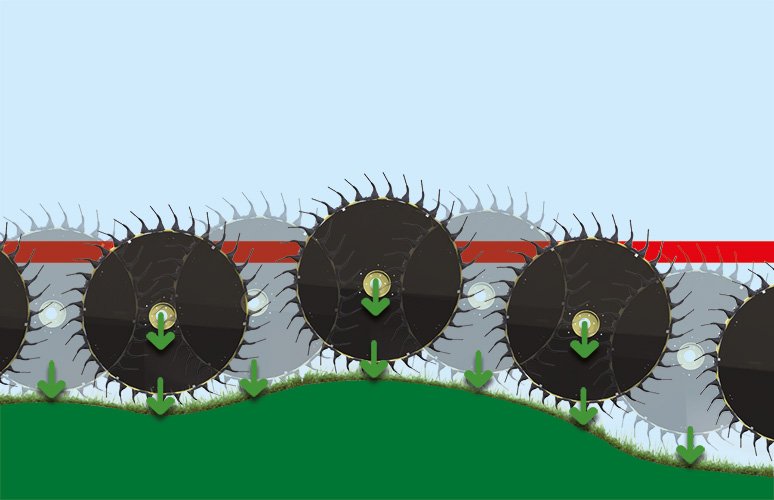

Ground adaptation of the rake wheels

The adaptation of the rake wheels to the ground is very important, especially in conditions of disconnected terrain, therefore each model of rake has its own adjustment system.

Rake wheel hub lubrication and tapered roller bearing

The hub of the rake wheels is grease lubricated, with tapered roller bearings, and sealed.

Hydraulic lifting of the rake wheels

This system allows to quickly switch from the work position to the transport position in a simple and fast way without getting off the tractor.

features

STANDARD EQUIPMENT

Working width adjustment Mechanical (Hydraulic opt.)
Windrow width adjustment Mechanical (Hydraulic opt.)
Rake wheels bearing: Tapered roller
Rake wheels lifting Hydraulic
Rake wheels ground adaptation: Independent arms
Rake wheels ground pressure: Spring on frame and on each rake arm
Height of rake wheel frame from the ground: 85 cm / 2.8 ft
Single arm raking
Axles Single (tandem optional)
Hitch Clevis hitch

OPTIONAL

Central rake wheel kit
Front kicker wheel
Wind guard for rake wheels
Wind guard for central rake wheel

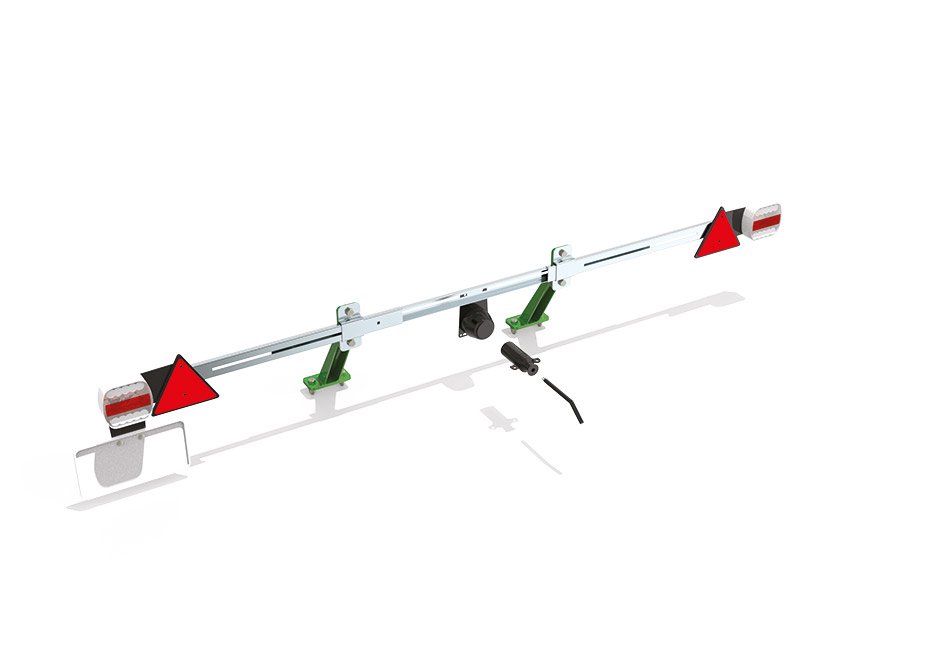

Street lights
Tandem axle kit
Hydraulic adjustment windrow width

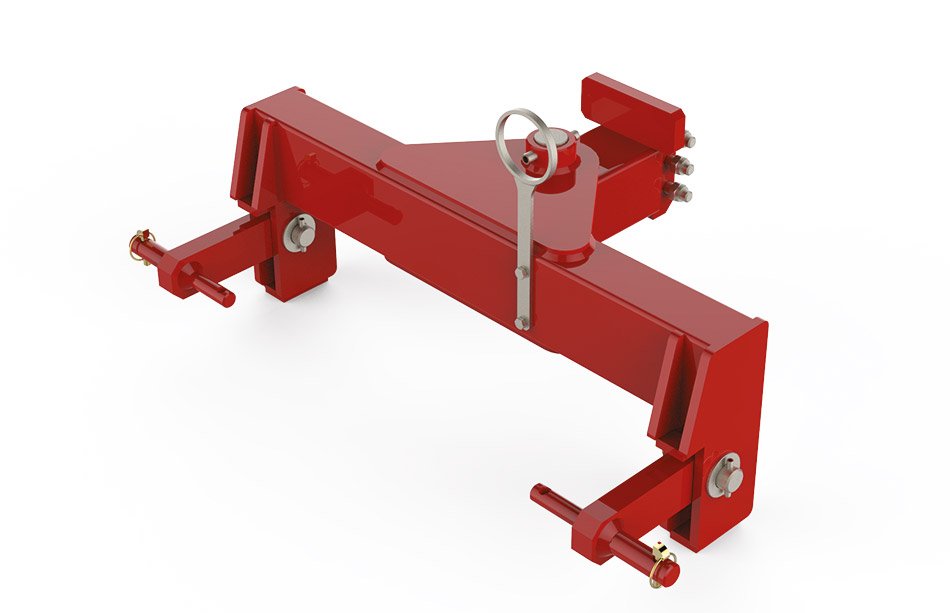

Oscillating crossbar for lifter
Towing eye
Balancing valve
Italian approval for road circulation
Spanish approval for road circulation

benefits

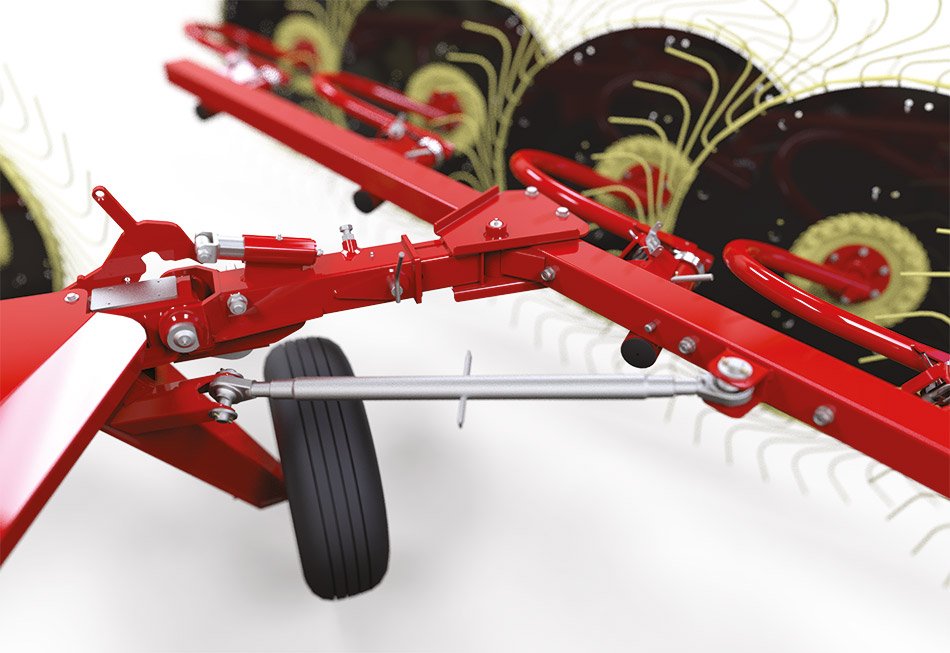

Telescopic frame

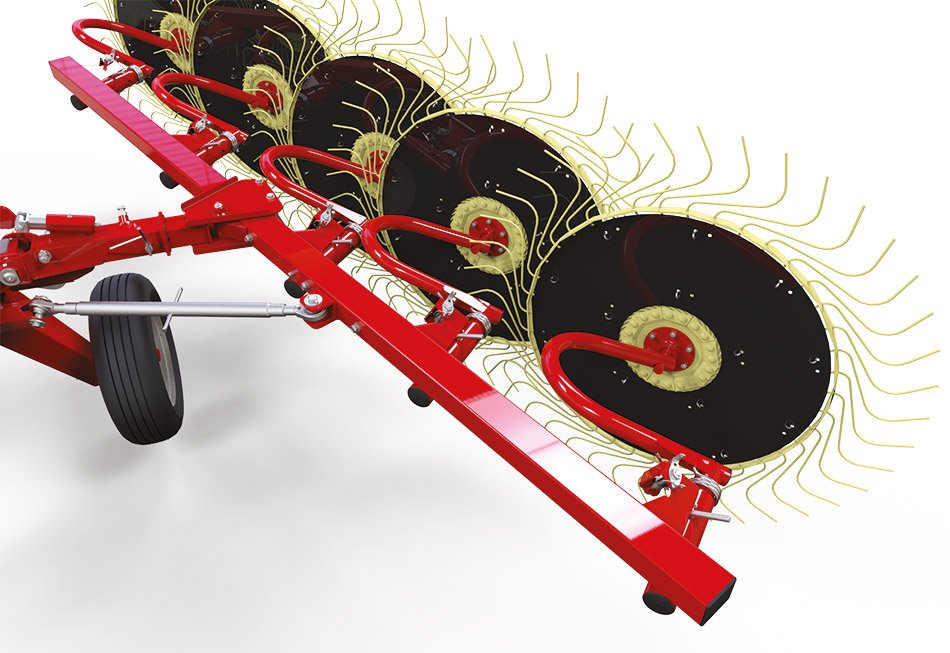

The windrow width adjustment is easily obtained through the mechanically operated telescopic frame.

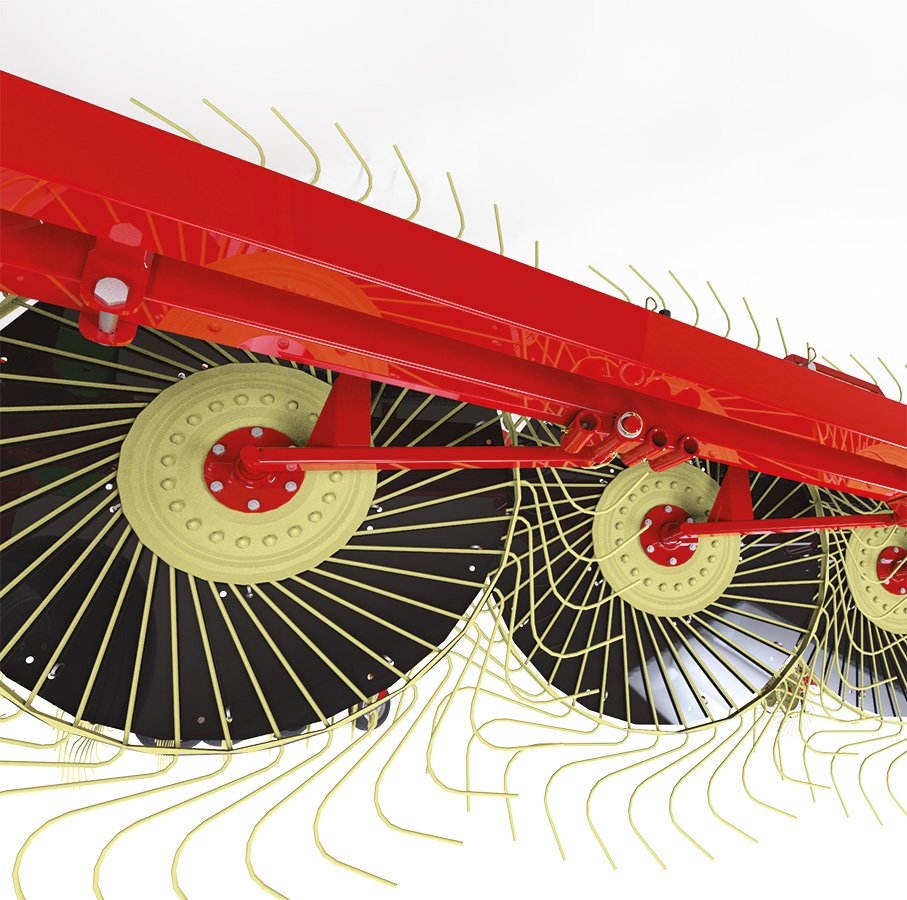

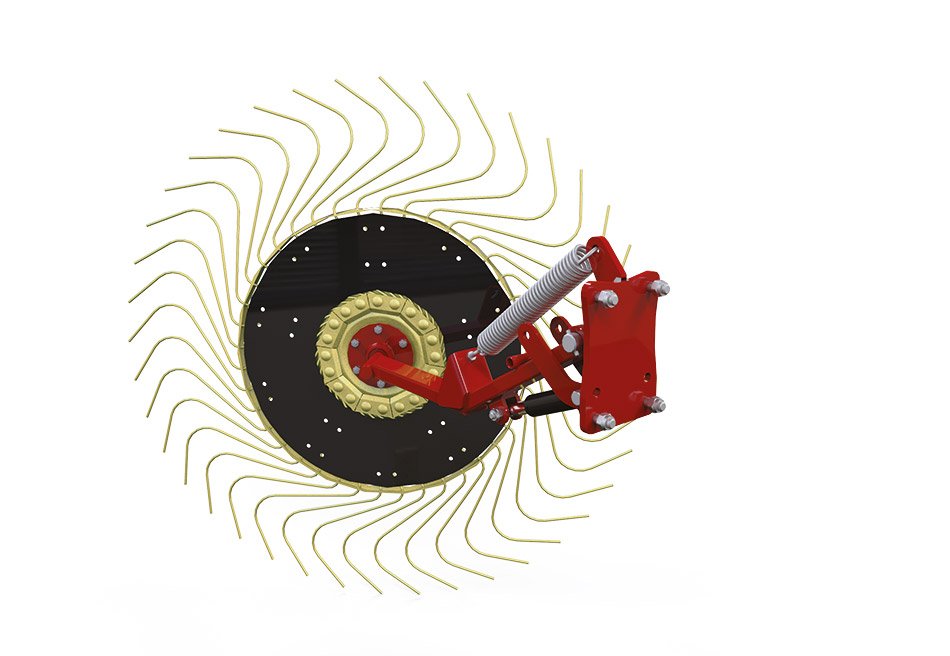

Independent rake arms and wheels with spring pressure adjustment to the ground

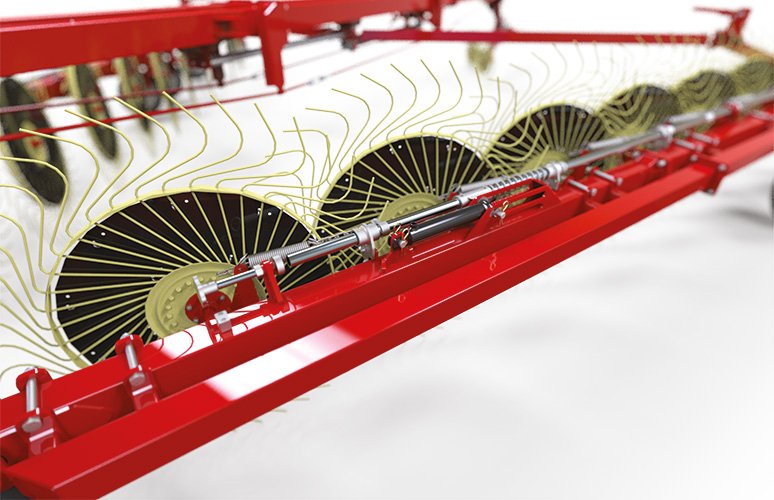

Each rake arm is equipped with an adjustable torsion spring that allows you to vary the pressure on the ground for excellent collection and windrow formation maintaining a uniformity of work in the field.

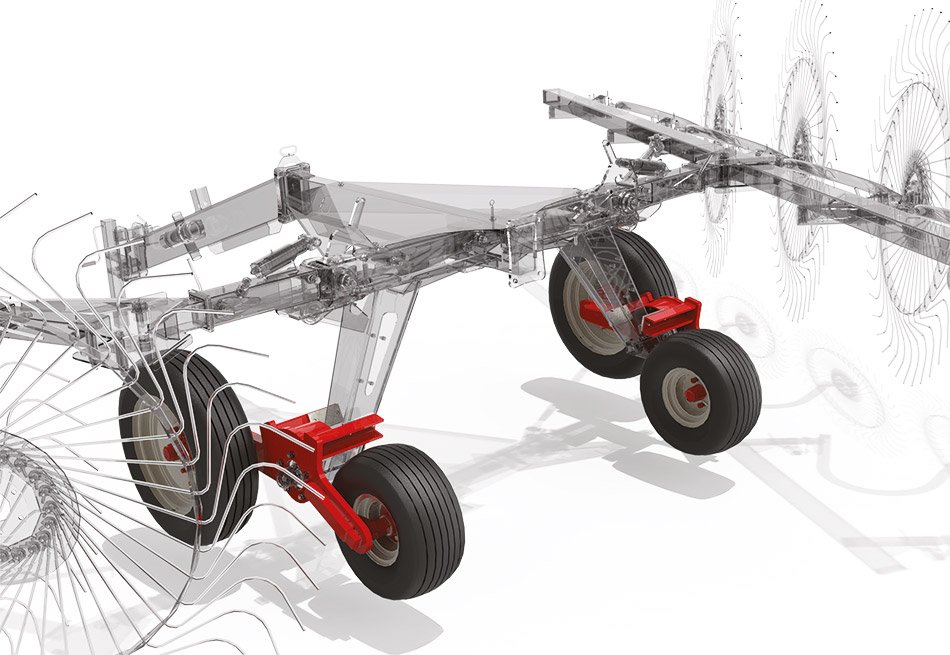

Enorossi BATRAKE Tandem axle kit (optional).
