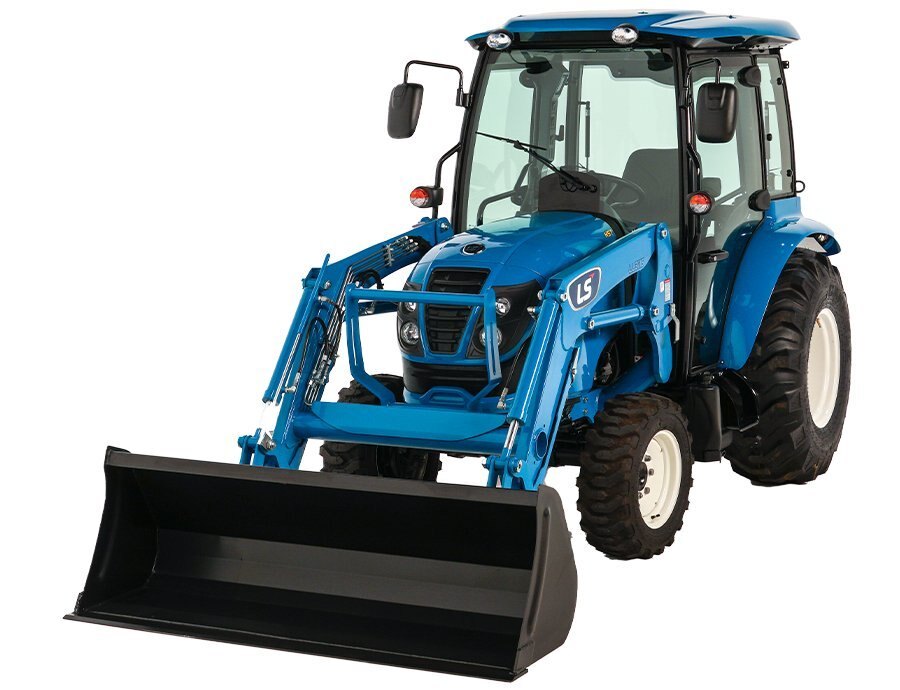

LS Tractor MT235EC – 35HP

  • LS Tractor MT235EC – 35HP
  • LS Tractor MT235EC – 35HP
  • LS Tractor MT235EC – 35HP
  • LS Tractor MT235EC – 35HP
  • LS Tractor MT235EC – 35HP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Compact

The MT235 EC (35HP) features an economy cab with a substantial number of features. Features include a premium cloth seat, rubber floor mat, and more. A 12X12 synchro-shuttle transmission is standard.

Specifications
Model
MT235EC – 35HP
Category Name
Tractors
Year
2024
Sale Type
New
Manufacturer
LS Tractor
PTO HP
29.7 HP
ENGINE HP
35.0 HP
HITCH LIFT
1,808 lbs.
LOADER LIFT CAPACITY
2,178 – 2,185 lbs.
features

LEFT AND RIGHT CAB DOORS

Premium Seat Providing Access To Either Side Of The CabLS Tractor MT235EC – 35HP

3 RANGE HYDROSTATIC TRANSMISSION

Provides Comfort And Excellent Controllability Of Tractor MovementLS Tractor MT235EC – 35HP

3 STANDARD DUAL MIRRORS

Provide Added Visibility  LS Tractor MT235EC – 35HP

3 STANDARD DRAWBAR

Provides Value And Enables Trailering etc.   LS Tractor MT235EC – 35HP

3 GROUND LEVEL FUELINGLS Tractor MT235EC – 35HP

Provides Easy Access



STANDARD GRILLE GUARD WITH LOADER

Provides Added ProtectionLS Tractor MT235EC – 35HP

HIGH-CAPACITY LOADER

With High Lift Height And Standard Skid Steer CouplerLS Tractor MT235EC – 35HP

STANDARD INTEGRATED JOYSTICK

Mid Mount Valve, Providing Deluxe Fit And FinishLS Tractor MT235EC – 35HP

ELECTRONIC PTO

For Ease Of UseLS Tractor MT235EC – 35HP
engine
Type
Vertical Water-Cooled 4Cycle Diesel Engine
PTO HP
29.7
Model (Tier 4)
L3C19-T
Engine HP (Gross)
35
Rated Speed (RPM)
2,600
Displacement (cu. In.)
114.7
Fuel Tank Capacity (gal)
12.4
drive train
Brakes
Wet, Multi-Disc
Steering
Hydrostatic Power Steering
Transmission
Synchro shuttle
No. Of Speeds
F12 X R12 (GEAR)
pto
Type
Independent
Mid RPM
2,000 (Option)
Rear RPM
540 (Standard)
hydraulic system
Control System
Position/Draft
Total Flow Gpm
12.3 (GEAR)
Steering Pump (gpm)
4.1(GEAR)
Category, 3 Pt Hitch
CAT 1
Implement Pump (gpm)
8.2
Hitch Lift Capacity (lb)
1808
dimension
Wheelbase (in.)
69
Height To Top Of ROPS(in.)
86.6
Overall Width With Tires (in.)
62
Overall Length Frame To Link (in.)
128.3
Total Weight Without Ballast (lbs)
3,589
tire size
Ag Front/Rear
7 – 14 / 11.2 – 24
IND Front / Rear
25 x 8.5 – 14 / 43 x 16 – 20
Turf Front / Rear
25 x 8.5 – 14 / 41 x 14 – 20
options

Telescopic Link Arms
Side Step – RH
7 Pole Connector
Horn
Sun Screen
Interior Rear View Mirror
External Position Lever
Beacon Lamp
Work Light
Audio Assy – without Bluetooth
Audio Assy – Bluetooth
Rear Wiper
Mid PTO
Remote Valve – 2 Pair (1 STD. 1 Detent)



attachments

FRONT END LOADER – LL3116

  • Bucket (in): 66
  • Maximum Lift Height (in): 92.7 – 94.4
  • Clearance with Attachment Dump (in.) 61.7 – 64.4
  • Reach at Maximum Height (in): 15 – 15.4
  • Maximum Dump Angle (deg.): 48 – 52
  • Maximum Rollback Angle (deg.): 43-41
  • Digging Depth (in): 4.3
  • Overall Height in Carry Position (in): 49.1 – 51.4
  • Lift Capacity(At Pivot pin) (lbs.) 2,178 – 2,185
  • Breakout Force(At Pivot pin) (lbs.): 3,450 – 3,612
  • Approx. Weight (Loader w/o Bucket) (lbs.): 717

BACKHOE – LB2104

  • Digging Depth (in): 89.7
  • Reach From centerline of swing Pivot (in): 125.2
  • Loading Height (in): 72.4
  • Swing Arc (deg.): 180
  • Transport Height (in): 83.5
  • Bucket Rotation (deg.) :180
  • Stabilizer Spread (Down Position) (in): 68.7
  • Stabilizer Spread (Up Position) (in): 46.4
  • Bucket Digging force (lbs.): 2,679



literature
Name Link
Brochure Download
LS Model Comparison Download
Competitive Comparison Download
