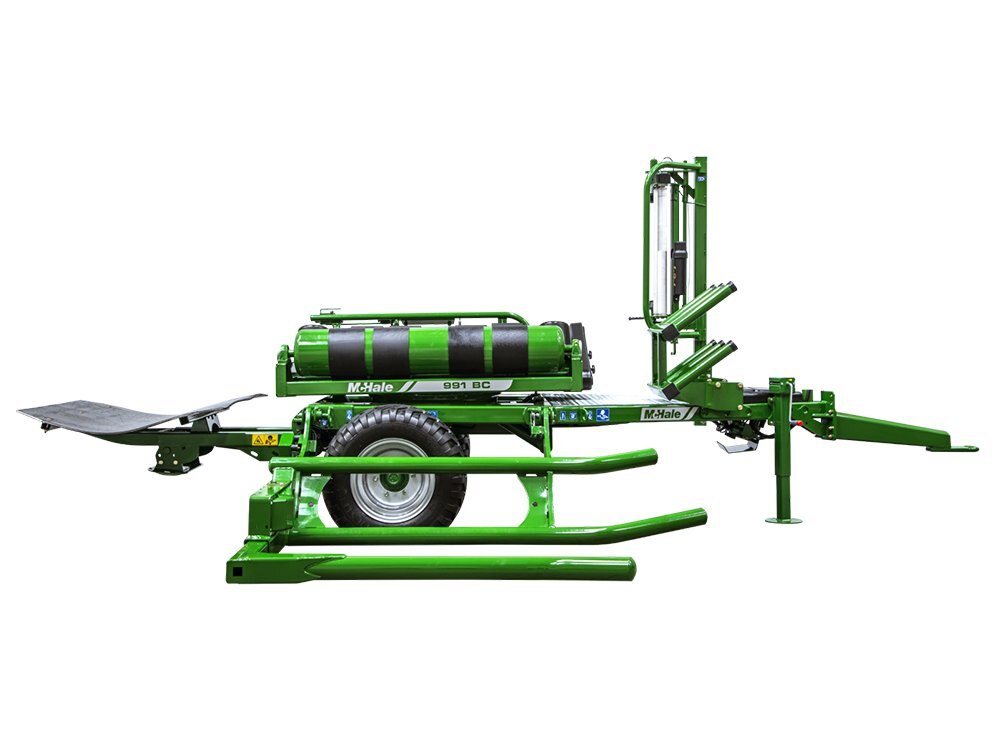

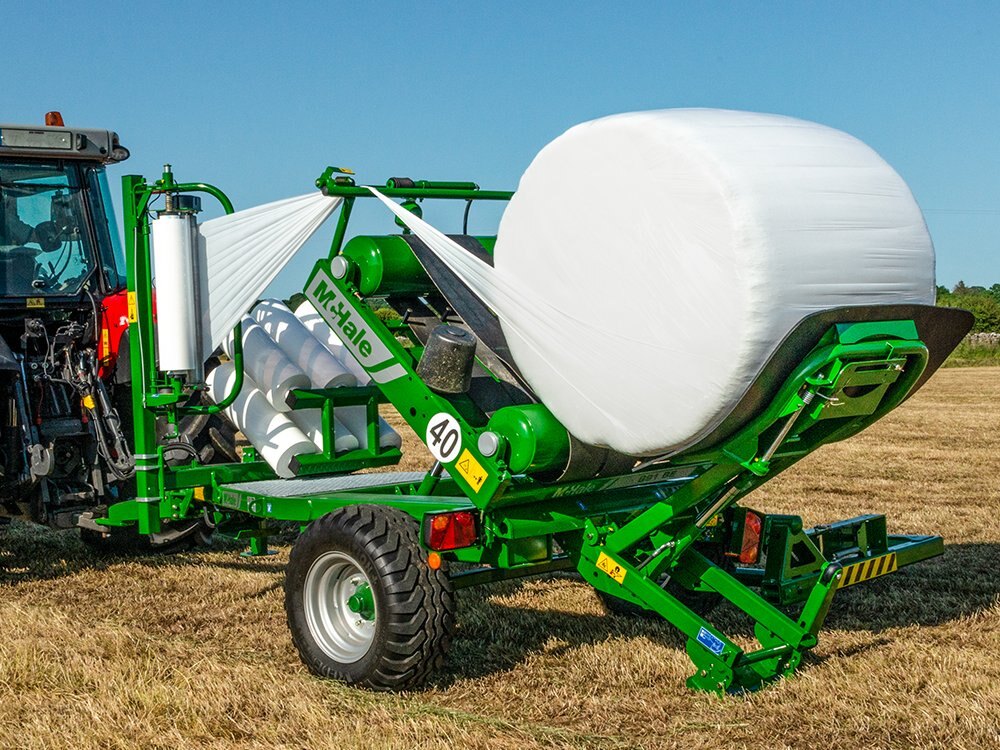

991 BC Cable Controlled Trailed Round Bale WrapperMcHale’s round bale wrapper range has been designed with the demands of today’s farmer and contractor in mind. This common-sense approach to design ensures that each machine’s operation is kept simple and user friendly. Farmers and contractors all over the world are under pressure to reduce costs and increase output. To help with this, McHale concentrate on features like the patented hydraulic ground supported bale damper system, patented high-speed transfer system, patented tip rollers, hydraulically operated cut & hold system, 750mm dispensers and high specification components. These features ensure long working life, reliability and a machine rugged enough to handle the toughest crops, heaviest bales and roughest ground conditions. |

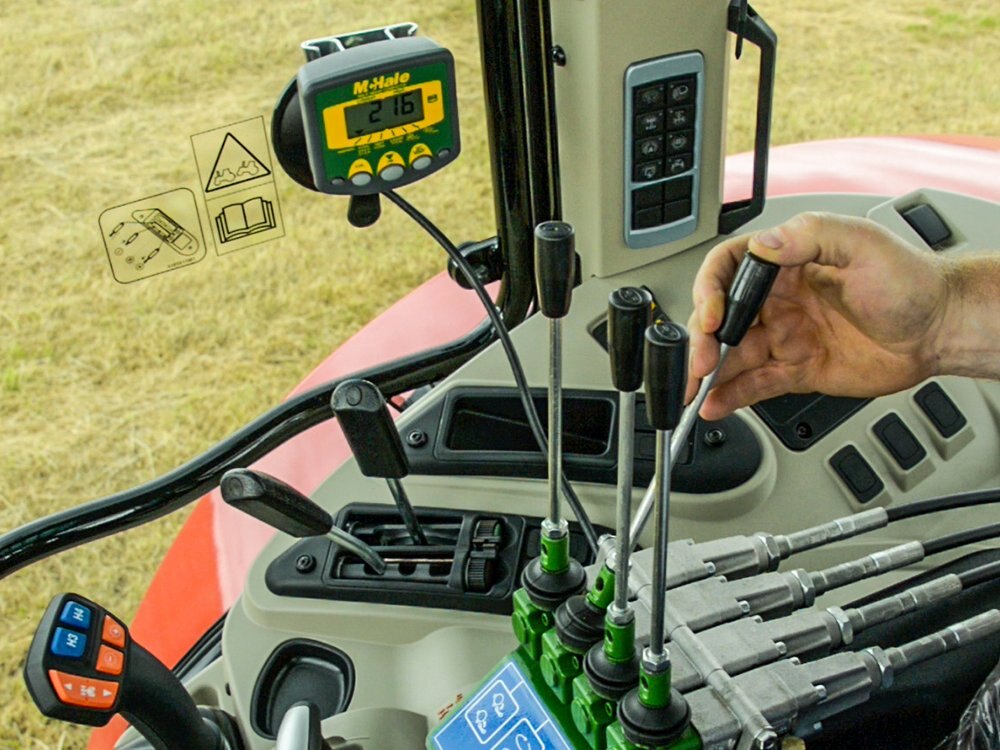

| The McHale 991 BC round bale wrapper is the entry level machine in the 991 B range. The McHale 991 BC uses four individual levers to control all wrapping functions. The cable-controlled levers on this round bale wrapper allow the operator to control: |
McHale 991 BC Cable Controlled Single Dispenser Trailed WrapperWatch the video for the McHale 991 BC, the entry level machine in the 991 B range. The McHale 991 BC uses four individual levers to control all wrapping functions. |
| 4 Lever Control | 750mm Film Dispenser | Hydraulically Operated Cut & Hold |
| Capacity to carry 7 rolls of film (6&1) | Bale Support Bobbins | 3.5 Metre Cables Other lengths available |

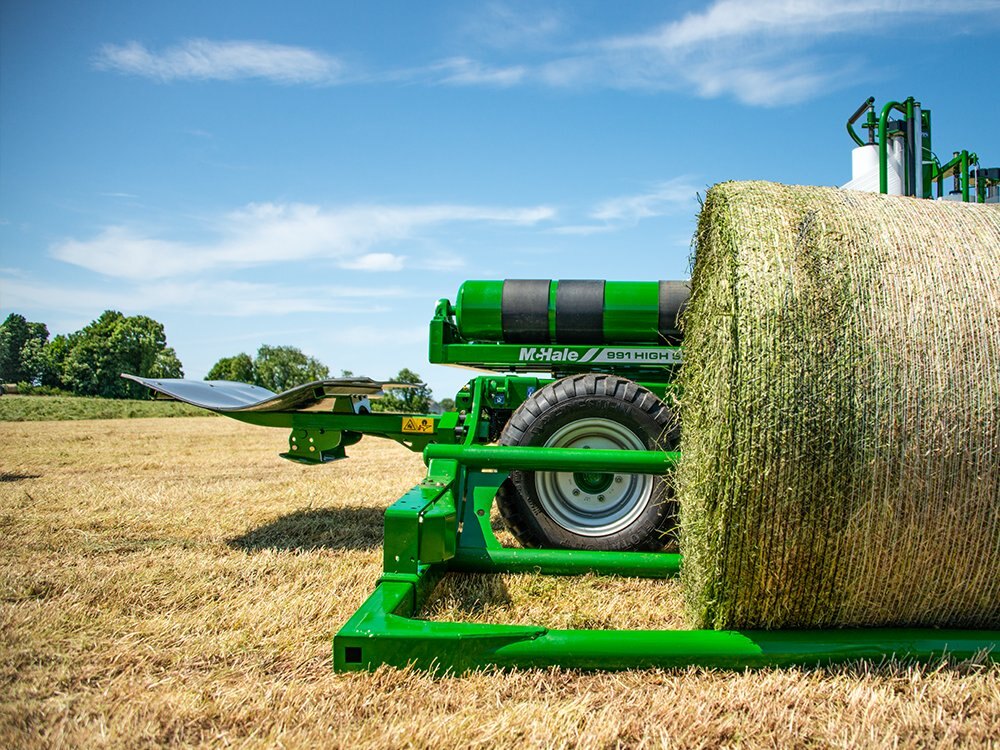

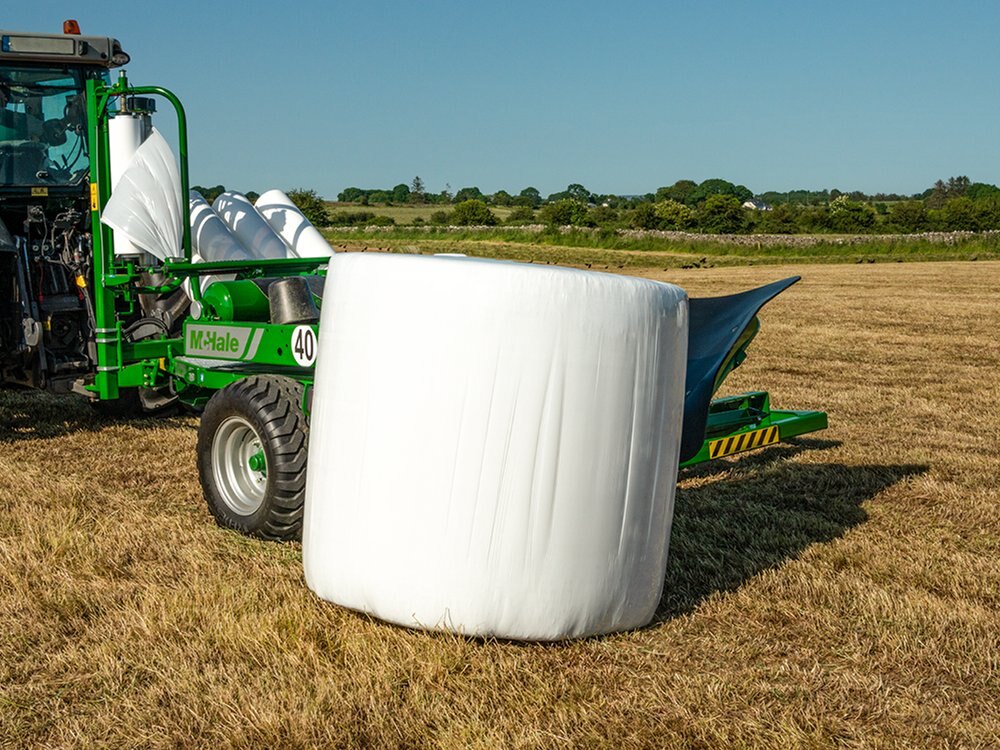

| Patented Ground Supported Damper | Shear Bolt Protection System | Quick Fit Film Dispensers |
| Auto Stop Function | Rotation lever locks in position after 2 rotations and stops at the pre-set number of layers | WIZARD Control System |
| Transport Length | 5.7 m (18’8″) |
| Transport Width | 2.45 m (8′) |
| Transport Height | 2.46 m (8’1″) |
| Height to Top of Rollers | 1.25 m (4’1″) |
| Weight (unladen) | 1870 kg (4123 lbs) |
| Bale Size | 1.52 m (3’3″-5′) |

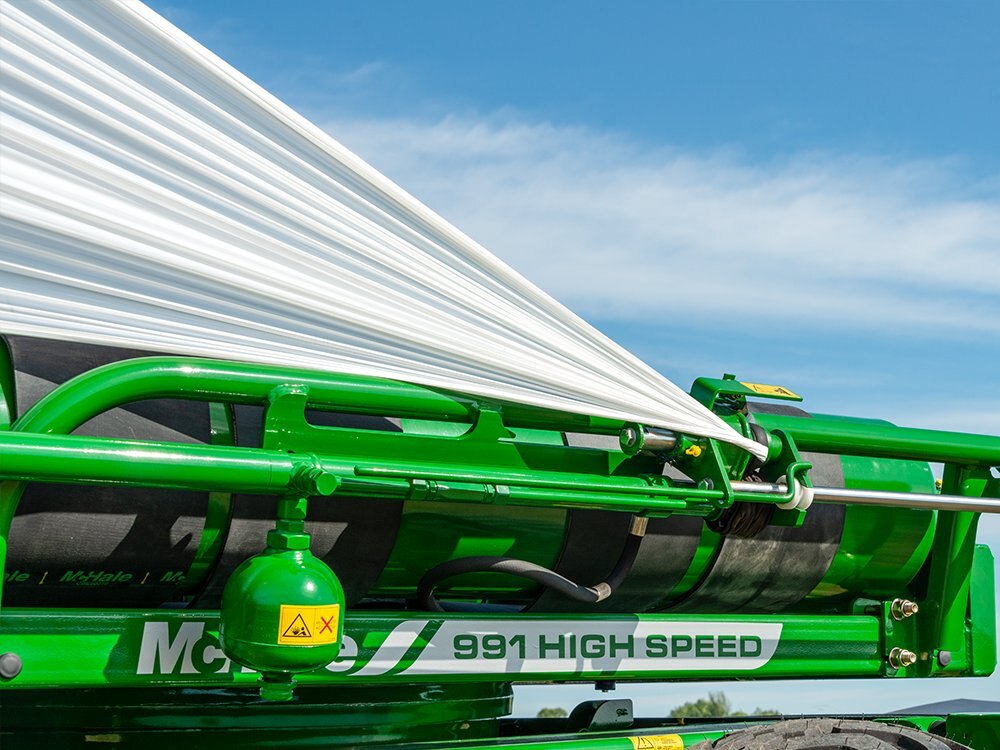

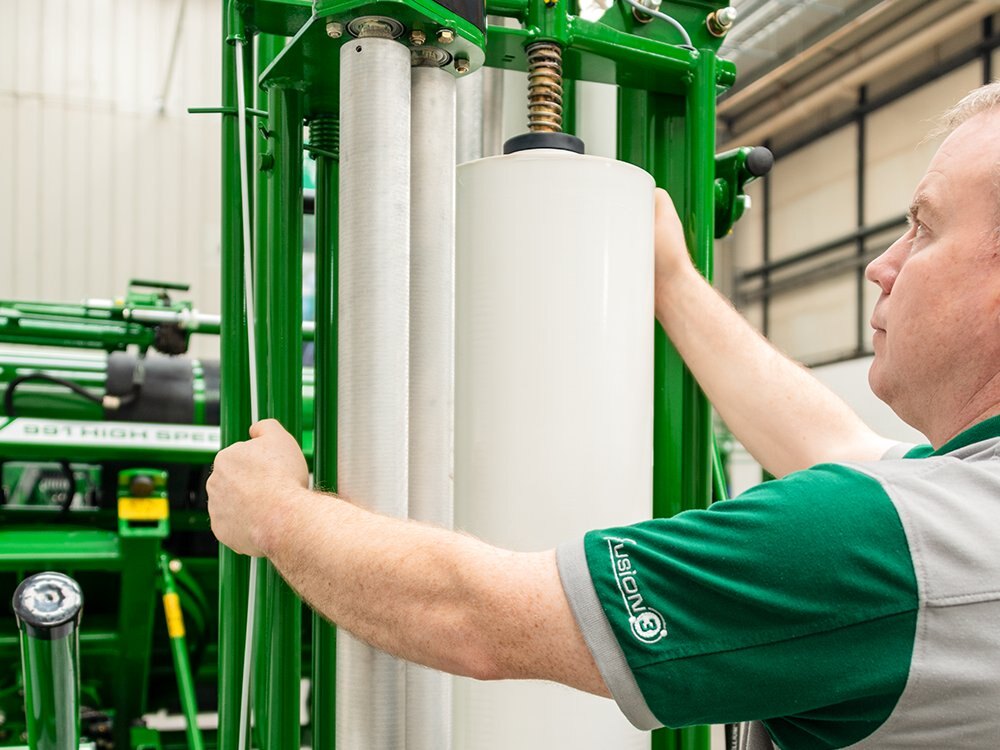

| Aluminum Dispensers | 1 x 750 mm Optional 500 mm Kit |
| Film Stretch | 70% Standard 55% Optional |
| Wrapping Speed (up to) | 30 rotations/min |
| Wrapping System | Turntable |

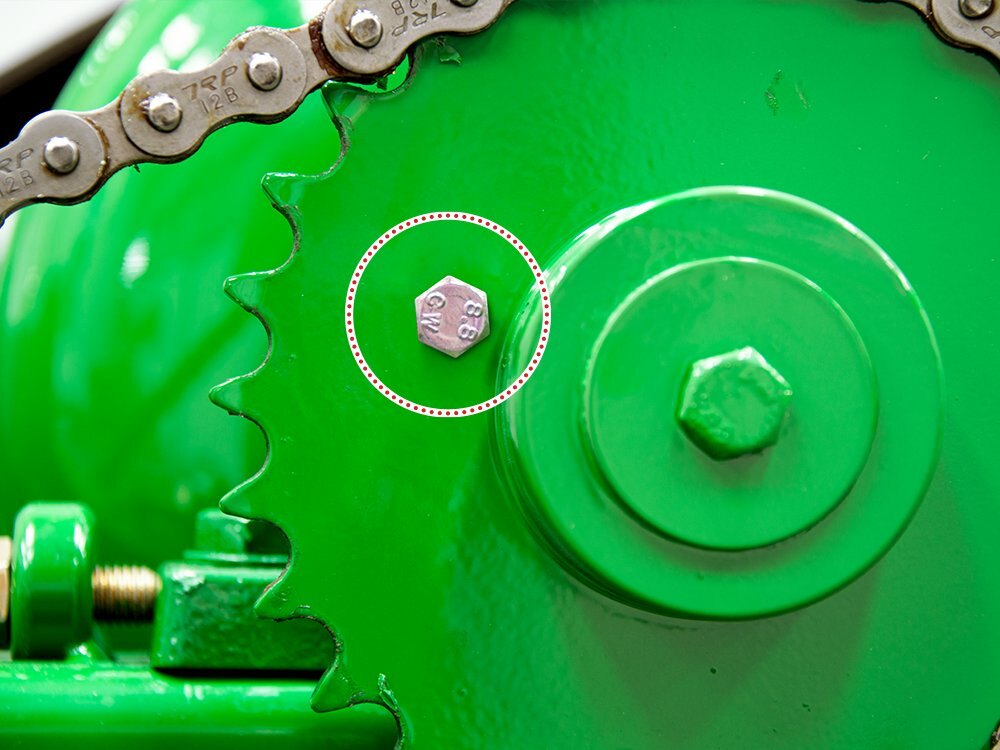

| Protection Mechanism | Shear Bolt |
|
Lift Capacity
@ 170 bar |
N/A |
| Driver Control | 4 Lever Cable Control (with Wizard Control) |
| Operation | Manual Only |
| Radio Remote Control | N/A |
| Film Roll Capacity | X 7 (1+6) |
| Cut & Hold | Yes |

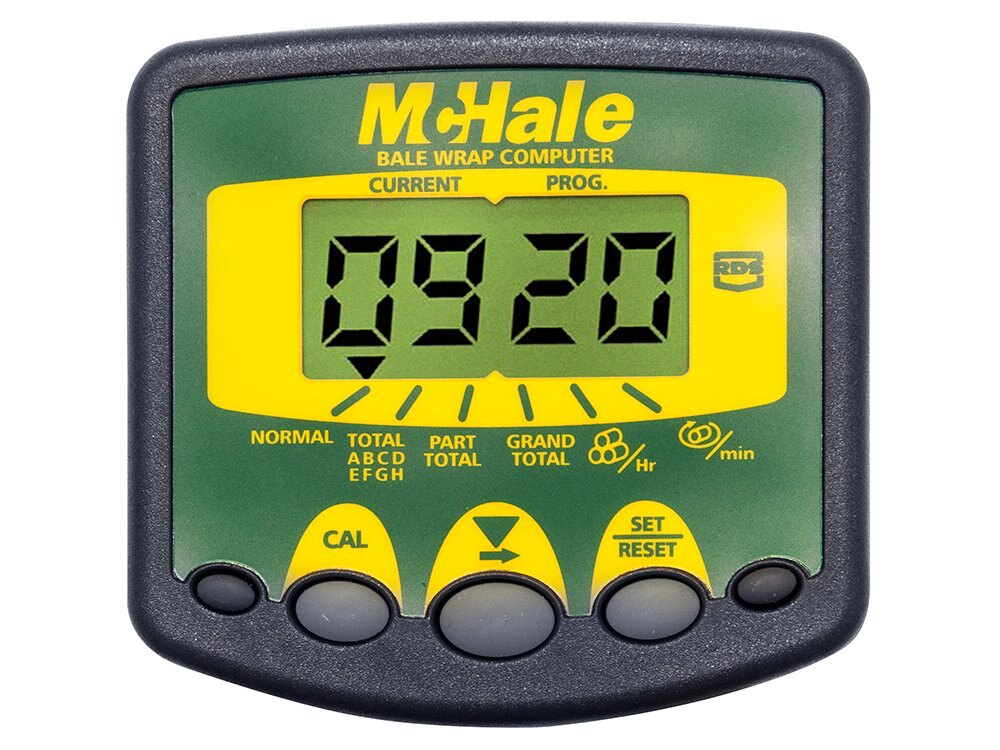

| Bale Wrap Monitor | Yes |
| Road Lights | Yes |
| Greasing Points | 19 |
| Wheel Dimensions | 340/55-16 |
| Axle | 6 Stud |
| Attachment to Tractor | Pin Hitch |
| Min. Hydraulic Requirements | 22 l/min @ 170 bar |
| Hydraulic Connections | 2 x 1/2″ QR’s Open or Closed Centre |
| Electrical Requirements | 12v EuroPlug, 20A or Direct from Battery |
| Minimum hp Requirement | 35 kW / 47 hp |
