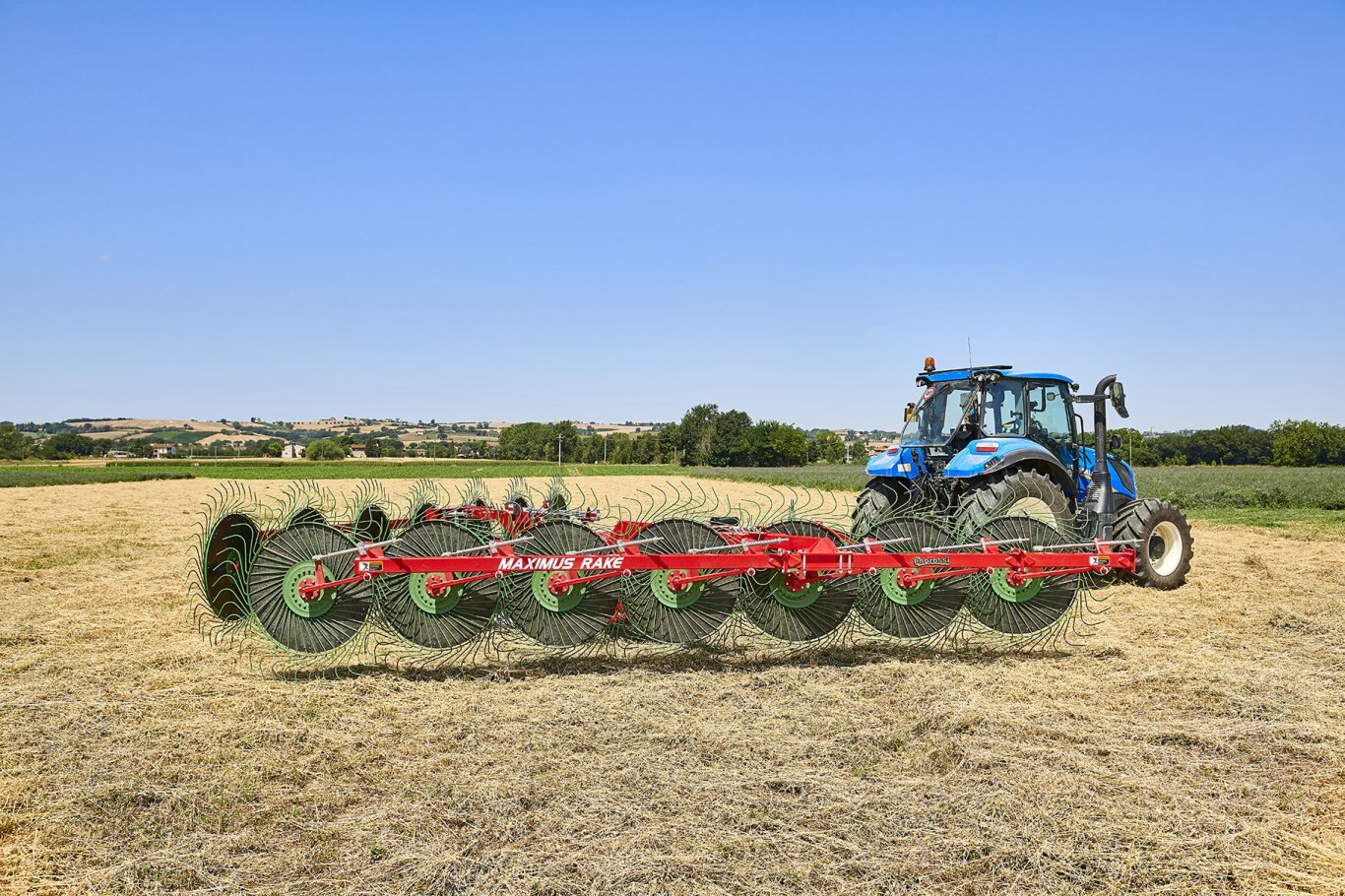

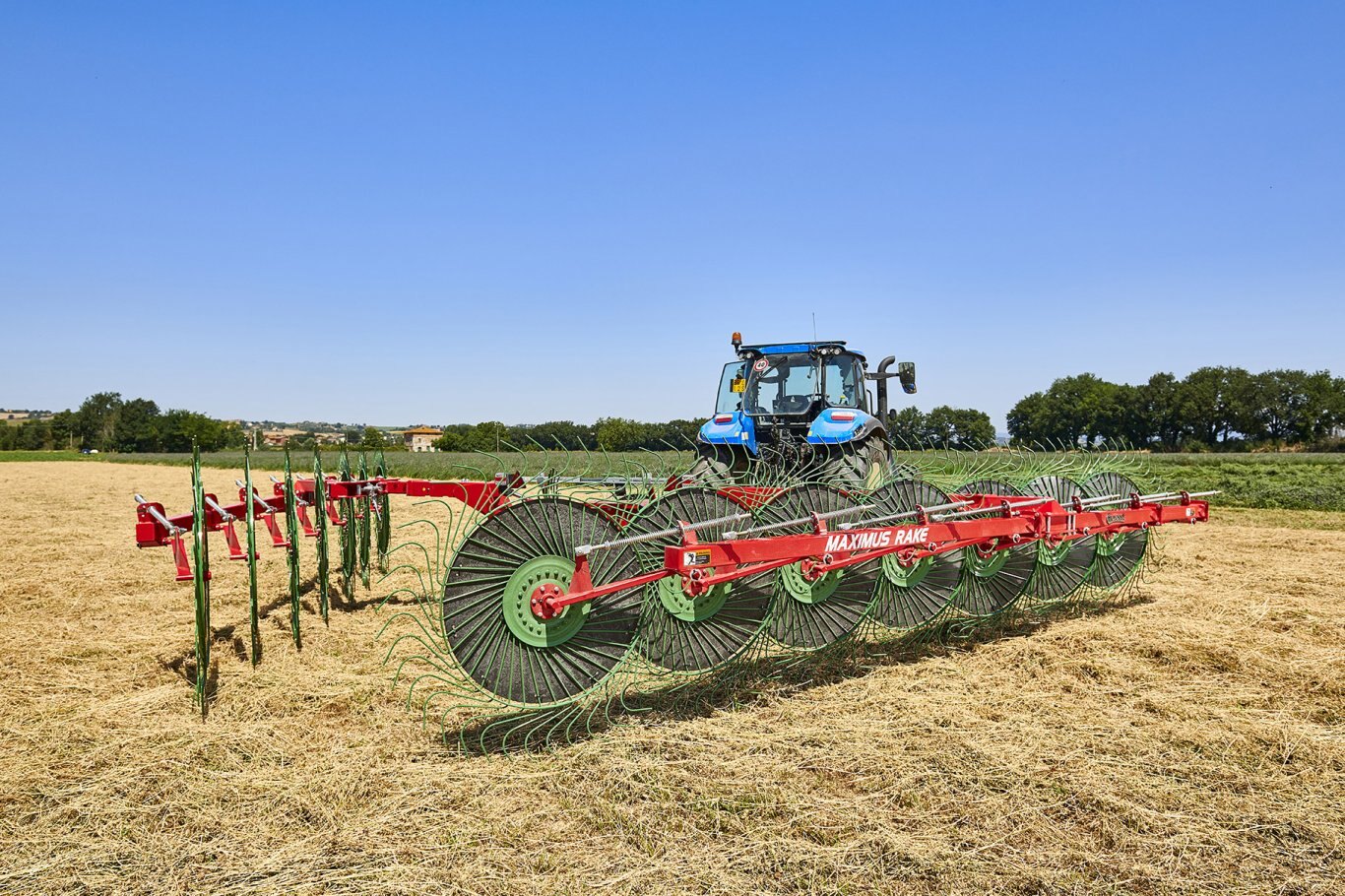

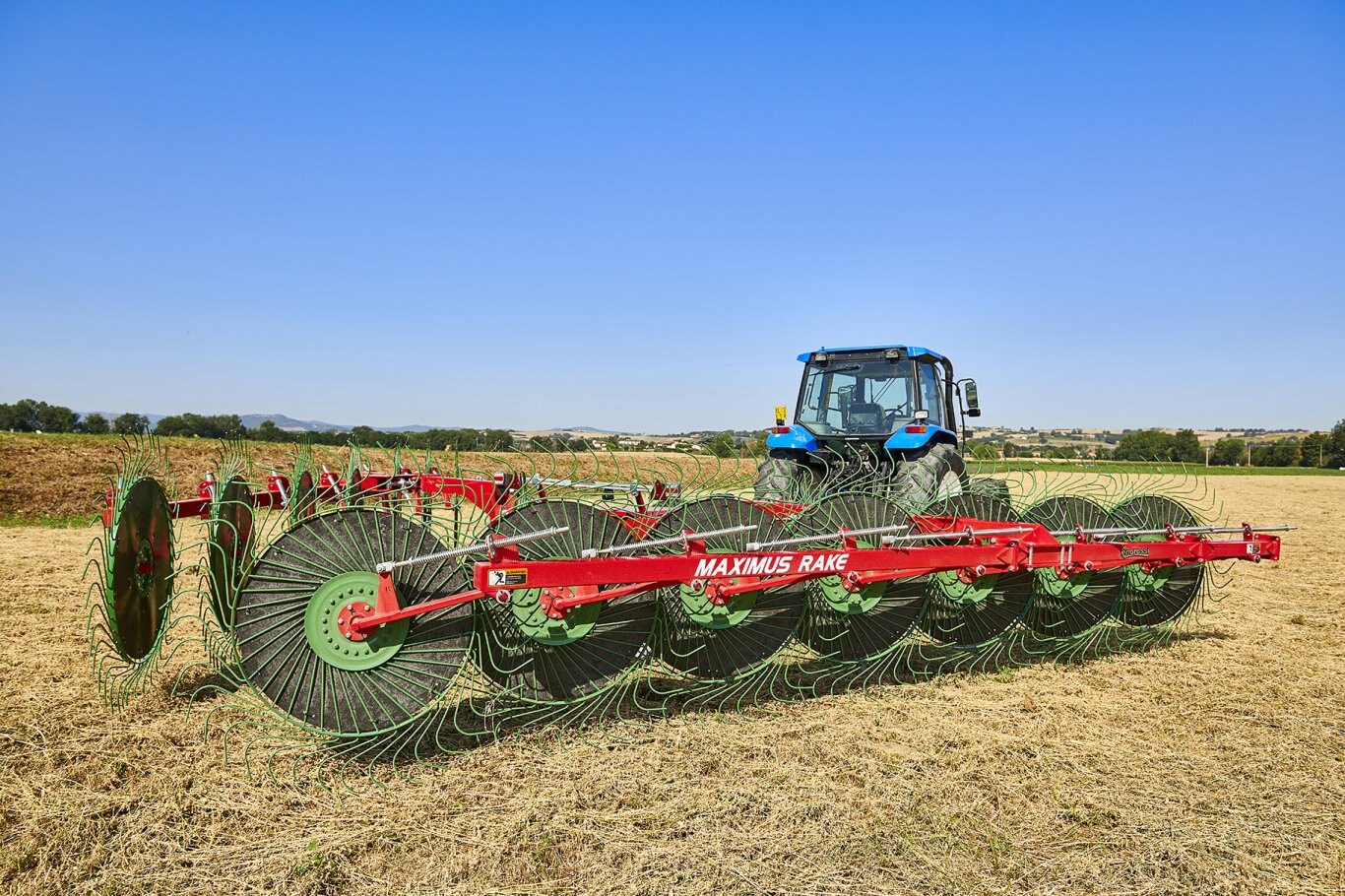

Enorossi MAXIMUS

Low energy consumption

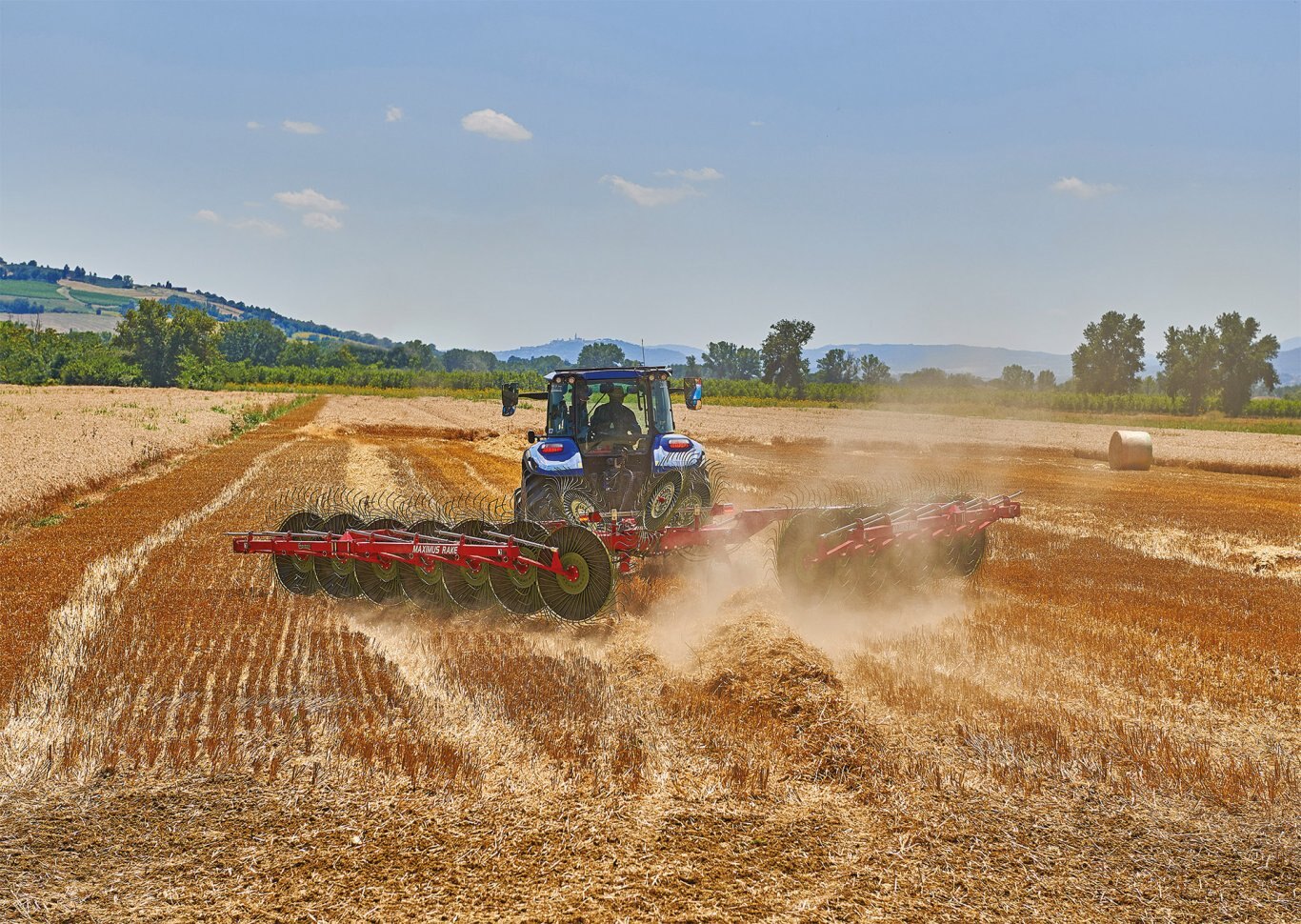

The wheel rake is the most efficient machine in uneven ground conditions, ensuring the cleanest product possible.
It works by towing, therefore not using the PTO power take-off, it significantly reduces costs for the farmer and the environmental impact.
This feature, together with the low maintenance cost, makes this type of rake, with the same working width, the most convenient solution for the farmer.

The frame

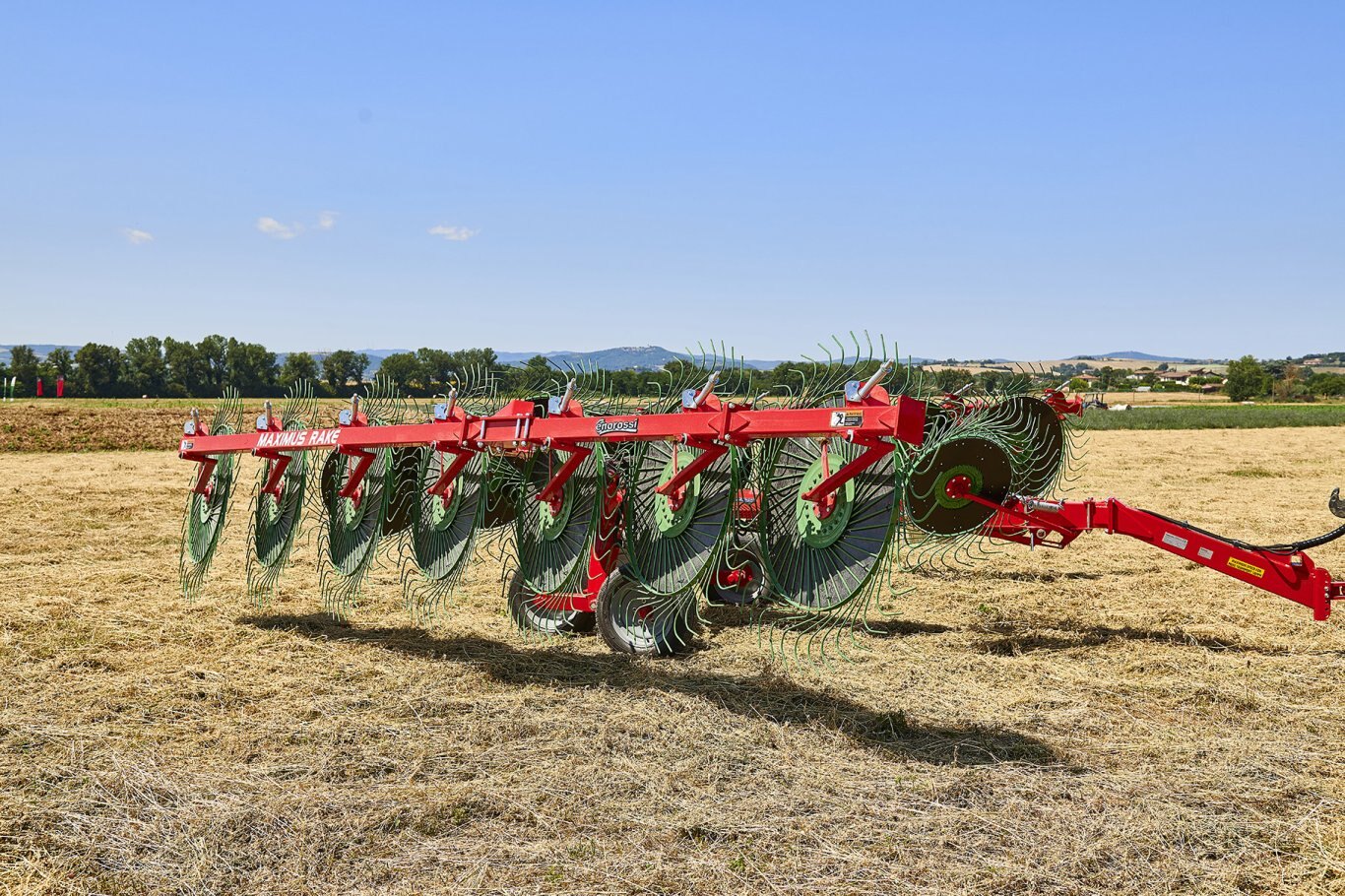

Frame inline

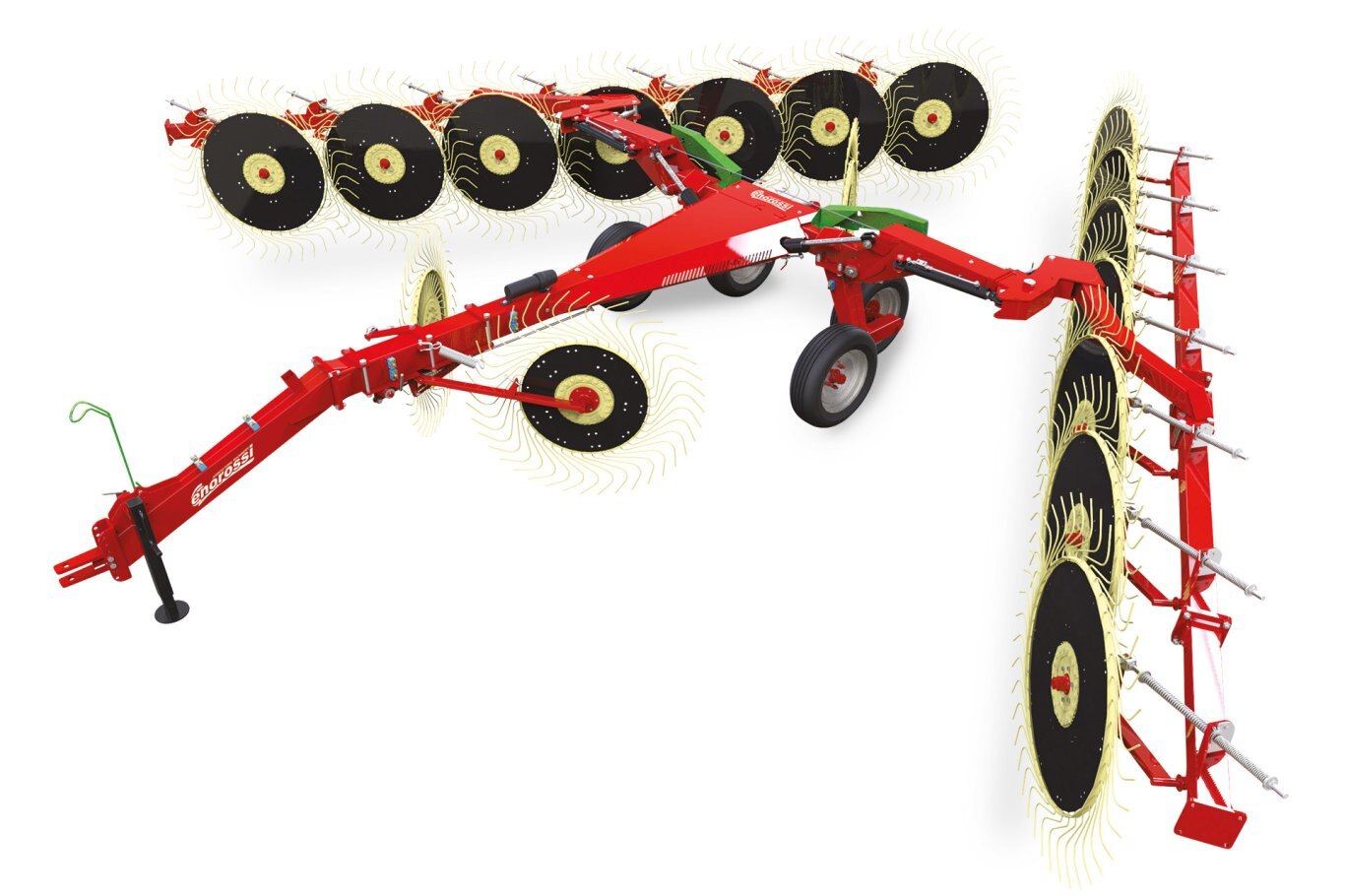

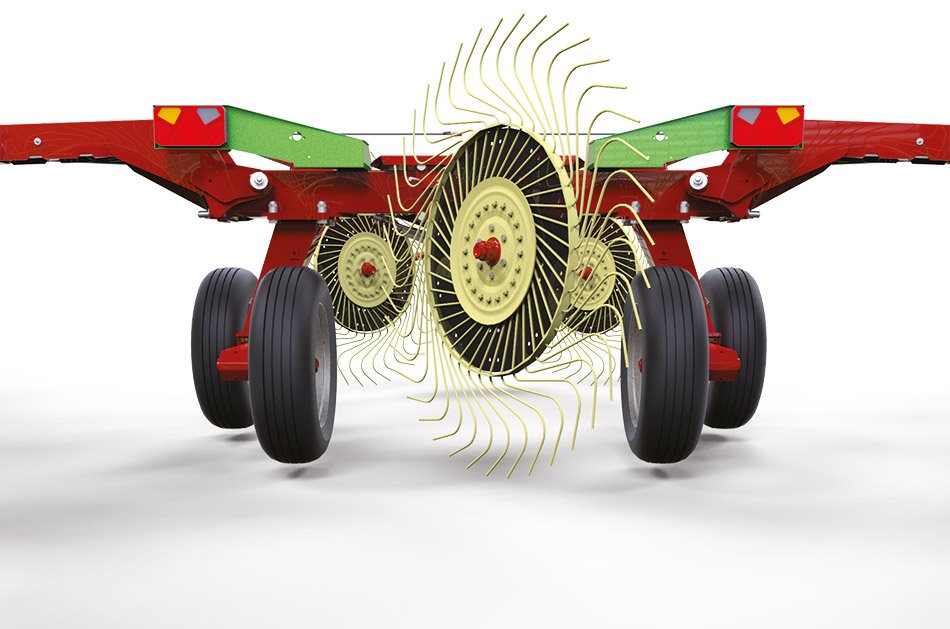

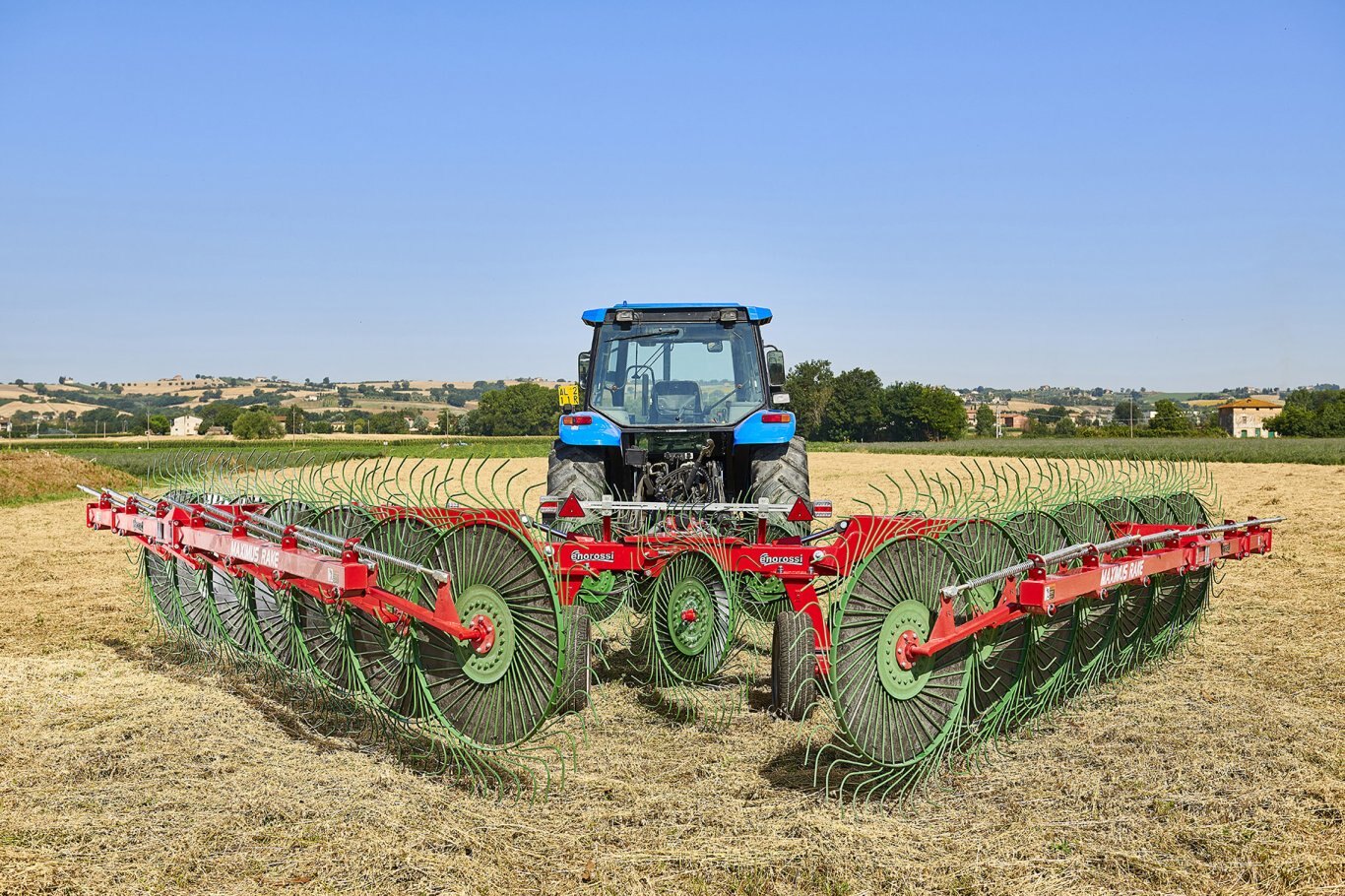

V” frame with central joint

“V” frame with rear joint

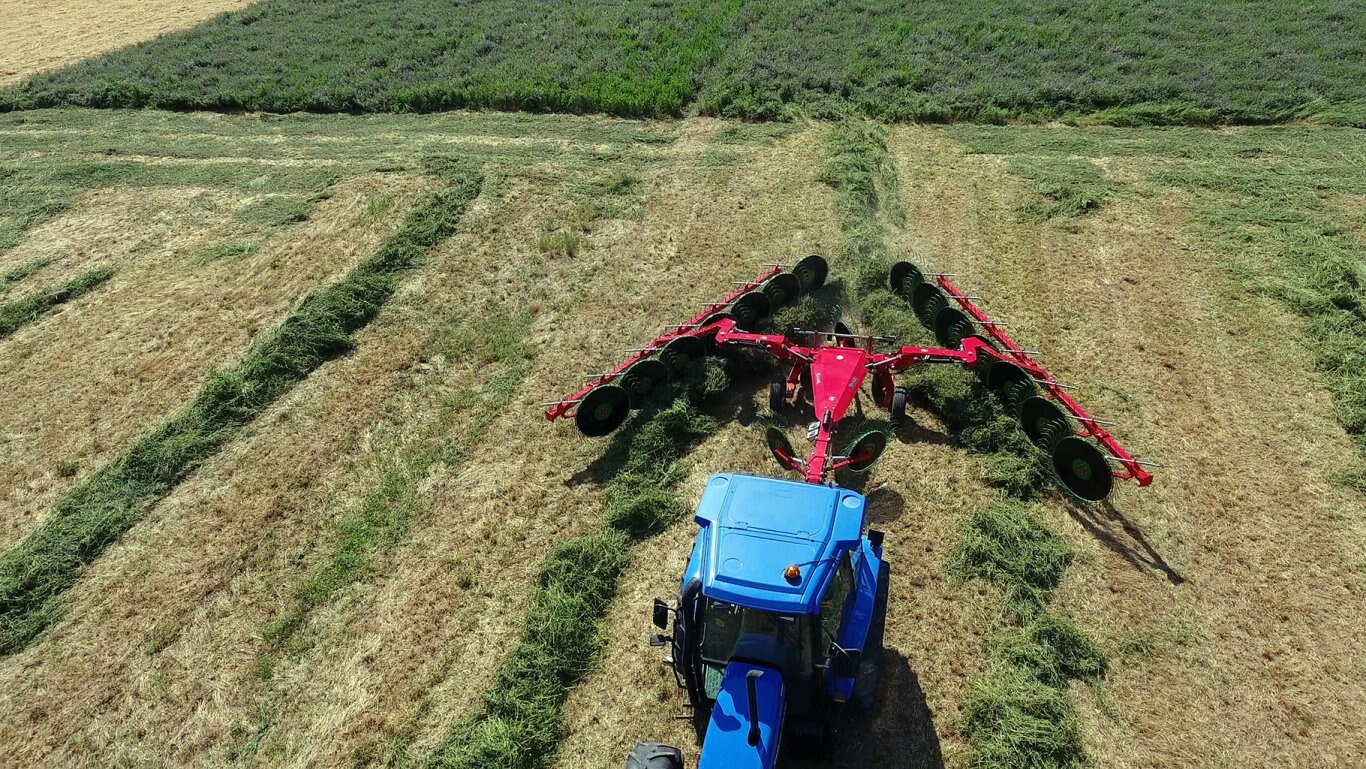

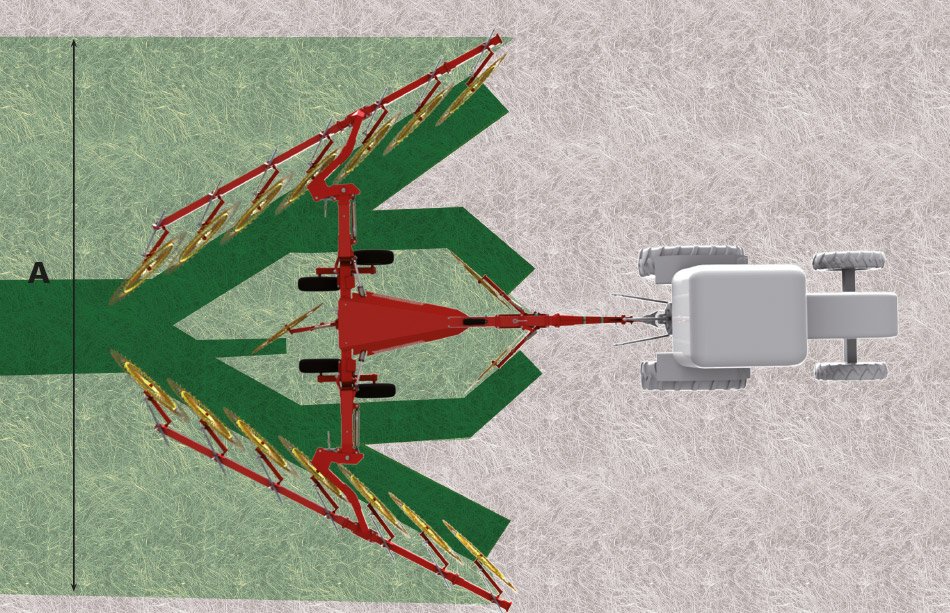

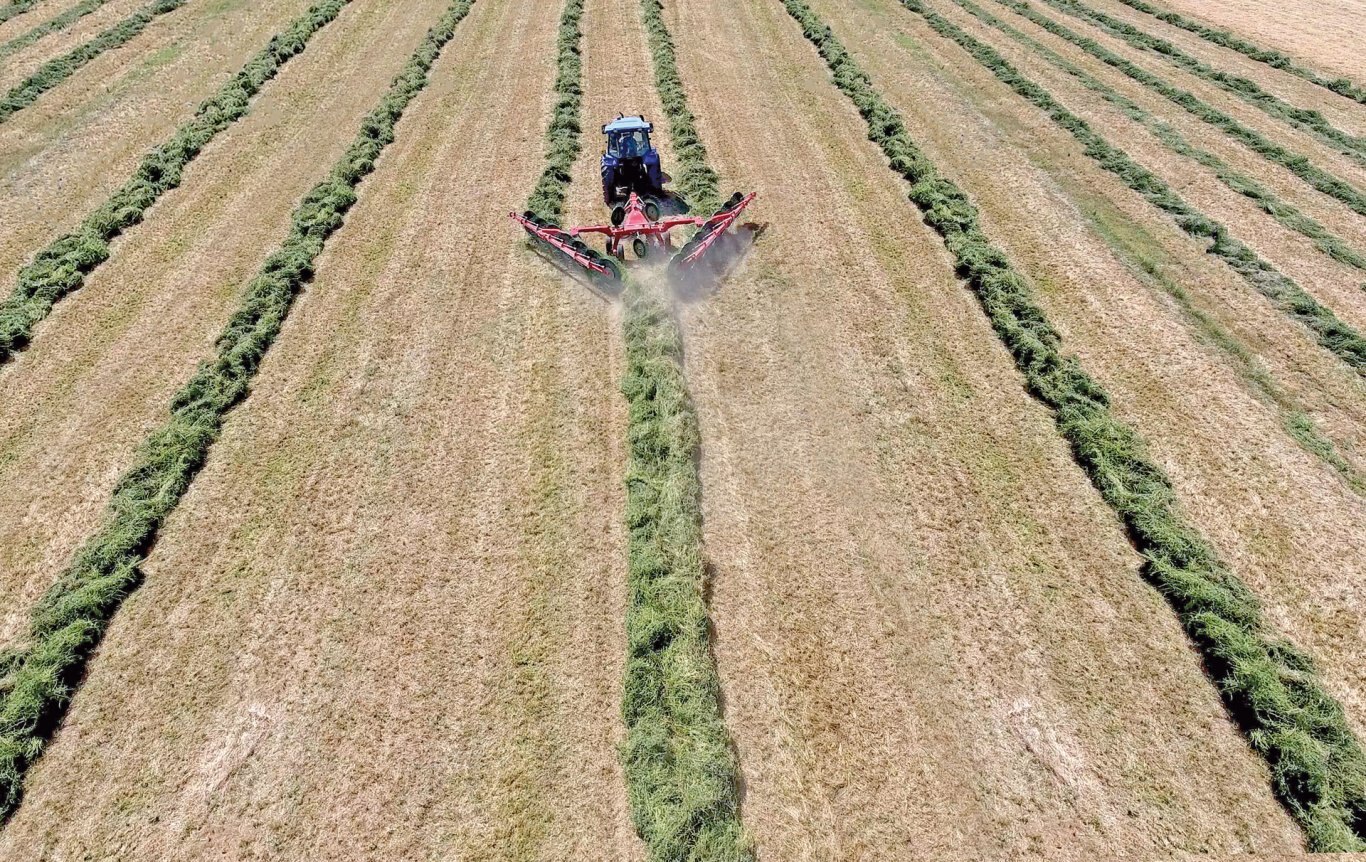

Windrow width adjustment

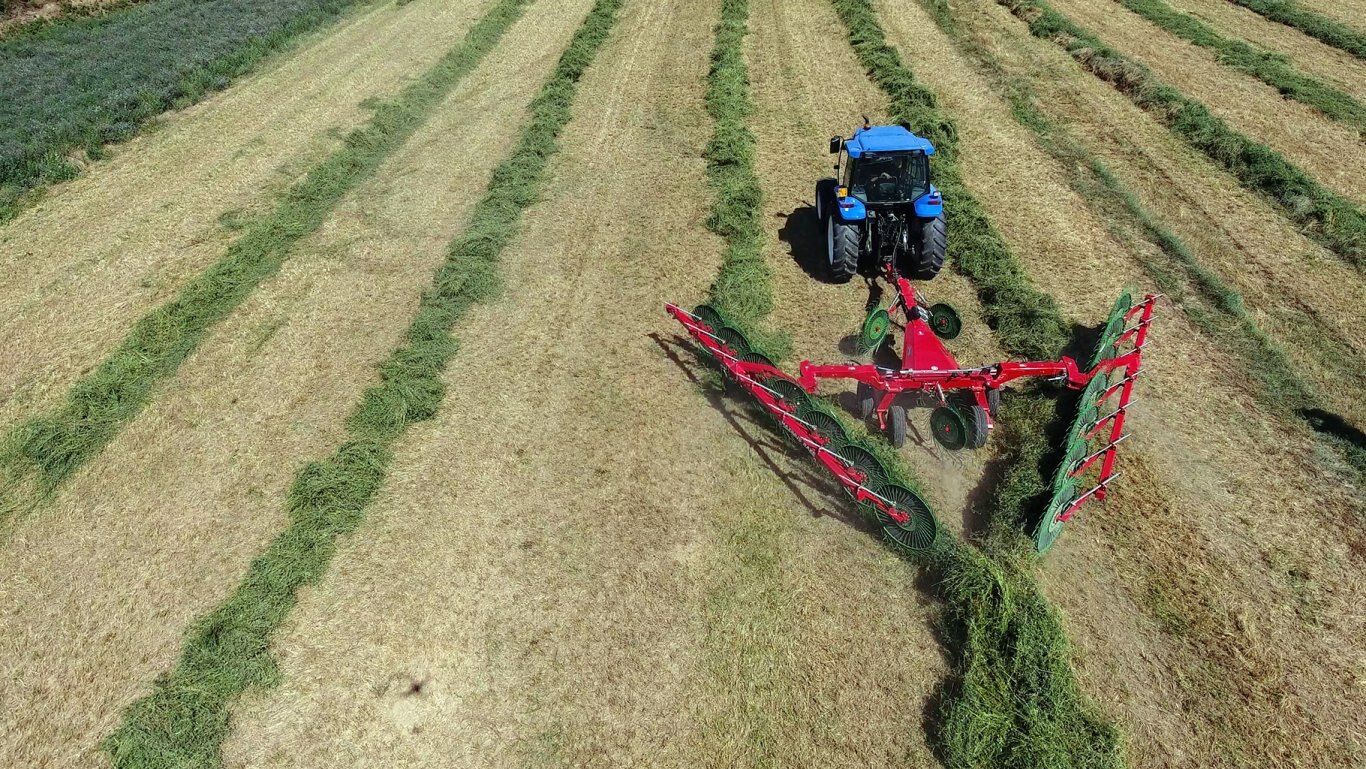

Each model of wheel rake has the possibility to adjust the width of the windrow width: single system (formation of one windrow) or double passage in the field (formation of two windrows side by side) for models with in-line frame; hydraulic system in V-frame models with central joint; mechanical system in V-models with rear joint.
Maximum working width (A) till to 12,10 meters (models EASY RAKE SUPERSTAR 22 SN ST).

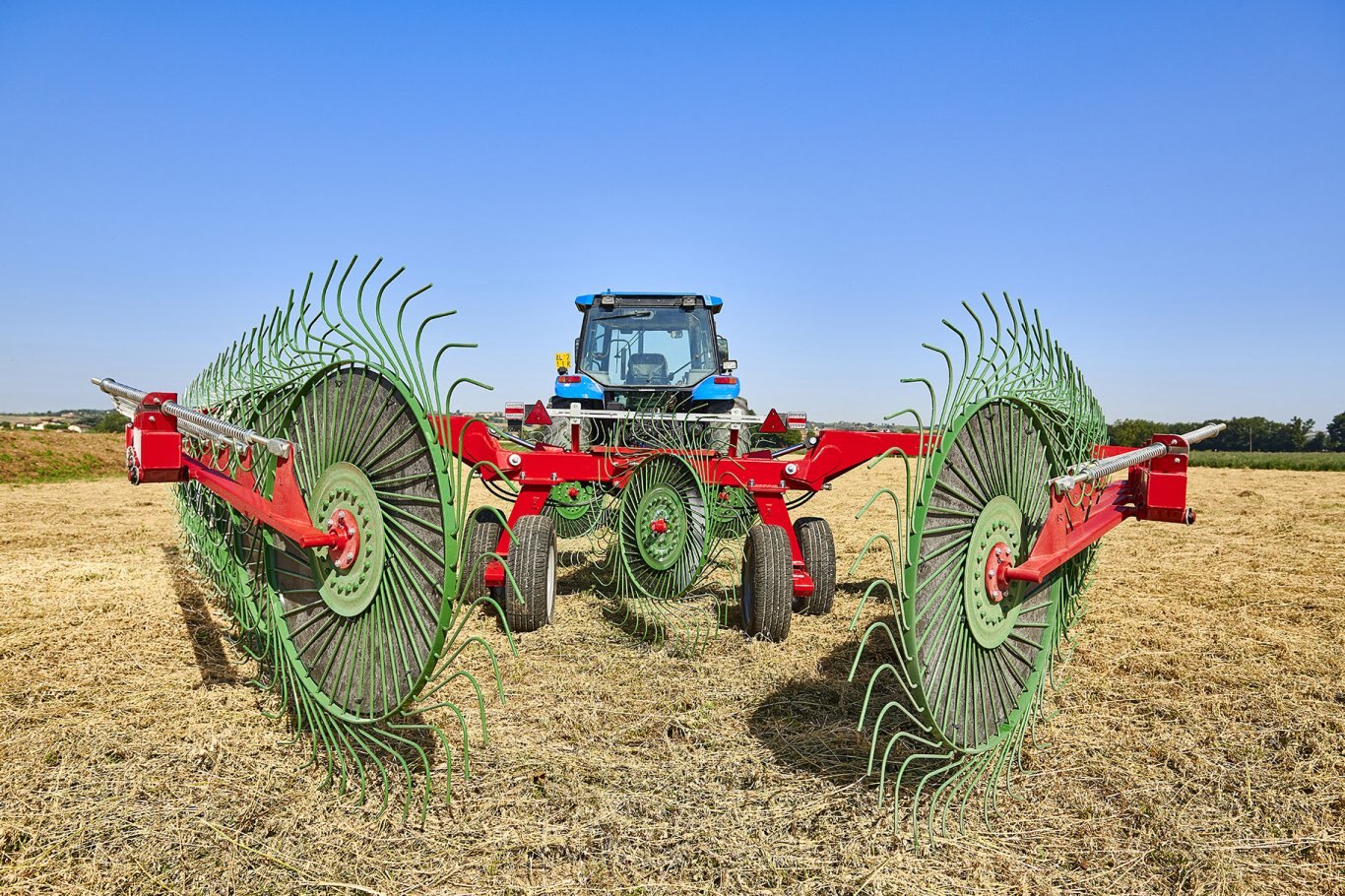

Rake wheels

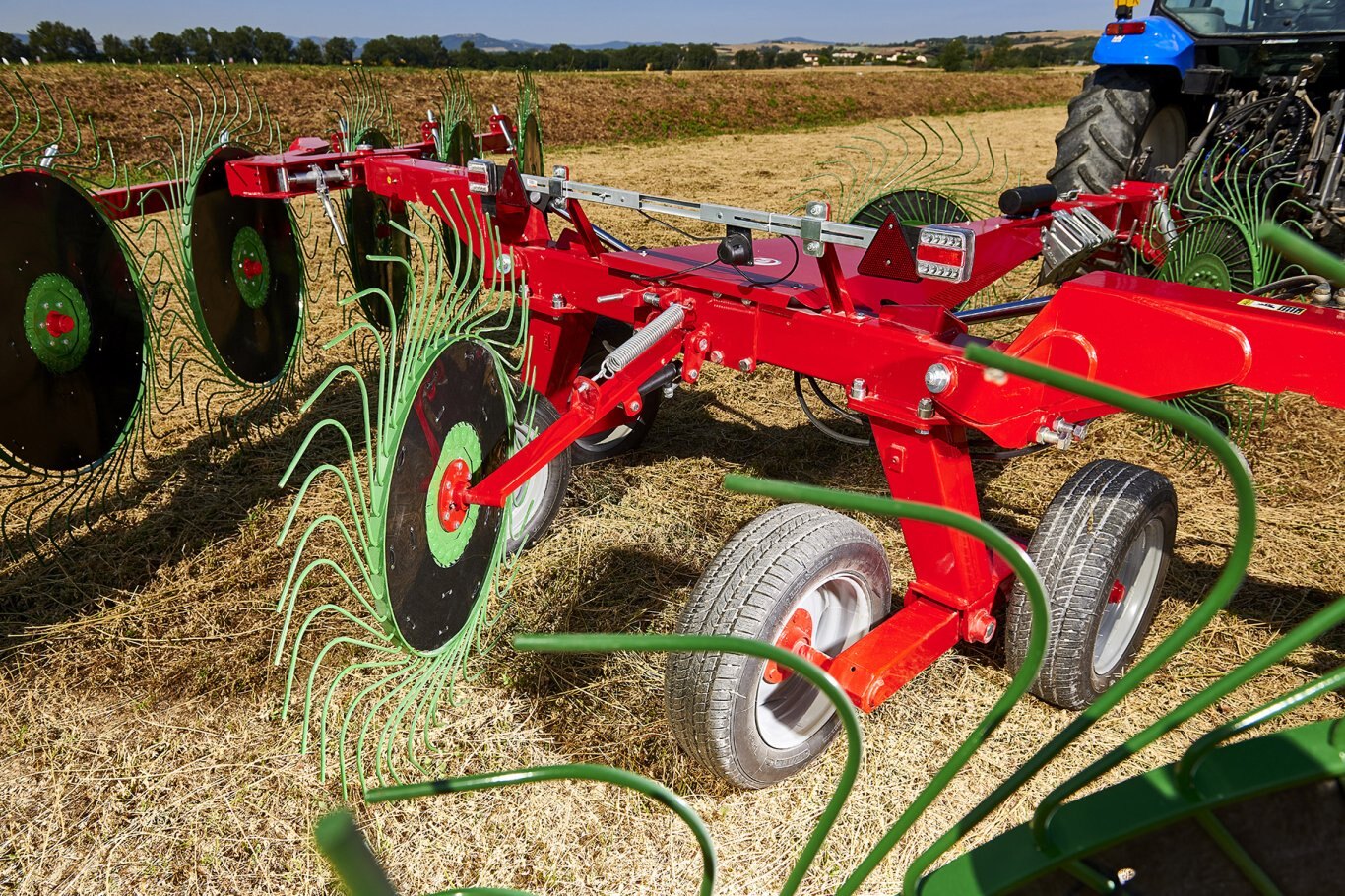

Standard rake wheel

Standard rake wheel with 145 cm diameter and 6.9 mm diameter teeth for the models RP, RT, CADDY.
Standard rake wheel with 150 cm diameter and 7.5 mm diameter teeth for the models BATRAKE, MAXIMUS, EASY RAKE, EASY RAKE SUPERSTAR.

Wind guard

The Wind guards facilitate the process of unloading the forage from the rake wheels, avoiding it sticking to them and also helps not to disperse the product in windy conditions.

Rubberflex rake wheel

The Rubberflex wheel has been designed for heavy products and has the particularity of having short teeth and a very robust structure. With Rubberflex wheels it is also possible to increase the working speed.
Availabe from model MAXIMUS, EASY RAKE, EASY RAKE SUPERSTAR.

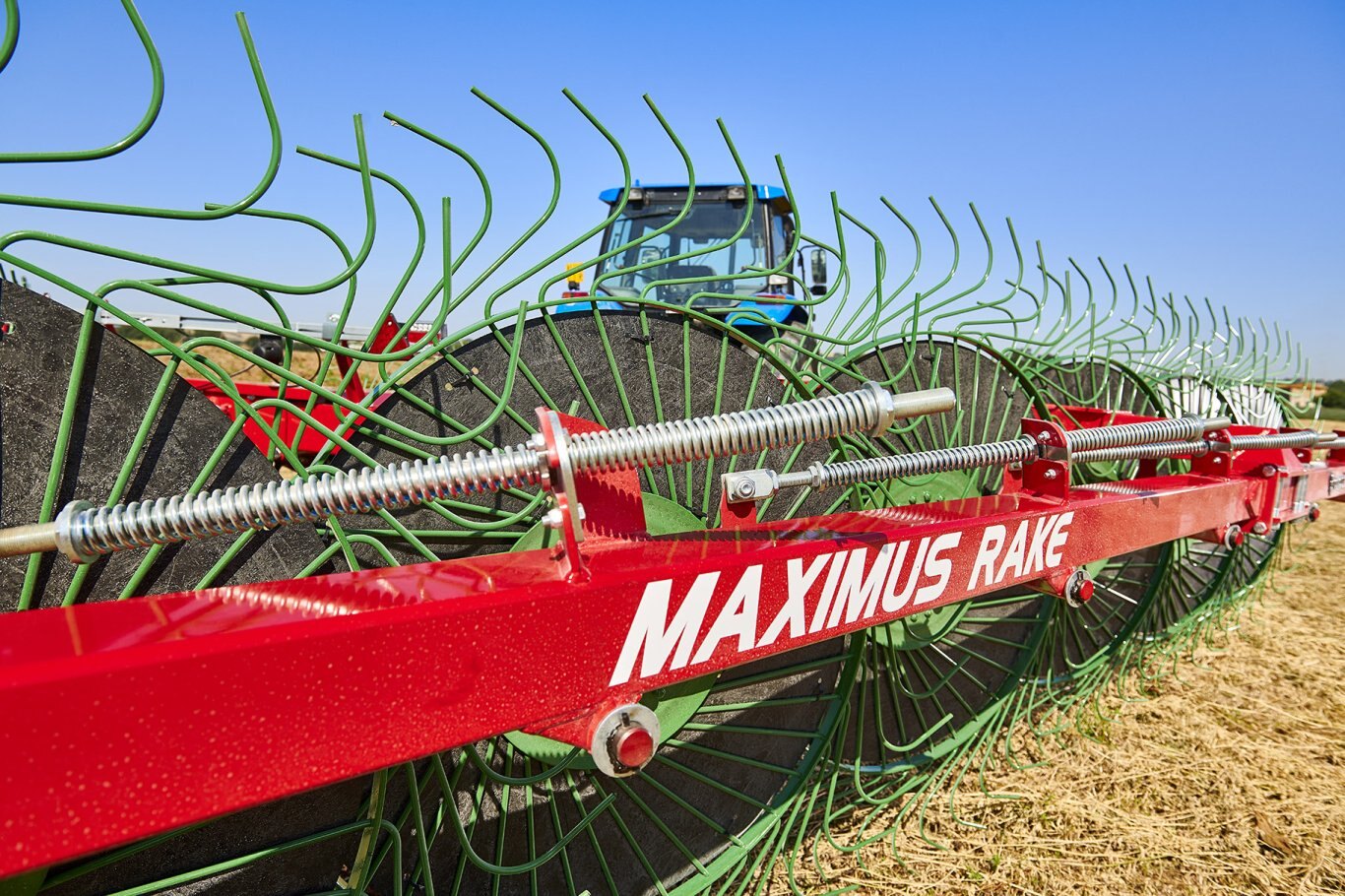

Pressure regulation of the rake wheels on the ground

It is possible to adjust the ground pressure of the rake wheels according to the quantity of the product and the quality of the ground.

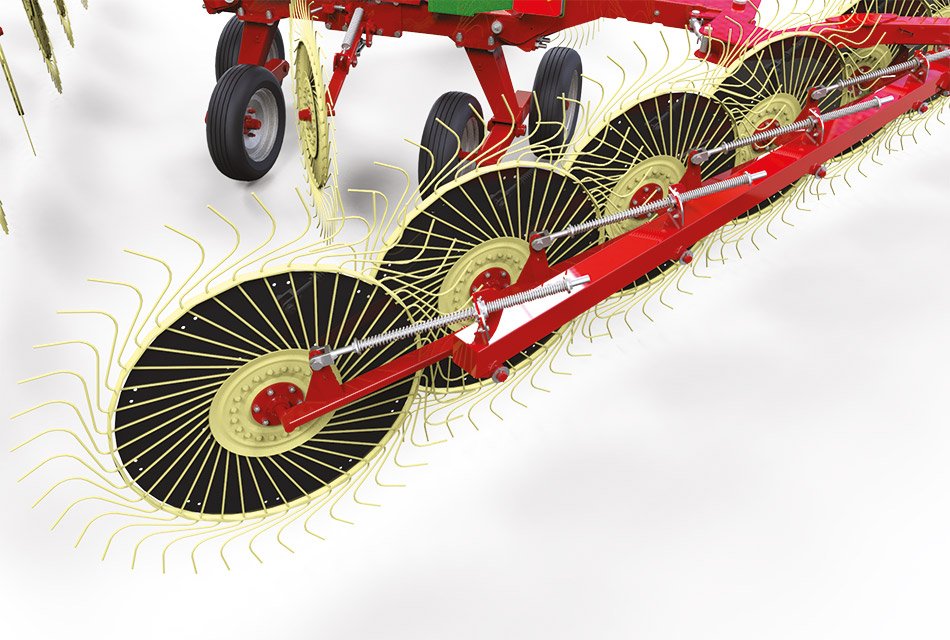

Ground adaptation of the rake wheels

The adaptation of the rake wheels to the ground is very important, especially in conditions of disconnected terrain, therefore each model of rake has its own adjustment system.

Rake wheel hub lubrication and tapered roller bearing

The hub of the rake wheels is grease lubricated, with tapered roller bearings, and sealed.

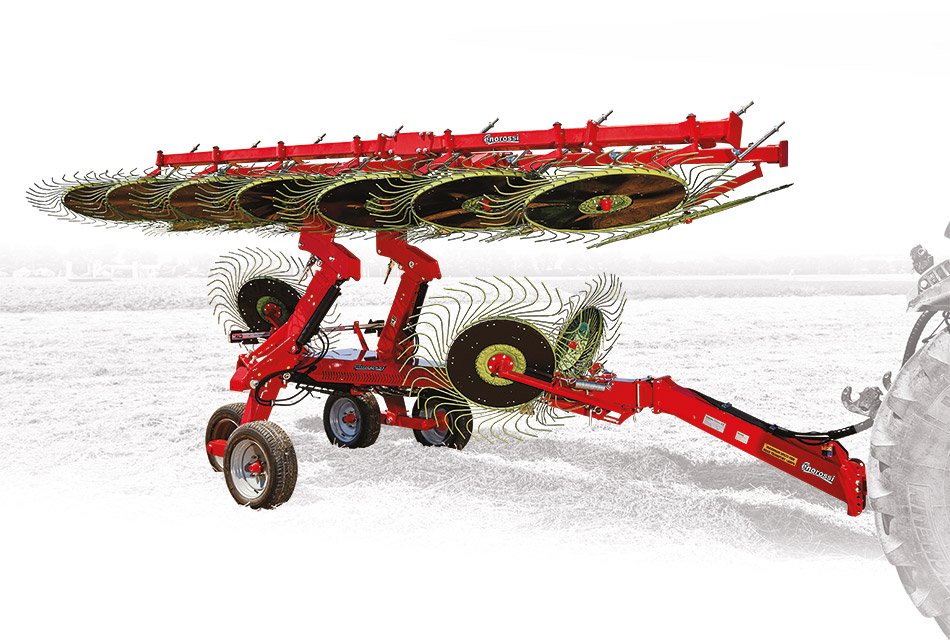

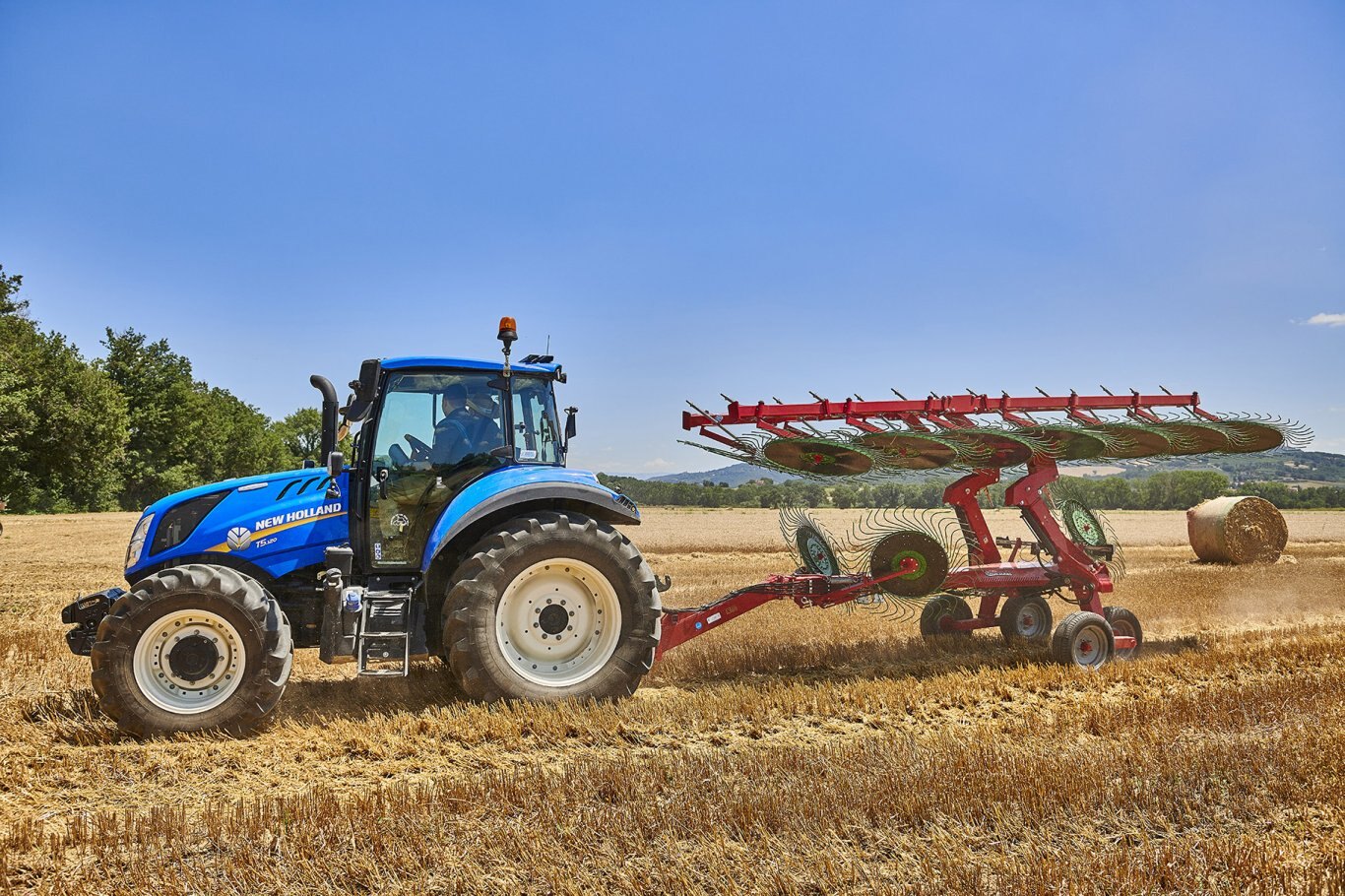

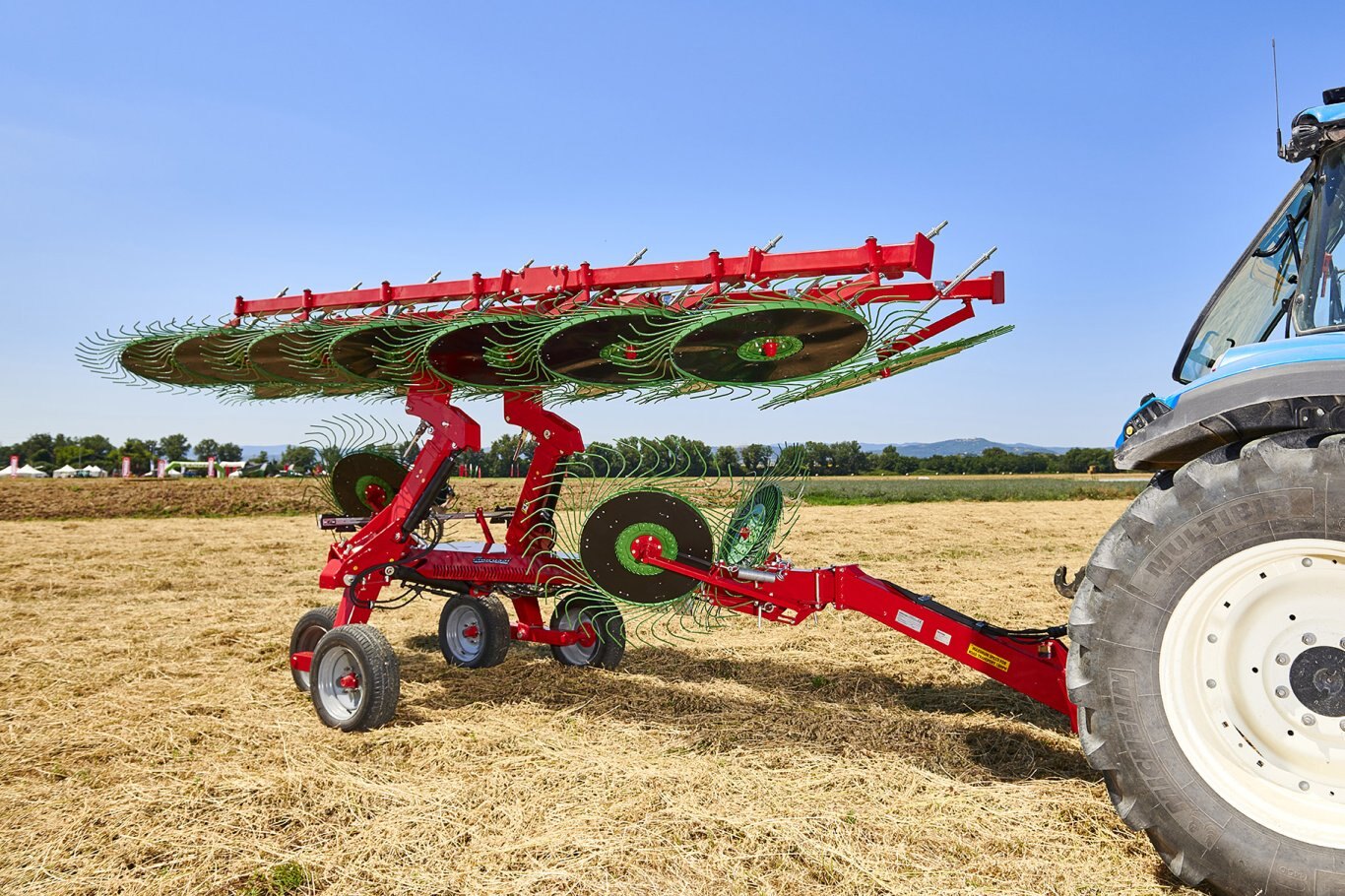

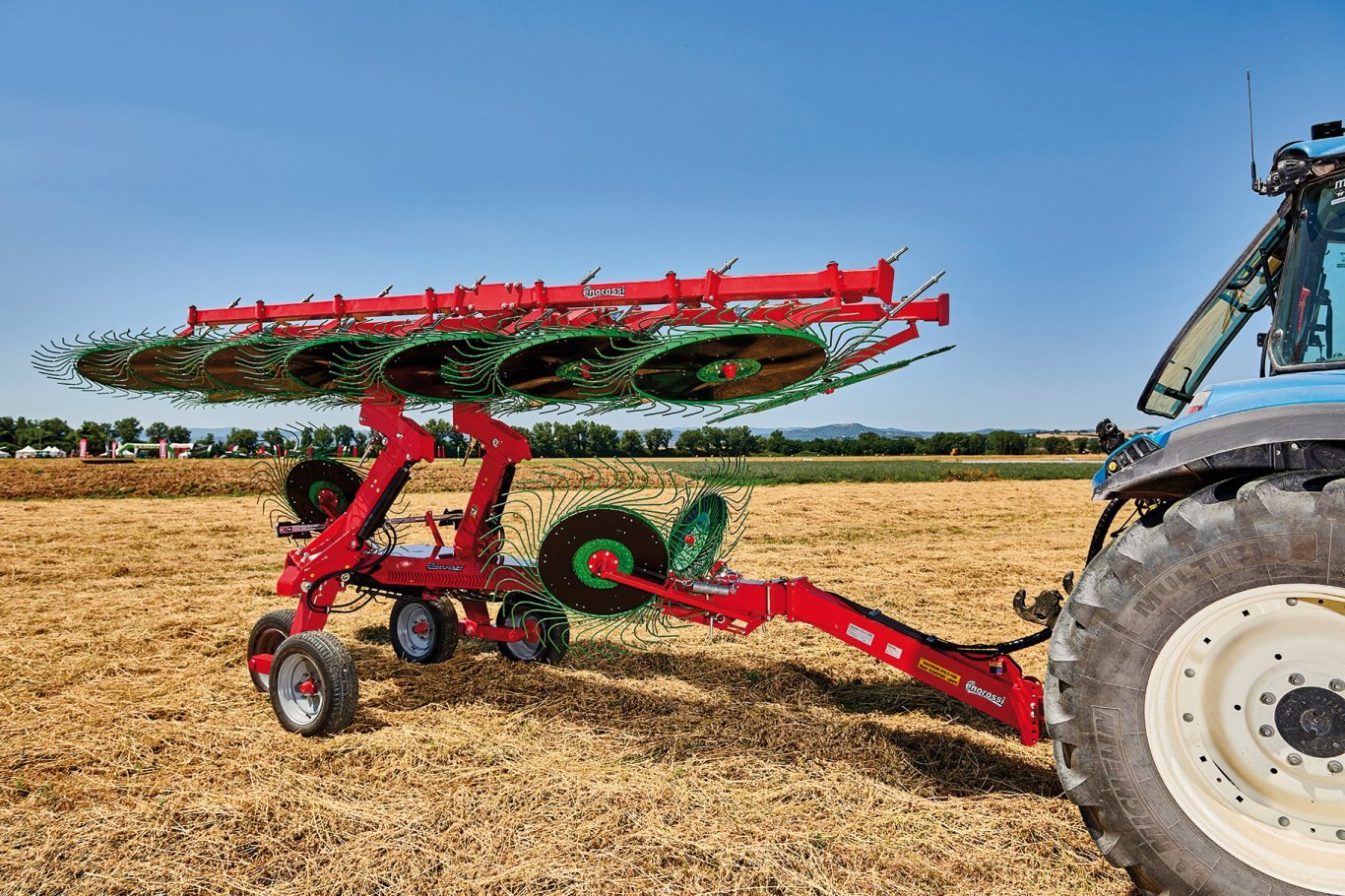

Hydraulic lifting of the rake wheels

This system allows to quickly switch from the work position to the transport position in a simple and fast way without getting off the tractor.
