2025 McHale C430 Linkage Silage Feeder & Straw Blower
Call for Price
Overview
Specifications
standard features
dimensions & weight
bale chamber
conveyor
rotor / chopping unit
tractor
control
literature
Videos
Documents

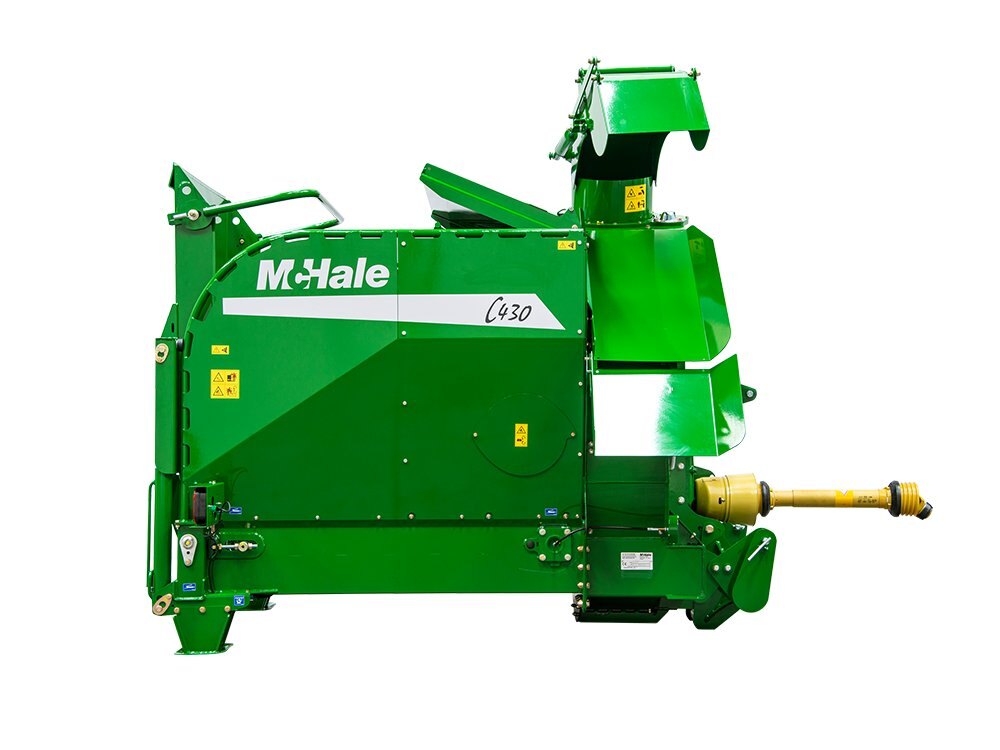

McHale C430 Linkage Silage Feeder & Straw BlowerThe McHale C430 3-point Linkage Silage Feeder and Straw Blower is designed for farmers who have to work within confined spaces for feeding and bedding. |
| The short and compact body on the McHale C430 makes it ideal for maneuvering in narrow passages, especially in buildings with one door. The C430 has the capacity to carry and feed one 4ft round bales of hay or straw or one round bale of silage or haylage. |

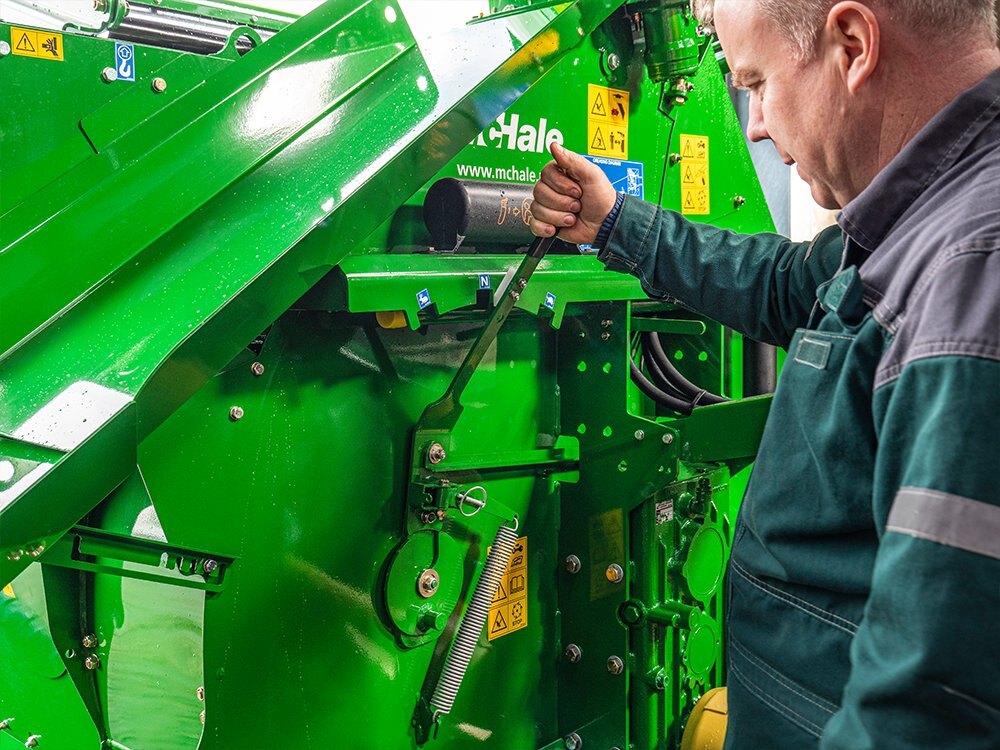

Twin Speed GearboxA key feature on the C4 range is its twin speed independent gearbox, which allows the operator to easily adjust from 280 rpm for feeding silage or hay up to 540 rpm for using the machine to distribute straw for bedding. |
FeedingThe McHale C4 range of machines are ideal machines for feeding silage and hay, the twin speed gearbox allows silage and hay to be distributed exactly where it is desired. The speed of the conveyor is proportionally controlled allowing the operator to adjust feeding speed depending on the material density and composition. |

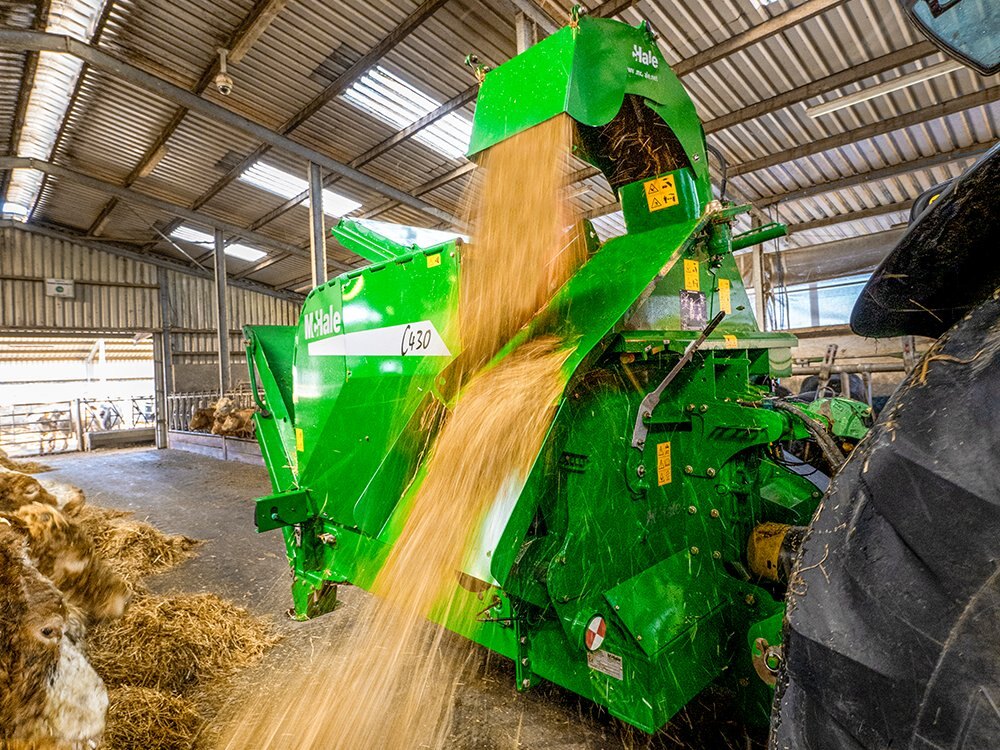

BeddingThe McHale C4 range of machines can be used to distribute bedding material quickly and efficiently leaving a thick aerated bed of straw. In difficult to access bedding areas, the chute on the McHale C4 range can pass through 300 degrees for ease of bedding. Straw can be blown up to 18m. |
McHale C430Watch the video for the McHale C430; a 3-point Linkage machine with the capacity to carry and feed one 4ft round bales of hay or straw or one round bale of silage or haylage. |
Model
Silage Feeder & Straw Blower
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
McHale
Standard Features
| Twin Speed Gearbox for Different Crops | 300° 3 Stage Feed Chute | Joystick Chute Control |

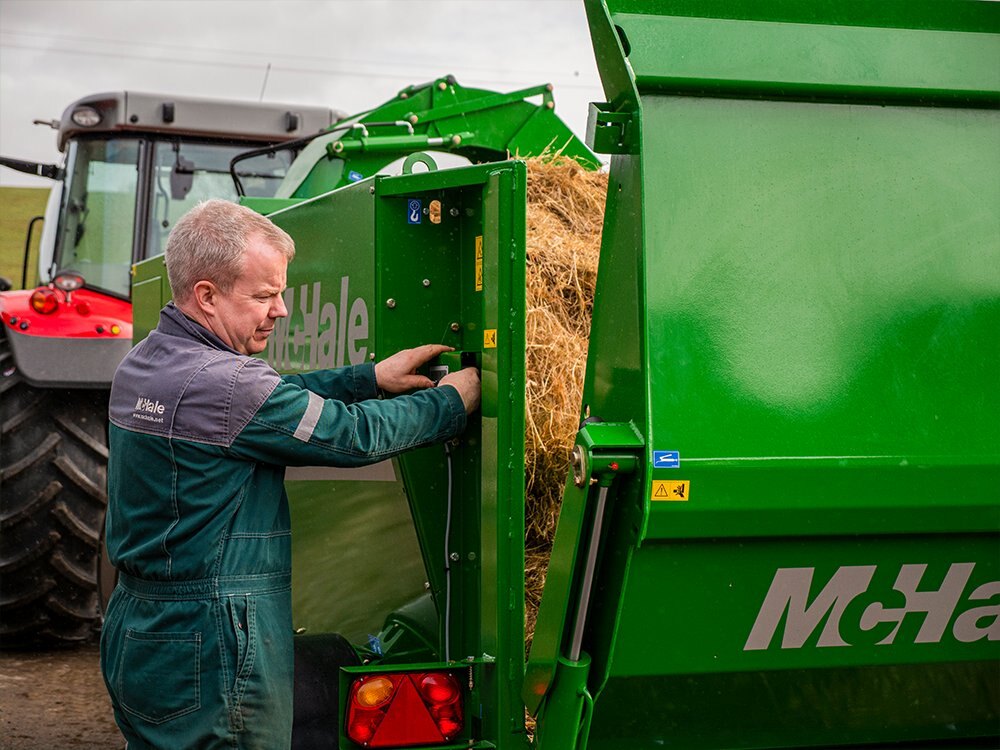

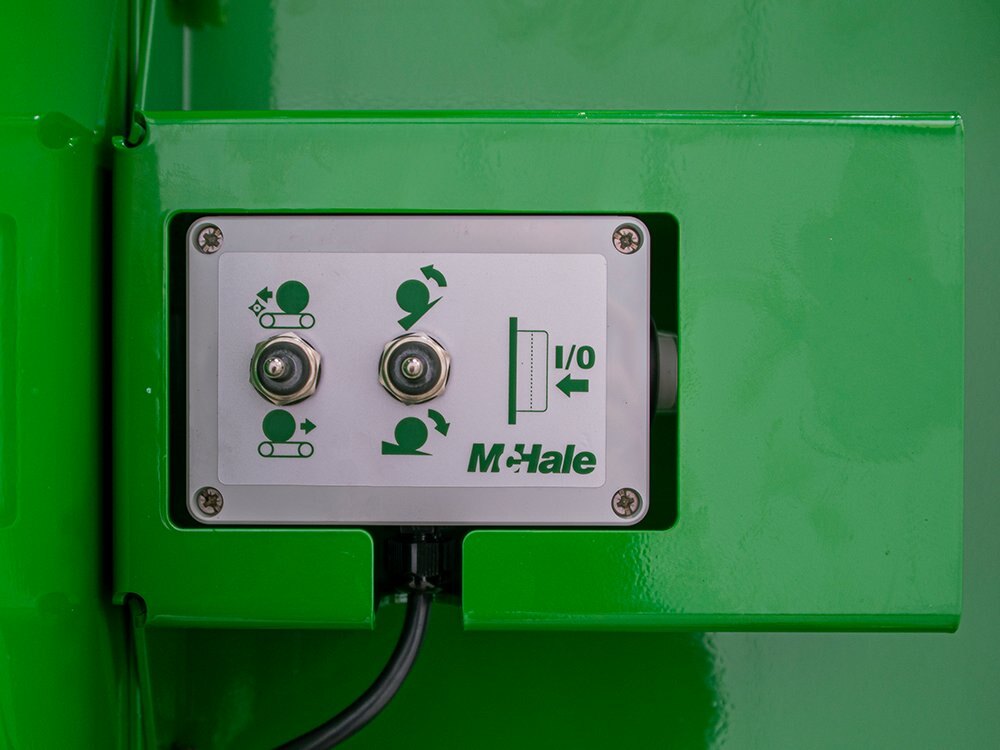

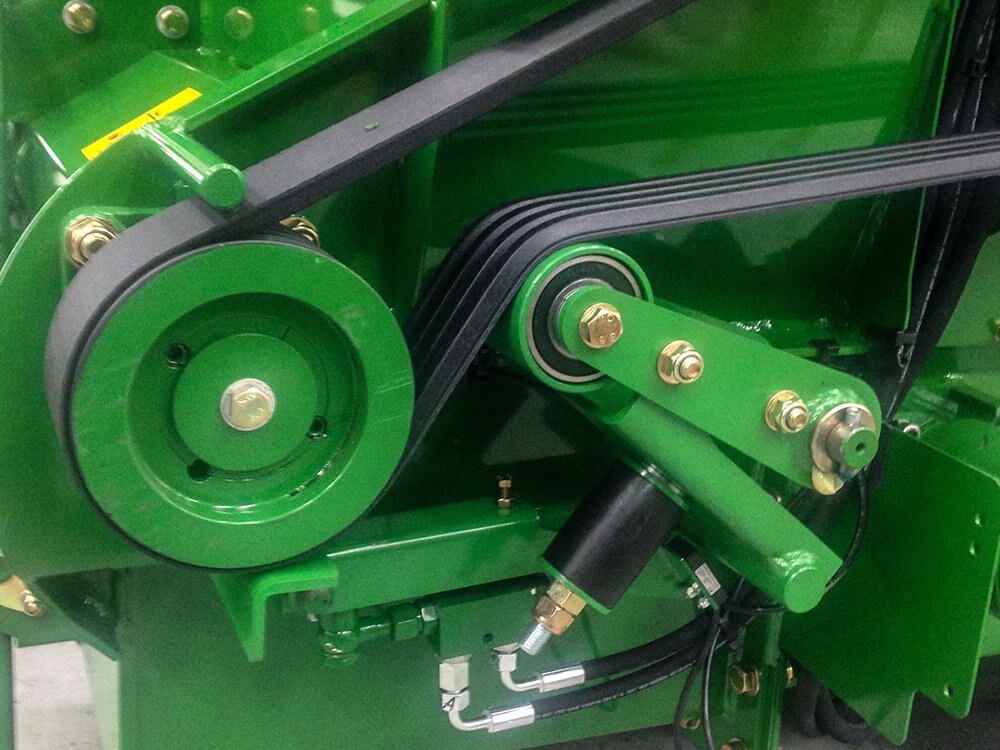

| External Loading Controls | Independent Rotor Drive with Hydraulic Activation | Clever Machine Body Design |
Dimensions & Weight
| Transport Length | 7.3 m (24′) |
| Transport Width | 2.99 m (9′ 8″) |
| Transport Height | 3.69 m (12′ 1″) |
| Weight (Unladen) | 4073 kg (8979 lbs) |
Bale Chamber
| Bale Size (minimum) | Bale Size (maximum) | Max Bale Length |
80cm X 60cm(2’8″ x 2′) |
120cm x 160cm(4′ x 5’3″)* |
2m(6’7″)** |
Conveyor
| Bale Sizes | From 80 x 60 cm (2′ 8″ x 2′) to 120 x 160 cm (4′ x 5′ 3″) including double bales: 120 x 70cm (4′ x 2′ 4″) Max bale length 2 m (6′ 7″)* |
|
Maximum Wrapping
Speed |
40 rpm |
| Film Roll Storage | 12 (10 in storage and 2 in dispensers) |
| High Speed Sensors | Standard |
| Roll Loading Step | Standard |
| External Dispenser Index Button | Standard |

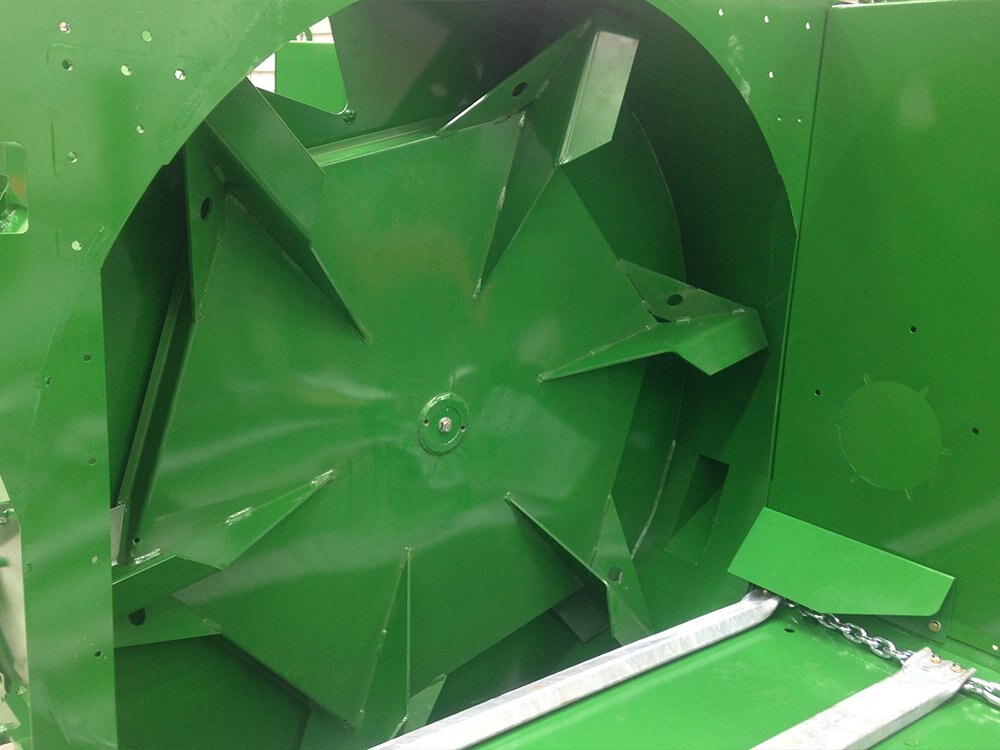

Rotor / Chopping Unit
| Tyres | 400/70-20 |
| Axle | 6 Stud Braked |
| Brakes | Hydraulic Brakes (Air brakes – optional) |
Tractor
| Attachment to Tractor | Cat II/III lower linkage SAE 6 spline PTO shaft |
| PTO Speed | 500-800 RPM |
| Hydraulic Requirement | Continuous – Independent Load Sensing Pump Driven off PTO |
| Hydraulic Connection | 3 x Male ½” Quick Release (1xS.A. 1xD.A.) |
Control

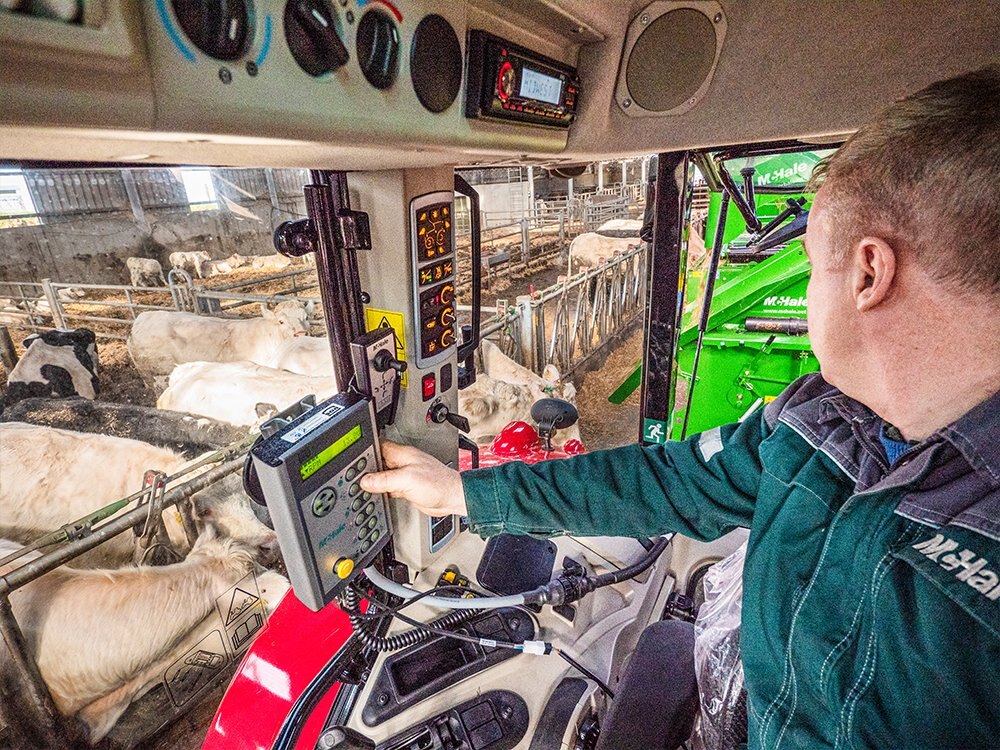

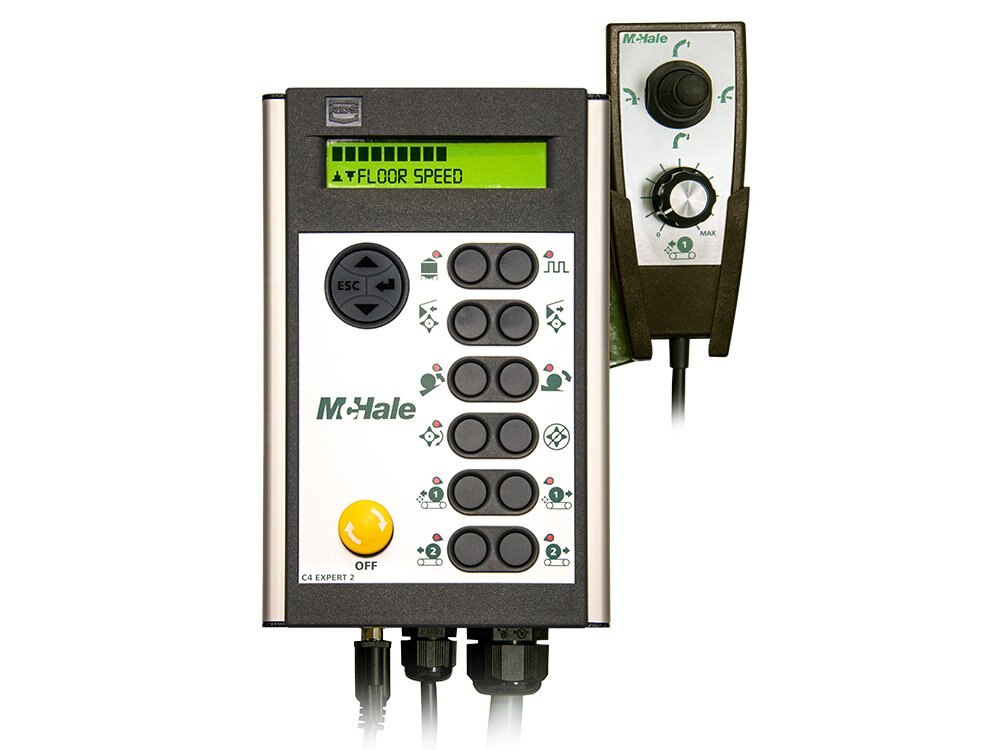

| Control | Expert control console with joystick chute control |
| Chute Rotation | 300 degrees |
| Chute Composition | 3 stage |
| Max. Discharge Distance | 18 meters |
Literature
| Name | Link |
| Download Product PDF | Download |
