2025 McHale F5-560 - 25 Knife Fixed Chamber Baler

Videos
Call for Price
Overview

F5-560 - 25 Knife Fixed Chamber Baler

The McHale F5-500 Fixed Chamber Baler Range consists of 4 models;

• F5-540 – Non-Chopper Baler
• F5-550 – 15 Knife Chopper Baler
• F5-560 – 25 Knife Chopper Baler
• F5-560 Plus – 25 Knife Chopper Baler with Film Binding Technology

Offering innovative ideas to allow you to work smarter, whilst achieving more output, the McHale name has become synonymous with the production of robust and reliable machines, making McHale the number one choice for professional users.

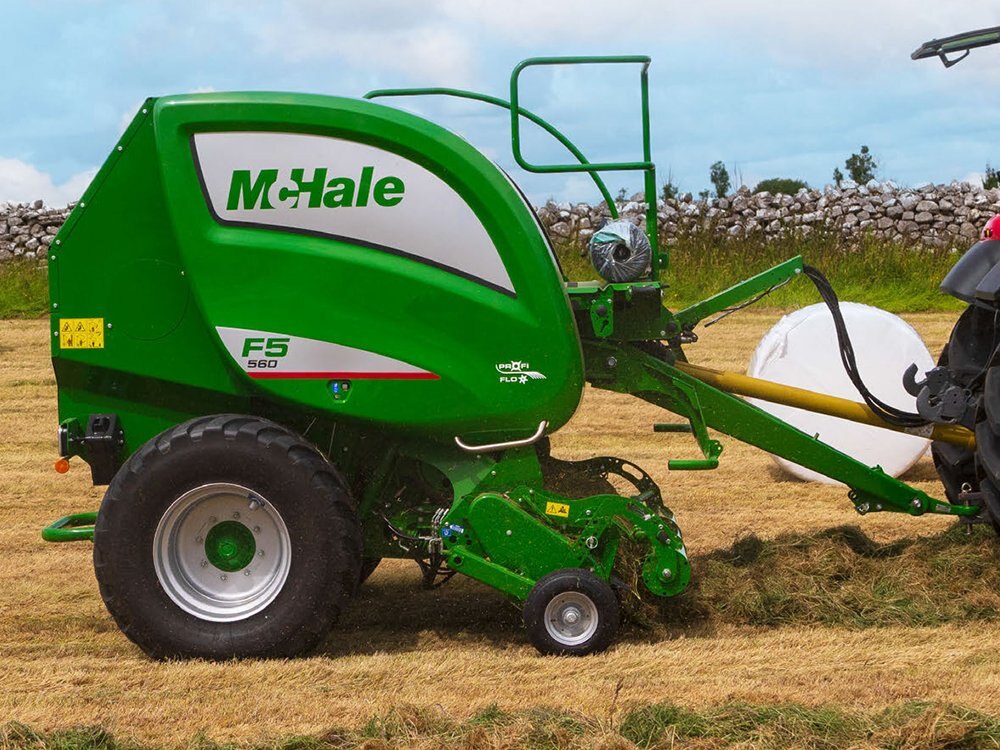

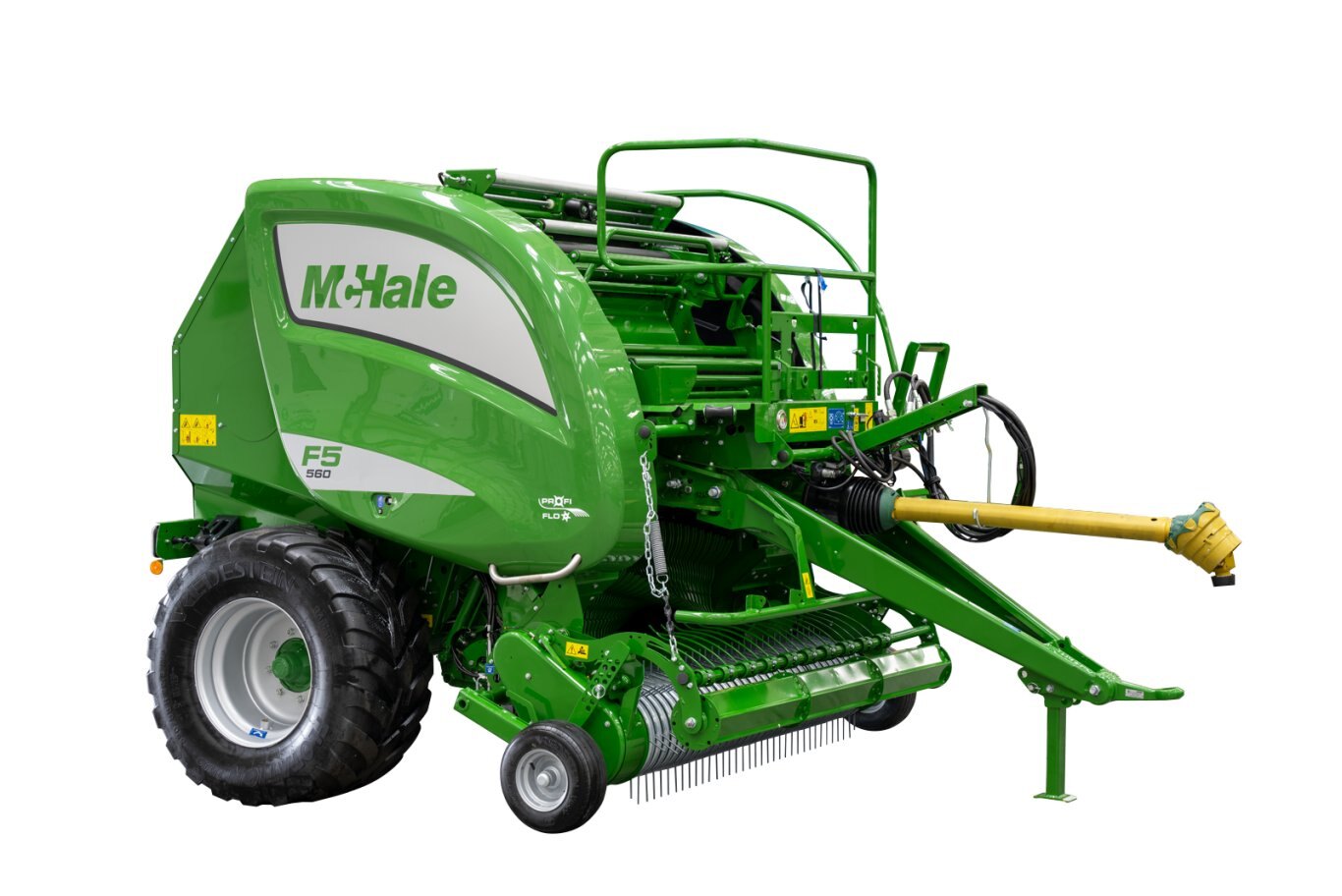

The McHale F5-560 is a fully automatic Fixed Chamber Baler equipped with load sensing hydraulics and a 25 knife chopper unit. It has the same high capacity chopper unit and rotor as the McHale Fusion 4 range. Net layers and bale density can be adjusted from the tractor cab using ISOBUS on the tractor terminal or the ISO-PLAY control console, when combined with the load-sensing valve, this makes tailgate opening and closing fully automatic. The machine is fitted with 500/50-22.5 tyres as standard.

McHale F5-560 25 Knife Chopper Baler

Watch the video for the McHale F5-560,  a fully automatic Fixed Chamber Baler equipped with load sensing hydraulics and a 25 knife chopper unit. It has the same high capacity chopper unit and rotor as the McHale Fusion 4 range. Net layers and bale density can be adjusted from the tractor cab using ISOBUS on the tractor terminal or the ISO-PLAY control console, when combined with the load-sensing valve, this makes tailgate opening and closing fully automatic. The machine is fitted with 500/50-22.5 tyres as standard.

F5 Range Spotlight Series

In this episode of our Spotlight Series, we take a look at the NEW McHale F5 Fixed Chamber Baler Range.

Specifications
Model
25 Knife Fixed Chamber Baler
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
McHale
standard features
2.1m Profi-Flo Pick-Up 25 Knife Chopper Rotor Drop Floor
Unblocking System
50 mm & 55mm Bale Chamber Bearings* 1¼” Chain on the Bale Chamber Automatic Progressive Greasing System
Dual Feed
Net System
Continuous  Oiler
System
ISOBUS/

ISO-PLAY

500/50-22.5 Tyres 25 Knife  Chopper Unit Knife Pressure Display
Knife Position Sensor Automatic Tailgate
Opening & Closing

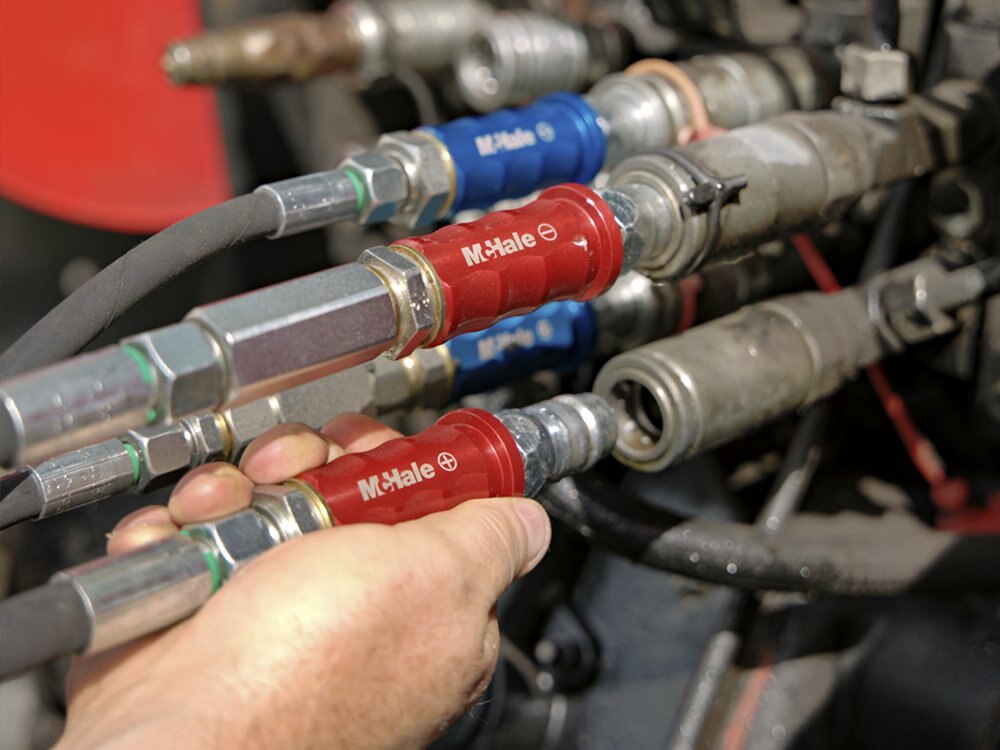

Load Sensing Valve
dimensions & weight
Length 4.05 m (13’3″)
Width  2.58 m (8’6″)
Height 2.45 m (8′)
Weight 3700 kg (8,157 lbs)

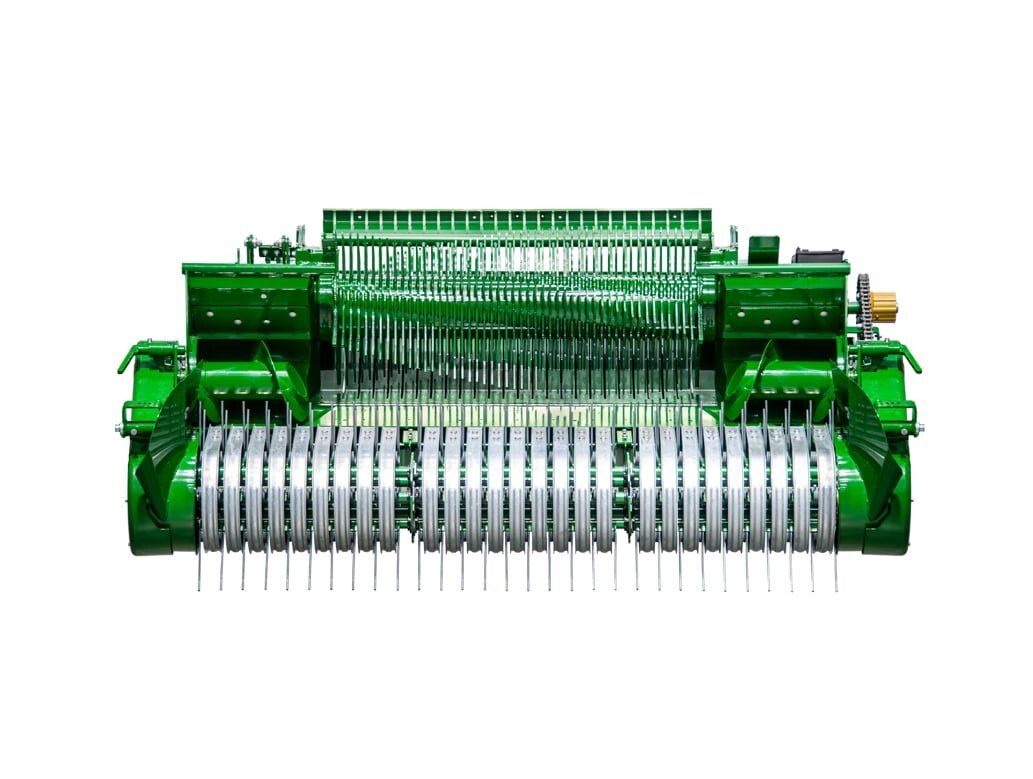

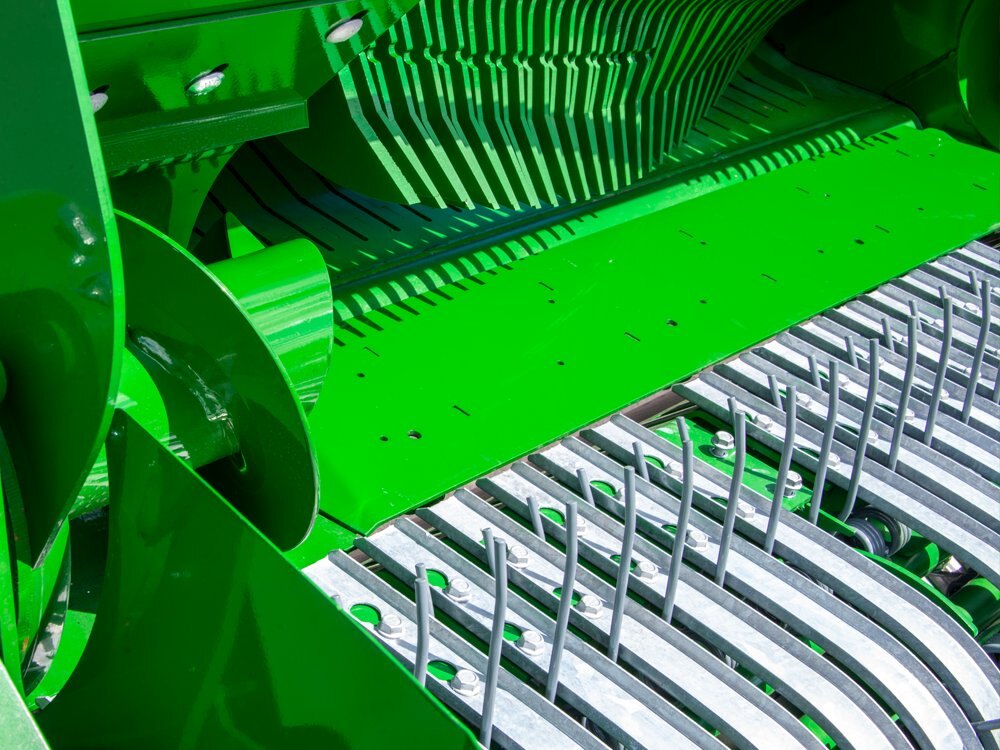

pick-up
Working Width 2100 mm (6’11”)
Tine Bars 5
Tine spacing 65 mm
Short Crop Guard Standard
Crop Roller Optional
Pick Up Guide Wheels Standard
Pick Up Lift Hydraulic
chopper unit

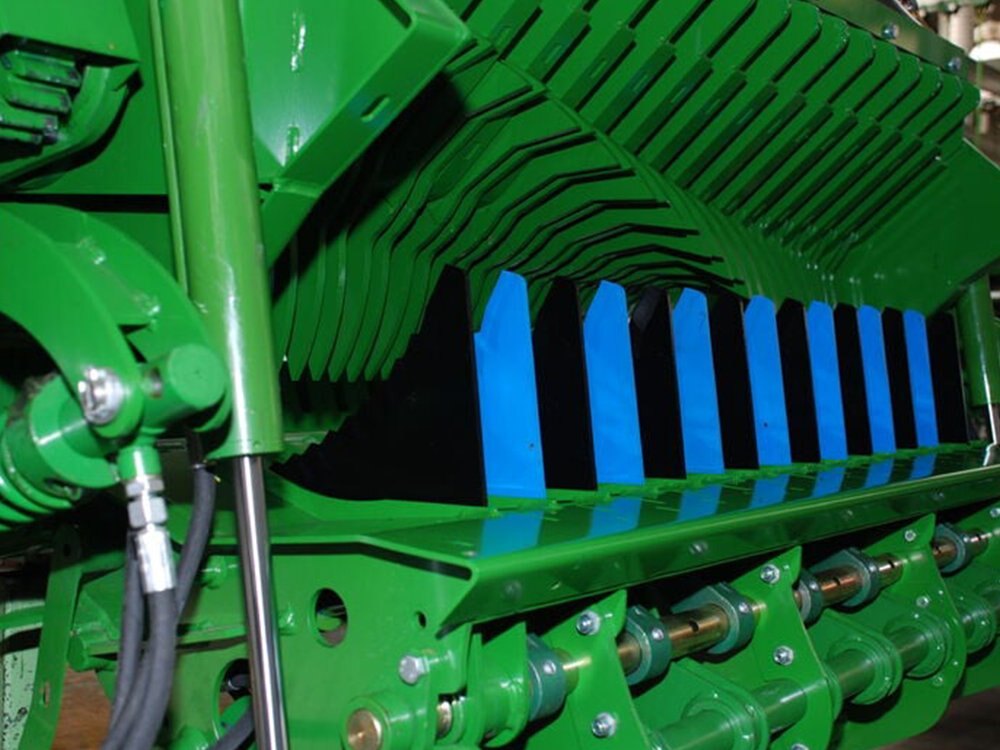

Number of Knives 25
Theoretical Chop Length 46 mm
Knife Protection Hydraulic
Knife Deactivation Hydraulic from Cab

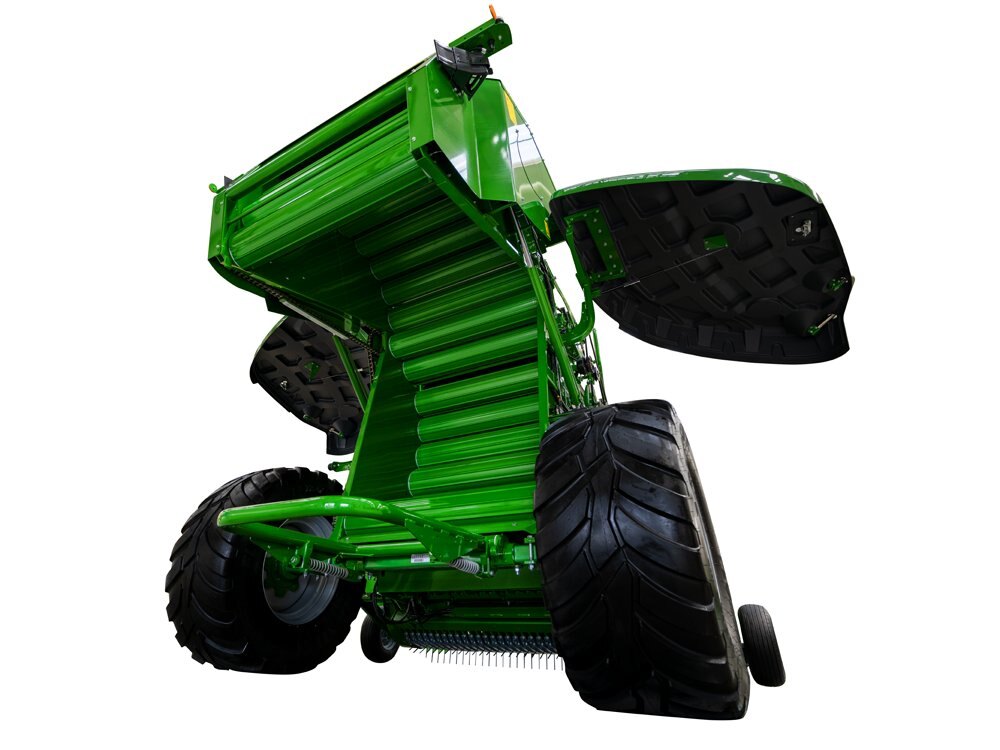

Unblocking System Drop Floor

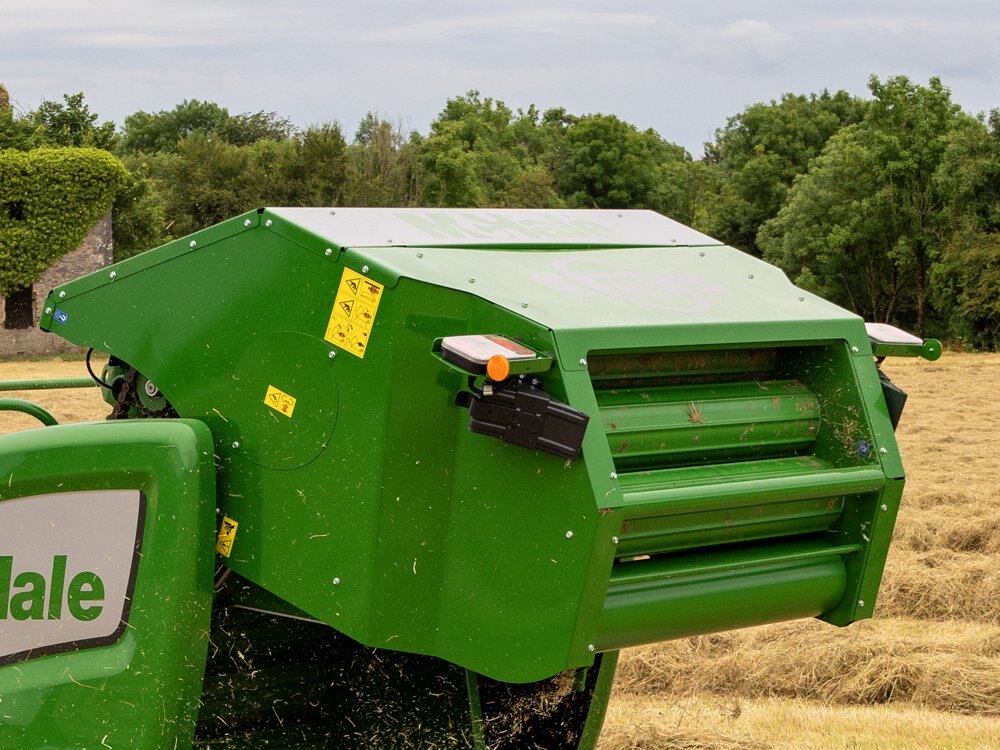

bale chamber
Diameter 1.25 m (4’1”)
Width 1.23 m (4′)

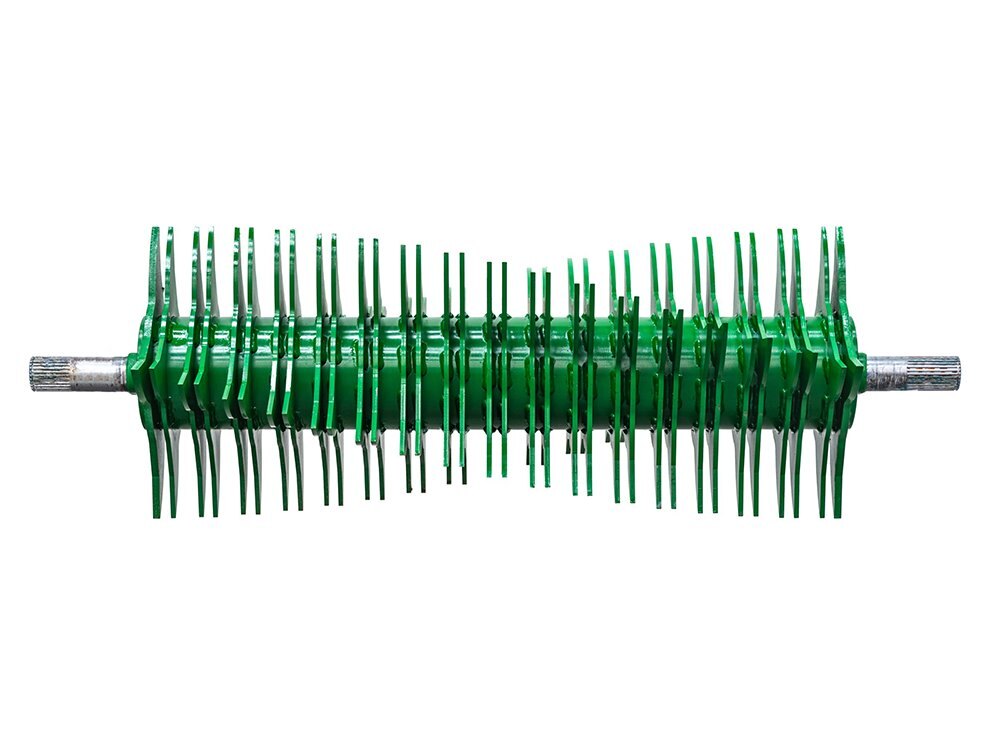

Bale Chamber Feed 25 Knife Chopper Feed Rotor
Number of Rollers 18
Greasing Automatic Progressive
Bearings 50mm & 55mm**

bale chamber binding
Type Net
Control Manual, Semi-Auto or Automatic

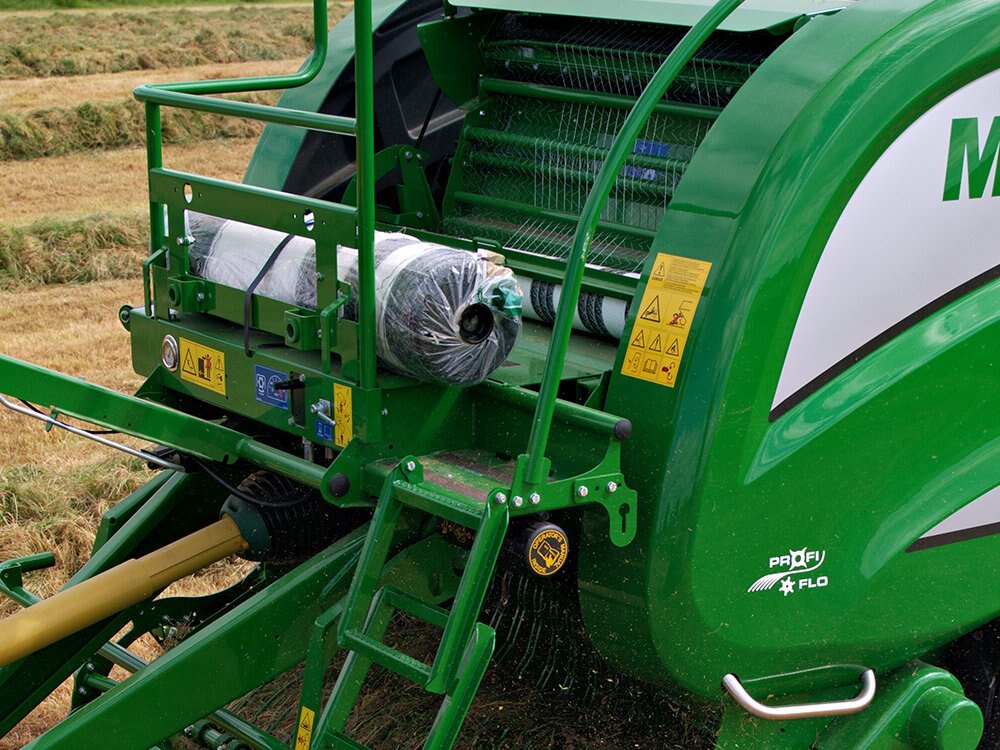

Binding System Dual Feed Netting System
Binding Roll Capacity 1 + 1 Storage
Net/ Film Adjustment In Cab
drives
Gearbox Split Drive
Main Drive Protection Cam Clutch
Pick Up Protection Slip Clutch
Chain Lubrication Continuous
control

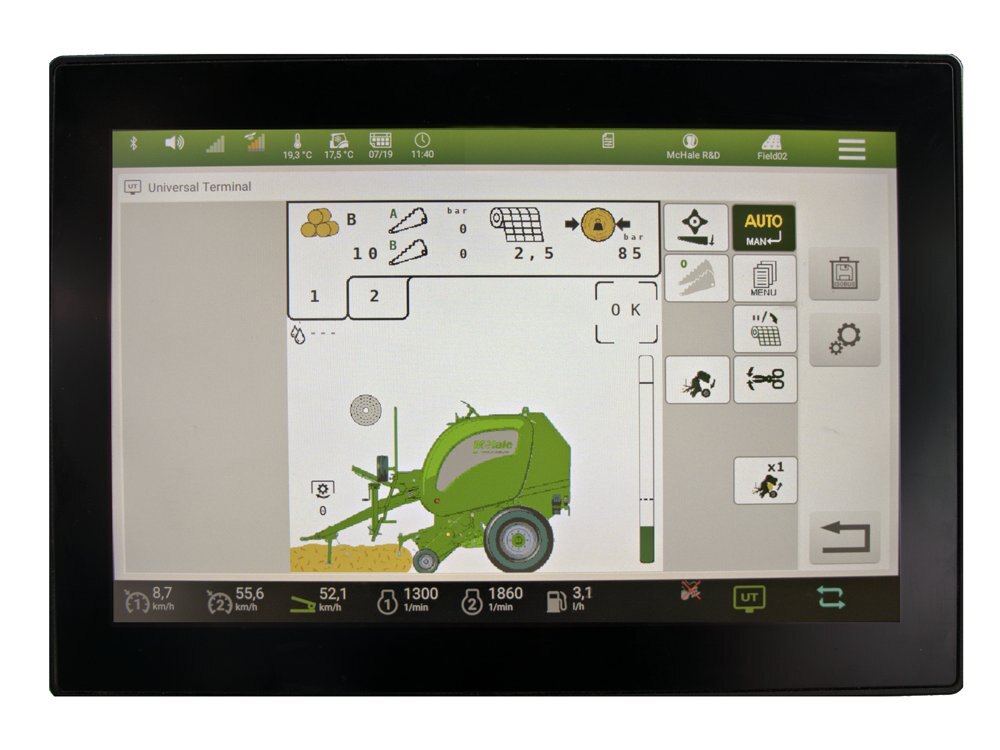

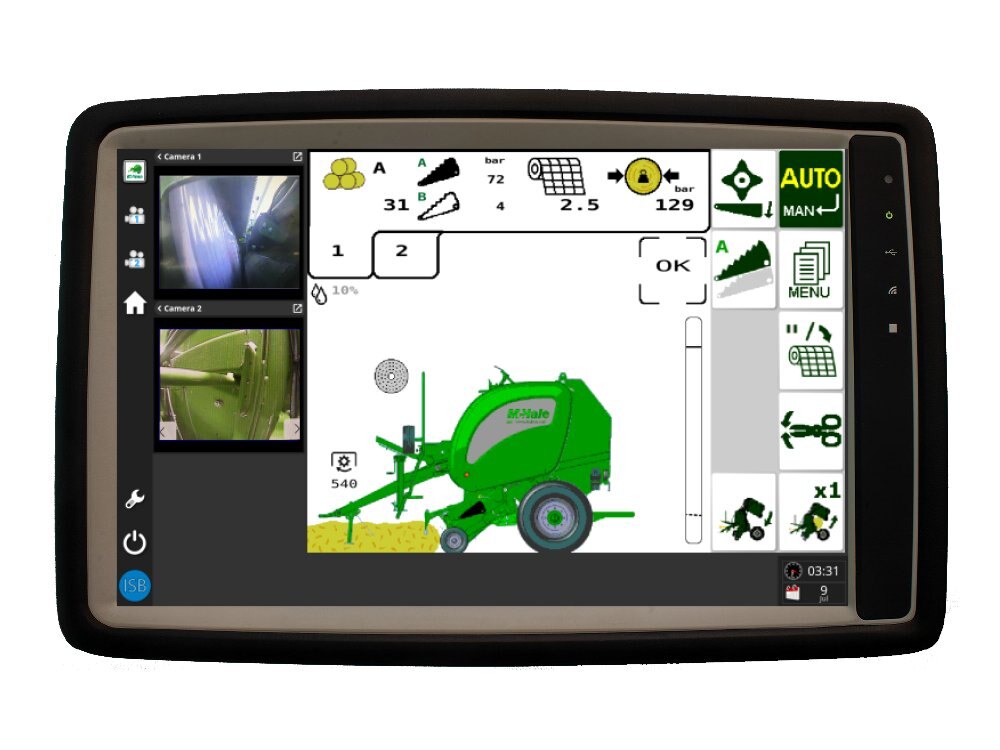

Control System  ISOBUS/ ISO-Play
Operation Fully Automatic
Density Adjustment In-cab

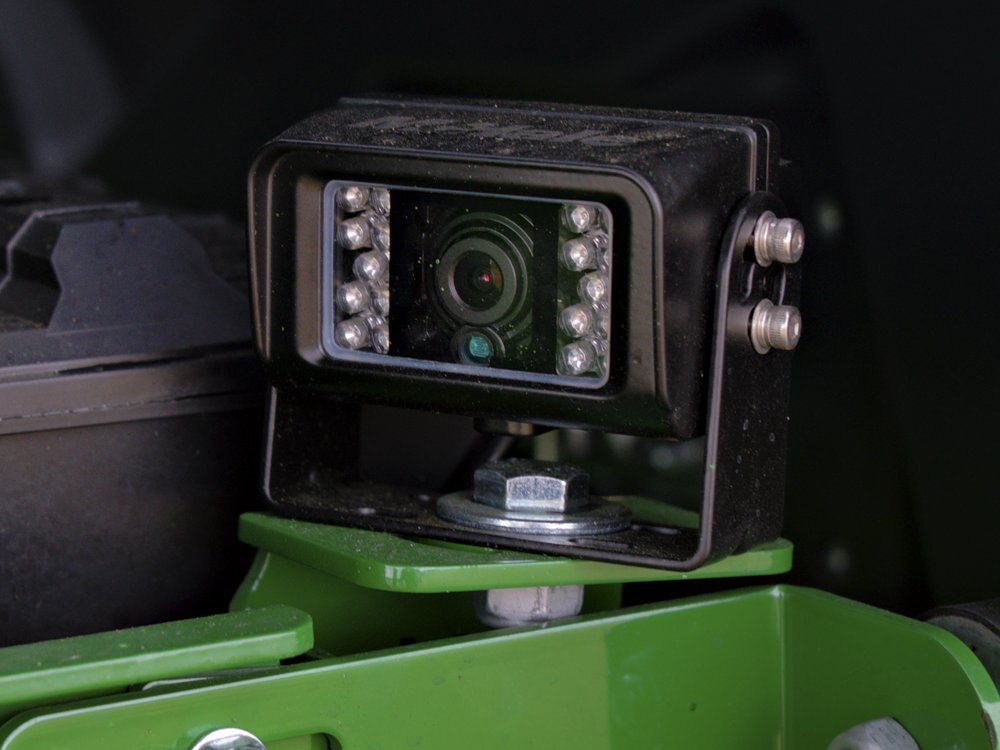

Camera 1 x Camera

other
Axle 8 Stud
Tyres Standard 500/50-22.5
Tyres Optional 520/55-22.5
Bale Discharge Sensor Standard
tractor
Minimum Hydraulic Flow 45 Litres / min at 180 bar
Hydraulics Open, Closed or Load Sensing
Min. Power Requirement 75kW (100hp)
