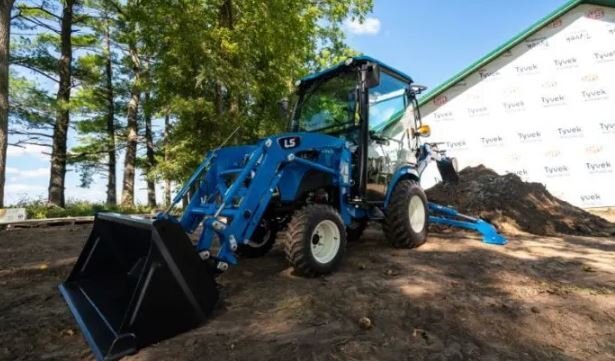

LS Tractor MT225S – 24.7HP

Name: LS Tractor MT225S – 24.7HP
Brand: LS Tractor
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Compact

The MT2s provides a premium level compact tractor to customers wishing to have a high-performing and a highly featured compact tractor. The multitude of standard premium features include premium seat, two pedal hydrostatic transmission, flat operator platform, high- capacity loader and three-point hitch.

Specifications

Model

MT225S – 24.7HP

Category Name

Tractors

Year

2024

Sale Type

New

Manufacturer

LS Tractor

PTO HP

19.3 HP

ENGINE HP

24.7 HP

HITCH LIFT

1,896 lbs.

LOADER LIFT CAPACITY

1,067 lbs.

engine

Type

3Cylinder-IDI

PTO HP

19.3

Model (Tier 4 )

3TNV80F-ZXKLST(YANMAR)

Engine HP (Gross)

24.7

Rated Speed (RPM)

2,800

Displacement (cu In.)

77.3

Fuel Tank Capacity (gal)

6.79

drive train

Brakes

Wet, Multi-Disc

Steering

Hydrostatic Power Steering

Transmission

HST

No. Of Speeds

3 Ranges

pto

Type

Independent

Rear PTO

540

Mid PTO (option)

2,500

hydraulic system

Total Flow (gpm)

9.3

Steering Pump (gpm)

3.7

Category, 3 Pt Hitch

CAT 1

Implement Pump (gpm)

5.6

Hitch Lift Capacity (lb.)

1,896

dimension

Wheelbase (in.)

63.4

IND (Front/Rear)

23 x 8.5 – 12 / 12 – 16.5

Height To Top Of ROPS (in.)

86.4

Overall Width With Tires (in.)

48.7

Total Weight Without Ballast (lbs.)

1,764

Overall Length (Bumper To Link, In.)

111.9

features

EXCELLENT VISIBILITY

ERGONOMICALLY DESIGNED INTEGRATED LOADER JOYSTICK

ERGONOMIC DESIGN FEATURING ELECTRIC PTO

TRANSMISSION AND PTO ENGAGEMENT LEVERS

STANDARD CUPHOLDER

2 PEDAL 3 RANGE HYDROSTATIC TRANSMISSION

DECK HEIGHT ADJUSTMENT

ADVANCED LIGHTING

options

Remote Valve 1 Pair (2 Outlets) -without Backhoe
Remote Valve 1 Pair (2 Outlets) -with Backhoe
7 POLE CONNECTOR
Work Light (Rear)
Seat Headrest
Front weight(44lb X 4) incl. Bumper

attachments

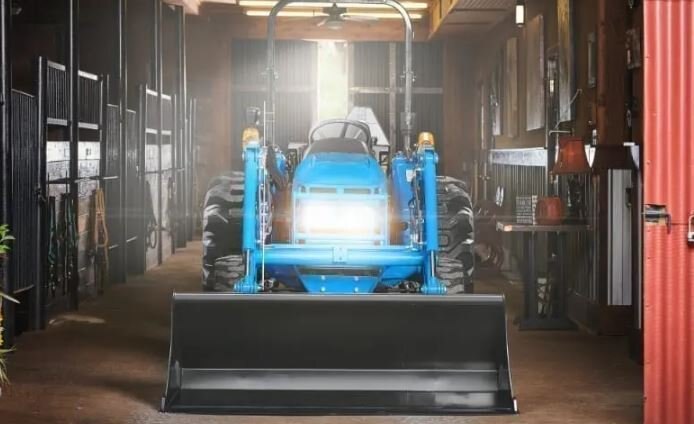

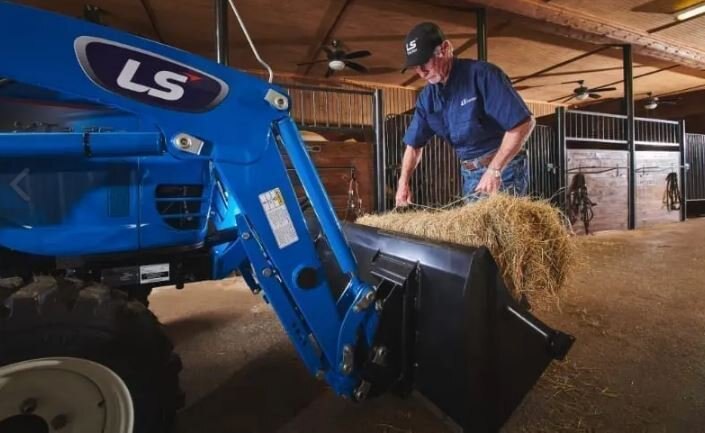

LL2300 – FRONT END LOADER

Bucket (in): 54.3
Maximum Lift height (in): 84.4
Clearance with Attachment Dump (in): 59.1
Reach at Maximum Height (in): 17.9
Maximum Dump Angle (deg): 55
Maximum Rollback Angle (deg): 40
Digging Depth (in): 4.5
Overall Height in Carry Position (in): 46
Lift Capacity (@ Pivot pin) (lbs): 1,067
Breakout Force (@ Pivot pin) (lbs): 2,290
Approx. Weight (Loader w/o Bucket) (lbs): TBD

LM2360 – MID MOWER

Cutting Width (in): 60
Cutting Height (in): 1 to 4
Transport Height, in.: 6
Gear Type: Spiral Bevel
Number of Blades: 3
Adjustment of cutting height: Dial
Deck thickness, (in): 0.15
Total Width, (in.): 75.7
Total Length, (in.): 46.4
Total Height, (in.): Yes
Lifting Type: 3 Upper Link
Shipping Weight lbs.: 368

BOX BLADE – MBB3048

Category: 4′ MBB3048 LS Tractor USA Implement
Sides & Mold Board Thickness: 1/4″
Skid Shoes: 1/4″
Lift Attachment Brackets: 1/2″ solid welded
Warranty: 1 year limited
Total Width: 52 3/16″
Overall Height: 37″
Length: 24″
Weight: 389 lbs
Blades: 48″
Tractor Range: 2wd @35HP / 4wd @30HP
3-Point Hitch: category 1

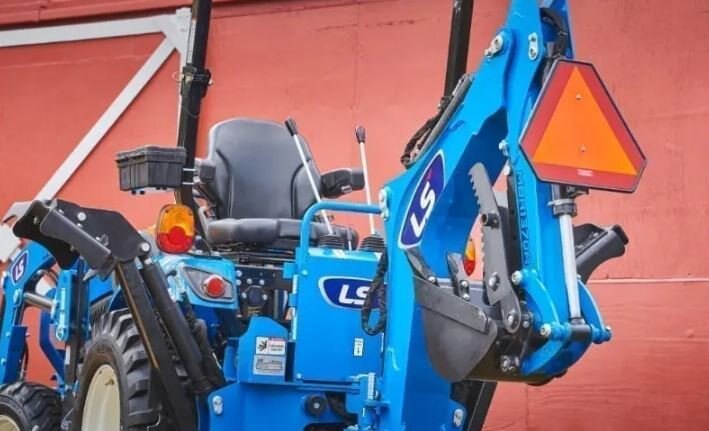

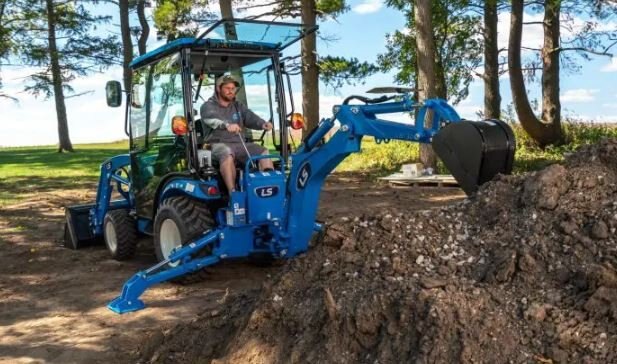

LB1300 – BACKHOE

Digging Depth (in): 84.9
Reach From centerline of swing Pivot (in): 113.7
Loading Height (in): 64.7
Swing Arc (deg.): 180
Transport Height (in): 73.4
Bucket Rotation (deg.): 177
Stabilizer Spread (Down Position) (in): 82.2
Stabilizer Spread (Up Position) (in): 65.4
Bucket Digging force (lbs): 3,013

literature

Name	Link
Brochure	Download
LS Model Comparison	Download
Competitive Comparison	Download

Documents

LS-Tractor-Brochure-MT2S.pdf

Call for Price

Pricing excludes licensing and tax
