Poettinger TERRIA 5030

Name: Poettinger TERRIA 5030
Brand: Poettinger
Availability: OutOfStock

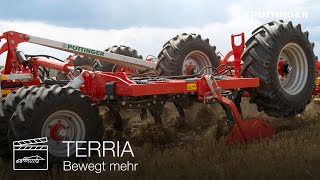

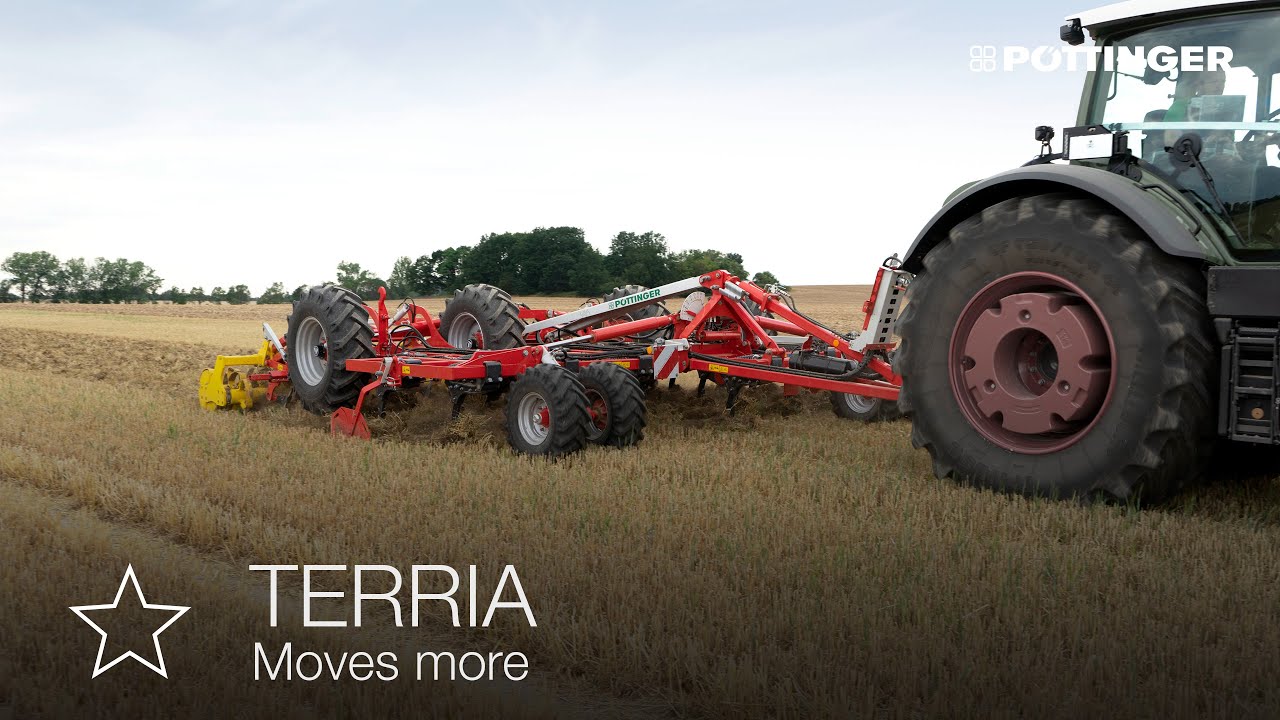

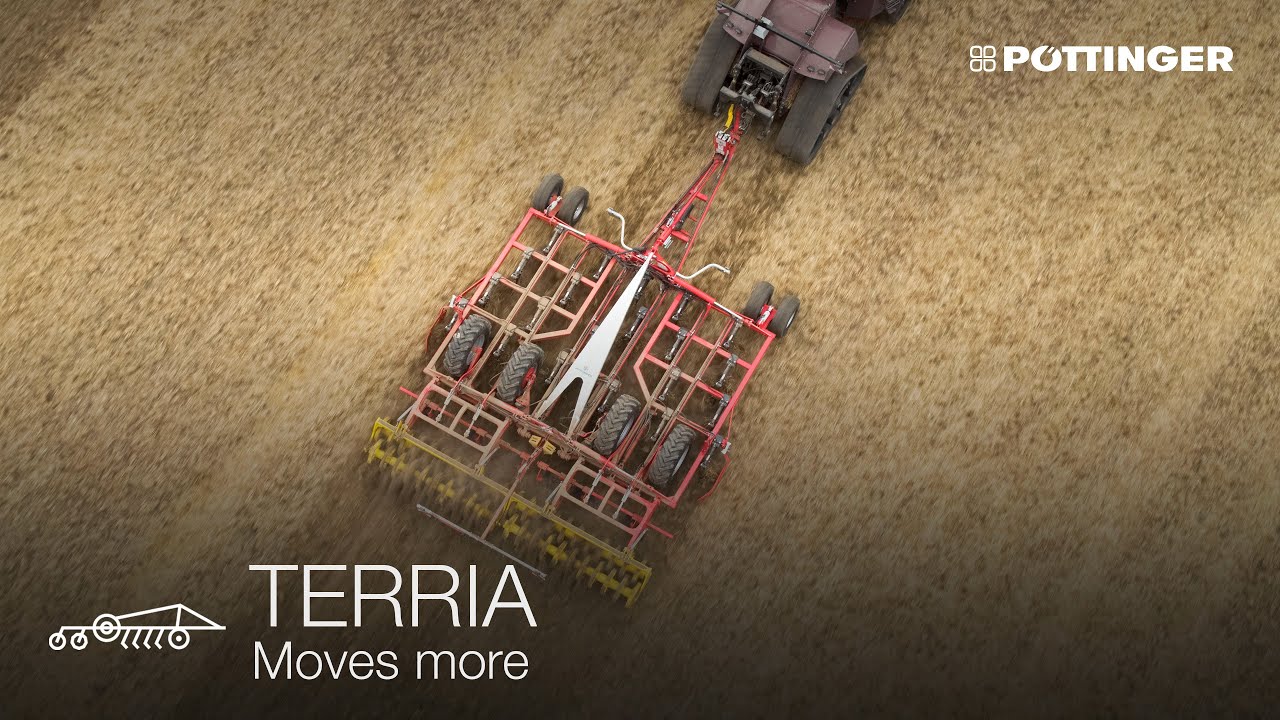

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

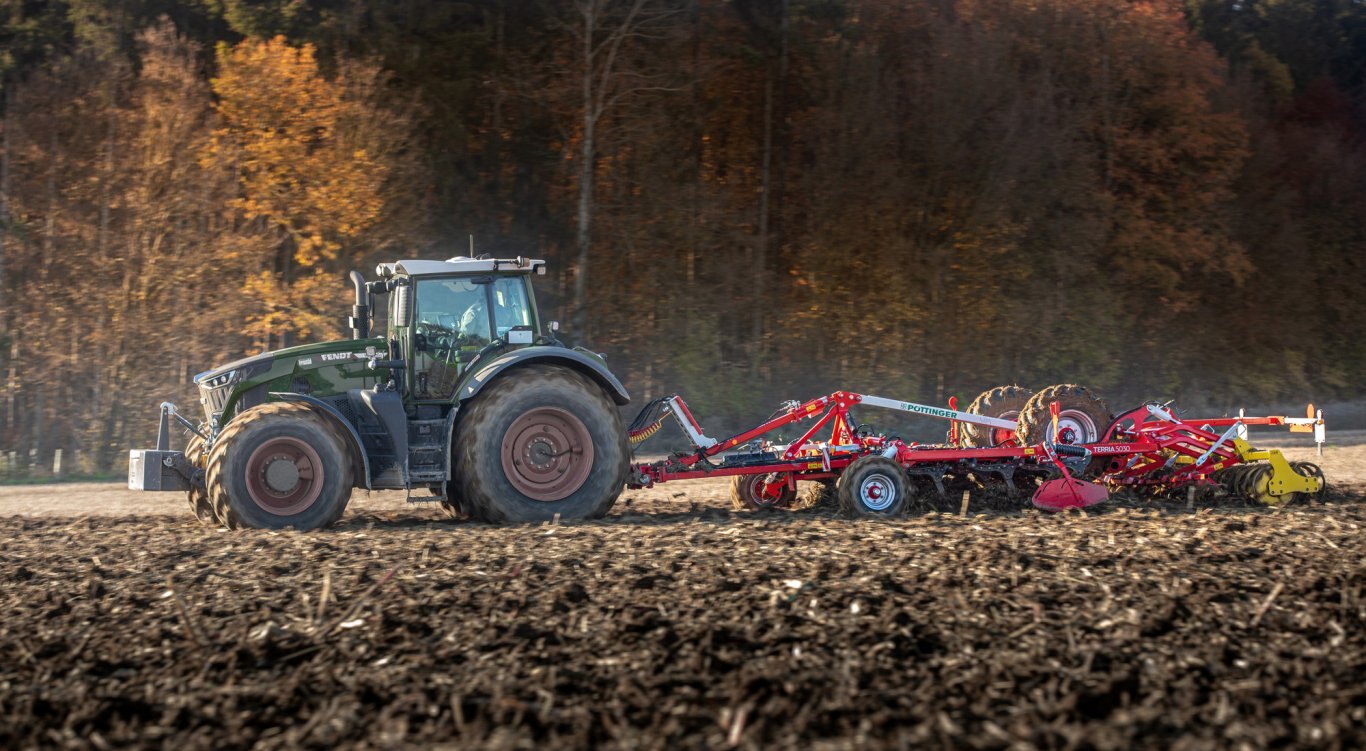

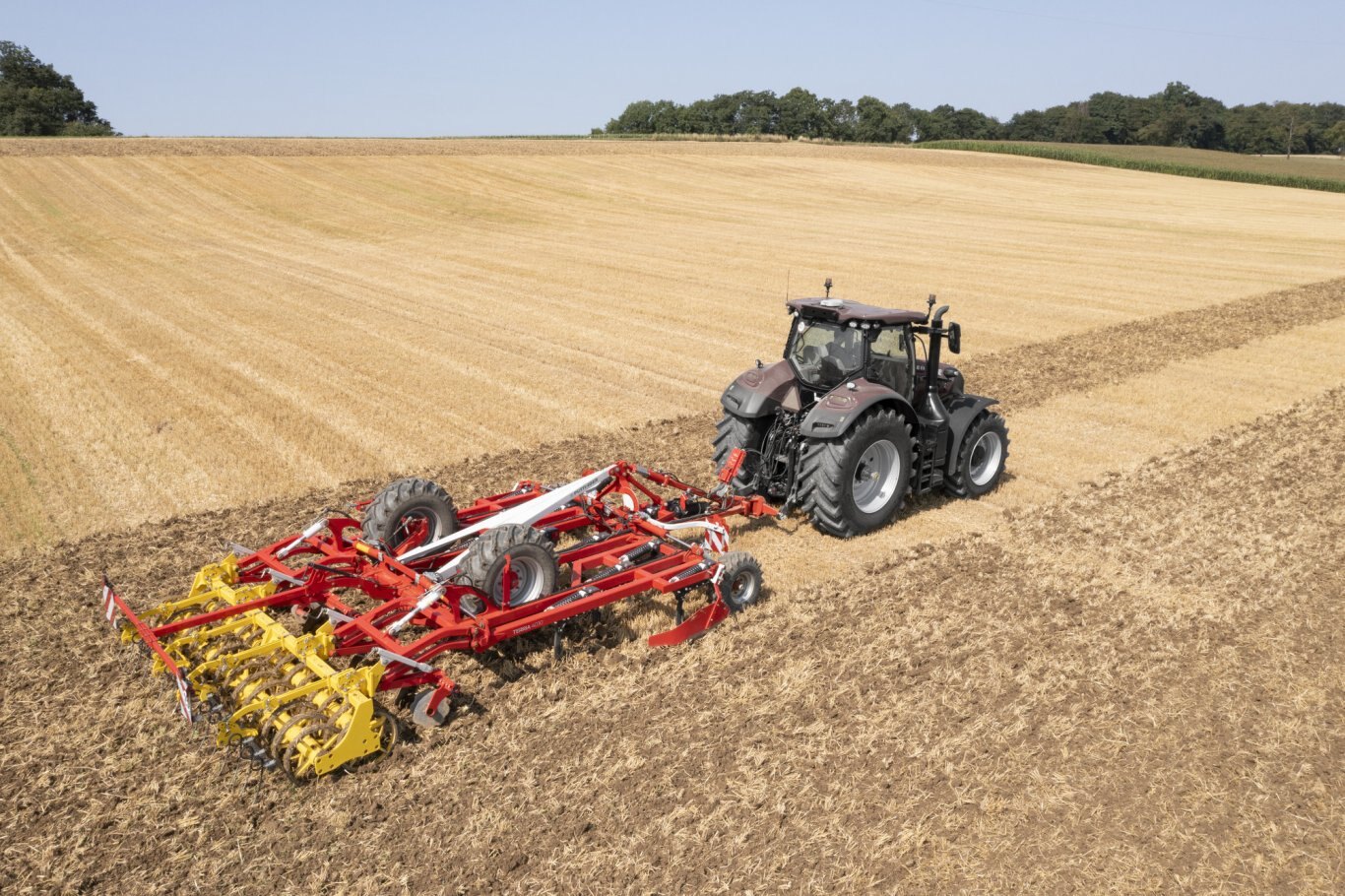

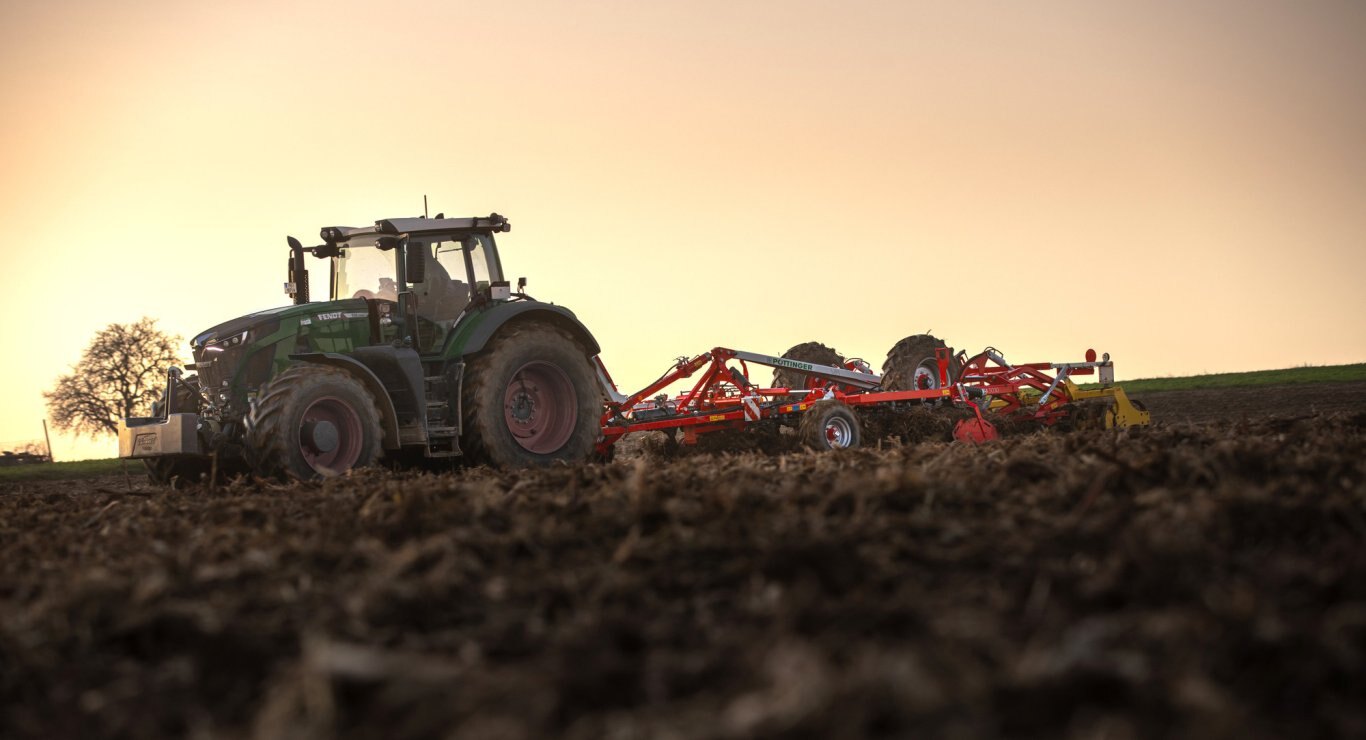

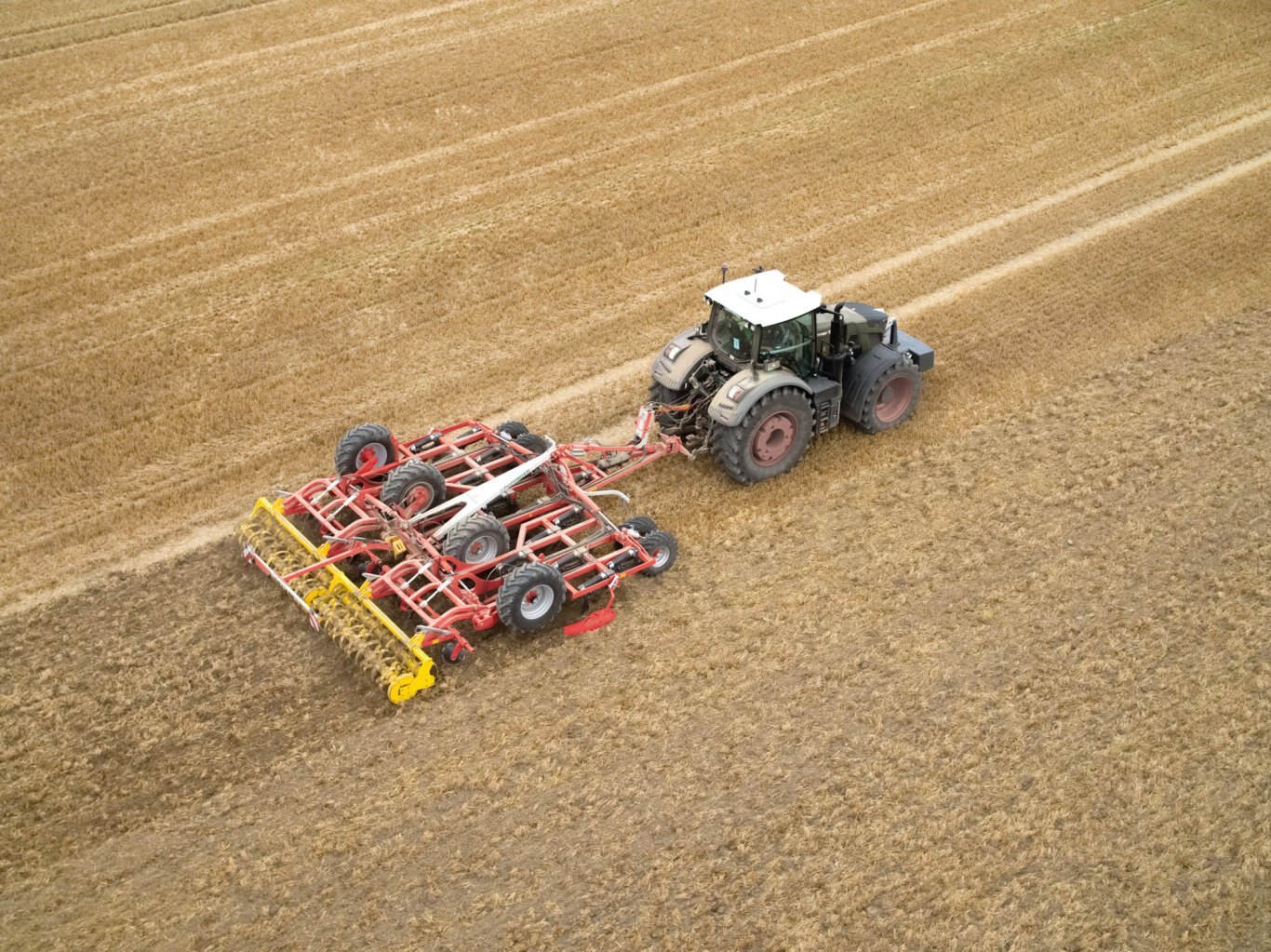

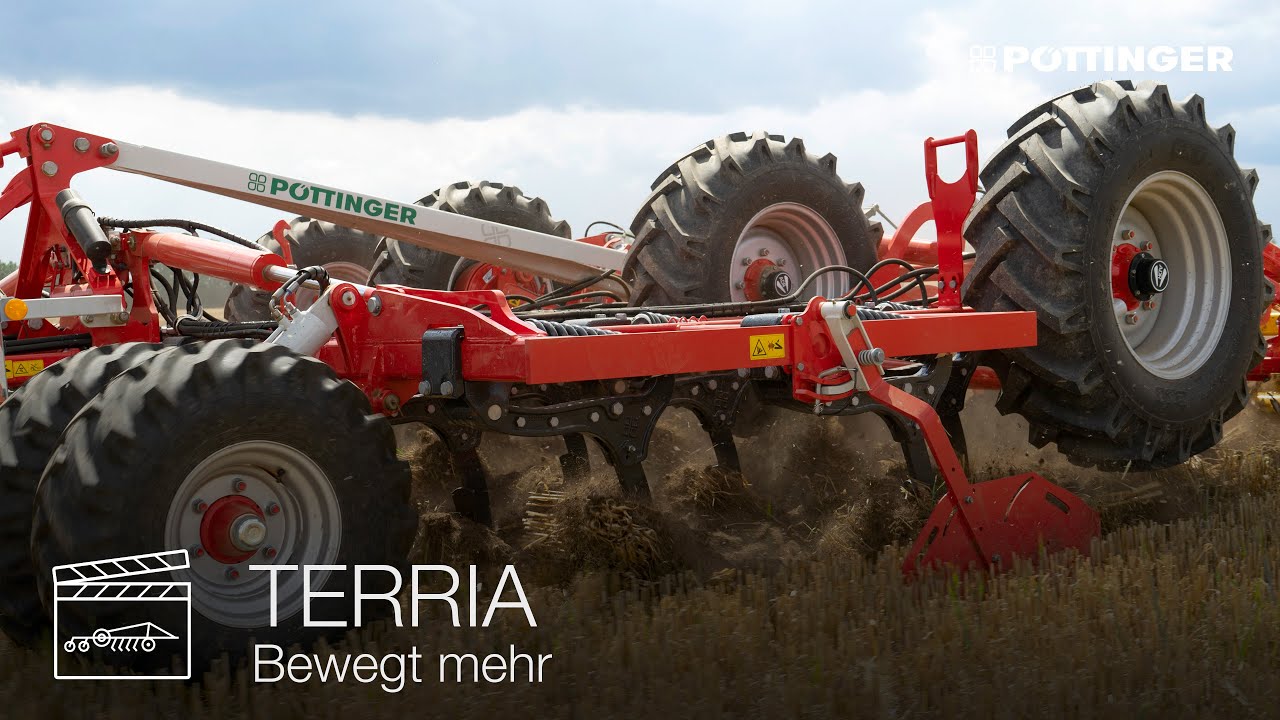

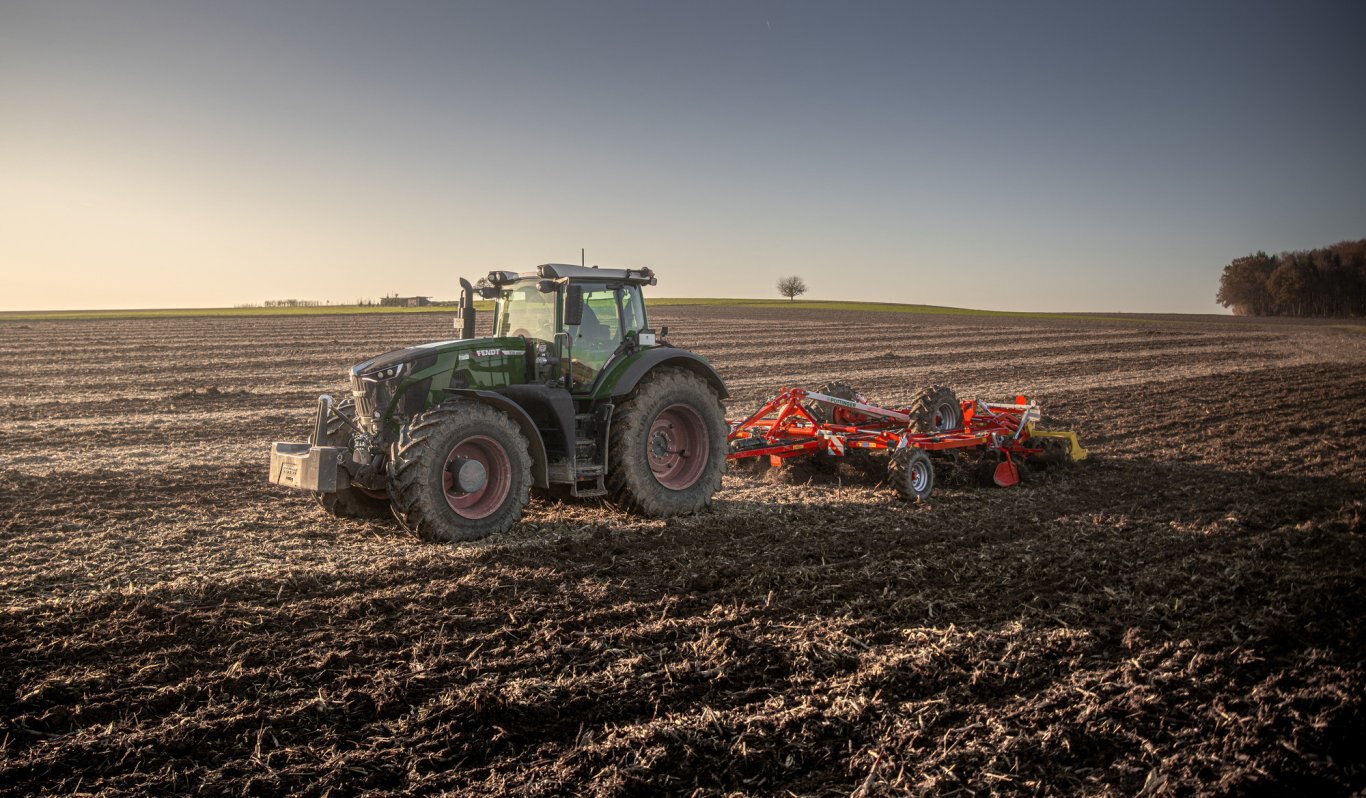

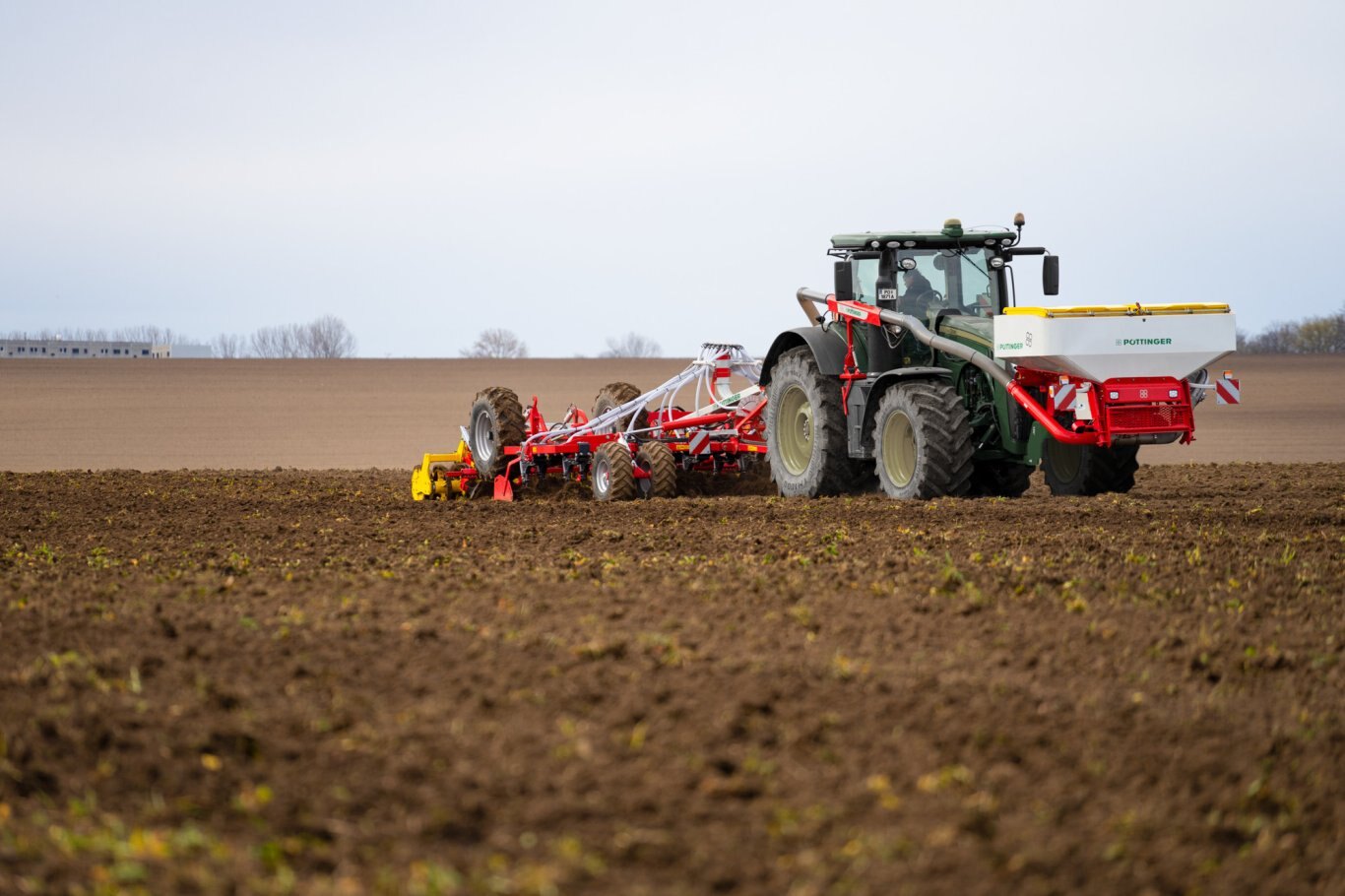

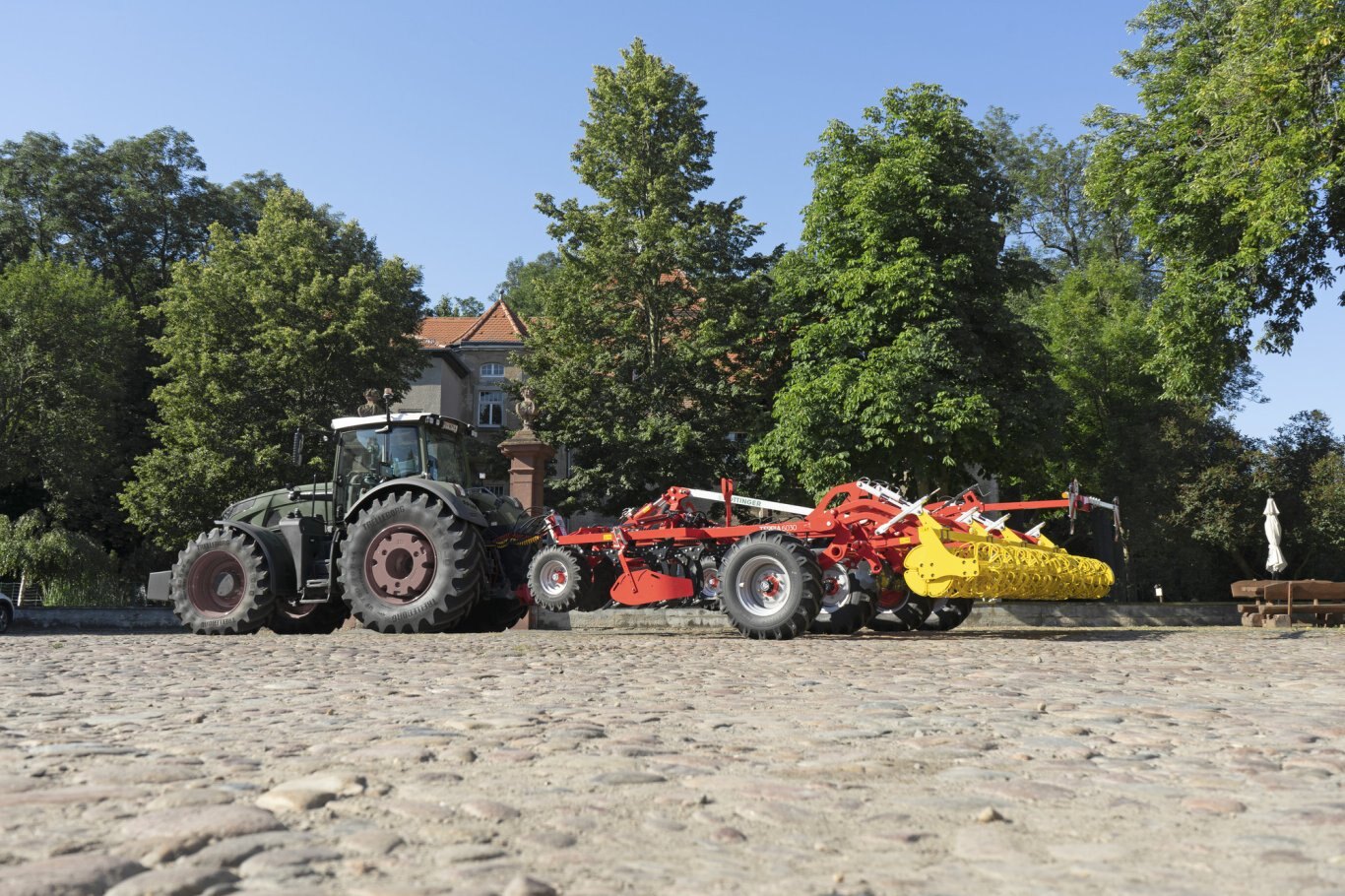

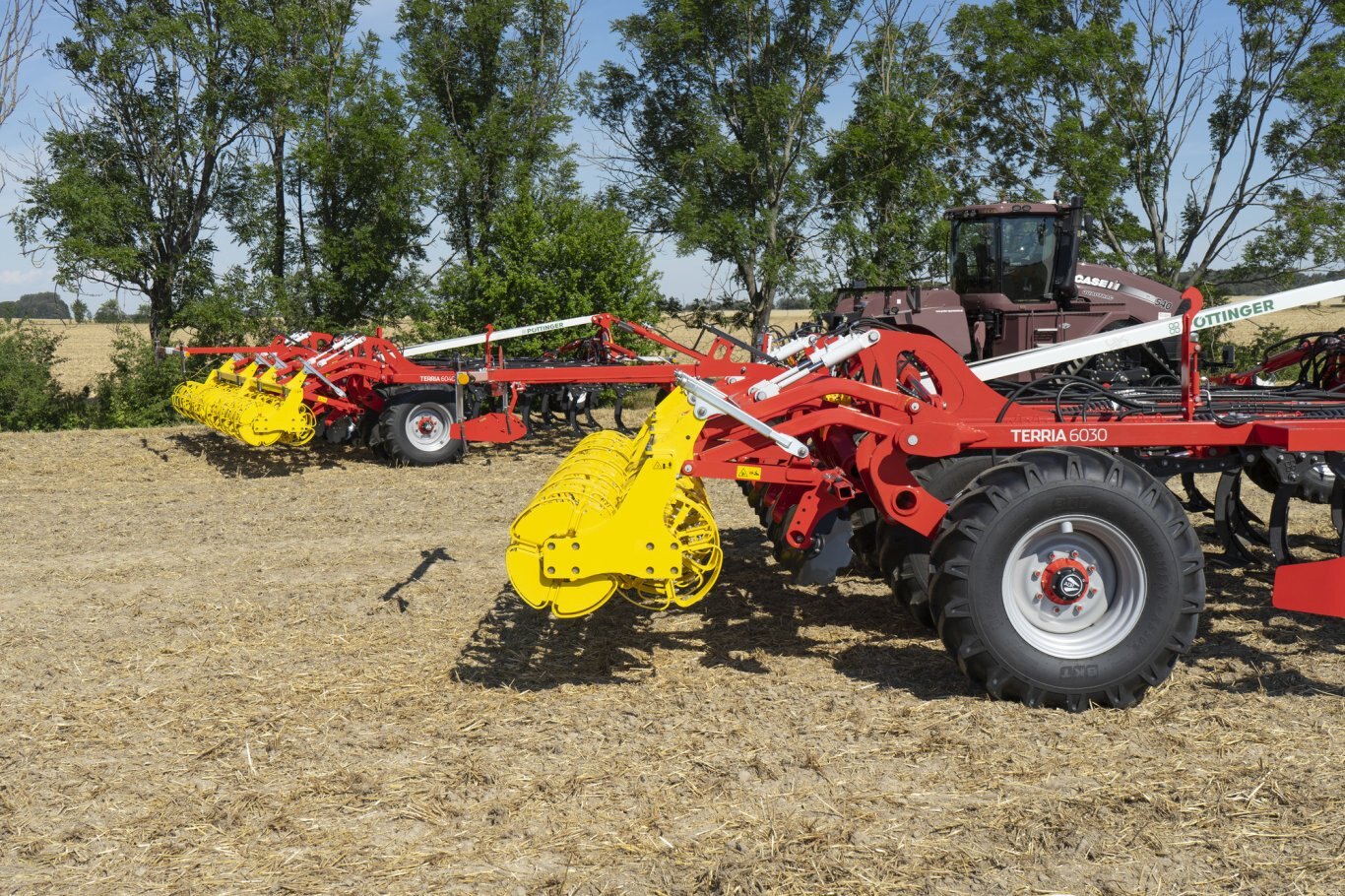

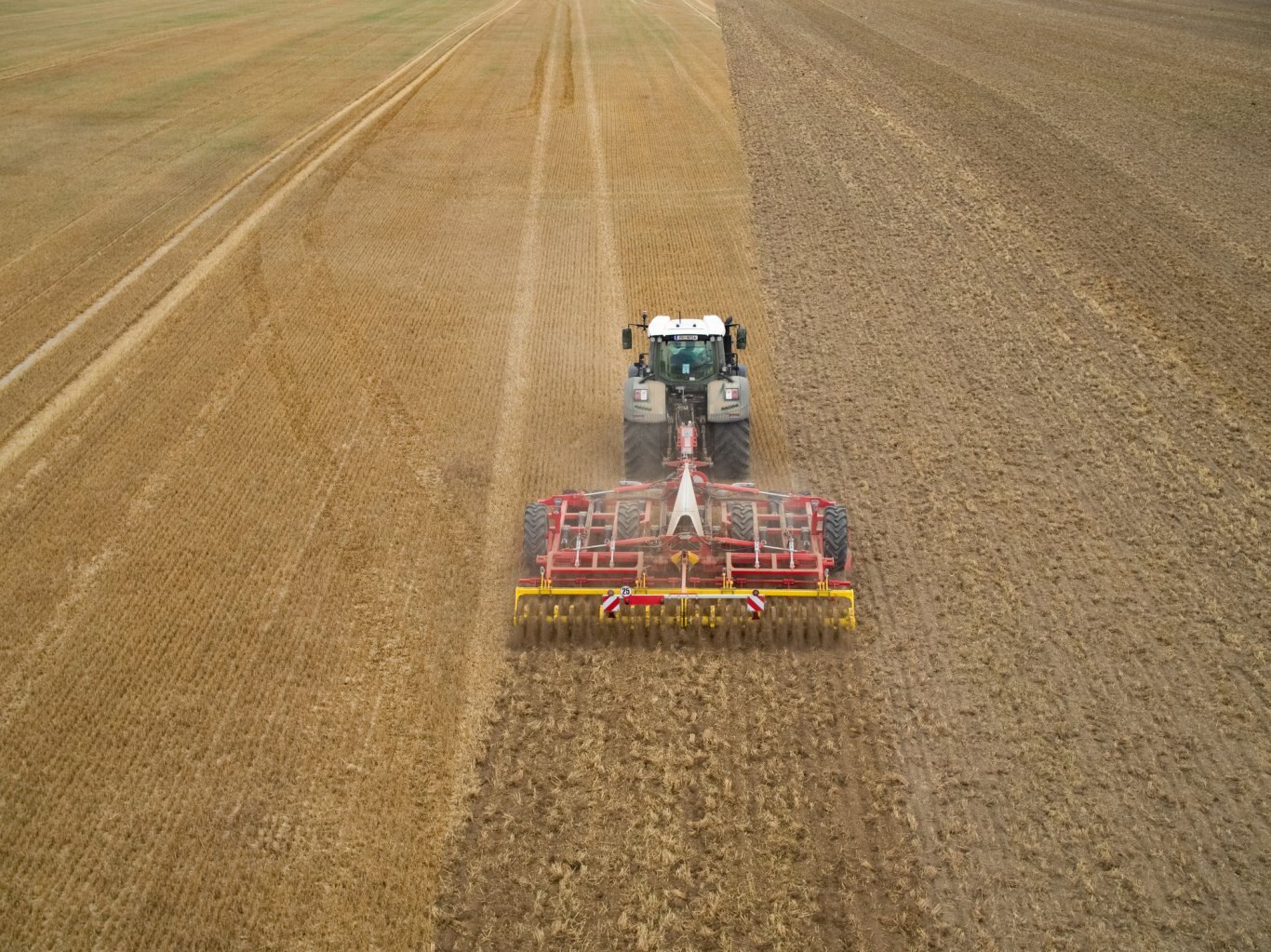

TERRIA trailed machines cover a wide range of applications in soil cultivation. You have the choice - from shallow stubble cultivation to deeper loosening work. Fully versatile to meet the highest expectations.

Specifications

Model

TERRIA 5030

Category Name

Agriculture

Year

2025

Sale Type

New

Manufacturer

Poettinger

technical data

Working width	16'5'' (5 m)
Spacing	0'11'' (290 mm)
Under frame clearance	2'8'' (820 mm)
Power requirement	225 hp
Tines	17 pcs.
Row spacing	2'7'' (800 mm)
Concave discs	10 pcs.
Beam dimensions	0'4'' x 0'4'' (100 x 100 mm)

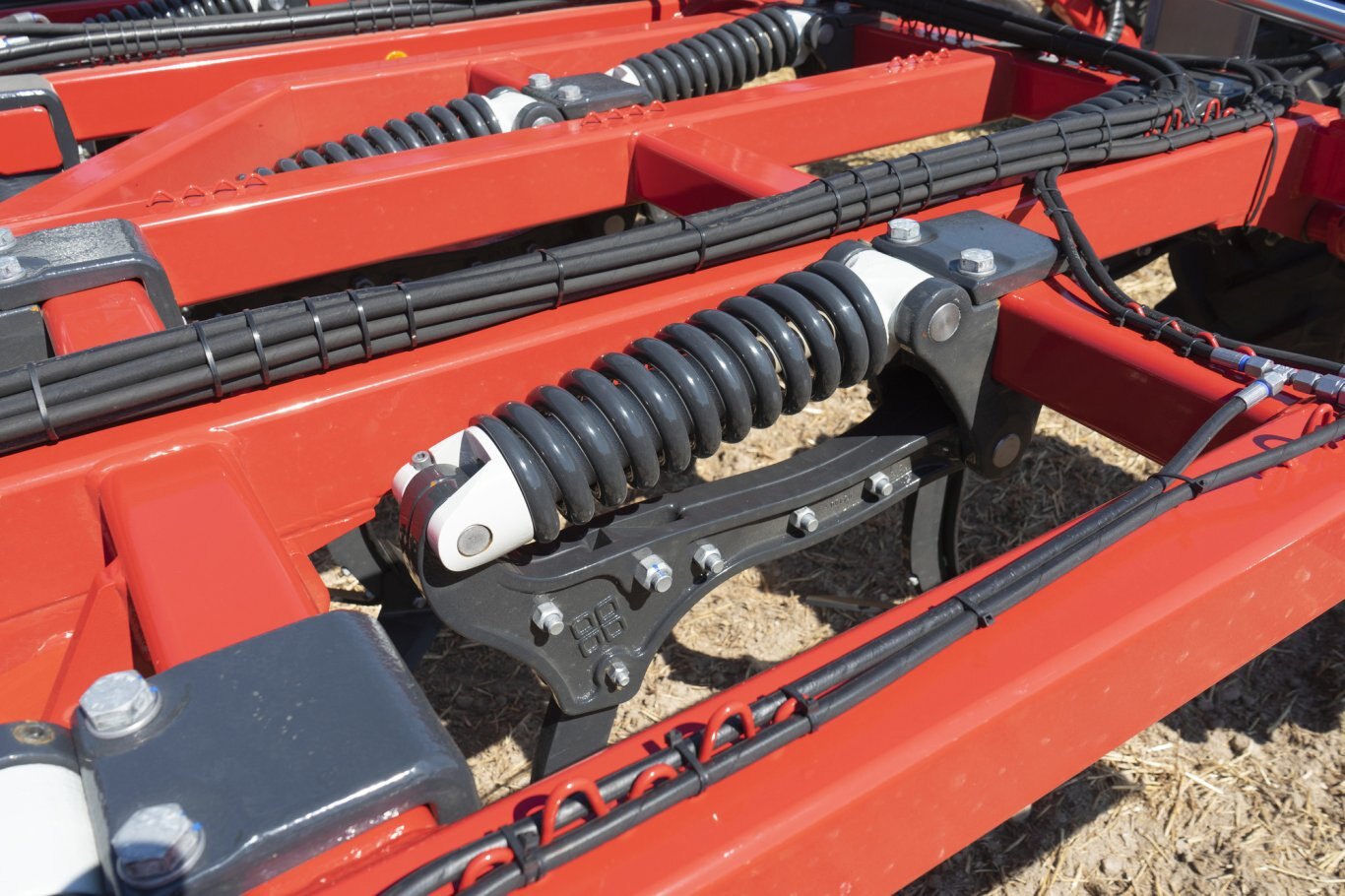

Triggering pressure of stone protection system	1323 lbs (600 kg)

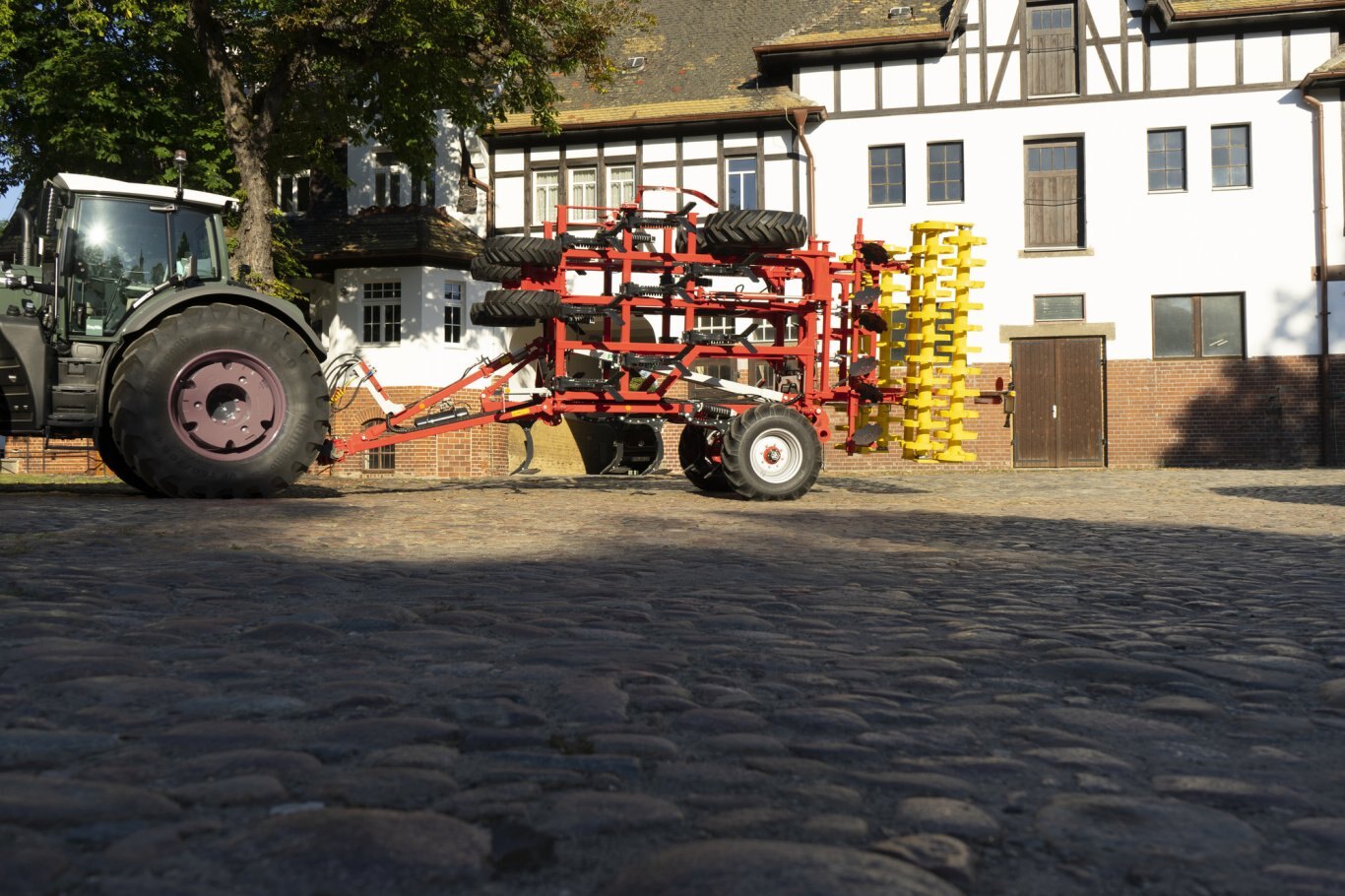

Transport length	27'7'' (8,4 m)
Transport width	9'10'' (3 m)
Weight pack ring roller Ø 550 mm	2227 lbs (1010 kg)
Weight rubber packer roller Ø 590 mm	2205 lbs (1000 kg)
Weight tandem CONOROLL Ø 560 mm	2557 lbs (1160 kg)
Weight tandem U-profile roller 600 mm Ø	2579 lbs (1170 kg)
