ID # 36014578
Poettinger TOP 1403 C
Call for Price
Overview
Specifications
technical data
downloads
Videos

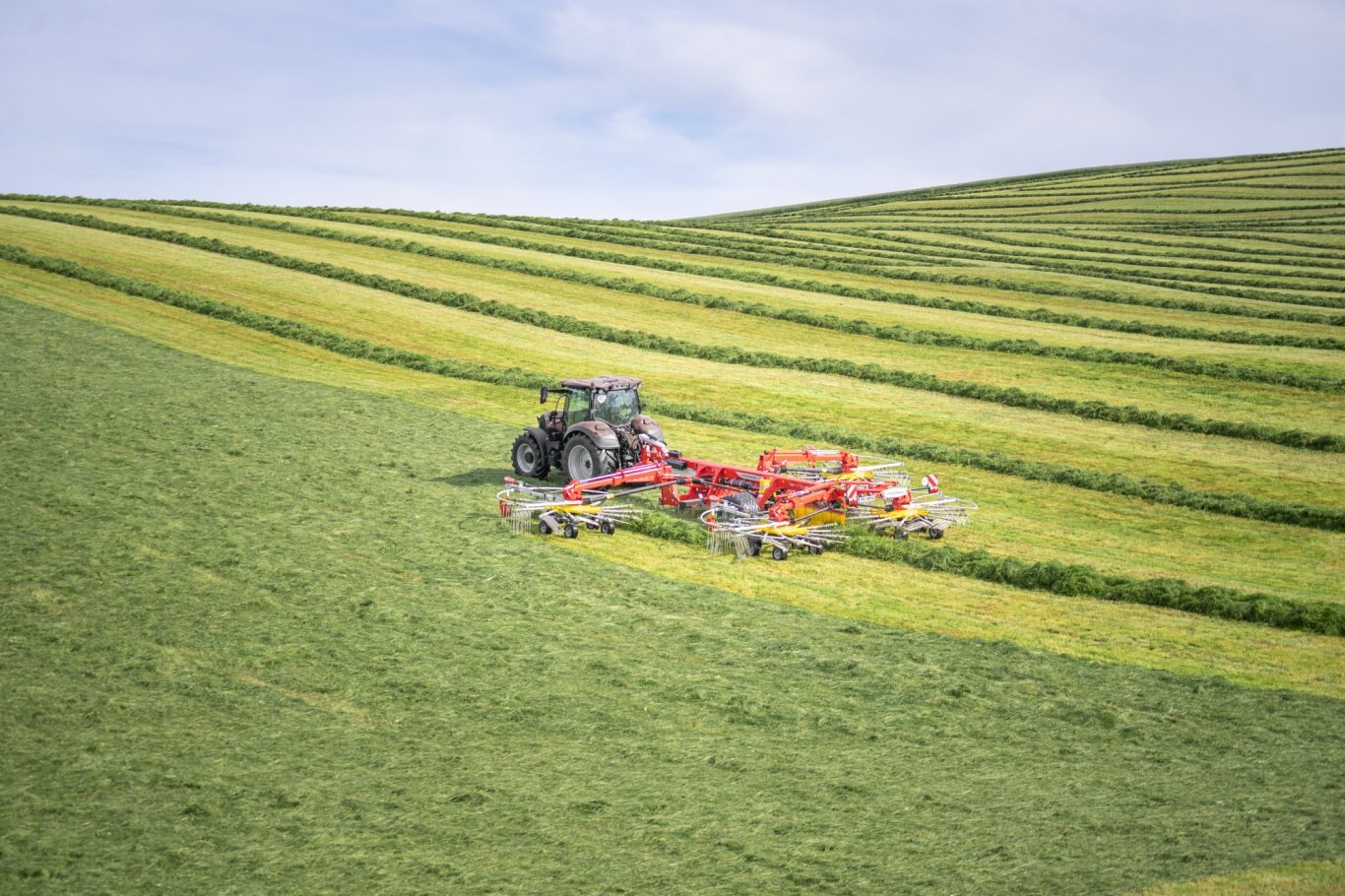

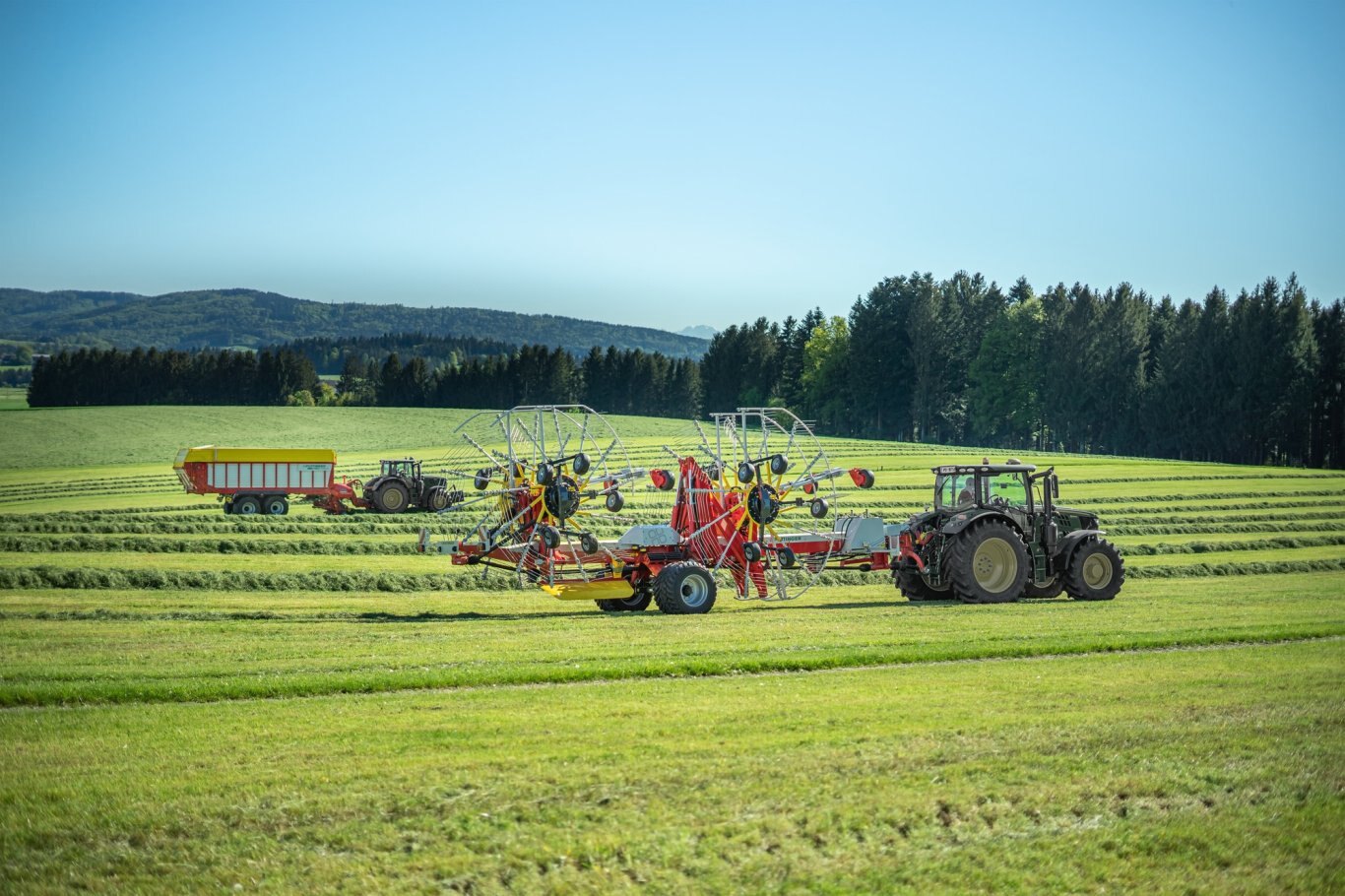

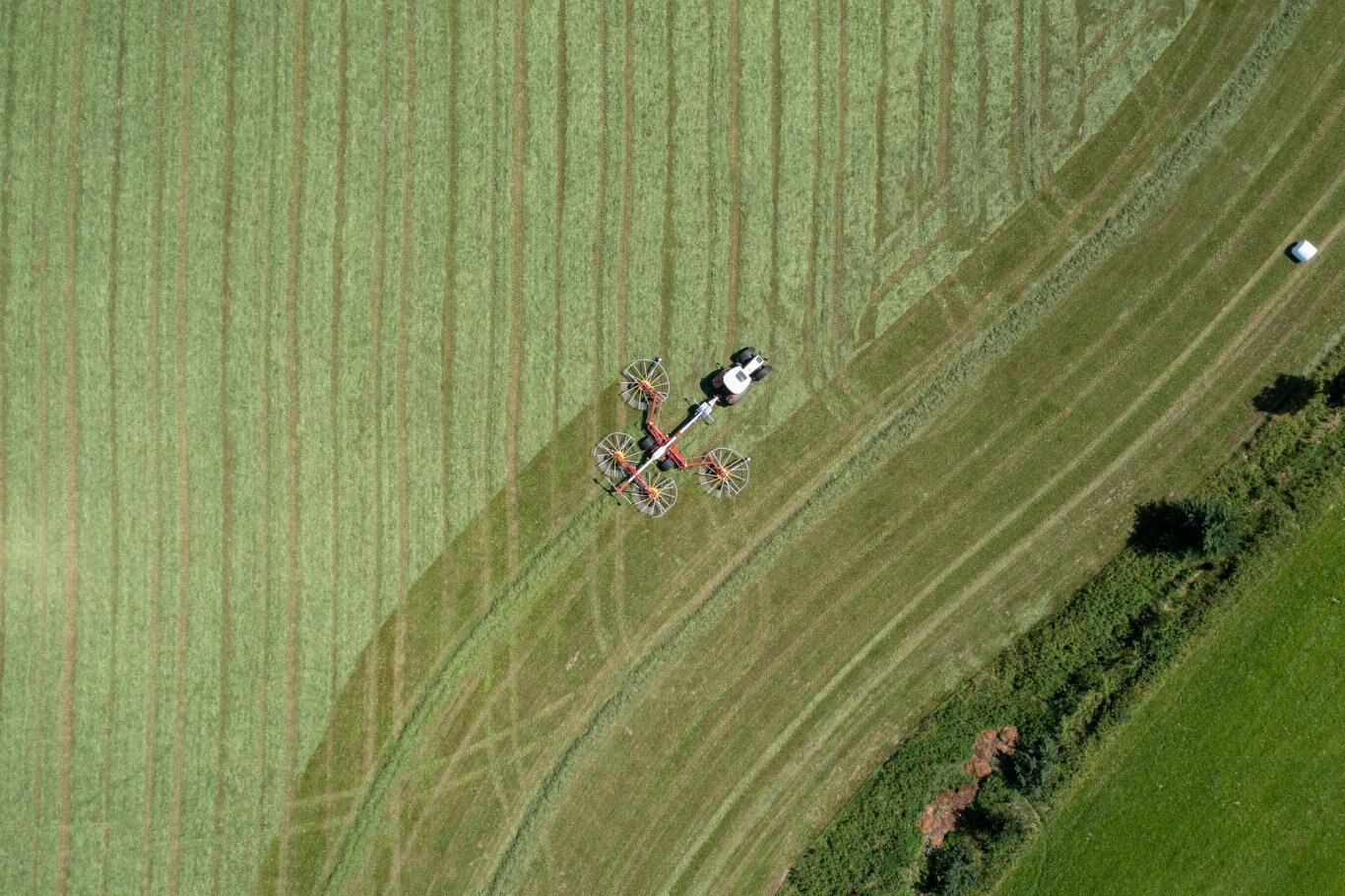

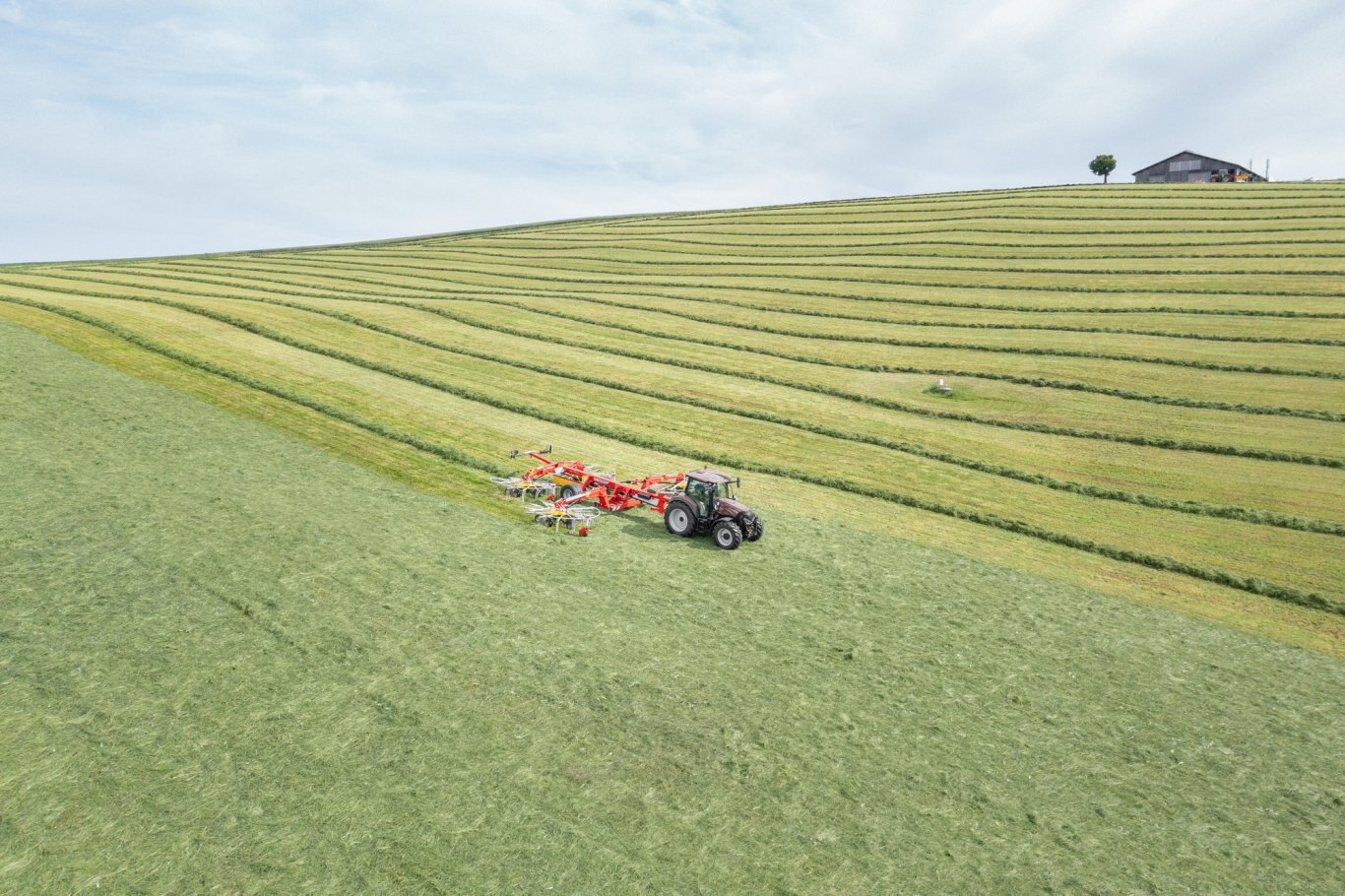

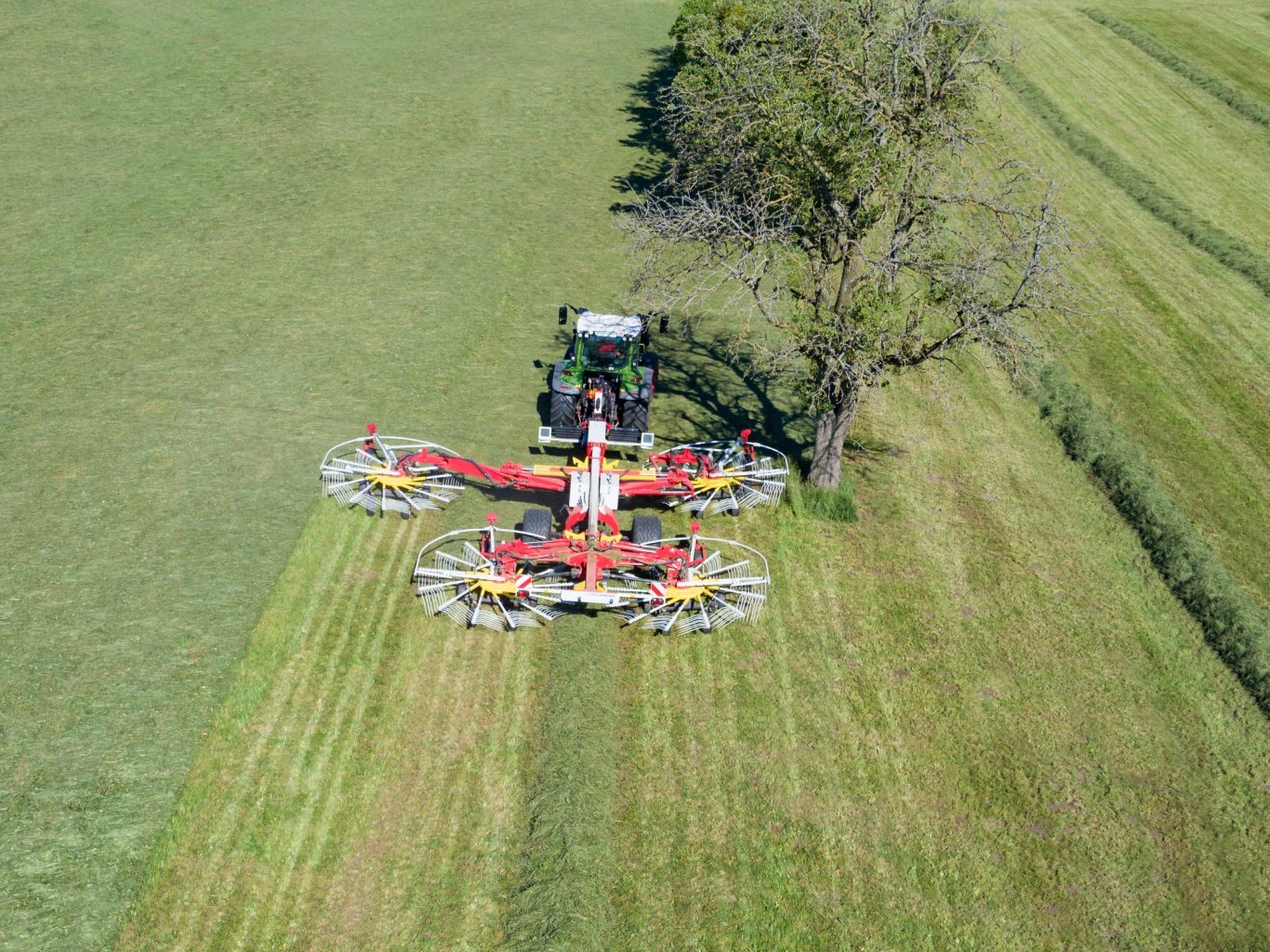

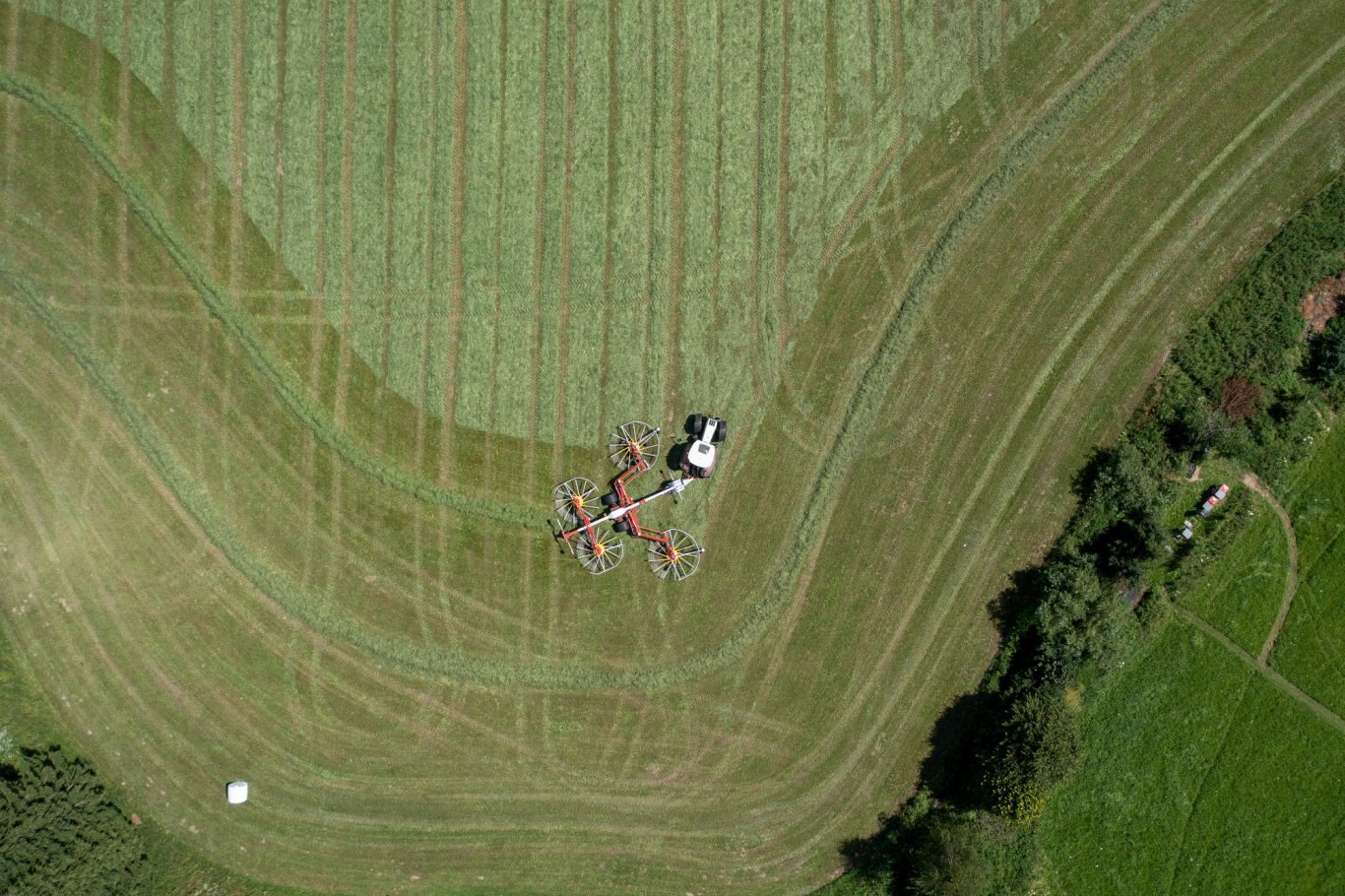

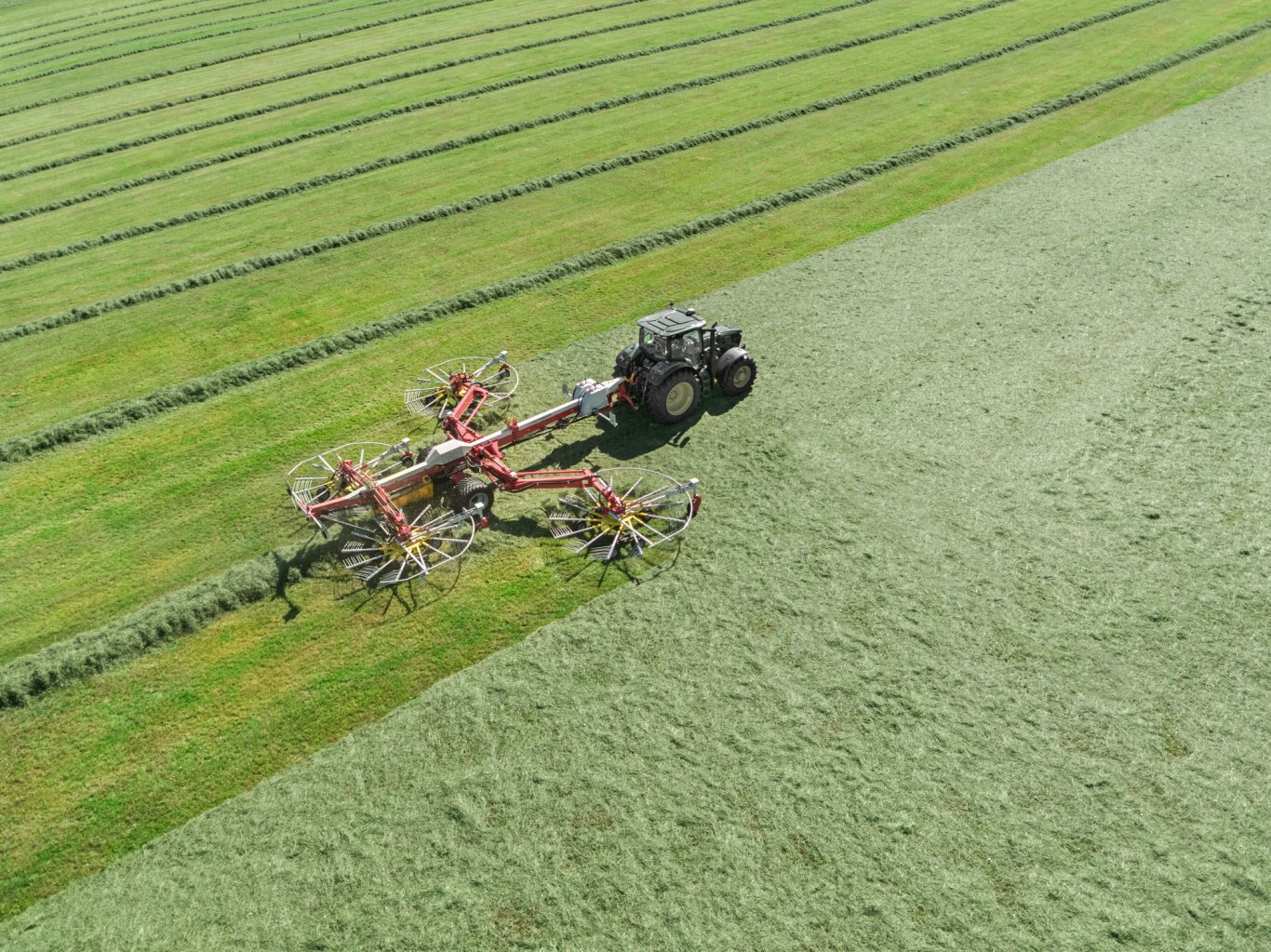

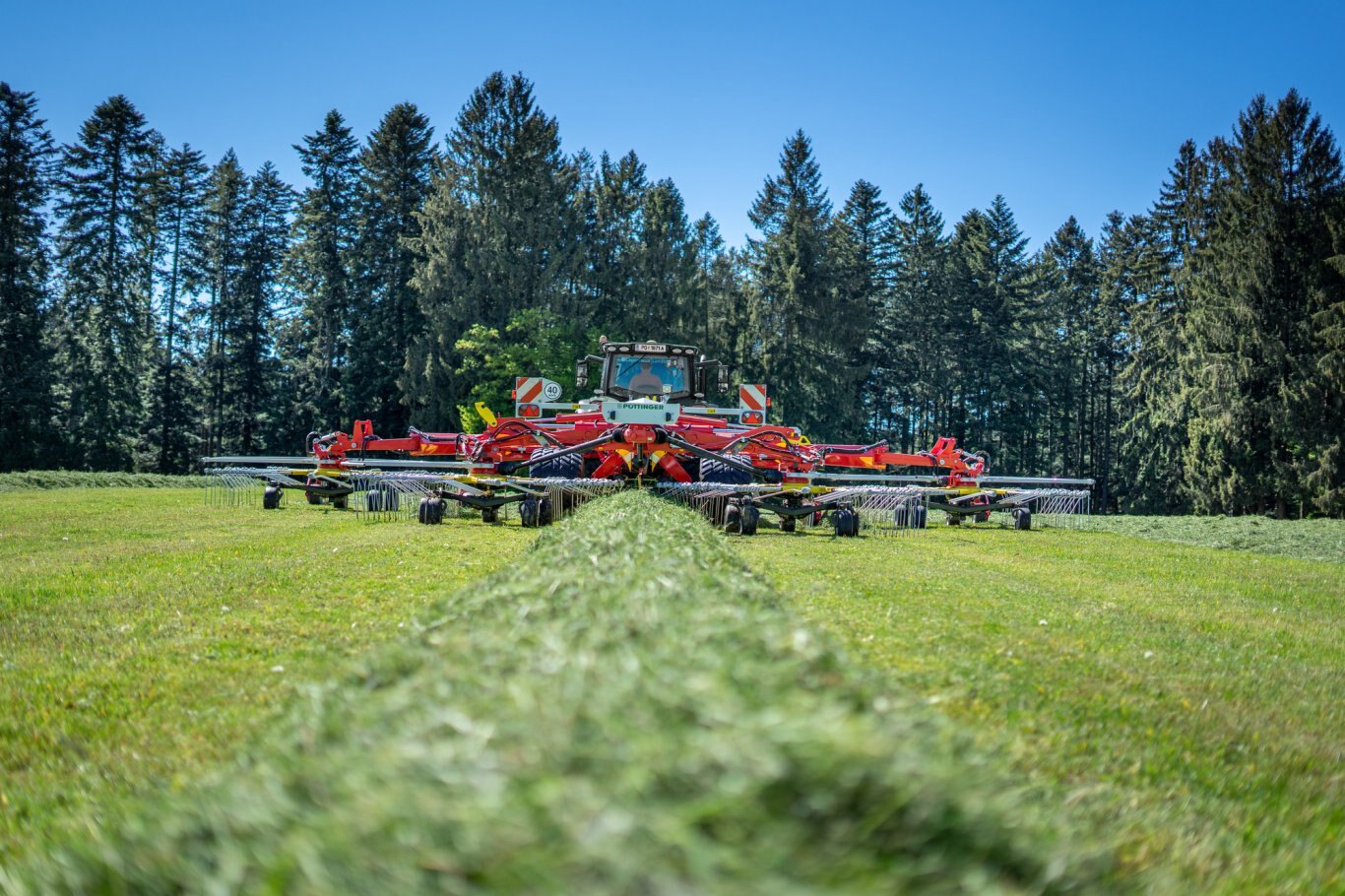

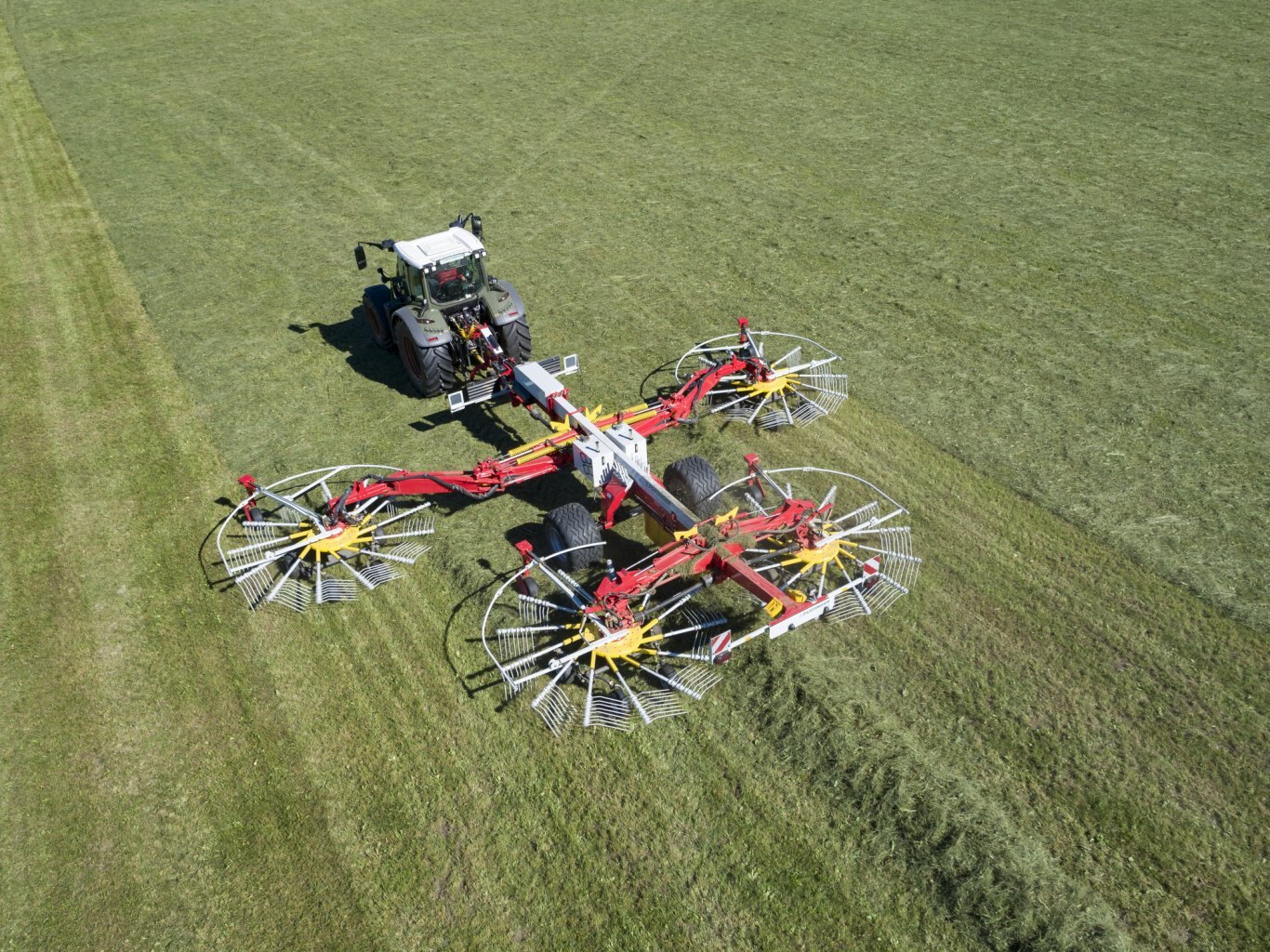

The four-rotor rakes give you maximum output thanks to their large raking widths and the many well thought-out details. The enormous range of working width ensures maximum flexibility during operation. Clean and tidy work across the full working width is also guaranteed by the optional MULTITAST jockey wheel system.
Model
TOP 1403 C
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Poettinger
Technical Data
| Working width | 29'6'' - 45'11'' (9 - 14 m) |
| Working width adjustment | Hydraulic |
| Swath width | 4'3'' - 7'3'' (1,3 - 2,2 m) |
| Rotor diameter front / rear | 3,7 / 3,45 |
| Transport width | 9'10'' (3 m) |
| Transport height | 13'1'' (3,99 m) |
| Transport length | 34'9'' (10,6 m) |
| Parking height without tine arms removed | 13'1'' (3,99 m) |
| Parking height with tine arms removed | - |
| Tine arms per rotor | 13 pcs. |
| Tine arms per rotor rear / front | - |
| Removable tine carrier arms per rotor | - |
| Tines per tine arm | 4 pcs. |
| Rotor unit | TOPTECH PLUS |
| PTO speed | 540 rpm |
| Weight | 14220 lbs (6450 kg) |
| Power requirement | 120 hp |
| Mounting | Trailed hydraulic folding |
| Rotor wheels | Pivoting |
| Tires - chassis | 620/40 R 22,5 |
| Swath placement in direction of travel | middle |
| Height adjustment system | Crank handle adjuster |
| Rotor chassis | 5-wheel chassis |
| Rotor tires (standard) | 16 x 6,5-8 |

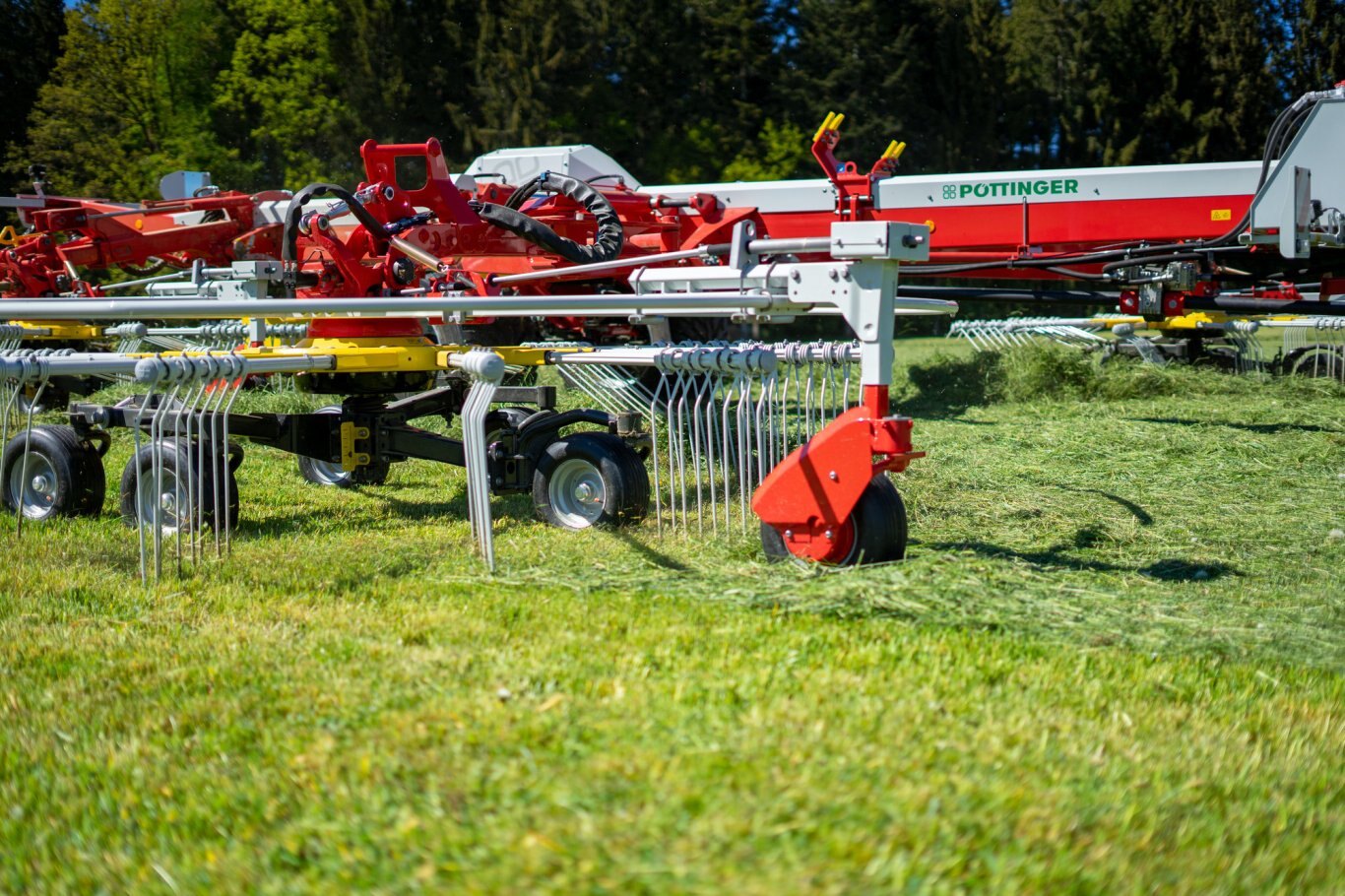

| Multitast wheels | Inner Multitast wheels on all rotors |
| Wide-angle PTO shaft optional | Wide-angle PTO shaft on one end |
Download
| Brochures | Link |
| POETTINGER_HIT_021.US.0822 | Download |
Videos
Model
TOP 1403 C
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Poettinger
Quantity
1
