ID # 36014567

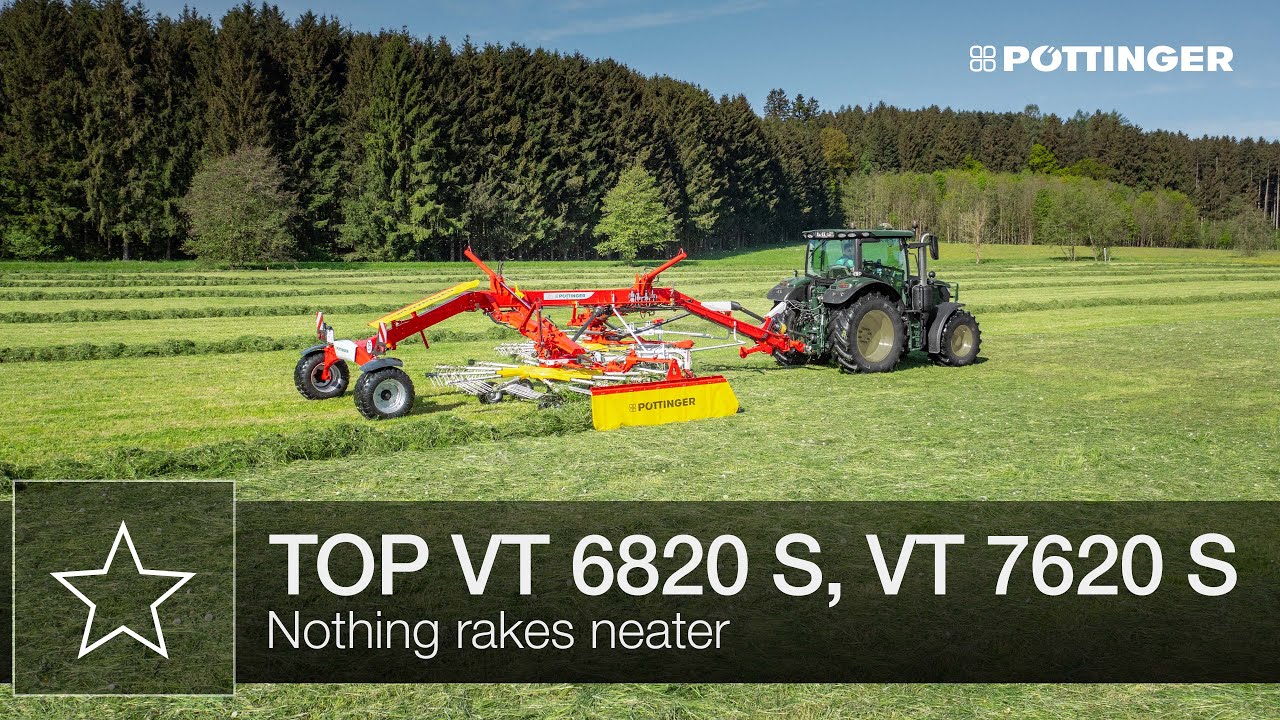

Poettinger TOP VT 7620 S
Call for Price
Overview
Specifications
technical data
downloads
Videos
TOP side rakes are your reliable partners in forage harvesting. Depending on the harvesting strategy, the swaths can either be placed separately, or two swaths can be placed together to double the forage volume. Depending on the model, a dual swath function is also available.
Model
TOP VT 7620 S
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Poettinger
Technical Data
| Working width | 7,6 m (7,6 m) |
| Working width dual-swath function | 0'3'' (8,6 cm) |
| Working width adjustment | fixed width |
| Swath width | 2'7'' - 4'11'' (0,8 - 1,5 m) |
| Rotor diameter | 12'2'' (3,7 m) |
| Rotor diameter front / rear | - |
| Transport width | 9'6'' / (2,9 / m) |
| Transport height | 13'1'' (3,99 m) |
| Transport length | 30'8'' (9,35 m) |
| Transport length | - |
| Parking height without tine arms removed | 13'1'' (3,99 m) |
| Parking height with tine arms removed * | 11'10'' (3,6 m) |
| Tine arms per rotor | 13 pcs. |
| Tine arms per rotor rear / front | - |
| Removable tine carrier arms per rotor | 13 |
| Tines per tine arm | 4 pcs. |
| Rotor unit | TOPTECH PLUS |
| PTO speed | 540 rpm |
| Weight | 5952 lbs (2700 kg) |
| Power requirement | 75 hp |
| Mounting | Trailed hydraulic folding |
| Tires - chassis | 340/55-16 |
| Swath placement in direction of travel | Right |
| Height adjustment system | Crank handle adjuster |
| Axle | 5-wheel chassis incl, tandem axles |
| Rotor tires (standard) | 16 x 6,5-8 |
| Multitast wheels | Inner Multitast wheels on all rotors |
| Wide-angle PTO shaft optional | Wide-angle PTO shaft on one end |
Download
| Brochures | Link |
| POETTINGER_HIT_021.US.0822 | Download |
Videos
Model
TOP VT 7620 S
Category Name
Agriculture
Year
2025
Sale Type
New
Manufacturer
Poettinger
Quantity
1
